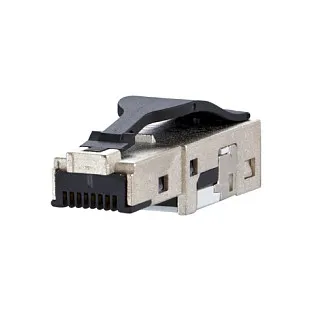

METZ CONNECT 1401400812-E. Product colour: Steel. Width: 12.9 mm, Depth: 40.2 mm, Height: 14.7 mm. Quantity per pack: 1 pc(s)
Cat.6 Class ea plug to be assembled in the field
compliance with class ea according to iso/iec 11801, din en 50173-1
suitable for 10 gbit ethernet (ieee 802.3An), remote powering (poe, poe plus, upoe and 4ppoe) and hdbaset
8-wire rj45 plug for awg 22 to be assembled in the field
connection of awg 26/7 – 22/7, awg 26/1 – 22/1 possible
solid wire cu conductor diameter 0.409 – 0.64 Mm
stranded copper wire diameter from 0.48 To 0.76 Mm
conductor diameter up to 1.6 Mm
consists of only 2 parts
easy assembly – connection without special tools
zinc die-cast housing for industrial use
with locking lever
variants: t568a, t568b, industry
compliance with class ea according to iso/iec 11801, din en 50173-1
suitable for 10 gbit ethernet (ieee 802.3An), remote powering (poe, poe plus, upoe and 4ppoe) and hdbaset
8-wire rj45 plug for awg 22 to be assembled in the field
connection of awg 26/7 – 22/7, awg 26/1 – 22/1 possible
solid wire cu conductor diameter 0.409 – 0.64 Mm
stranded copper wire diameter from 0.48 To 0.76 Mm
conductor diameter up to 1.6 Mm
consists of only 2 parts
easy assembly – connection without special tools
zinc die-cast housing for industrial use
with locking lever
variants: t568a, t568b, industry
Features
Product colour: Steel
Weight & dimensions
Width: 12.9 mm
Depth: 40.2 mm
Height: 14.7 mm
Packaging content
Quantity per pack: 1 pc(s)
Product colour: Steel
Weight & dimensions
Width: 12.9 mm
Depth: 40.2 mm
Height: 14.7 mm
Packaging content
Quantity per pack: 1 pc(s)
