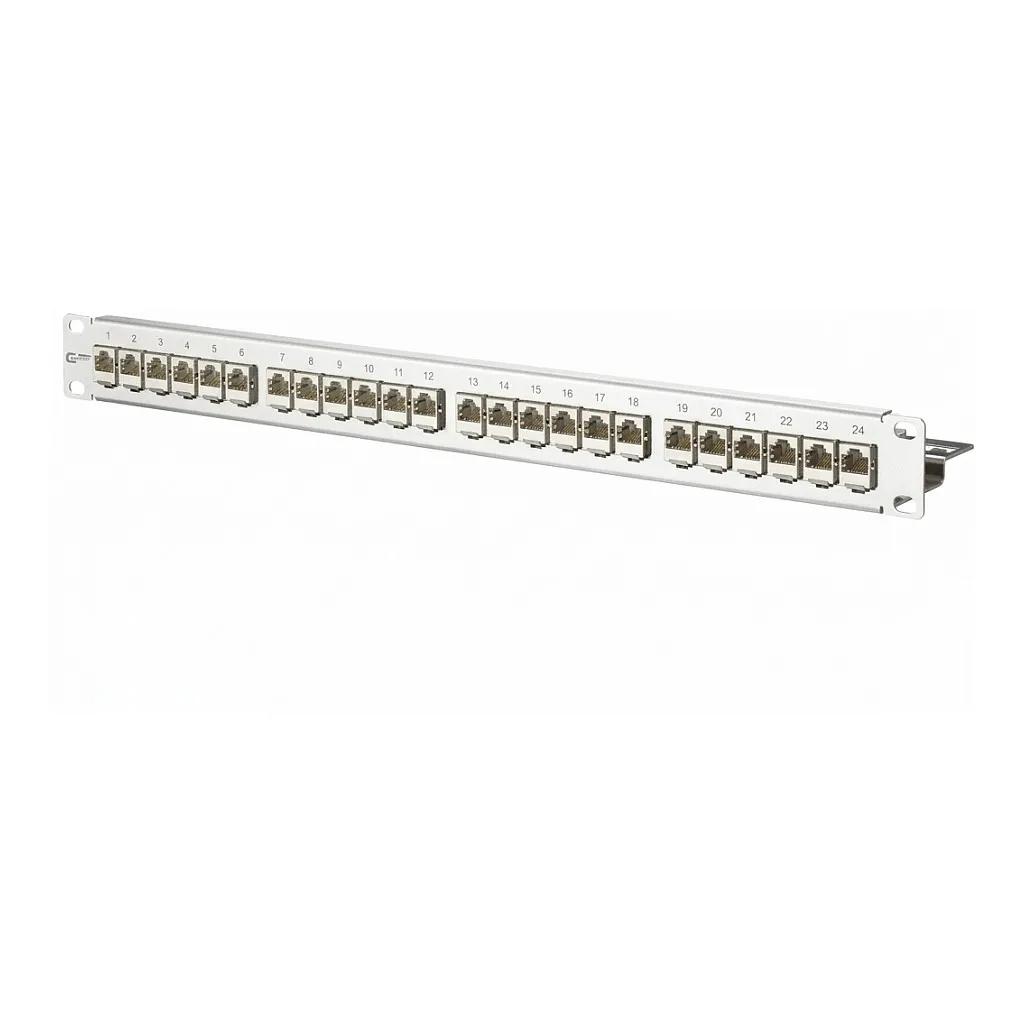

METZ CONNECT 130921-E. Networking standards: IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, Ethernet interface type: 10 Gigabit, Cable types supported: Cat6a. Mounting: Rack mounting, Rack capacity: 1U, Product colour: White. Compliance certificates: RoHS. Width: 442 mm, Height: 100 mm, Depth: 44.5 mm. Package width: 520 mm, Package length: 4.6 cm, Package height: 180 mm
– 19 inch 1RU stainless steel module frame with 24 individual „E-DAT modul” modules
– component testing for Cat.6A to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09, TIA/EIA-568-C.2 (2009-08) and IEC 60603-7-51 Ed.1 (12/2008), certified to GHMT
– compliance with class EA to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09
– tested: Link to 500 MHz
– suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus and UPoE) and HDBaseT
– easy to install connection of 2 to 4-pair data lines AWG 26/1 – 22/1 and stranded wires with 7 copper conductors AWG 26/7 – 22/7 to BTR 8-fold insulation displacement connectors (IDC)
– marking of conductor assignment to T568A or T568B
– integrated cable support with optional strain relief
– grounding bolt M6 x 10 with nut and lock washer
– incl. 30 cm grounding cable
– all fully shielded modules connected by means of grounding rail
– component testing for Cat.6A to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09, TIA/EIA-568-C.2 (2009-08) and IEC 60603-7-51 Ed.1 (12/2008), certified to GHMT
– compliance with class EA to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09
– tested: Link to 500 MHz
– suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus and UPoE) and HDBaseT
– easy to install connection of 2 to 4-pair data lines AWG 26/1 – 22/1 and stranded wires with 7 copper conductors AWG 26/7 – 22/7 to BTR 8-fold insulation displacement connectors (IDC)
– marking of conductor assignment to T568A or T568B
– integrated cable support with optional strain relief
– grounding bolt M6 x 10 with nut and lock washer
– incl. 30 cm grounding cable
– all fully shielded modules connected by means of grounding rail
Network
Networking standards: IEEE 802.3af, IEEE 802.3an, IEEE 802.3at
Ethernet interface type: 10 Gigabit
Ports quantity: 24
Cable types supported: Cat6a
Design
Product colour: White
Mounting: Rack mounting
Rack capacity: 1U
Power
Feature: Power over Ethernet (PoE)
Certificates
Compliance certificates: RoHS
Operational conditions
Operating temperature (T-T): -40 – 70 °C
Storage temperature (T-T): -40 – 70 °C
Weight & dimensions
Width: 442 mm
Height: 100 mm
Depth: 44.5 mm
Packaging data
Package width: 520 mm
Package length: 4.6 cm
Package height: 180 mm
Package weight: 1.8 kg
Package type: Box
Networking standards: IEEE 802.3af, IEEE 802.3an, IEEE 802.3at
Ethernet interface type: 10 Gigabit
Ports quantity: 24
Cable types supported: Cat6a
Design
Product colour: White
Mounting: Rack mounting
Rack capacity: 1U
Power
Feature: Power over Ethernet (PoE)
Certificates
Compliance certificates: RoHS
Operational conditions
Operating temperature (T-T): -40 – 70 °C
Storage temperature (T-T): -40 – 70 °C
Weight & dimensions
Width: 442 mm
Height: 100 mm
Depth: 44.5 mm
Packaging data
Package width: 520 mm
Package length: 4.6 cm
Package height: 180 mm
Package weight: 1.8 kg
Package type: Box
