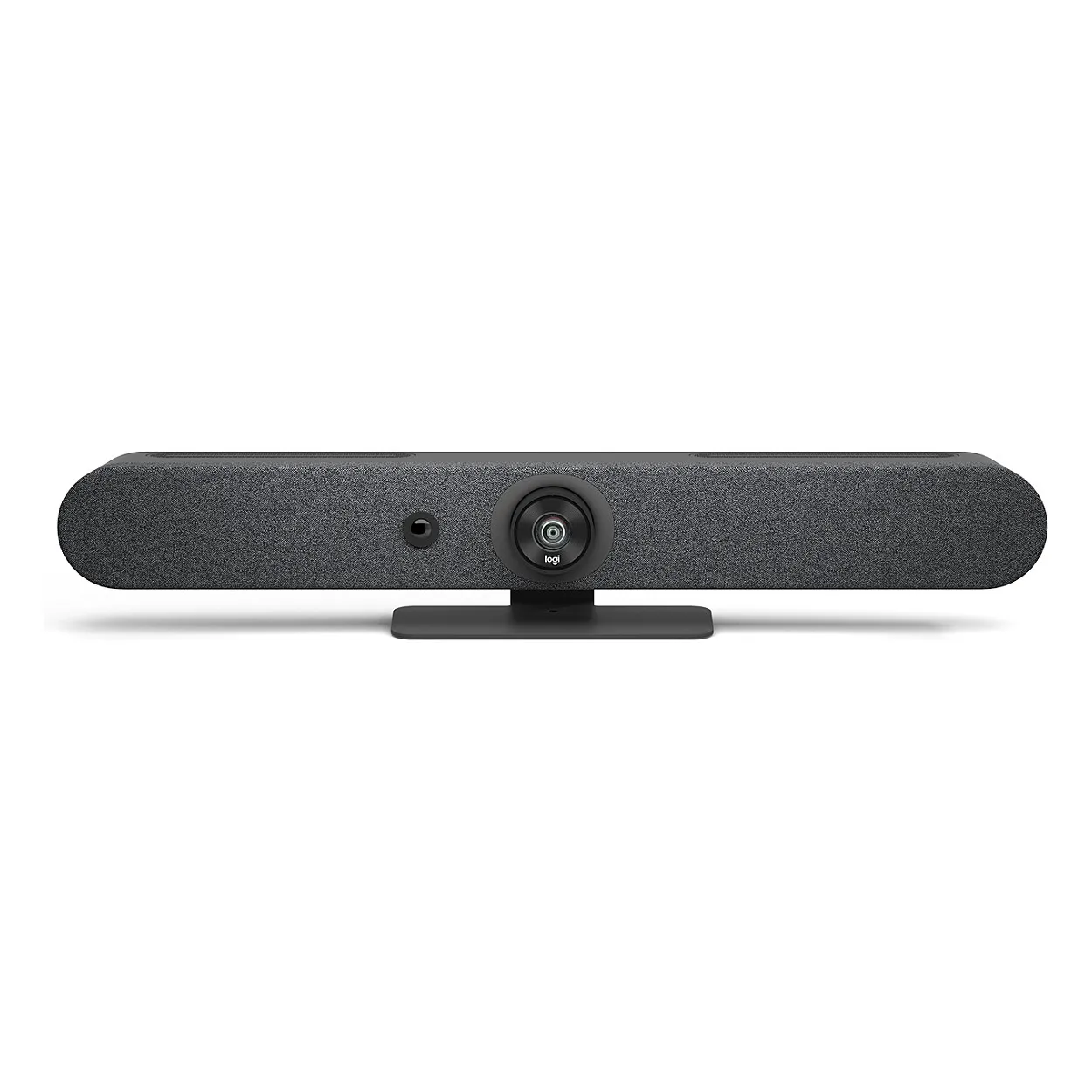

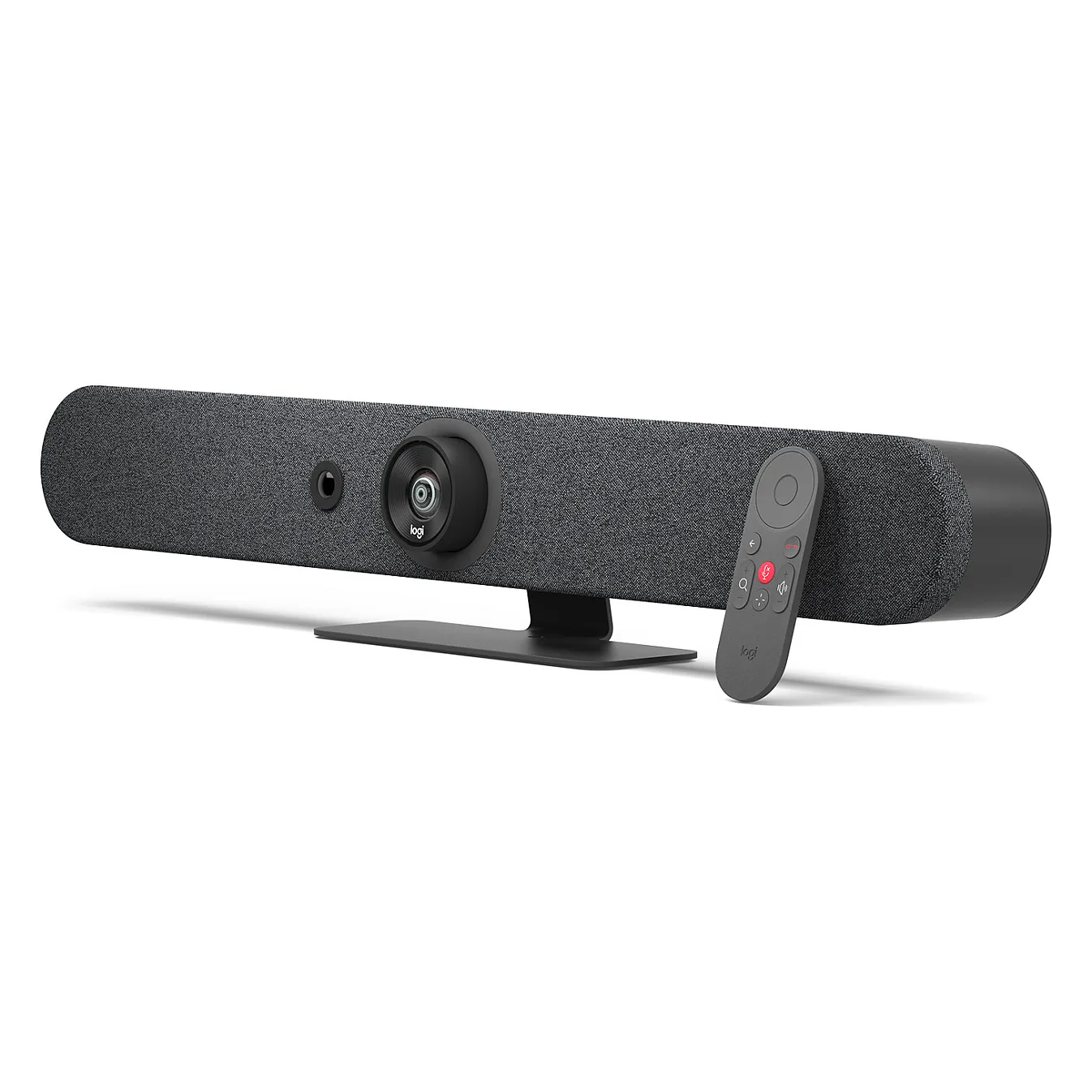

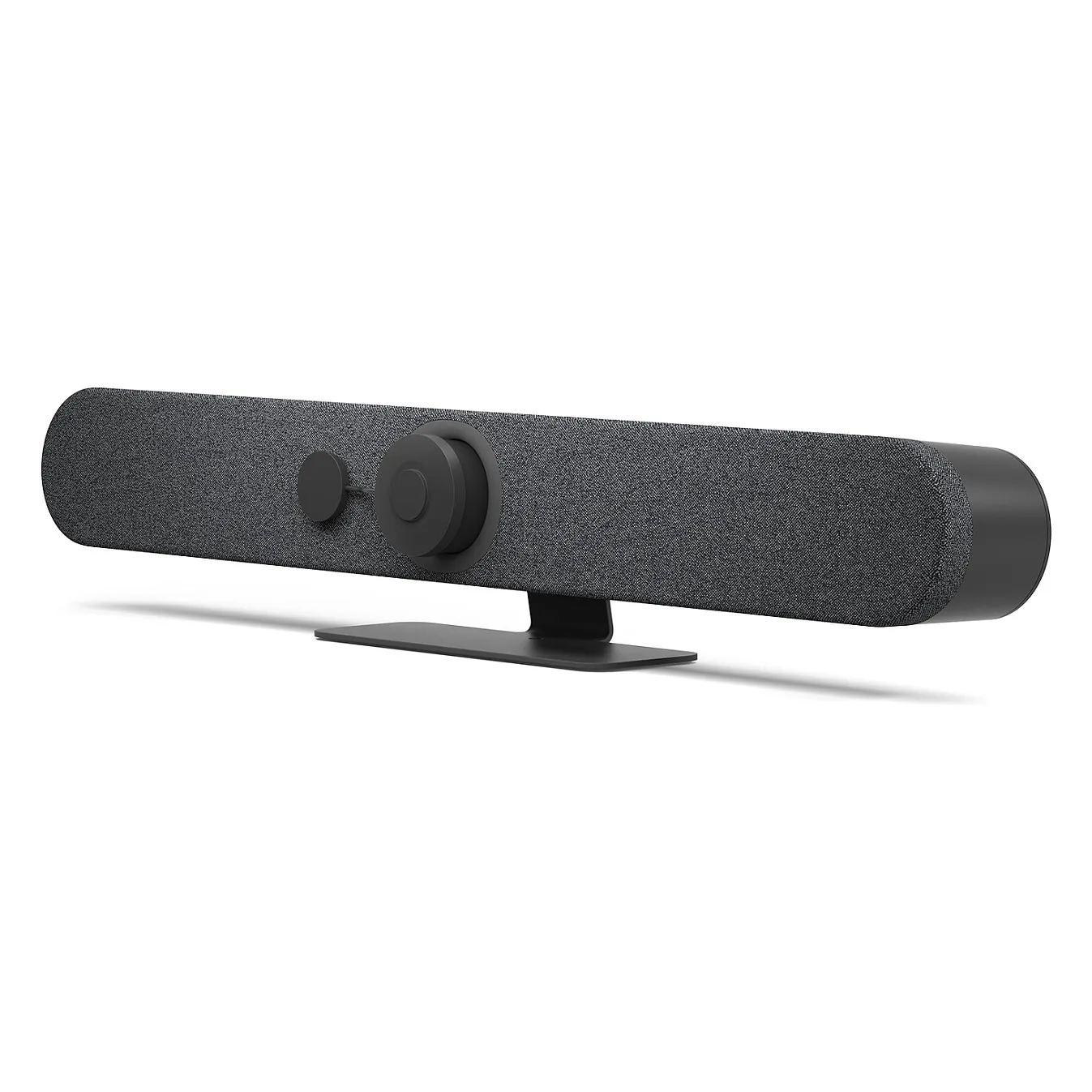

Logitech Rally Bar Mini. Product type: Group video conferencing system. HD type: 4K Ultra HD, Supported video modes: 576p, 720p, 900p, 1440p, 2160p, Maximum frame rate: 30 fps. Digital zoom: 4x. Ethernet LAN, Wi-Fi. Product colour: Graphite
Performance
Product colour: Graphite
Product type: Group video conferencing system
Pan range: -25 – 25°
Tilt angle range: -15 – 15°
PTZ control: Yes
Video
HD type: 4K Ultra HD
Supported video modes: 576p, 720p, 900p, 1440p, 2160p
Maximum frame rate: 30 fps
Audio
Built-in speaker(s): Yes
Output level: 92/99 dB
Line-out impedance: 4 Ω
Output voltage Total Harmonic Distortion (THD): 2%
Audio beamforming: Yes
Noise reduction: Yes
Echo cancellation: Yes
RMS rated power: 8 W
Microphone pick-up range: 4.5 m
Sample rates: 0 – 48 kHz
Ports & interfaces
HDMI ports quantity: 3
HDMI output ports quantity: 2
HDMI input ports quantity: 1
USB connector type: USB Type-A, USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
Ethernet LAN (RJ-45) ports: 1
DC-in jack: Yes
Microphone in: Yes
Network
Ethernet LAN: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Wi-Fi: Yes
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Supported network protocols: IPv4, IPv6
Security algorithms: 128-bit AES
Camera
Zoom capability: Yes
Digital zoom: 4x
Horizontal field of view: 113°
Vertical field of view: 80.7°
Diagonal field of view: 120°
Remote control interface: Bluetooth
Microphone
Microphone sensitivity: -36 dB
Microphone frequency: 90 – 16000 Hz
Microphone direction type: Omnidirectional
Sound pressure level (max): 90 dB
Number of microphones: 6
Features
Telepresence: No
Logistics data
Master (outer) case gross weight: 4.73 kg
Master (outer) case length: 330 mm
Master (outer) case width: 300 mm
Master (outer) case height: 160 mm
Harmonized System (HS) code: 85176990
Battery
Battery capacity: 0.675 Wh
Computer system
Windows operating systems supported: Yes
Mac operating systems supported: MacOS
System requirements
Minimum system requirements: Internet Connection: Wired or wirelessUSB Mode: Windows 11, Windows 10, the two most recent versions of macOSAppliance Mode: Room solution software licence (not included)
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 10 – 95%
Storage temperature (T-T): -40 – 70 °C
Heat dissipation: 64 BTU/h
Power
Power source type: AC
AC input voltage: 100 – 240 V
Current: 4.754 A
DC input voltage: 19 V
Battery technology: Lithium
Battery capacity: 220 mAh
Number of batteries supported: 1
Power plug type: Type C
Weight & dimensions
Width: 719 mm
Depth: 101 mm
Height: 91.4 mm
Weight: 4.03 kg
Packaging data
Package width: 191 mm
Package depth: 789 mm
Package height: 199 mm
Package weight: 5.8 kg
Packaging content
Cables included: AC, DC, HDMI, USB Type-A to USB Type-C
Power cable length: 2.5 m
HDMI cable length: 2 m
AC adapter included: Yes
Remote control included: Yes
Batteries included: Yes
Quick start guide: Yes
Packaging content: Rally Bar Mini Power supply AC power cord HDMI cable USB cable Remote control Lens caps for main lens and AI Viewfinder User documentation
