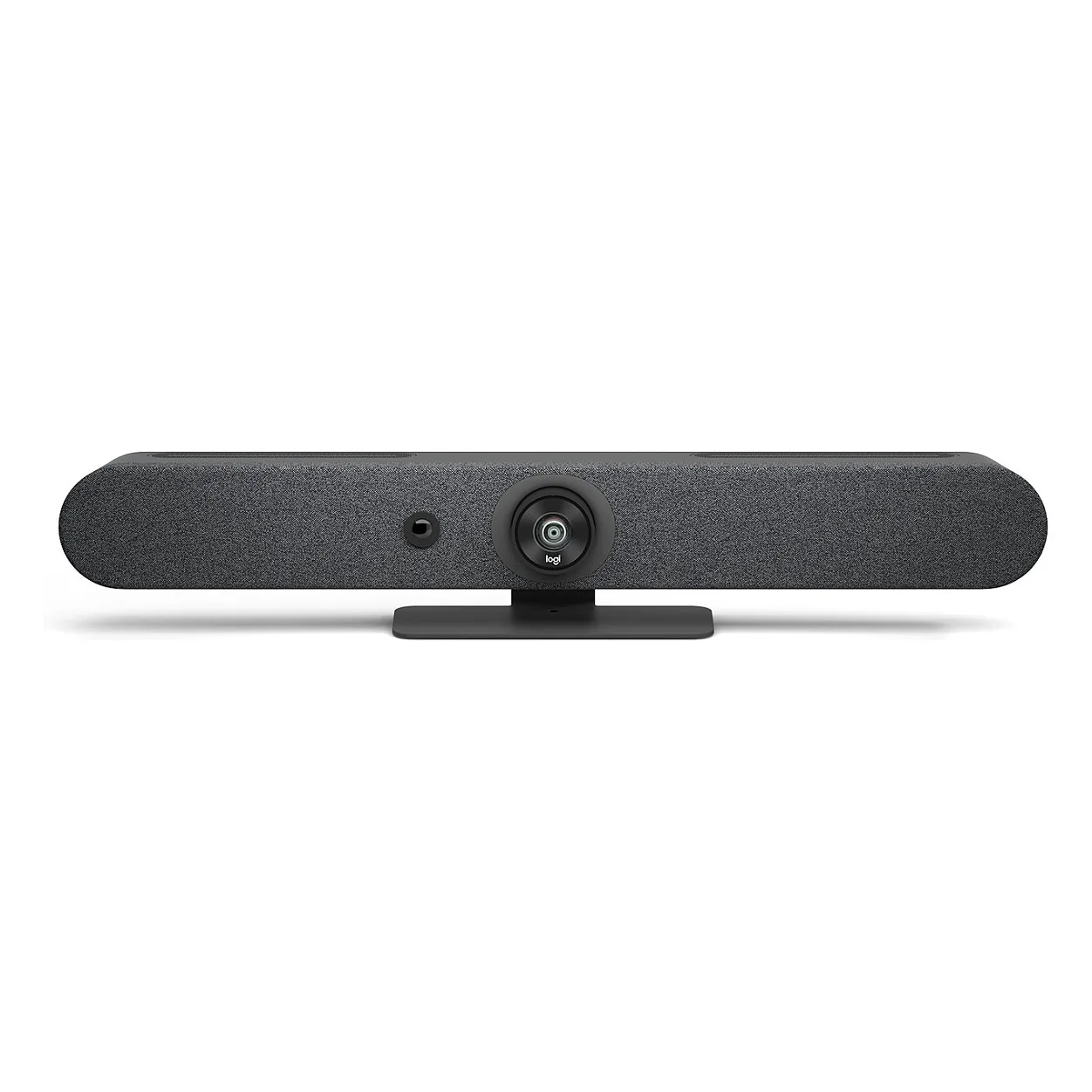

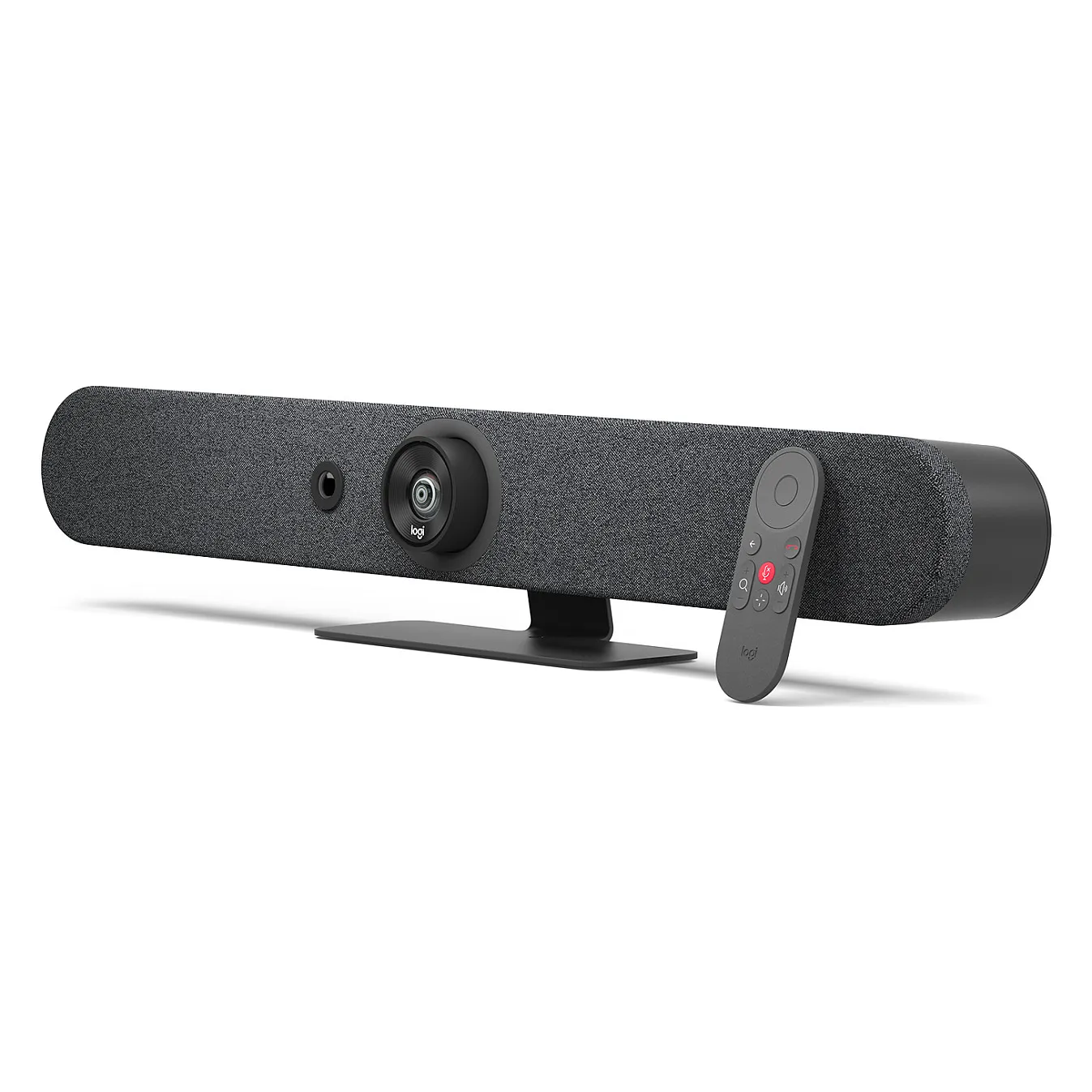

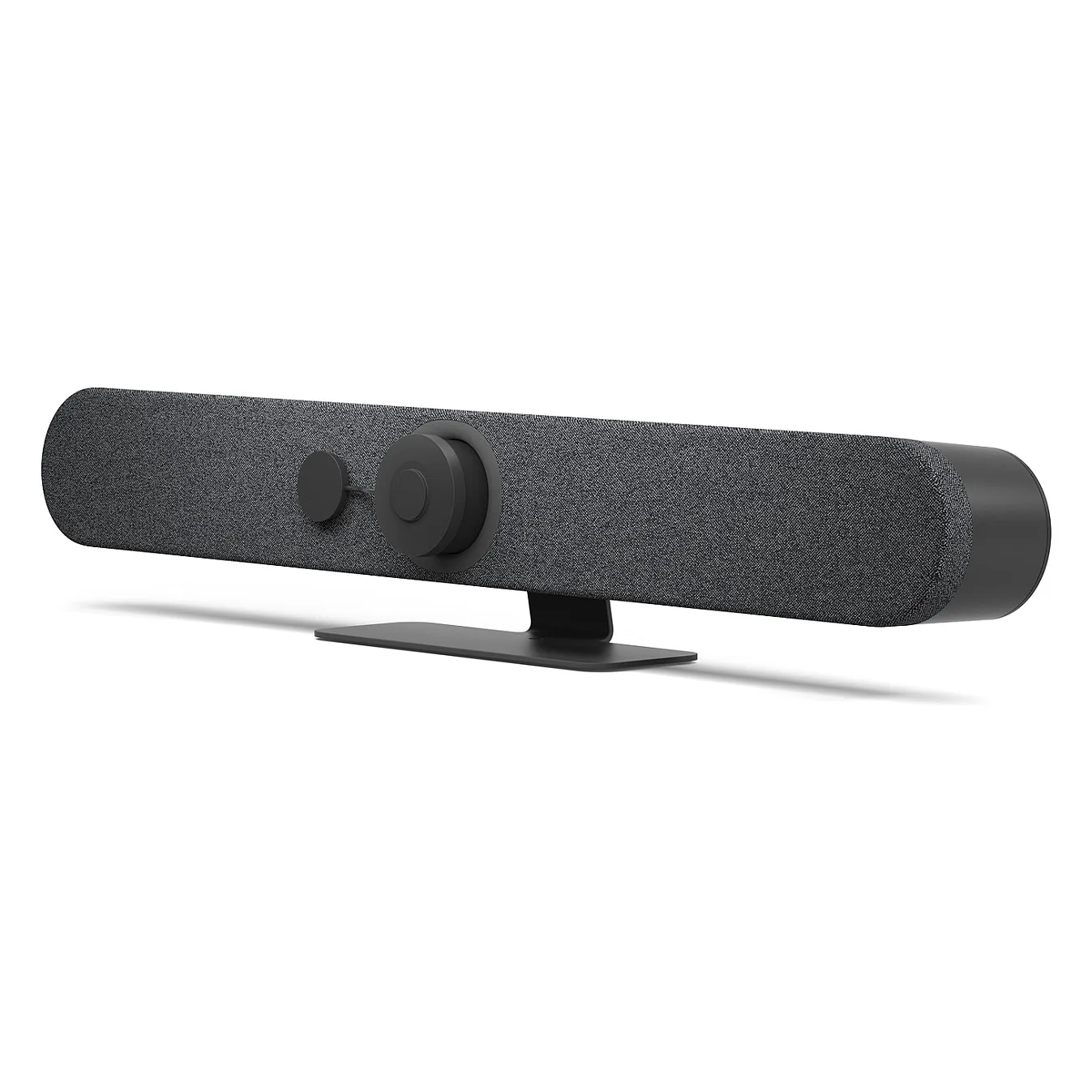

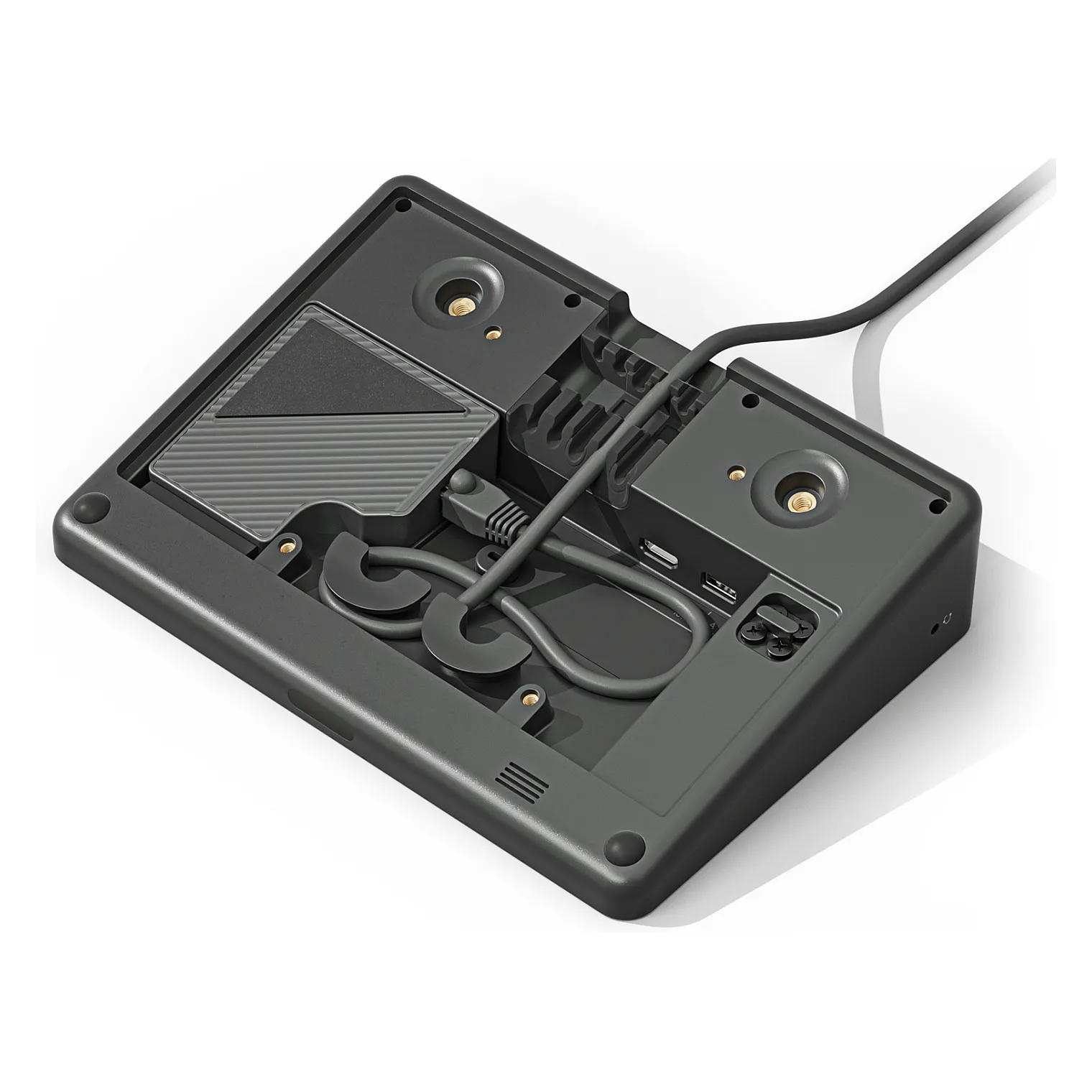

Logitech Rally Bar Mini + Tap Cat5. HD type: 4K Ultra HD, Supported video modes: 576p, 720p, 900p, 1440p, 2160p, Maximum frame rate: 30 fps. Digital zoom: 4x. Ethernet LAN, Wi-Fi. Display: IPS, Display diagonal: 25.6 cm (10.1"), Display resolution: 1280 x 800 pixels. Product colour: Graphite
Performance
Product colour: Graphite
Pan range: -25 – 25°
Tilt angle range: -15 – 15°
Feature: PTZ control
Video
HD type: 4K Ultra HD
Maximum video resolution: 3840 x 2160 pixels
Supported video modes: 576p, 720p, 900p, 1440p, 2160p
Maximum frame rate: 30 fps
Audio
Feature: Built-in speaker(s)
Output level: 92/99 dB
Line-out impedance: 4 Ω
Output voltage Total Harmonic Distortion (THD): 2%
Feature: Audio beamforming
Feature: Noise reduction
Feature: Echo cancellation
RMS rated power: 8 W
Microphone pick-up range: 4.5 m
Sample rates: 0 – 48 kHz
Driver diameter: 7 cm
Ports & interfaces
HDMI ports quantity: 3
HDMI output ports quantity: 2
HDMI input ports quantity: 1
USB connector type: USB Type-A, USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Feature: DC-in jack
Feature: Microphone in
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Supported network protocols: IPv4, IPv6
Security algorithms: 128-bit AES
Camera
Feature: Zoom capability
Digital zoom: 4x
Horizontal field of view: 113°
Vertical field of view: 80.7°
Diagonal field of view: 120°
Remote control interface: Bluetooth

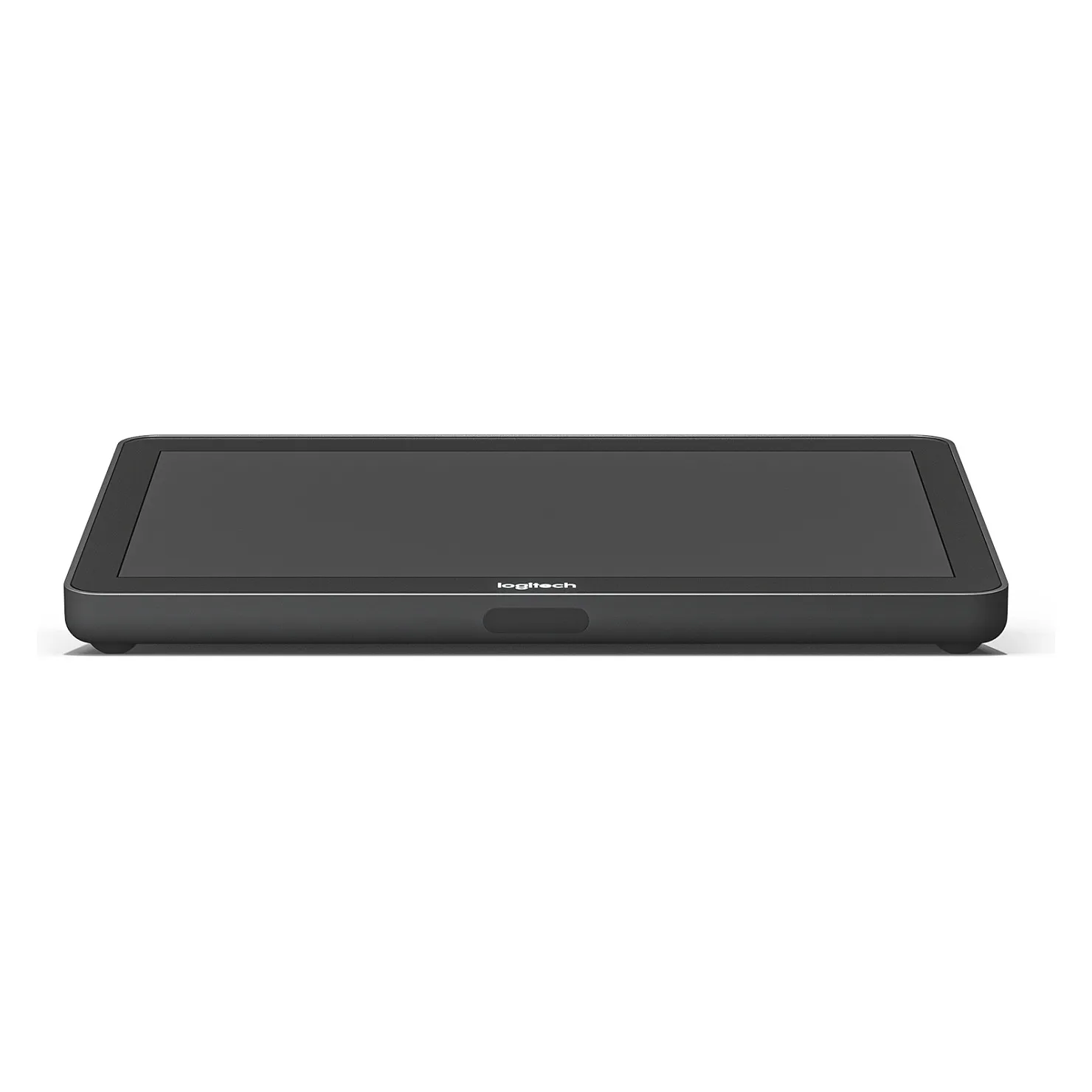

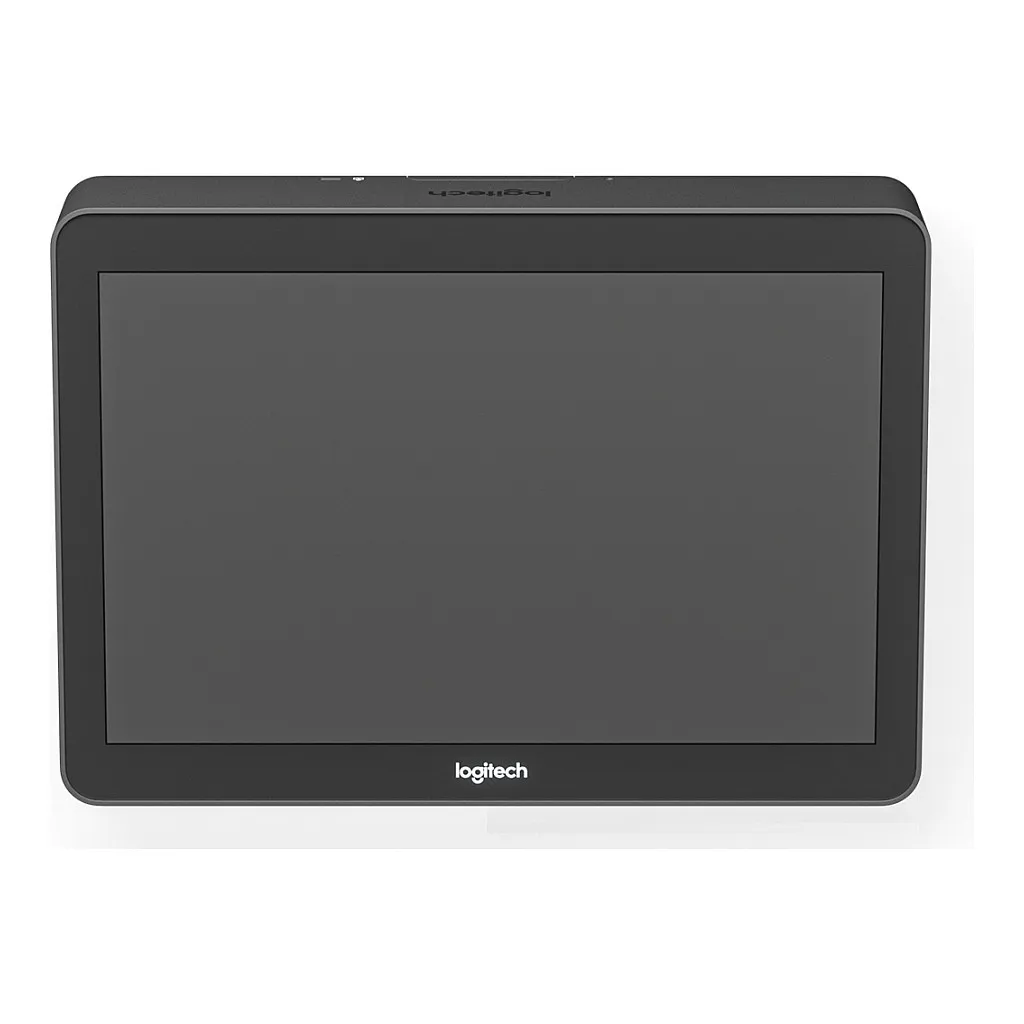

Display
Display: IPS
Display diagonal: 25.6 cm (10.1″)
Display resolution: 1280 x 800 pixels
Contrast ratio (typical): 1000:1
Feature: Touchscreen
Touchscreen type: Capacitive
Viewing angle, horizontal: 85°
Viewing angle, vertical: 85°
Display brightness: 400 cd/m²
Feature: Oleophobic coating
Microphone
Microphone sensitivity: -36 dB
Microphone frequency: 90 – 16000 Hz
Microphone direction type: Omnidirectional
Sound pressure level (max): 90 dB
Number of microphones: 6
Features
Feature: Motion sensor
Feature: Cable lock slot
Cable lock slot type: Kensington
Computer system
Windows operating systems supported: Windows 10, Windows 11
Mac operating systems supported: Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 10 – 95%
Storage temperature (T-T): -40 – 70 °C
Power
Power source type: AC
AC input voltage: 100 – 240 V
Current: 4.74 A
DC input voltage: 19 V
Weight & dimensions
Interface module dimensions (W x D x H): 244 x 179 x 58 mm
Interface module weight: 1.25 kg
Width: 719 mm
Depth: 101 mm
Height: 91.4 mm
Weight: 4.03 kg

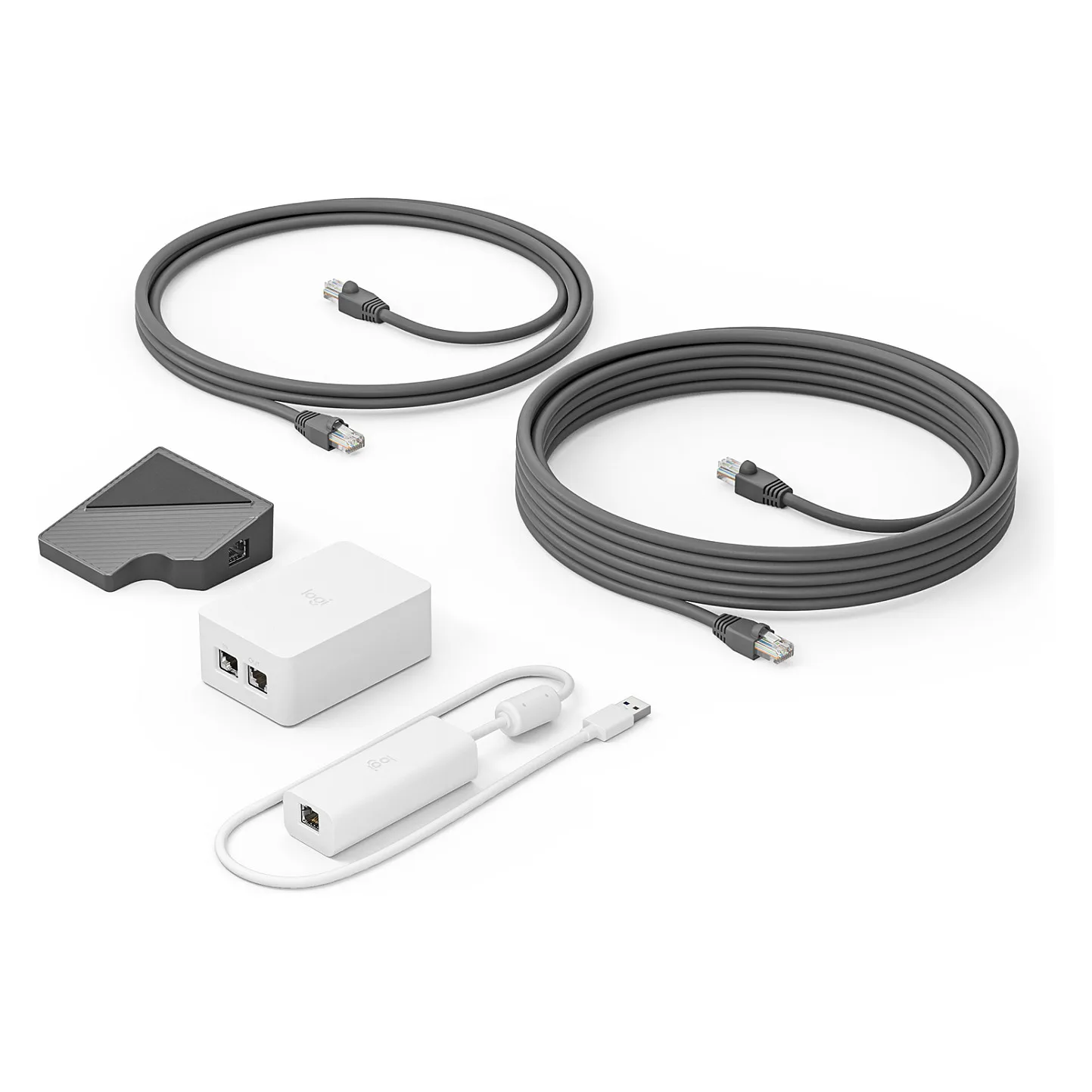

Packaging content
Cables included: AC, DC, HDMI, USB Type-A to USB Type-C
Power cable length: 1.5 m
HDMI cable length: 2 m
Feature: AC adapter included
Feature: Mounting kit
Feature: Remote control included
Feature: Camera included
Feature: Quick start guide
Product colour: Graphite
Pan range: -25 – 25°
Tilt angle range: -15 – 15°
Feature: PTZ control
Video
HD type: 4K Ultra HD
Maximum video resolution: 3840 x 2160 pixels
Supported video modes: 576p, 720p, 900p, 1440p, 2160p
Maximum frame rate: 30 fps
Audio
Feature: Built-in speaker(s)
Output level: 92/99 dB
Line-out impedance: 4 Ω
Output voltage Total Harmonic Distortion (THD): 2%
Feature: Audio beamforming
Feature: Noise reduction
Feature: Echo cancellation
RMS rated power: 8 W
Microphone pick-up range: 4.5 m
Sample rates: 0 – 48 kHz
Driver diameter: 7 cm
Ports & interfaces
HDMI ports quantity: 3
HDMI output ports quantity: 2
HDMI input ports quantity: 1
USB connector type: USB Type-A, USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Feature: DC-in jack
Feature: Microphone in
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Supported network protocols: IPv4, IPv6
Security algorithms: 128-bit AES
Camera
Feature: Zoom capability
Digital zoom: 4x
Horizontal field of view: 113°
Vertical field of view: 80.7°
Diagonal field of view: 120°
Remote control interface: Bluetooth
Display
Display: IPS
Display diagonal: 25.6 cm (10.1″)
Display resolution: 1280 x 800 pixels
Contrast ratio (typical): 1000:1
Feature: Touchscreen
Touchscreen type: Capacitive
Viewing angle, horizontal: 85°
Viewing angle, vertical: 85°
Display brightness: 400 cd/m²
Feature: Oleophobic coating
Microphone
Microphone sensitivity: -36 dB
Microphone frequency: 90 – 16000 Hz
Microphone direction type: Omnidirectional
Sound pressure level (max): 90 dB
Number of microphones: 6
Features
Feature: Motion sensor
Feature: Cable lock slot
Cable lock slot type: Kensington
Computer system
Windows operating systems supported: Windows 10, Windows 11
Mac operating systems supported: Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 10 – 95%
Storage temperature (T-T): -40 – 70 °C
Power
Power source type: AC
AC input voltage: 100 – 240 V
Current: 4.74 A
DC input voltage: 19 V
Weight & dimensions
Interface module dimensions (W x D x H): 244 x 179 x 58 mm
Interface module weight: 1.25 kg
Width: 719 mm
Depth: 101 mm
Height: 91.4 mm
Weight: 4.03 kg
Packaging content
Cables included: AC, DC, HDMI, USB Type-A to USB Type-C
Power cable length: 1.5 m
HDMI cable length: 2 m
Feature: AC adapter included
Feature: Mounting kit
Feature: Remote control included
Feature: Camera included
Feature: Quick start guide
