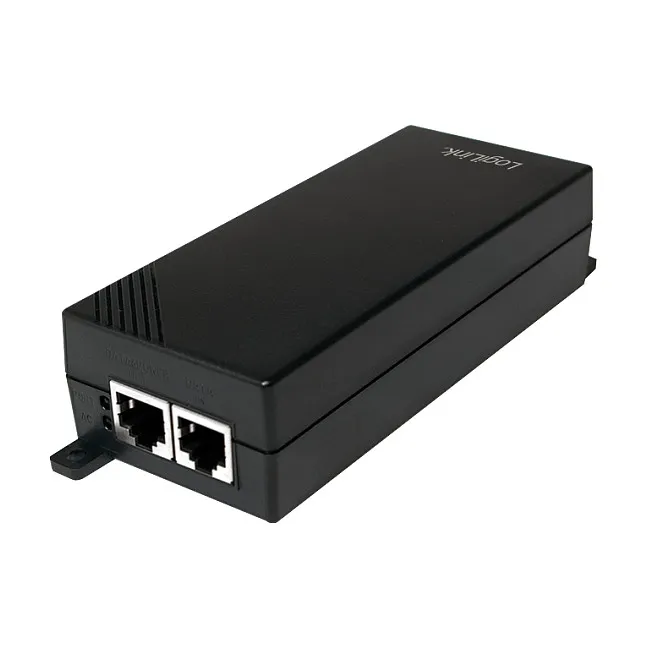

LogiLink POE004. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000 BASE T(X). Product colour: Black, Power protection features: Overload, Short circuit. Power over Ethernet (PoE) voltage: 53 V, AC adapter input voltage: 100 – 240 V, AC adapter frequency: 50/60 Hz. Compliance industry standards: RoHS. Dimensions (WxDxH): 58 x 155 x 36 mm
– Automatically detects PoE terminals and supplies inline power
– Interface: One connector (Data port) for connecting to the passive hub or switch and one connector (Data & power port) for connecting to the PoE PD
– Standard: IEEE802.3 10BASE-T / IEEE802.3u 100BASE-TX / IEEE802.3ab 1000BASE-T / IEEE802.3af
– LED Definition: Power: Green LED (1x), Light off: not connect PD or fail, Light on: connect PD
– AC: Green LED (1x), Light off: power off or fail, Light on: power on
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000 BASE T(X)
Feature: Power over Ethernet (PoE)
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Features
Product colour: Black
LED indicators: Yes
Power protection features: Overload, Short circuit
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
Power
Power over Ethernet (PoE) voltage: 53 V
AC adapter input voltage: 100 – 240 V
AC adapter frequency: 50/60 Hz
Power over Ethernet (PoE) power per port: 30 W
Certificates
Compliance industry standards: RoHS
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 10 – 90%
Storage temperature (T-T): -40 – 70 °C
Storage relative humidity (H-H): 5 – 90%
Weight & dimensions
Dimensions (WxDxH): 58 x 155 x 36 mm
Packaging content
Number of products included: 1 pc(s)
Feature: Power cord included
Feature: Manual
Packaging data
Package width: 197 mm
Package height: 65 mm
Package weight: 464 g
Logistics data
Harmonized System (HS) code: 85044090
Country of origin: China
