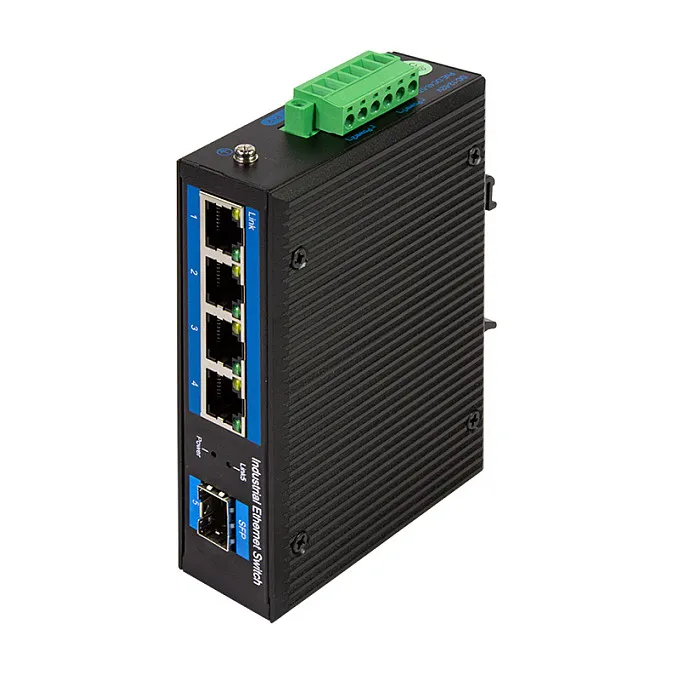

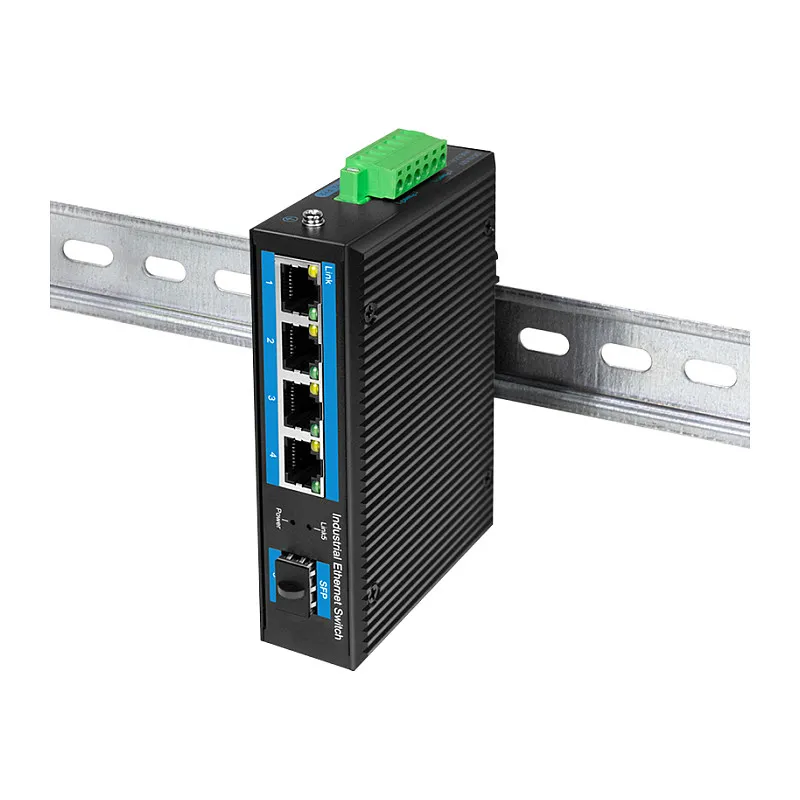

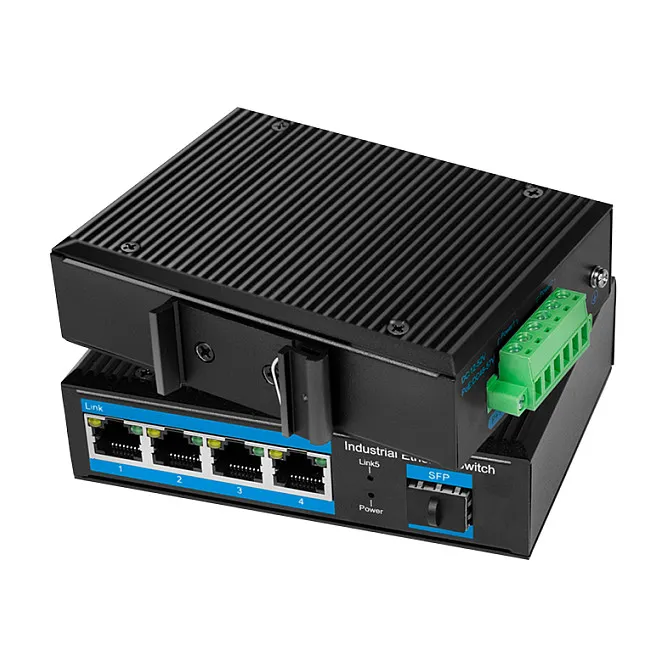

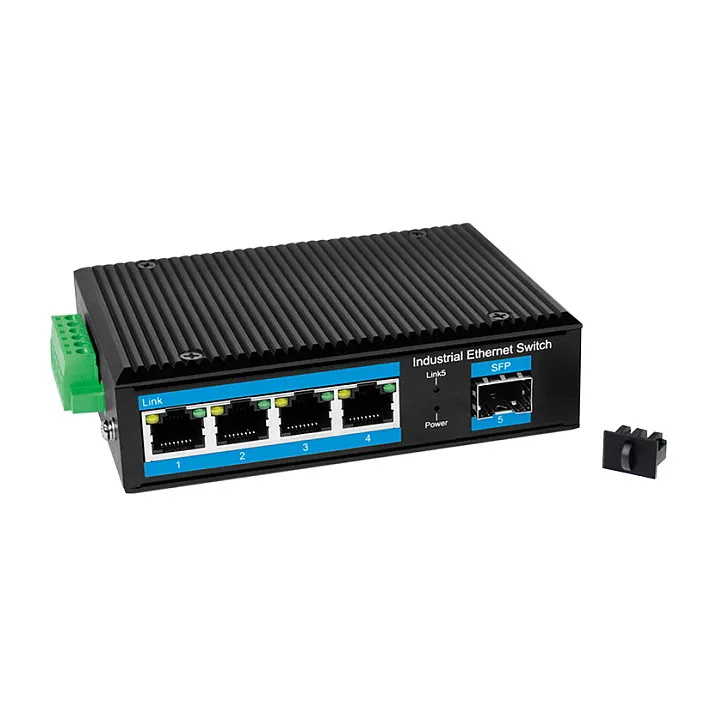

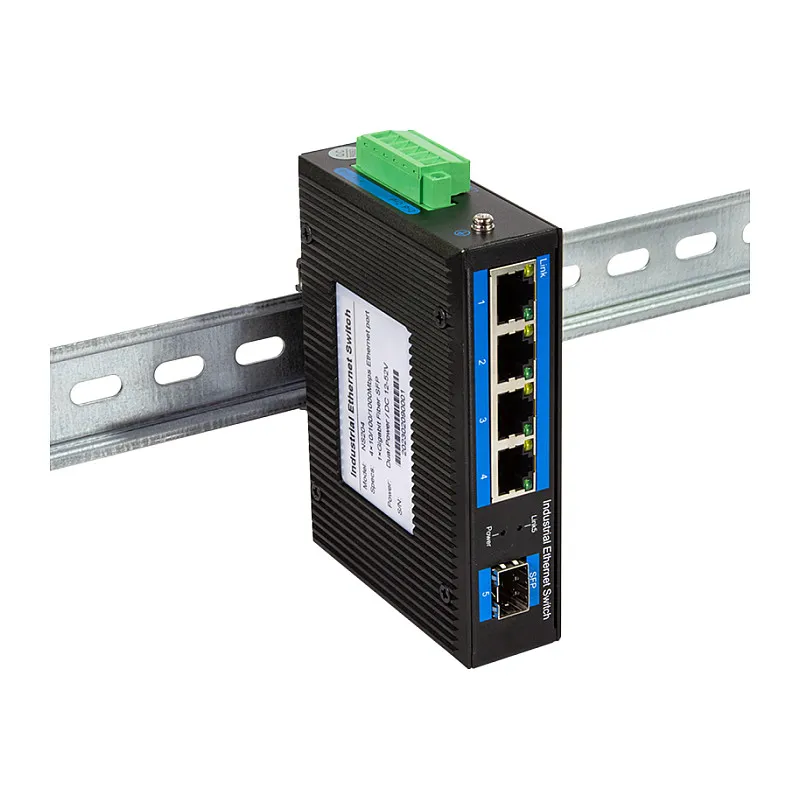

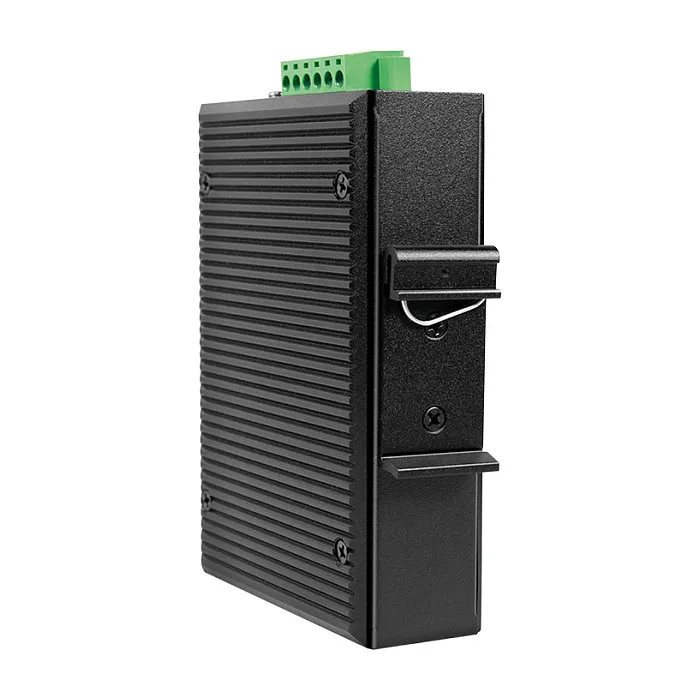

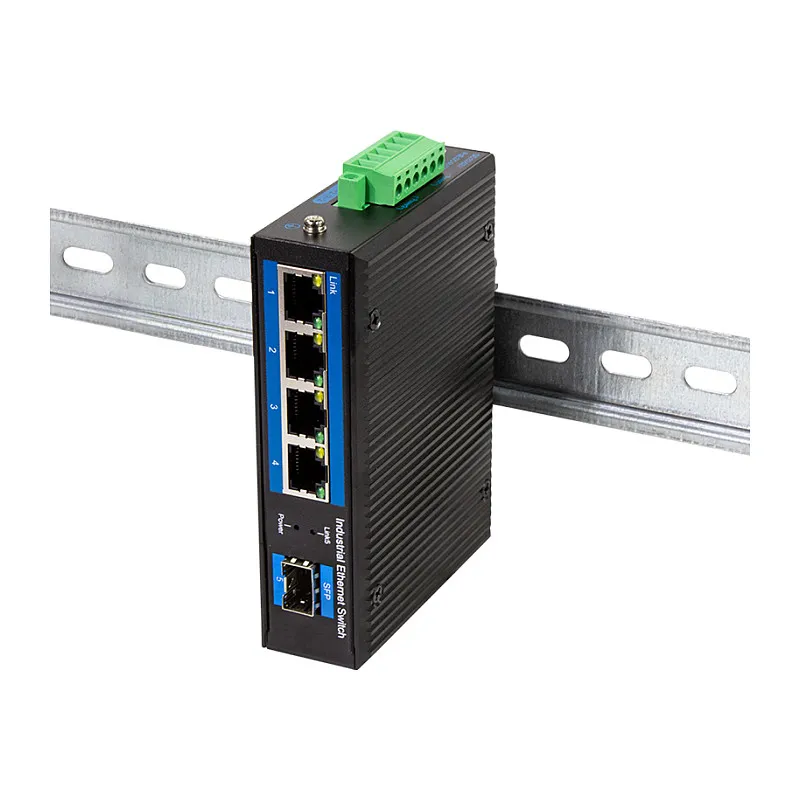

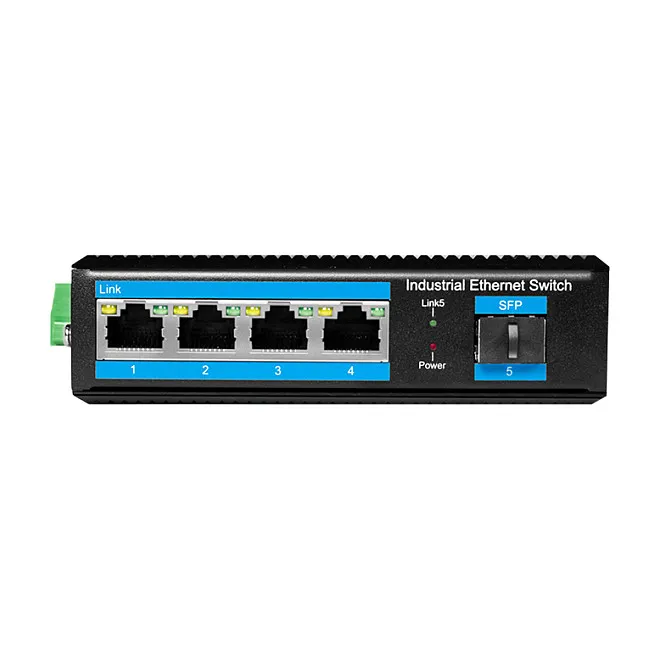

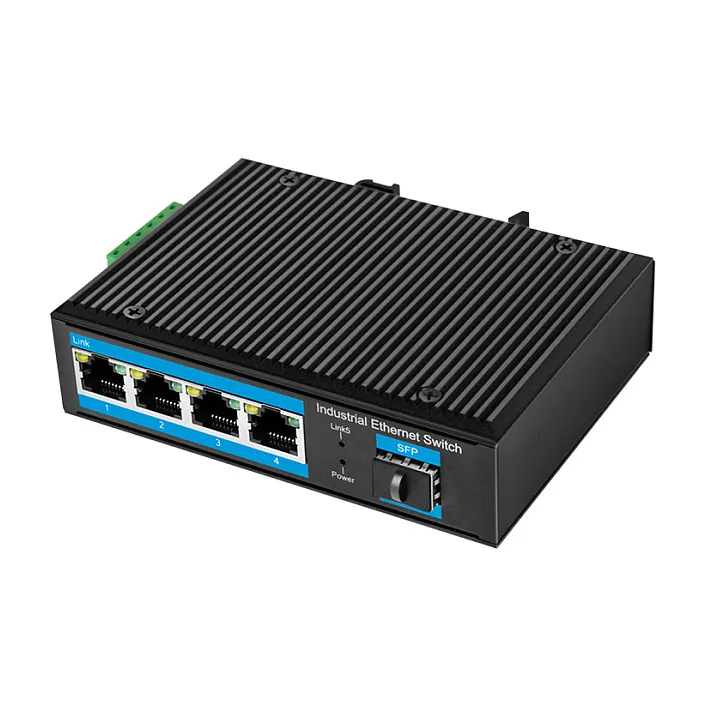

LogiLink NS204. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 2000 entries, Switching capacity: 14 Gbit/s. Networking standards: IEEE 802.3z, IEEE 802.3ab, IEEE 802.3u. DC input voltage: 12 – 52 V. Wall mountable
The unmanaged Industrial Ethernet switches from LogiLink are particularly suitable for use in harsh environments thanks to the extended temperature range of -40–80 °C. These robust and compact devices enable the connection of several end devices, optionally with power supply via the same Ethernet patch cable (PoE). Due to their flexibility (Giga or Fast Ethernet, with or without PoE) and simplicity (plug-and-play, unmanaged), these switches are not only suitable for industrial applications.
Management features
Switch type: Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 4
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 4
SFP module slots quantity: 1
Network
Networking standards: IEEE 802.3z, IEEE 802.3ab, IEEE 802.3u
Feature: Full duplex
Feature: Half duplex
Data transmission
Switching capacity: 14 Gbit/s
Forwarding rate: 10.5 Mpps
MAC address table: 2000 entries
Security
Feature: Access Control List (ACL)
Design
Product colour: Black
Housing material: Aluminium
LED indicators: Activity, Link, Power
Feature: Wall mountable
Performance
Mean time between failures (MTBF): 300000 h
Power
Power source: DC
Feature: Power supply included

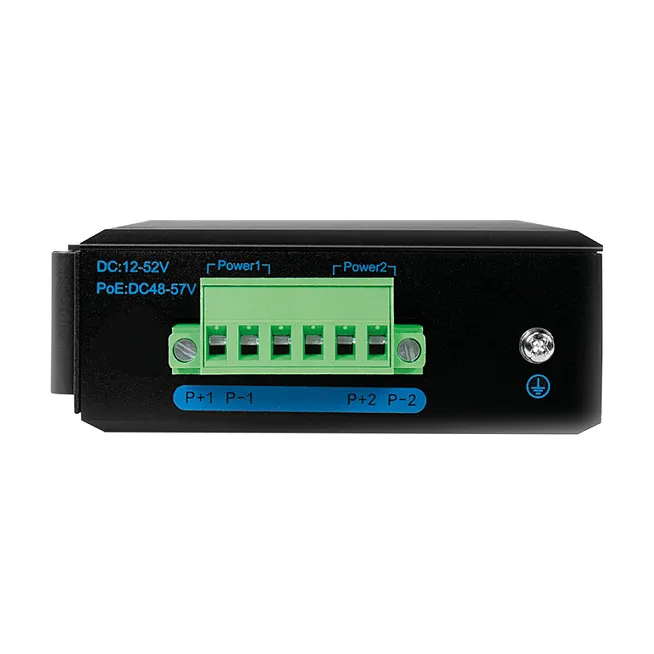

DC input voltage: 12 – 52 V
Power consumption (max): 3 W
Operational conditions
Operating temperature (T-T): -40 – 80 °C
Storage temperature (T-T): -40 – 80 °C
Storage relative humidity (H-H): -40 – 80%
Weight & dimensions
Width: 118 mm
Depth: 86 mm
Height: 33.5 mm
Weight: 360 g
Packaging content
Feature: Manual
Packaging data
Package type: Box
Package width: 165 mm
Package depth: 135 mm
Package height: 54 mm
Package weight: 460 g
Switch type: Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 4
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 4
SFP module slots quantity: 1
Network
Networking standards: IEEE 802.3z, IEEE 802.3ab, IEEE 802.3u
Feature: Full duplex
Feature: Half duplex
Data transmission
Switching capacity: 14 Gbit/s
Forwarding rate: 10.5 Mpps
MAC address table: 2000 entries
Security
Feature: Access Control List (ACL)
Design
Product colour: Black
Housing material: Aluminium
LED indicators: Activity, Link, Power
Feature: Wall mountable
Performance
Mean time between failures (MTBF): 300000 h
Power
Power source: DC
Feature: Power supply included
DC input voltage: 12 – 52 V
Power consumption (max): 3 W
Operational conditions
Operating temperature (T-T): -40 – 80 °C
Storage temperature (T-T): -40 – 80 °C
Storage relative humidity (H-H): -40 – 80%
Weight & dimensions
Width: 118 mm
Depth: 86 mm
Height: 33.5 mm
Weight: 360 g
Packaging content
Feature: Manual
Packaging data
Package type: Box
Package width: 165 mm
Package depth: 135 mm
Package height: 54 mm
Package weight: 460 g
