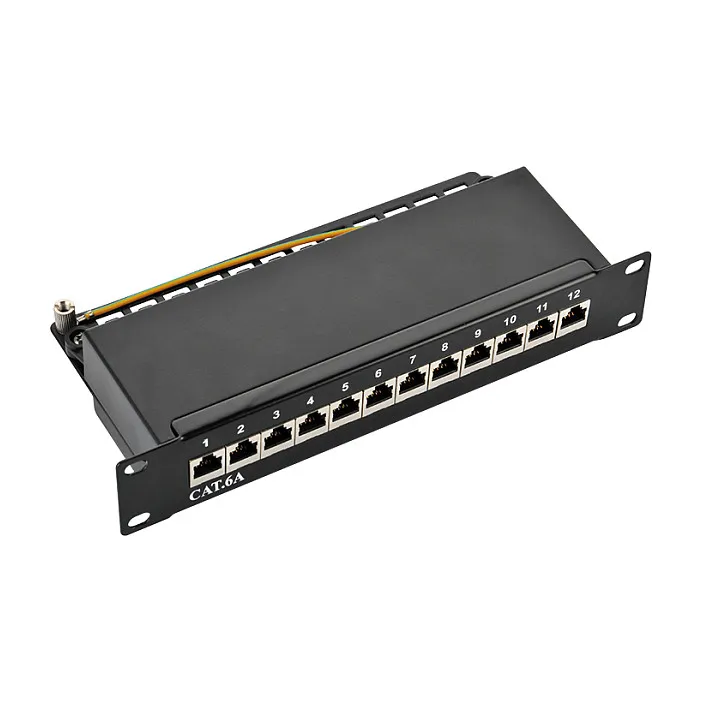

LogiLink NP0052B. Ethernet interface type: 10 Gigabit Ethernet, Maximum data transfer rate: 10000 Mbit/s, Cable types supported: Cat6a. Mounting: Rack mounting, Rack capacity: 1U, Product colour: Black. Compliance certificates: RoHS, Certification: ISO/IEC 11801, TIA/EIA 568C.2. Width: 254 mm, Height: 109 mm, Depth: 44 mm. Package width: 275 mm, Package length: 13.5 cm, Package height: 55 mm
LogiLink’s 10” Patch Panel line is the most efficient solution when having smaller Cat.5E, CAT6 or CAT6A network installations. It is a most cost effective and flexible solution without 19″ racks and separate EDP rooms. The 12 port Patch Panel fits into so called SOHO 10 inch cabinets, suitable as cable distributor or as connection device for groups of participants at their work group. Up to 12 participants can be connected using shielded or unshielded installation cabling.
Network
Ethernet interface type: 10 Gigabit Ethernet
Maximum data transfer rate: 10000 Mbit/s
Ports quantity: 12
Cable types supported: Cat6a
Cable shielding: S/UTP (STP)
Design
Product colour: Black
Material: Steel
Mounting: Rack mounting
Rack capacity: 1U
Certificates
Compliance certificates: RoHS
Certification: ISO/IEC 11801, TIA/EIA 568C.2
Weight & dimensions
Width: 254 mm
Height: 109 mm
Depth: 44 mm
Weight: 800 g
Packaging data
Package width: 275 mm
Package length: 13.5 cm
Package height: 55 mm
Package weight: 875 g
Package type: Box
Logistics data
Harmonized System (HS) code: 85371098
Ethernet interface type: 10 Gigabit Ethernet
Maximum data transfer rate: 10000 Mbit/s
Ports quantity: 12
Cable types supported: Cat6a
Cable shielding: S/UTP (STP)
Design
Product colour: Black
Material: Steel
Mounting: Rack mounting
Rack capacity: 1U
Certificates
Compliance certificates: RoHS
Certification: ISO/IEC 11801, TIA/EIA 568C.2
Weight & dimensions
Width: 254 mm
Height: 109 mm
Depth: 44 mm
Weight: 800 g
Packaging data
Package width: 275 mm
Package length: 13.5 cm
Package height: 55 mm
Package weight: 875 g
Package type: Box
Logistics data
Harmonized System (HS) code: 85371098
