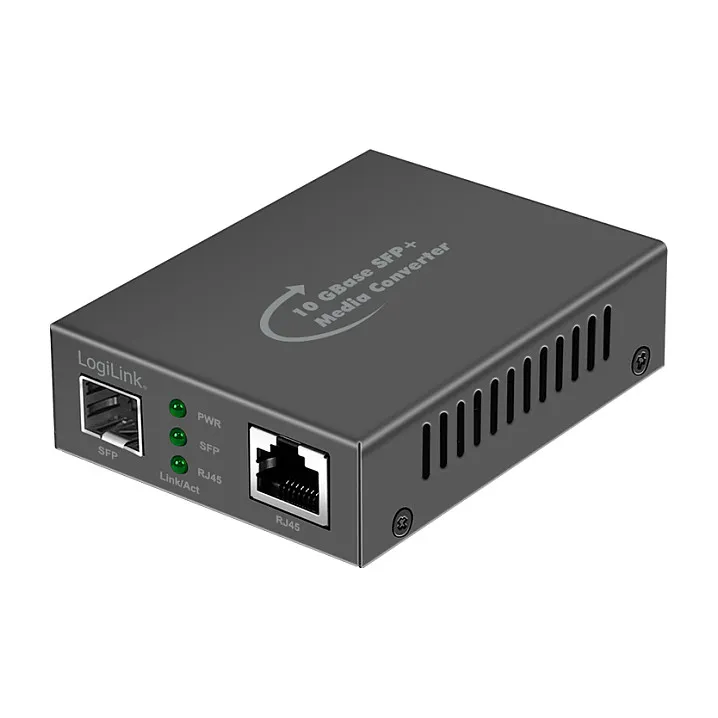

LogiLink NMC003. Maximum data transfer rate: 10000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z, Ethernet interface type: Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet. Product colour: Black, Housing material: Metal. Fiber optic connector: SFP, Connectivity technology: Wired. Input voltage: 12 V, Input current: 1 A, Power consumption (max): 3 W. Width: 93.5 mm, Depth: 70.5 mm, Height: 26 mm

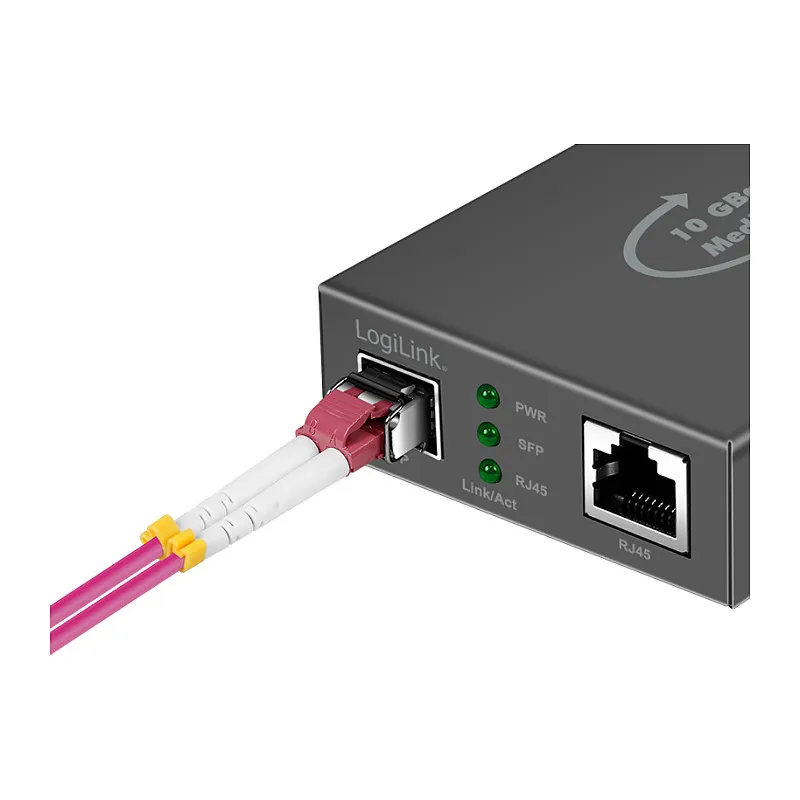

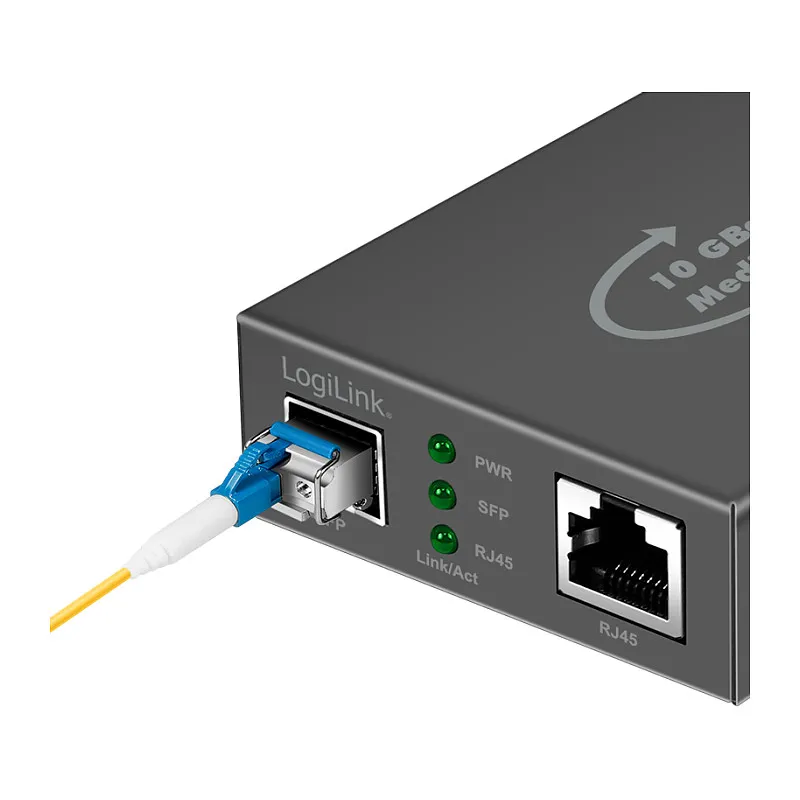

The LogiLink Standalone Media Converter seamlessly converts electrical Ethernet signals to optical signals, enabling direct connections between copper and fiber optic cables. It is ideal for extending network reach, supporting distances of up to 20 kilometers over fiber and ensuring high availability and flexibility in the network architecture. The converter is ideal for integrating legacy networks with new cabling or overcoming length limitations.
Network
Maximum data transfer rate: 10000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
Ethernet interface type: Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000,2500,5000,10000 Mbit/s
Data transfer rate: 10000 Mbit/s
Features
LED indicators: Yes
Product colour: Black
Housing material: Metal

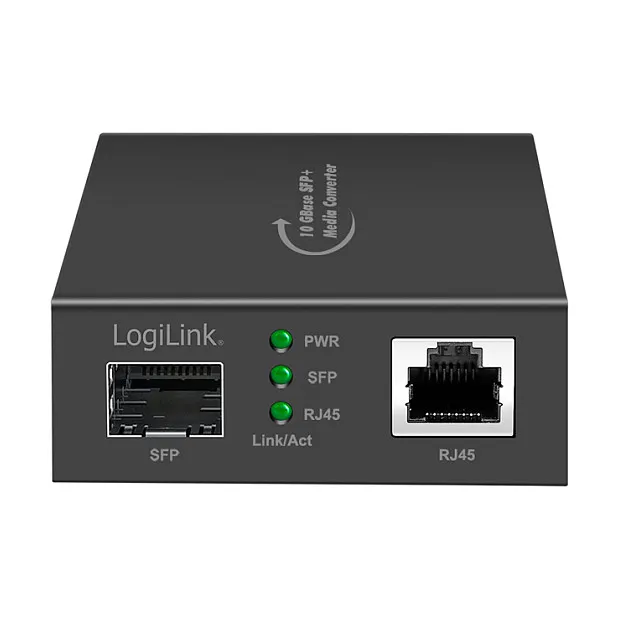

Ports & interfaces
Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SFP

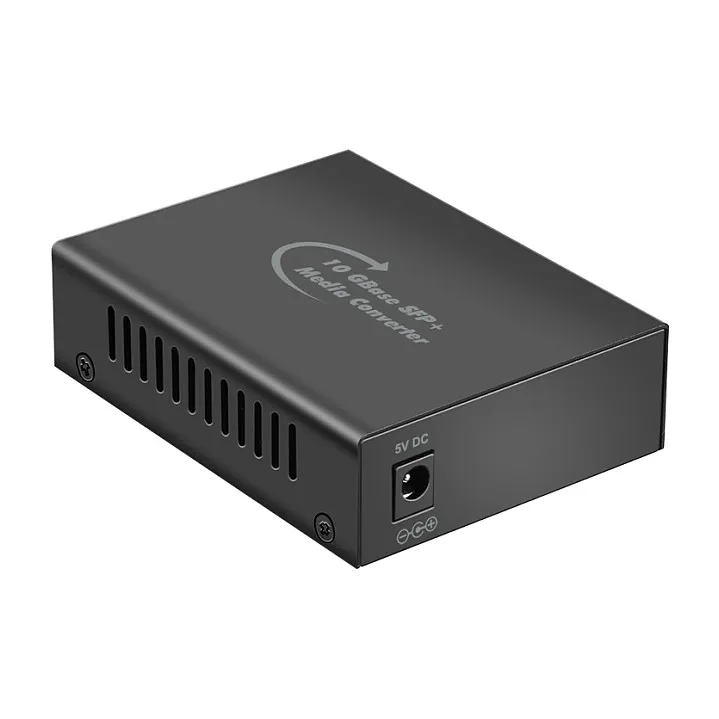

Feature: DC-in jack
Power
Input voltage: 12 V
Input current: 1 A
Power consumption (max): 3 W

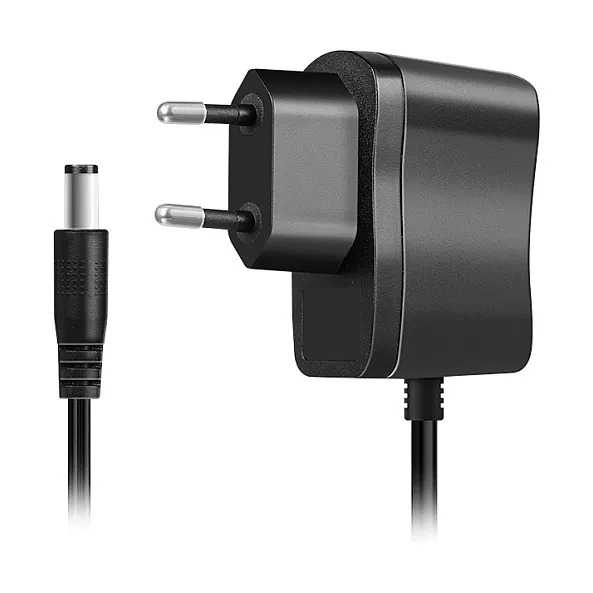

Feature: External power adapter
Weight & dimensions
Width: 93.5 mm
Depth: 70.5 mm
Height: 26 mm
Weight: 155 g
Operational conditions
Operating temperature (T-T): 0 – 55 °C
Operating relative humidity (H-H): 20 – 80%

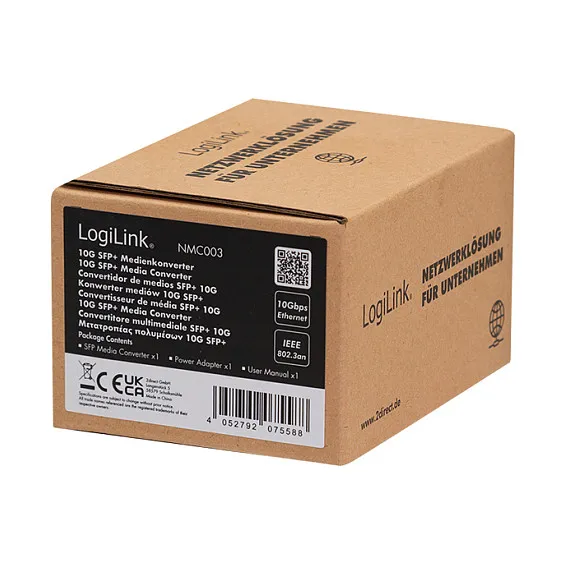

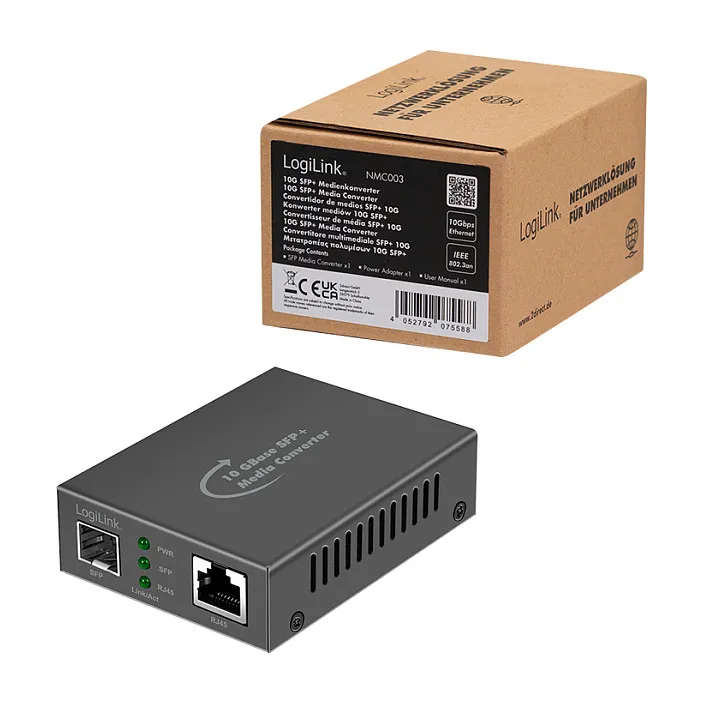

Packaging content
Feature: AC adapter included
Feature: Manual
Packaging data
Package width: 103 mm
Package depth: 80 mm
Package height: 60 mm
Package weight: 249 g
Package type: Box
