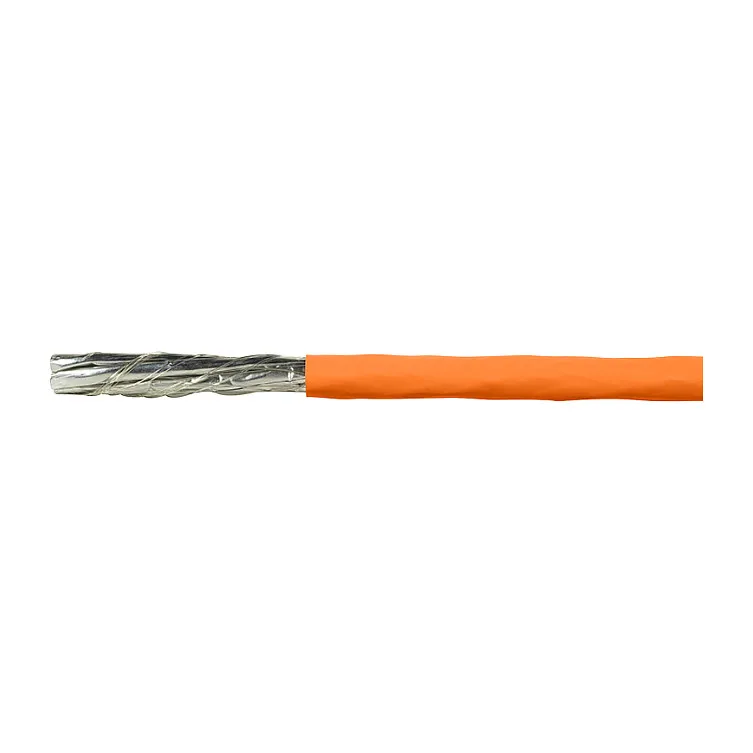

LogiLink CPV0060. Cable length: 100 m, Cable standard: Cat7, Cable shielding: S/FTP (S-STP), Product colour: Orange
Installation cable PrimeLine, Cat.7, S/FTP, orange, 100 m” from LogiLink Professional

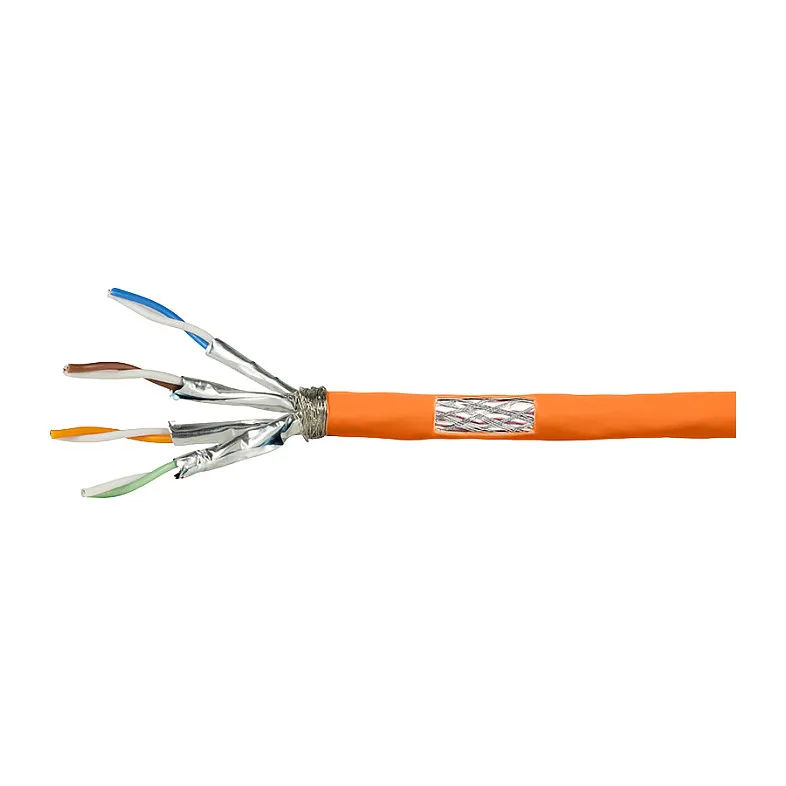

LogiLink’s Cat.7 and Cat.7A cable offer maximum operating frequencies up to 1200 megahertz and are ideally suited for Ethernet networks with transmission rates of 10 Gbit/s and above. They are downward compatible with Cat.6A, Cat.6 or Cat.5 cabling. The 4 pair twisted pair cables are equipped with individual pair foils and an overall braid (S/FTP). This makes the LogiLink Cat.7 and Cat.7A cables ideal for future-proof structured cabling for 10GBASE-T Ethernet, 100BASE-TX or 1000BASE-T.
LogiLink’s Cat.7 and Cat.7A cable offer maximum operating frequencies up to 1200 megahertz and are ideally suited for Ethernet networks with transmission rates of 10 Gbit/s and above. They are downward compatible with Cat.6A, Cat.6 or Cat.5 cabling. The 4 pair twisted pair cables are equipped with individual pair foils and an overall braid (S/FTP). This makes the LogiLink Cat.7 and Cat.7A cables ideal for future-proof structured cabling for 10GBASE-T Ethernet, 100BASE-TX or 1000BASE-T.
Features
Product colour: Orange
Cable length: 100 m
Cable standard: Cat7
Cable shielding: S/FTP (S-STP)
Connector 1: No
Connector 2: No
Connector 1 gender: No
Connector 2 gender: No
Jacket material: Low smoke zero halogen (LSZH)
Ethernet interface type: 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
AWG wire size: 23
Frequency: 1000 MHz
Certificates
Compliance certificates: RoHS
Certification: ISO/IEC 11801 und IEC 61156-5
Weight & dimensions
Outer diameter: 7.5 mm
Packaging content
Quantity per pack: 1 pc(s)
Packaging data
Package width: 300 mm
Package depth: 300 mm
Package height: 180 mm
Package weight: 5.58 kg
Logistics data
Harmonized System (HS) code: 84733080
Product colour: Orange
Cable length: 100 m
Cable standard: Cat7
Cable shielding: S/FTP (S-STP)
Connector 1: No
Connector 2: No
Connector 1 gender: No
Connector 2 gender: No
Jacket material: Low smoke zero halogen (LSZH)
Ethernet interface type: 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
AWG wire size: 23
Frequency: 1000 MHz
Certificates
Compliance certificates: RoHS
Certification: ISO/IEC 11801 und IEC 61156-5
Weight & dimensions
Outer diameter: 7.5 mm
Packaging content
Quantity per pack: 1 pc(s)
Packaging data
Package width: 300 mm
Package depth: 300 mm
Package height: 180 mm
Package weight: 5.58 kg
Logistics data
Harmonized System (HS) code: 84733080
