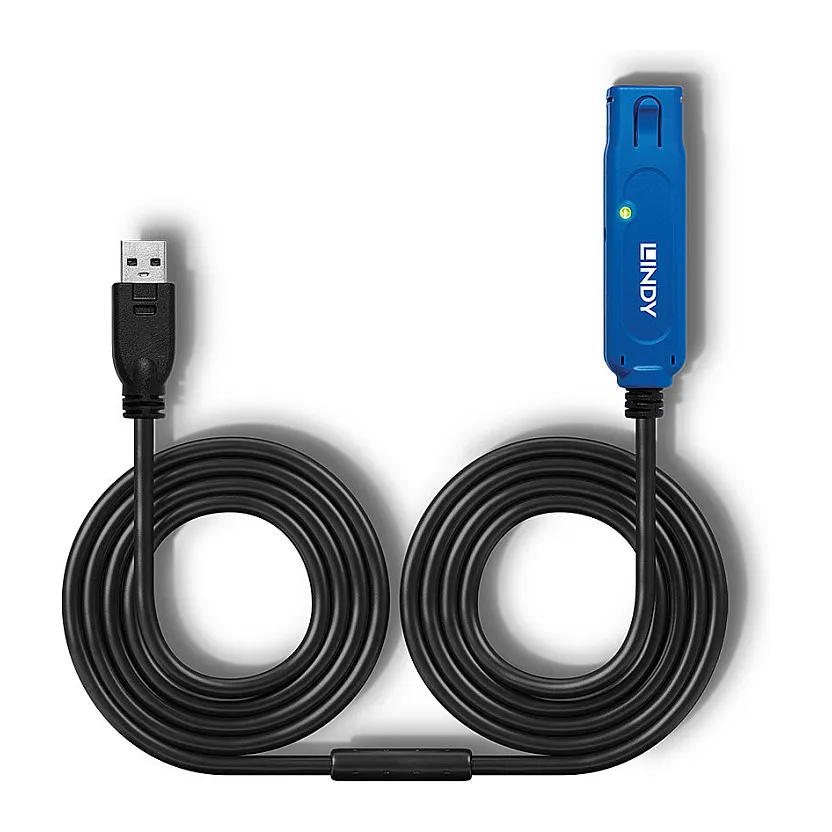

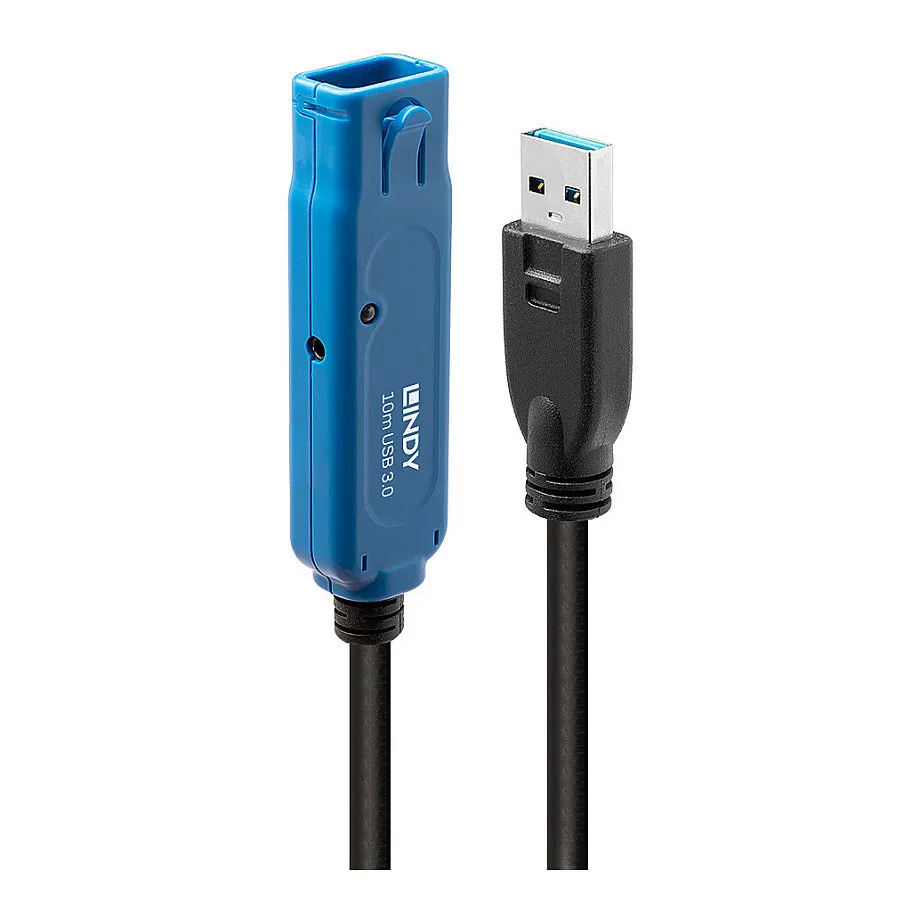

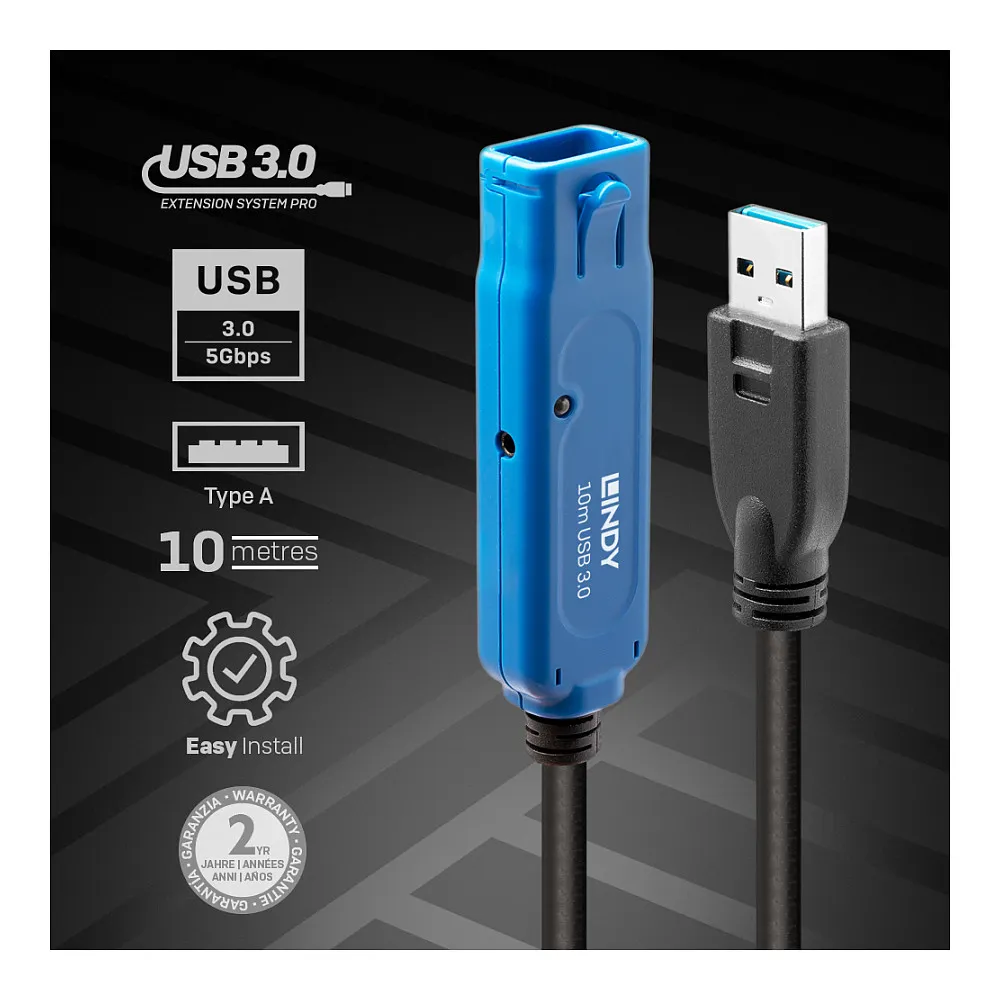

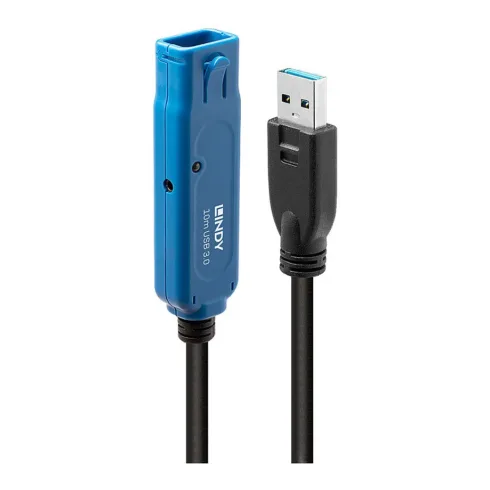

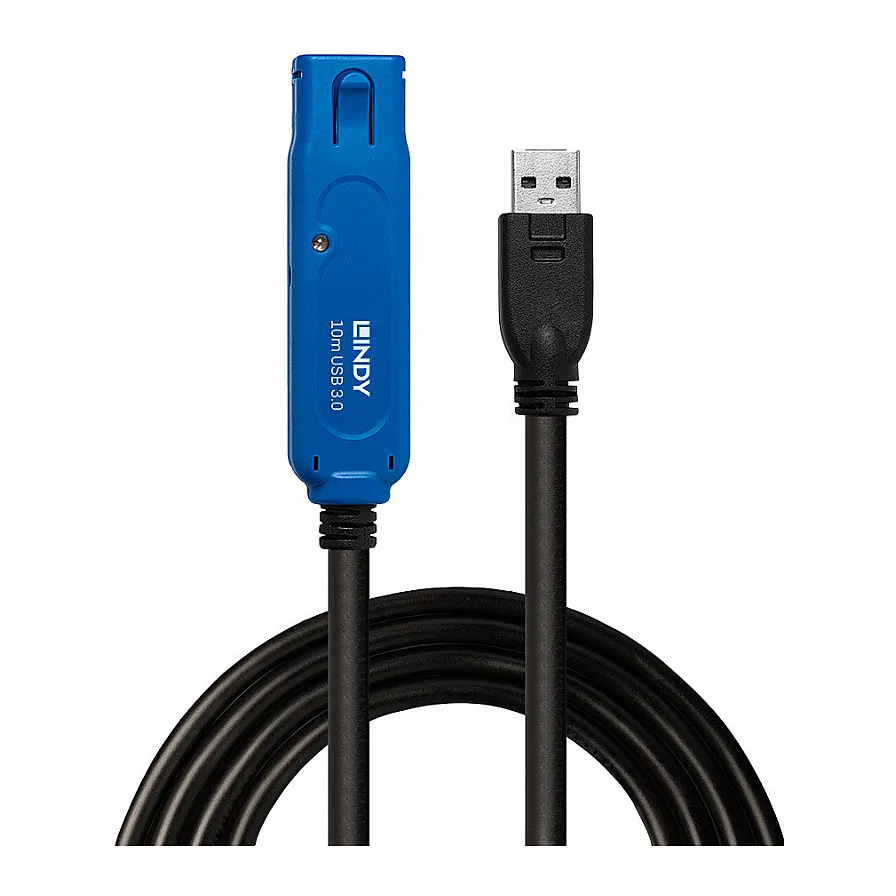

Lindy 10m USB 3.0 Active Extension Pro. Cable length: 10 m. Connector 1: USB A, Connector 2: USB A, USB version: USB 3.2 Gen 1 (3.1 Gen 1), Maximum data transfer rate: 5 Gbit/s, Connector contacts plating: Gold, Product colour: Black

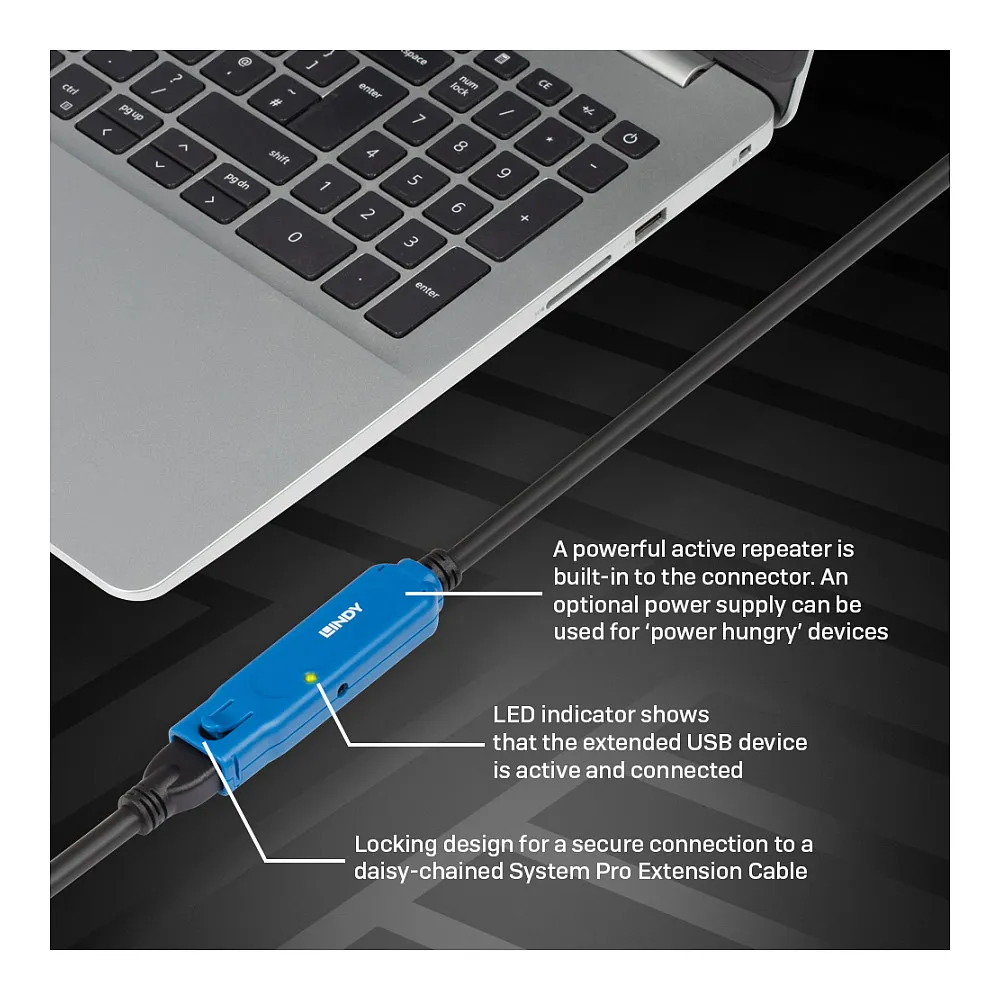

The cable incorporates proven active technology and locking connectors to ensure reliable signal integrity, even in demanding environments.

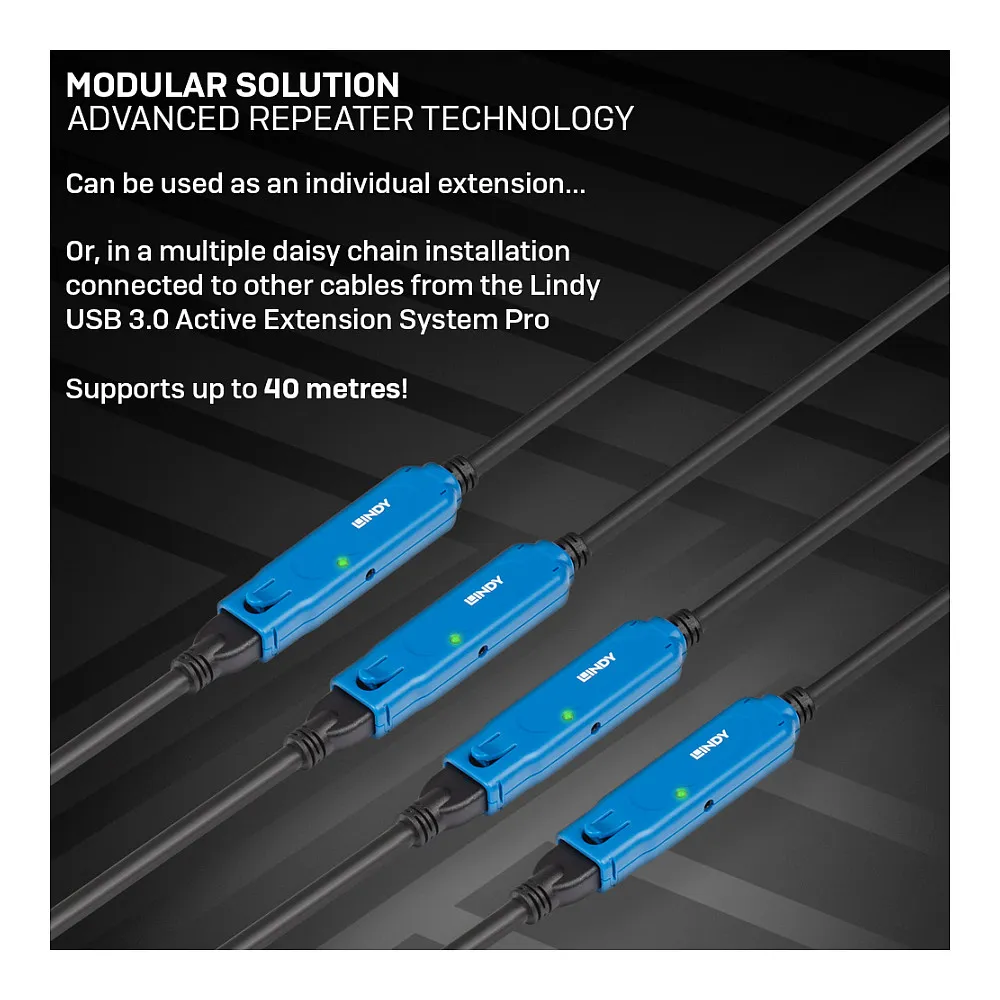

This 10m extension cable can be used on its own or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a modular solution that combines multiple USB Active Extension Pro cables and a USB 3.0 Active Extension Pro hub. It enables the distribution of USB signals to up to 4 devices at distances of up to 40m (depending on the cable configurations used).
Using this cable as part of the USB 3.0 Active Extension System Pro
If you would like to use this cable as part of combined Lindy USB 3.0 Active Extension System Pro installation, please note the requirements below.
The first unit connected to your computer must always be the USB 3.0 Active Extension Pro 8m (No. 43158) or 15m (No. 43229). Once the first cable is connected, you can cascade additional Extension System Pro cables to extend the distance up to a maximum of 40m.
The final part of the extension can be any cable or hub from the Extension System Pro range.
If you need to extend multiple devices or connect a USB device with high power requirements, you should use the 10m Hub Pro unit (No. 43159) with its power supply as the final part of the extension.
Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
USB version: USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1: USB A
Connector 2: USB A
Connector 1 gender: Male
Connector 2 gender: Female
Connector 1 form factor: Straight
Connector 2 form factor: Straight
AWG wire size: 24/24/20
Connector material: Nickel
Contact material: Brass
Connector contacts plating: Gold
Cable jacket material: Polyvinyl chloride (PVC)
Conductor material: Tinned copper
Feature: Connector shielding
Connector shield material: Aluminium
Connector housing material: Plastic
Maximum data transfer rate: 5000 Mbit/s
Maximum data transfer rate: 5 Gbit/s
Product colour: Black
Cable type: Round cable
Transmission medium: Twisted pair
Power
Power note: 2.5/0.7mm DC
Weight & dimensions
Cable length: 10 m
Cable diameter: 7 mm
Weight: 750 g
Bend radius (min): 3.6 cm
Connector 1 dimensions (WxDxH): 15 x 49 x 8 mm
Connector 2 dimensions (WxDxH): 20 x 80 x 13 mm
Packaging data
Package type: Box
Package width: 240 mm
Package depth: 70 mm
Package height: 200 mm
Package weight: 900 g
Packaging content
Quantity per pack: 1 pc(s)
Feature: Manual
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Storage temperature (T-T): -20 – 60 °C
Certificates
Certification: CE, UKCA, FCC, RoHS, REACH, California Proposition 65
Logistics data
Harmonized System (HS) code: 84733080
