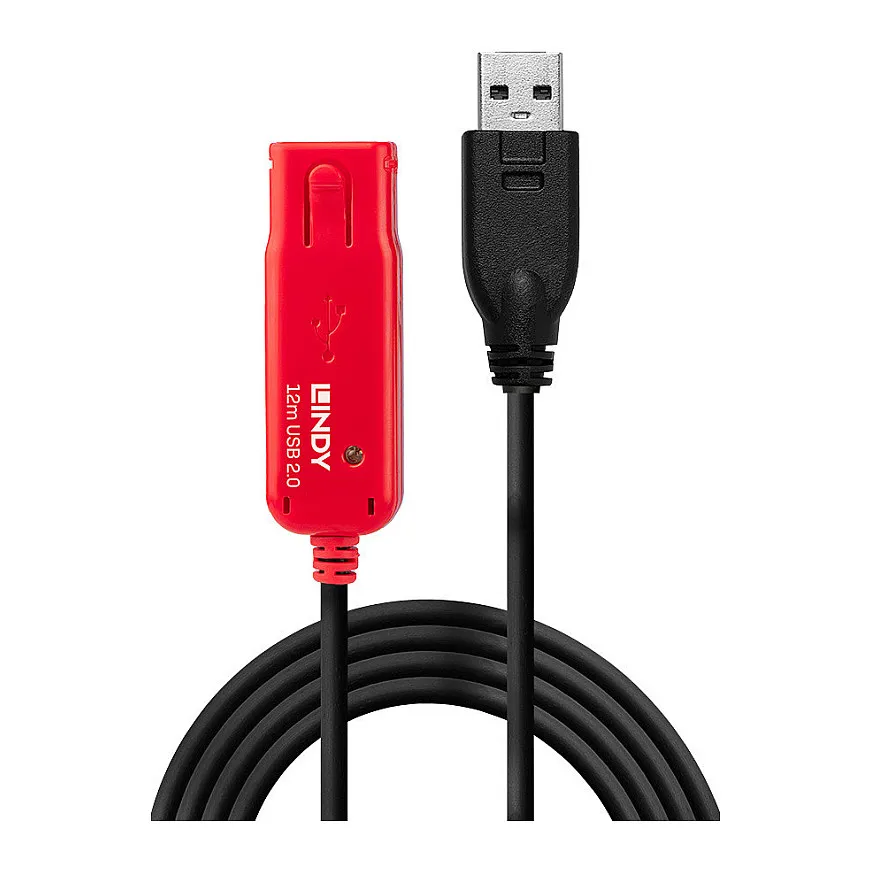

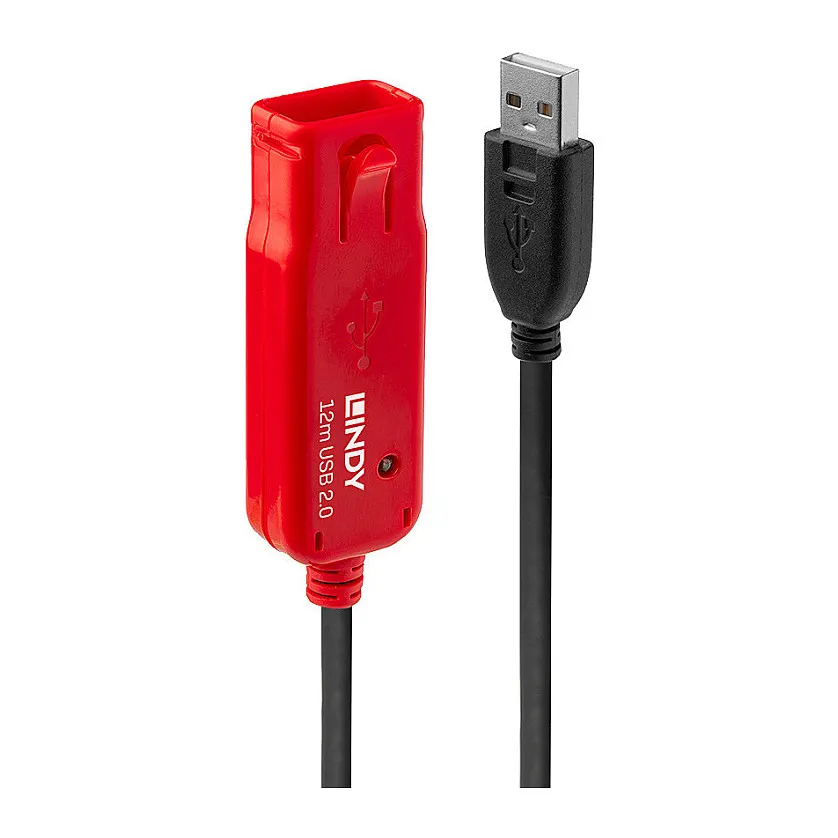

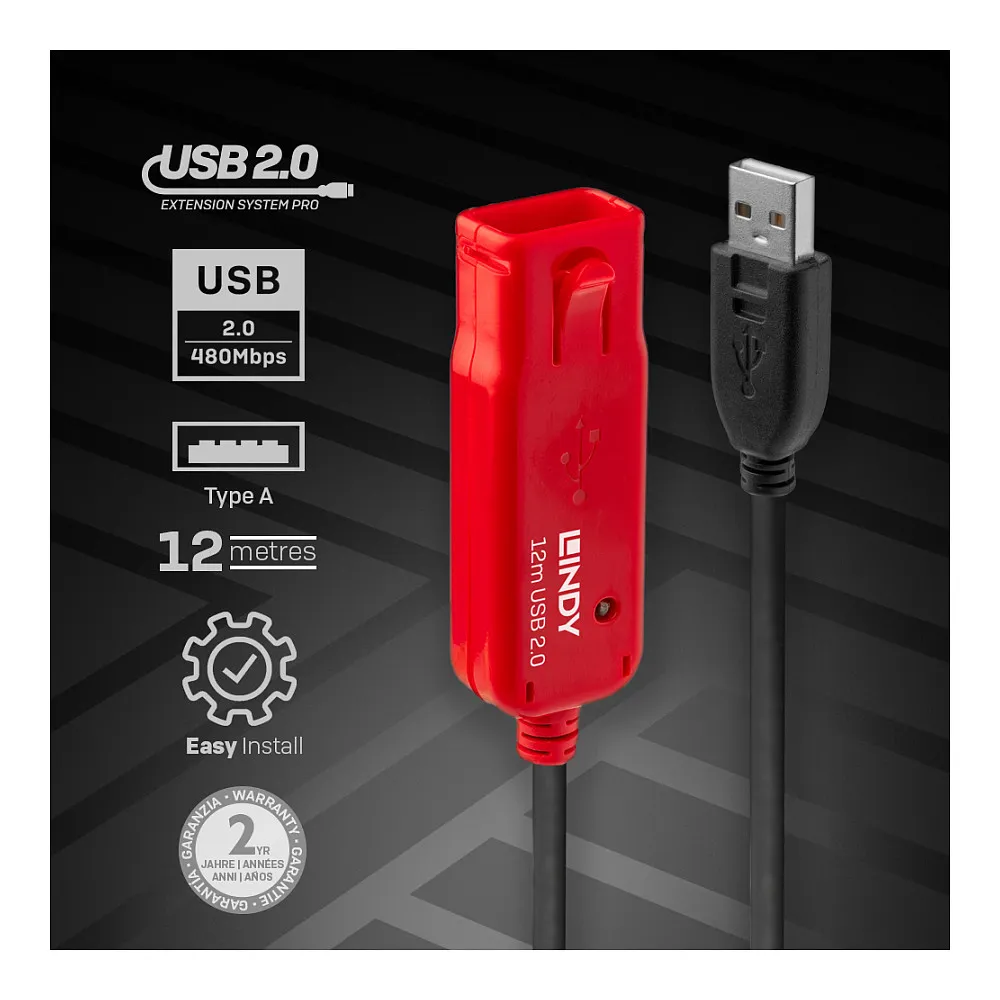

Lindy 12m USB 2.0 Active Extension Pro. Cable length: 12 m. Connector 1: USB A, Connector 2: USB A, USB version: USB 2.0, Maximum data transfer rate: 0.48 Gbit/s, Connector contacts plating: Gold, Product colour: Black

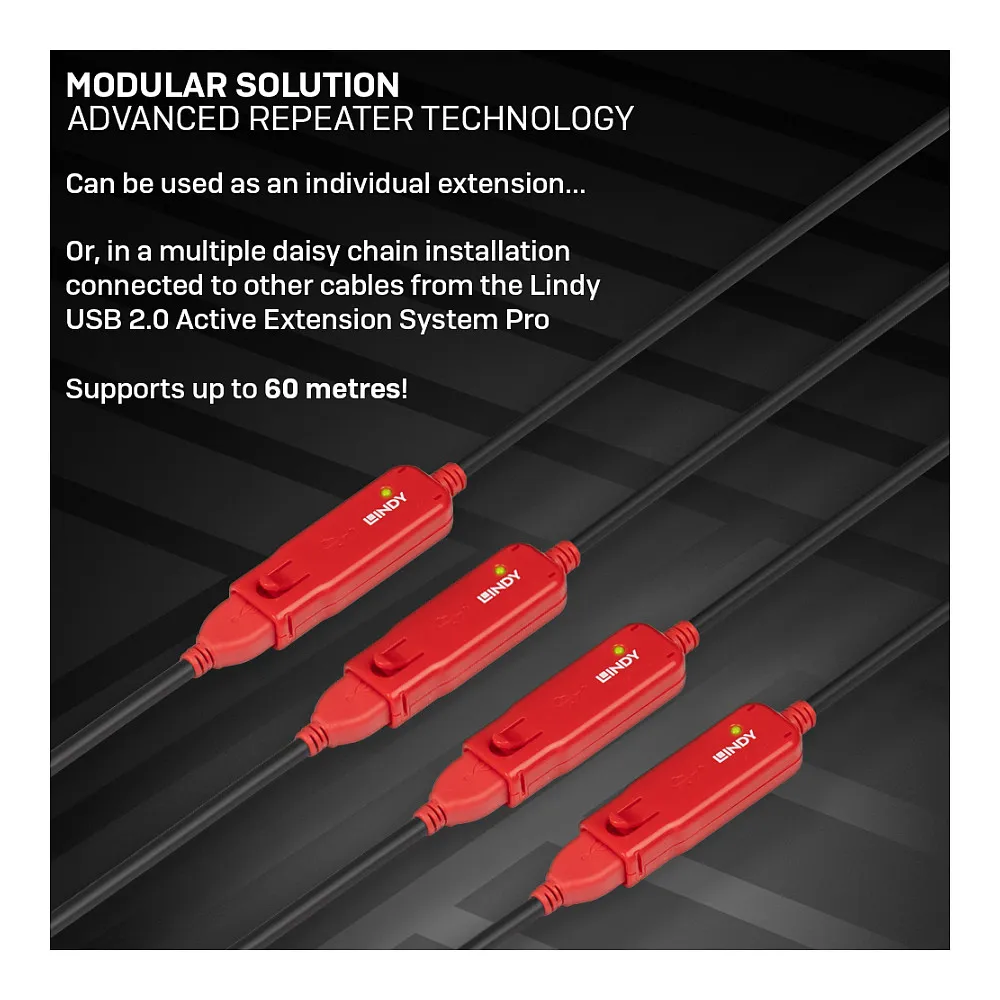

This 12m extension cable can be used standalone or as part of the Lindy USB 2.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 2.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at up to 60m.
The 8m and 12m cable, and the 8m and 12m hub, feature a single active repeater module to boost the USB signal. The 30m cable uses two repeaters. A fully deployed extension system is limited to a maximum of 60m and 4 repeater modules. Any combination of cables and a single hub can be connected providing the 60m / 4 repeater limit is not exceeded. The extension hub must always be the last segment of the extension system.

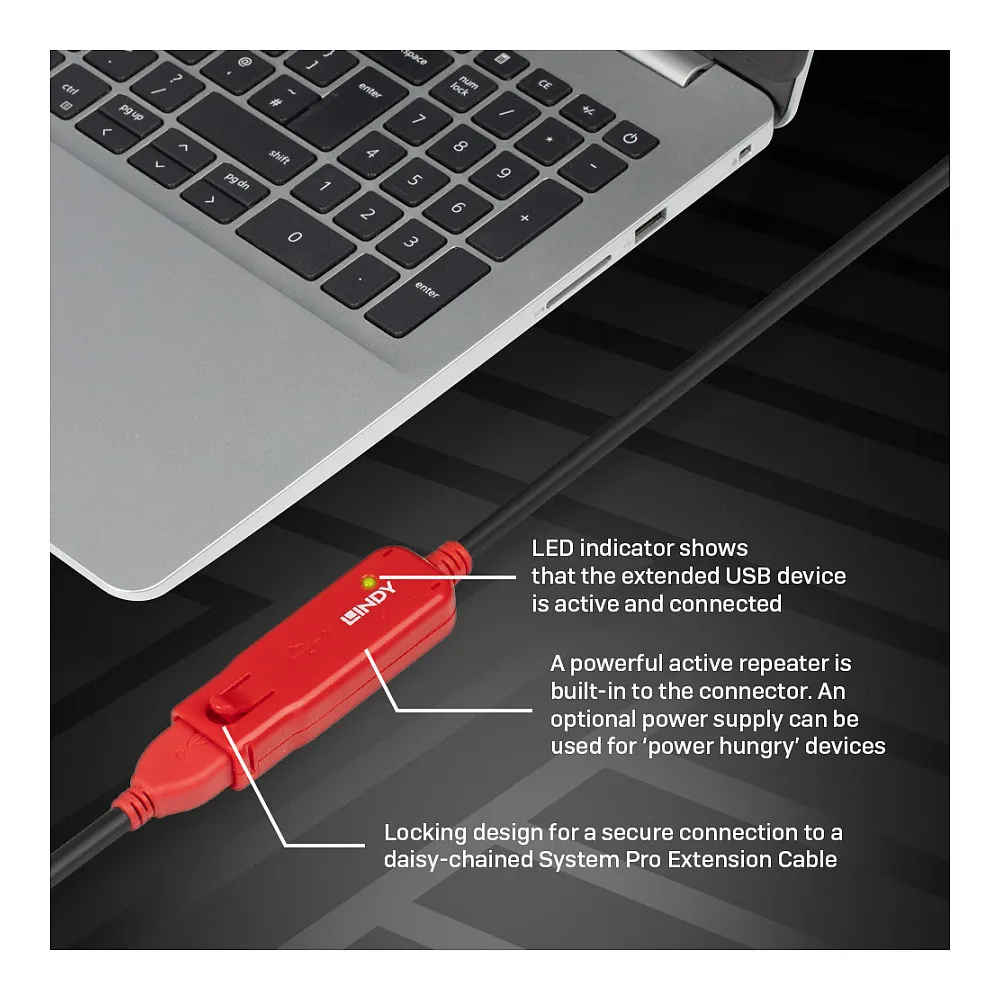

This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.
USB version: USB 2.0
Connector 1: USB A
Connector 2: USB A
Connector 1 gender: Male
Connector 2 gender: Female
Connector 1 form factor: Straight
Connector 2 form factor: Straight
AWG wire size: 26/20
Connector material: Gold/Nickel
Contact material: Brass
Connector contacts plating: Gold
Cable jacket material: Polyvinyl chloride (PVC)
Conductor material: Tinned copper
Connector shield material: Aluminium
Connector housing material: Plastic
Maximum data transfer rate: 480 Mbit/s
Maximum data transfer rate: 0.48 Gbit/s
Product colour: Black
Cable type: Round cable
Transmission medium: Twisted pair
Weight & dimensions
Cable length: 12 m
Cable diameter: 5 mm
Weight: 420 g
Bend radius (min): 2.6 cm
Connector 1 dimensions (WxDxH): 15 x 43 x 8 mm
Connector 2 dimensions (WxDxH): 20 x 64 x 13 mm
Packaging data
Package type: Box
Package width: 238 mm
Package depth: 202 mm
Package height: 66 mm
Package weight: 597 g
Packaging content
Quantity per pack: 1 pc(s)
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Storage temperature (T-T): -20 – 60 °C
Certificates
Certification: CE, UKCA, FCC, RoHS, REACH, California Proposition 65
Logistics data
Harmonized System (HS) code: 84733080
Other features
Compatible operating systems: Win ME, 2000, XP, VistaMac OSLinux
