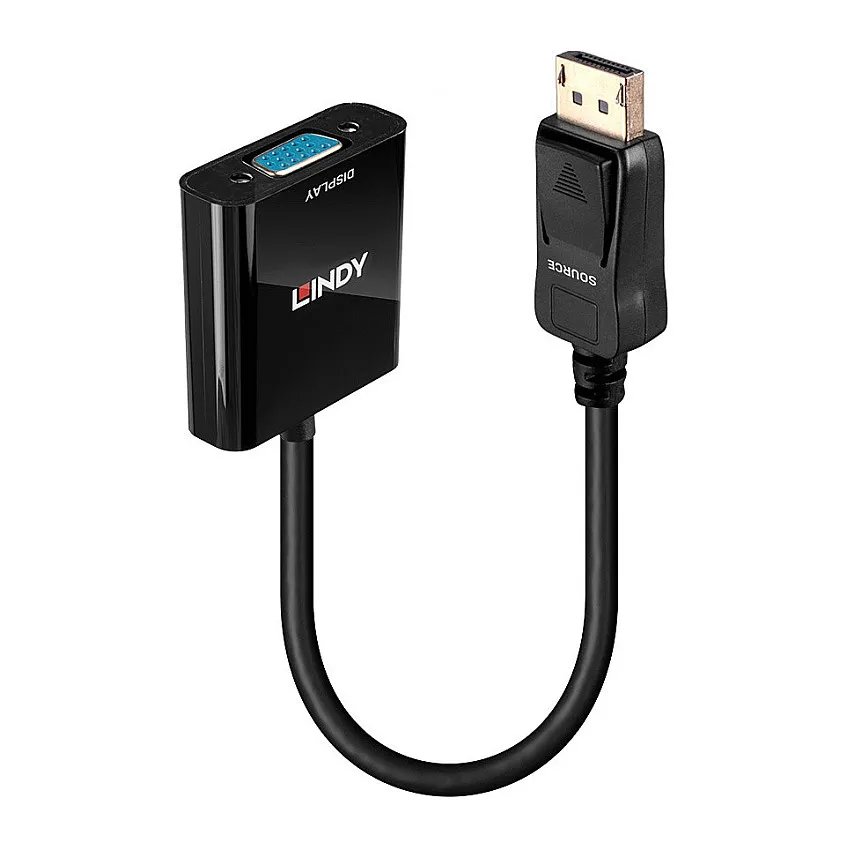

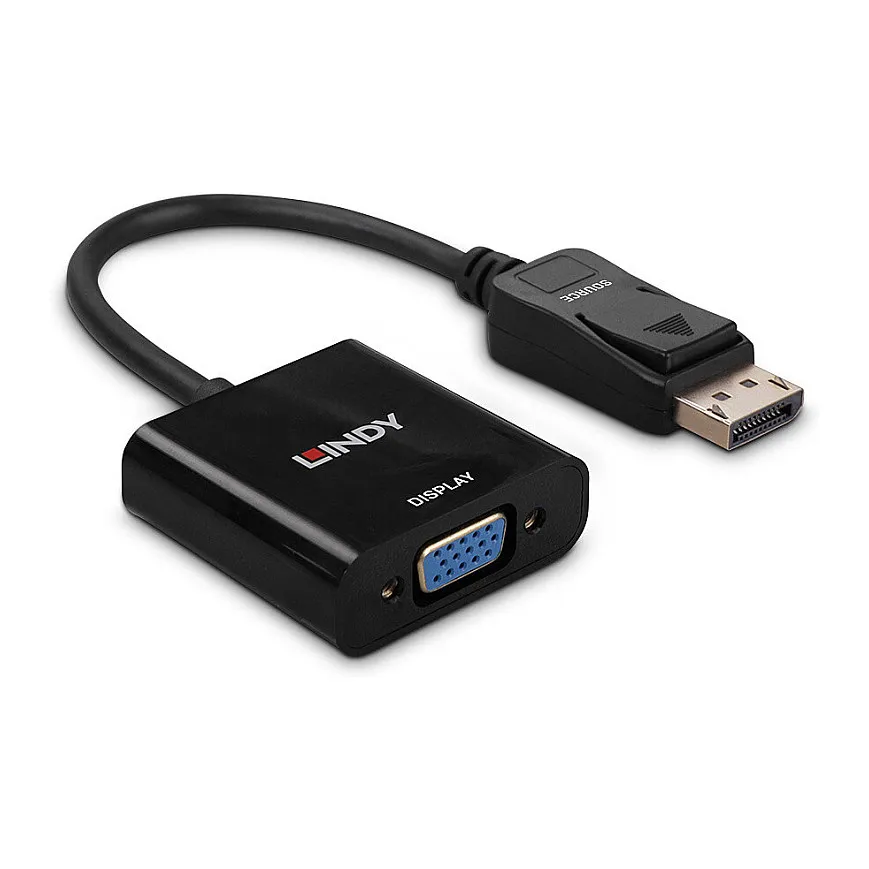

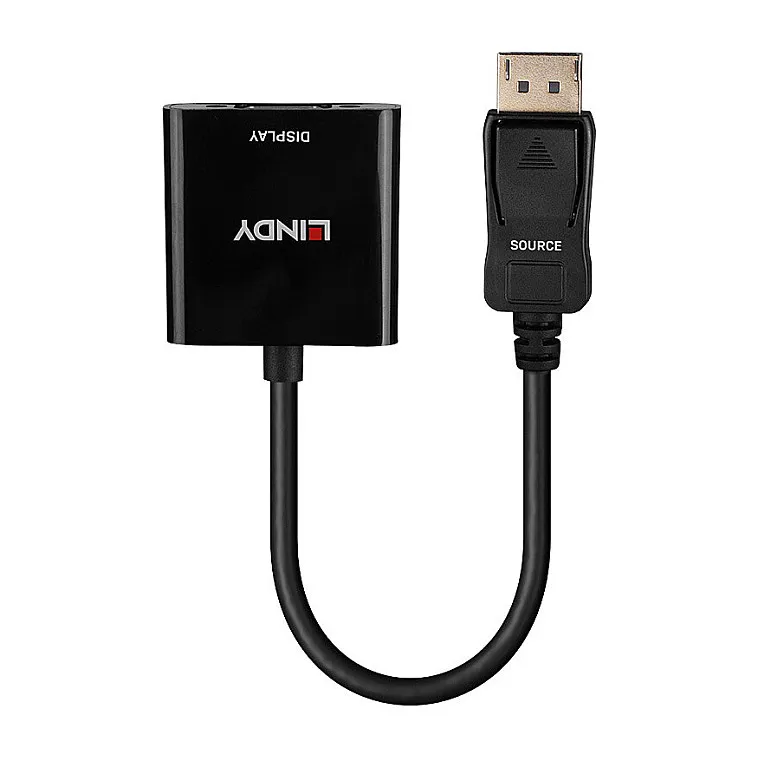

Lindy DisplayPort 1.2 to VGA Active Converter. Cable length: 0.15 m, Connector 1: VGA (D-Sub), Connector 2: DisplayPort. Certification: CE, UKCA, FCC, RoHS, REACH. Cable diameter: 6.5 mm, Connector 1 dimensions (WxDxH): 38 x 61 x 17 mm, Connector 2 dimensions (WxDxH): 20 x 36 x 11 mm. Package width: 160 mm, Package depth: 20 mm, Package height: 160 mm. Quantity per pack: 1 pc(s)
The Lindy DisplayPort 1.2 to VGA Converter is ideal for connecting a DisplayPort equipped source such as a PC or laptop to a VGA monitor. It supports high definition video resolutions up to 1920×1080@60Hz. Active conversion ensures compatibility with various graphics cards including AMD Eyefinity, NVIDIA surround and Intel Collage.

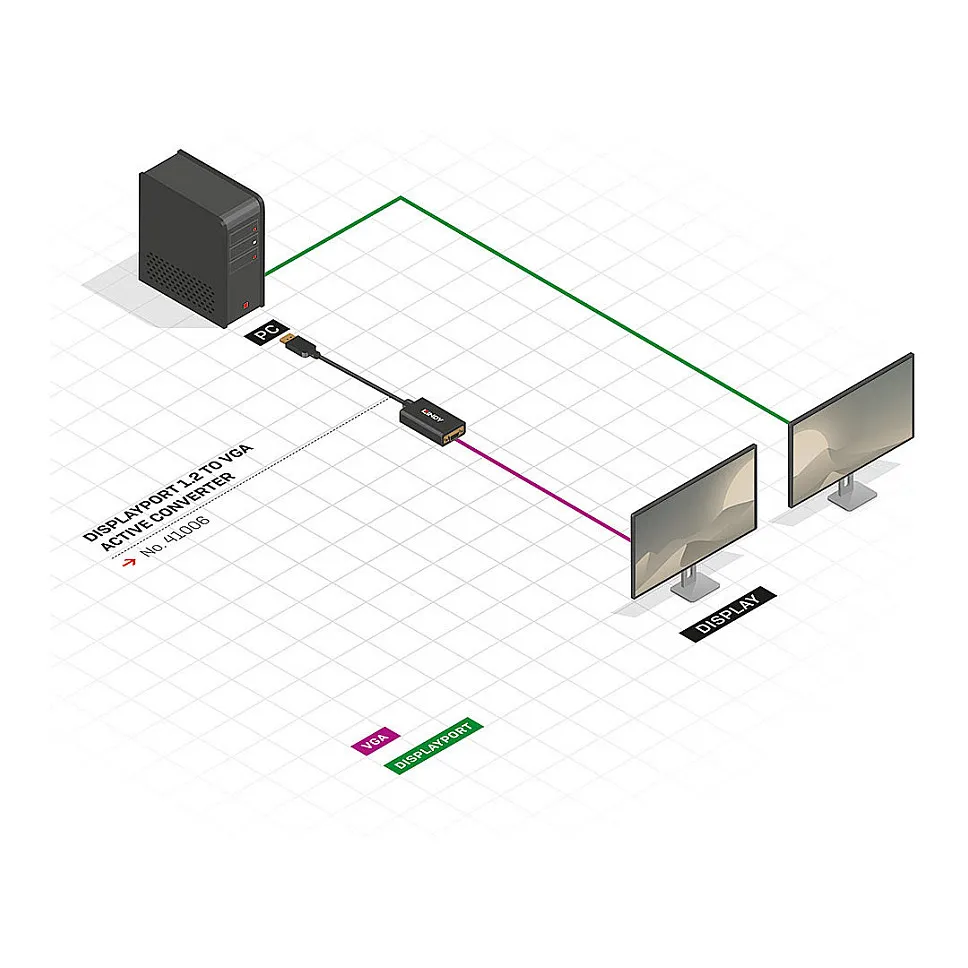

The converter can also be used to add another display to extend the available desktop workspace and increase productivity. Internal copper shielding provides enhanced reliability and compatibility. The converter is also ideally suited for travelling due to its compact, lightweight form factor and convenient Plug and Play installation.
Features
Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector contacts plating: Gold
Cable length: 0.15 m
Connector 1: VGA (D-Sub)
Connector 2: DisplayPort
Connector 1 gender: Male
Connector 2 gender: Female
DisplayPort version: 1.2
Maximum resolution: 1920 x 1080 pixels
Supported graphics resolutions: 1920 x 1080 (HD 1080)
Data transfer rate: 10.8 Gbit/s
Maximum refresh rate: 60 Hz
Bend radius (min): 7 cm
Product colour: Black
Chipset: ANX9833
Jacket material: Polyvinyl chloride (PVC)
Connector housing material: Thermoplastic elastomer (TPE)
Feature: Plug and Play
Operational conditions
Operating temperature (T-T): -20 – 80 °C
Storage temperature (T-T): -20 – 70 °C
Operating relative humidity (H-H): 20 – 90%
Certificates
Certification: CE, UKCA, FCC, RoHS, REACH
Weight & dimensions
Cable diameter: 6.5 mm
Connector 1 dimensions (WxDxH): 38 x 61 x 17 mm
Connector 2 dimensions (WxDxH): 20 x 36 x 11 mm
Weight: 45 g
Packaging data
Package width: 160 mm
Package depth: 20 mm
Package height: 160 mm
Package weight: 49 g
Package type: Polybag
Packaging content
Quantity per pack: 1 pc(s)
Logistics data
Harmonized System (HS) code: 84733080
Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector contacts plating: Gold
Cable length: 0.15 m
Connector 1: VGA (D-Sub)
Connector 2: DisplayPort
Connector 1 gender: Male
Connector 2 gender: Female
DisplayPort version: 1.2
Maximum resolution: 1920 x 1080 pixels
Supported graphics resolutions: 1920 x 1080 (HD 1080)
Data transfer rate: 10.8 Gbit/s
Maximum refresh rate: 60 Hz
Bend radius (min): 7 cm
Product colour: Black
Chipset: ANX9833
Jacket material: Polyvinyl chloride (PVC)
Connector housing material: Thermoplastic elastomer (TPE)
Feature: Plug and Play
Operational conditions
Operating temperature (T-T): -20 – 80 °C
Storage temperature (T-T): -20 – 70 °C
Operating relative humidity (H-H): 20 – 90%
Certificates
Certification: CE, UKCA, FCC, RoHS, REACH
Weight & dimensions
Cable diameter: 6.5 mm
Connector 1 dimensions (WxDxH): 38 x 61 x 17 mm
Connector 2 dimensions (WxDxH): 20 x 36 x 11 mm
Weight: 45 g
Packaging data
Package width: 160 mm
Package depth: 20 mm
Package height: 160 mm
Package weight: 49 g
Package type: Polybag
Packaging content
Quantity per pack: 1 pc(s)
Logistics data
Harmonized System (HS) code: 84733080
