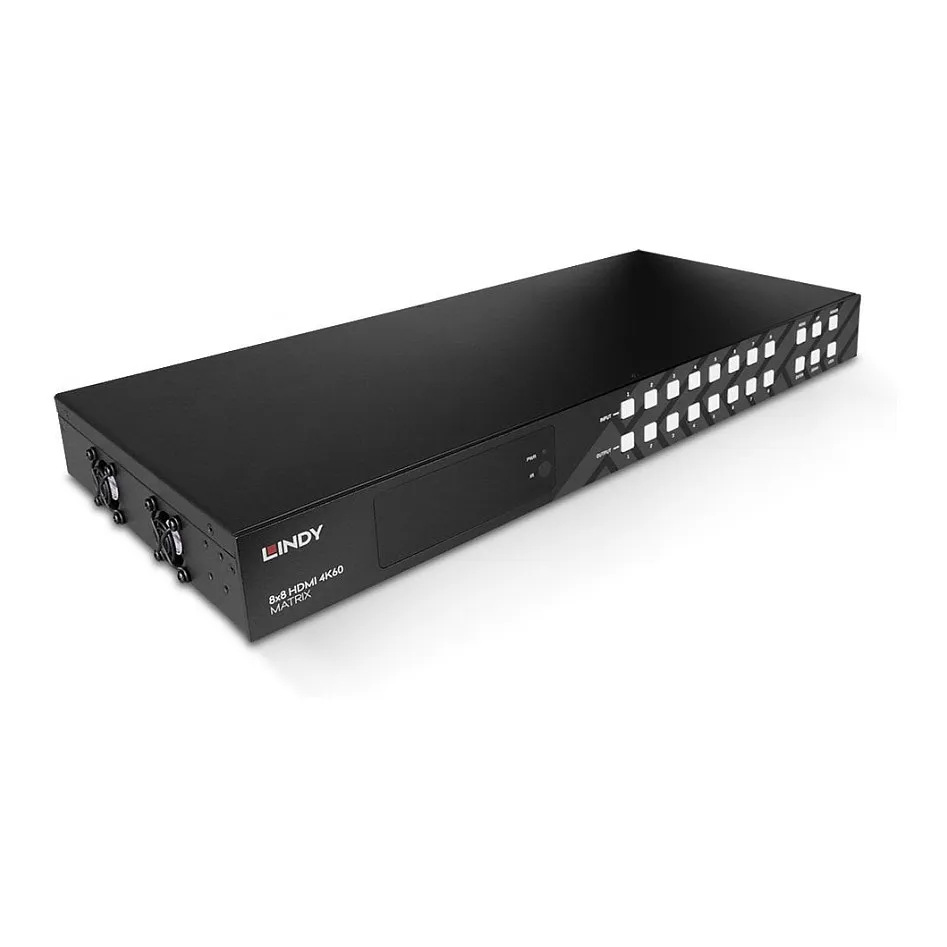

Lindy 8×8 HDMI 4K60 Matrix. Product type: AV matrix switcher, Maximum resolution: 3840 x 2160 pixels, Bandwidth: 18 Gbit/s. Housing colour: Black, Housing material: Metal, Control type: Buttons. Display type: OLED. HDMI version: 2.0b. Power consumption (max): 43 W, Input current: 5 A, Output voltage: 12 V
As well as HDMI audio pass-through, individual Coax and 3.5mm ports allow for a separate connection of digital speaker systems and amplifiers, creating immersive audio experiences to compliment the video content.The Audio Return Channel (ARC) feature allows audio to be sent from a TV to an audio system or soundbar over the same HDMI cable that is used to send video to the TV. This eliminates the need for a separate audio cable and simplifies the setup process.
The Matrix also features a downscale function for each output port from 4K to Full HD, making installations with older displays hassle free while always ensuring the viewer receives the optimum picture from their display.
This Matrix can be easily controlled via push button switching on the unit, while the included remote control and IR extension also allows the user to have better control over multiple videos and displays, great for trade shows, training presentations or sales demonstrations.
Product type: AV matrix switcher
Maximum resolution: 3840 x 2160 pixels
Bandwidth: 18 Gbit/s
Feature: HDCP
HDCP version: 2.2
Feature: EDID management
Audio formats supported: DTS, LPCM
Design
Housing colour: Black
Housing material: Metal
Control type: Buttons
Certification: CP65
Display
Feature: Built-in display
Display type: OLED
Ports & interfaces
HDMI input ports quantity: 8
HDMI output ports quantity: 8
HDMI version: 2.0b
RJ-45 input ports: 1
RS-232 ports: 1
Audio (L/R) out: 8
Feature: DC-in jack
Power
Power consumption (max): 43 W
Input current: 5 A
Output voltage: 12 V
Operational conditions
Operating temperature (T-T): -10 – 45 °C
Storage temperature (T-T): -20 – 60 °C
Operating relative humidity (H-H): 20 – 90%
Technical details
Feature: Sustainability compliance
Warranty period: 2 year(s)
Compliance certificates: CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
Weight & dimensions
Width: 440 mm
Depth: 200 mm
Height: 45 mm
Weight: 2.83 kg
Package width: 510 mm
Package type: Box
Package depth: 328 mm
Package height: 95 mm
Package weight: 4.06 kg
Packaging content
Feature: Manual
