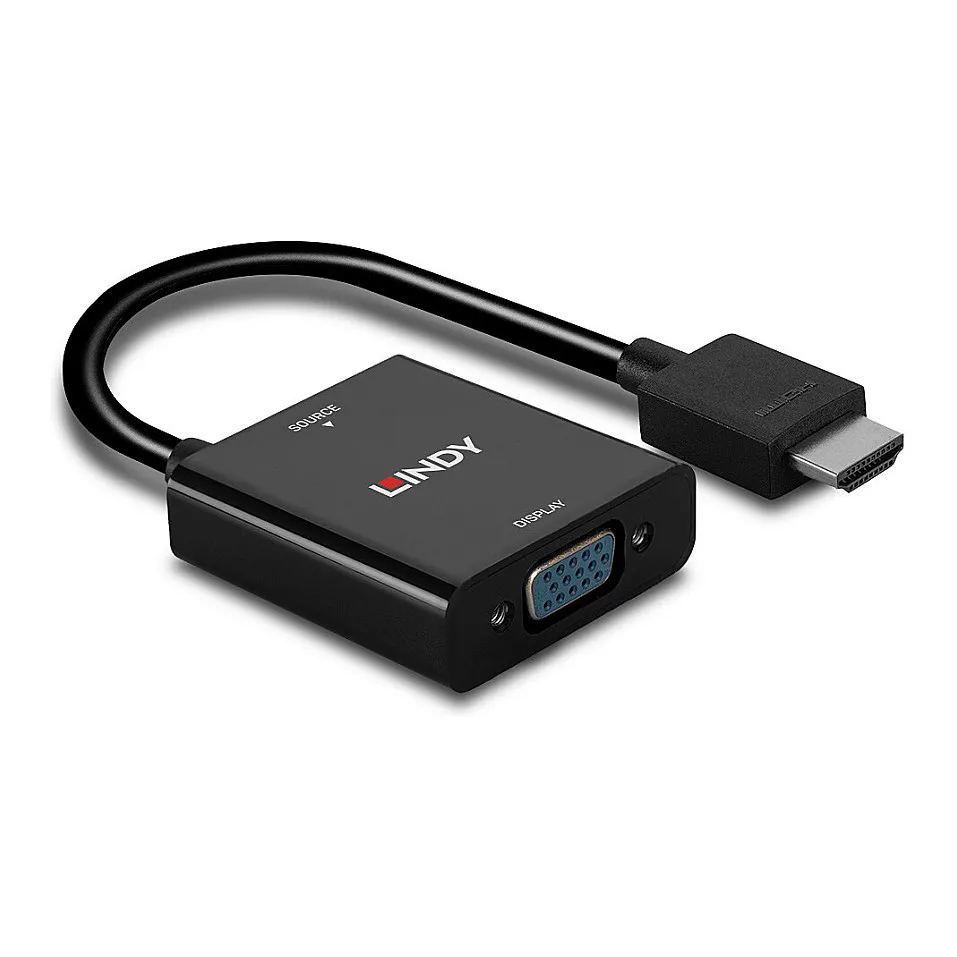

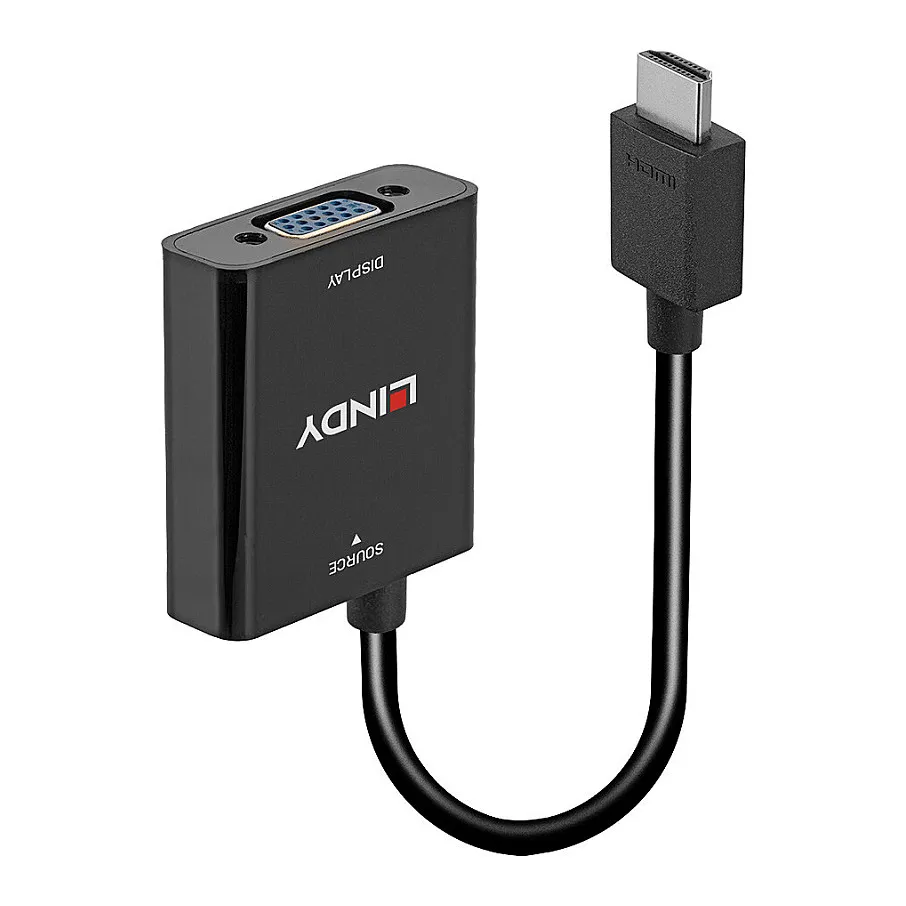

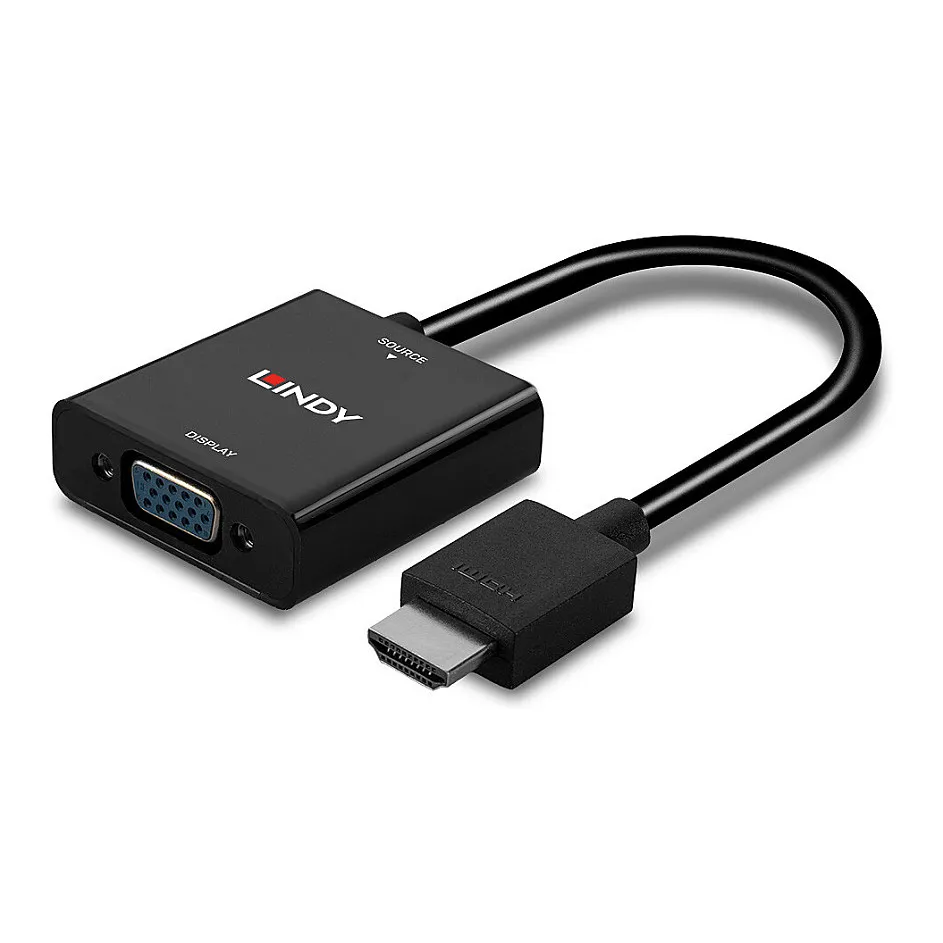

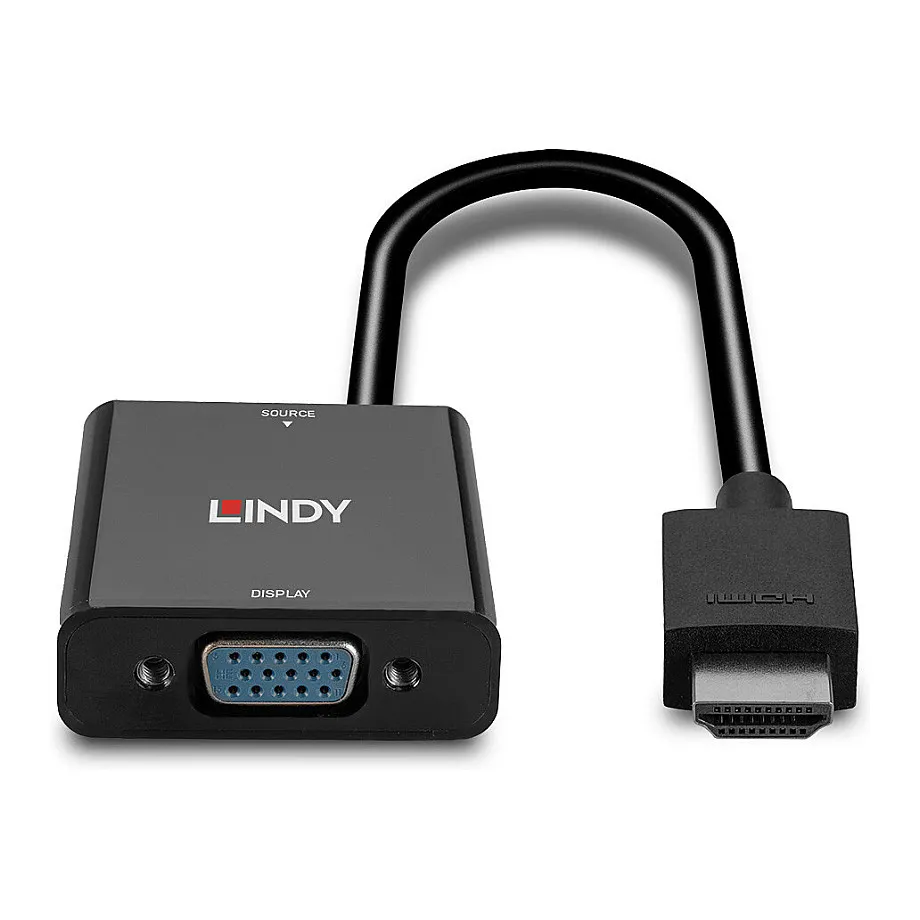

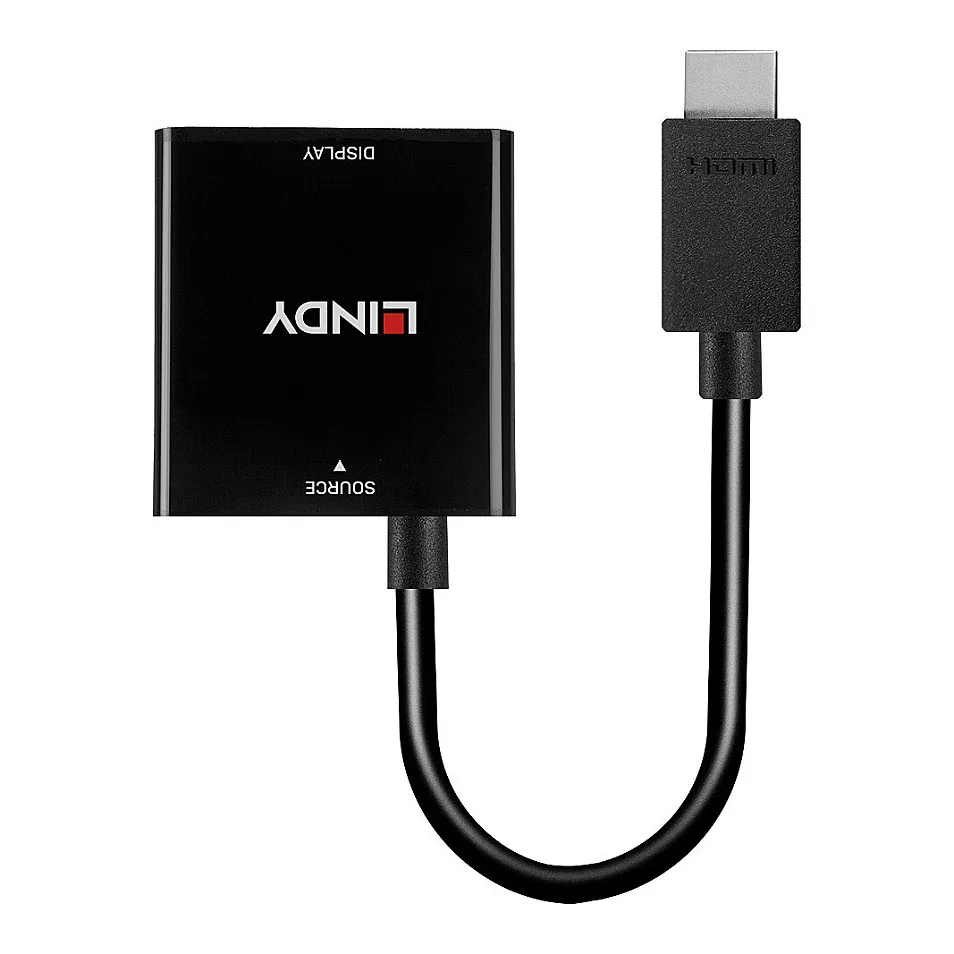

Lindy HDMI to VGA Converter. Cable length: 0.1 m, Connector 1: HDMI Type A (Standard), Connector 2: VGA (D-Sub). Certification: CE, UKCA, FCC, RoHS, REACH. Cable diameter: 4.8 mm, Connector 1 dimensions (WxDxH): 37 x 42 x 14.5 mm, Connector 2 dimensions (WxDxH): 21 x 17.4 x 9.6 mm. Package width: 160 mm, Package depth: 20 mm, Package height: 160 mm. Quantity per pack: 1 pc(s)
The Lindy HDMI 1.3 to VGA converter converts signals from an HDMI equipped source into an analogue VGA signal. It supports resolutions up to 1080p and 1920×1200 for PC VGA displays. This allows the connection of modern HDMI capable devices, such as PC’s, notebooks and ultrabooks, to an older VGA display or projector.
The converter can also be used to add another display to extend the available desktop workspace. It is also ideally suited for travelling due to its compact, lightweight form factor and convenient plug and play installation.
Features
Connector 1 form factor: Straight
Connector 2 form factor: Straight
Cable length: 0.1 m
Connector 1: HDMI Type A (Standard)
Connector 2: VGA (D-Sub)
Connector 1 gender: Male
Connector 2 gender: Female
HDMI version: 1.3
Maximum resolution: 1920 x 1080 pixels
Supported graphics resolutions: 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Supported video modes: 1080p
Data transfer rate: 4.95 Gbit/s
Maximum refresh rate: 60 Hz
Product colour: Black
Chipset: Algoltek AG6200A
Jacket material: Polyvinyl chloride (PVC)
Connector housing material: Acrylonitrile butadiene styrene (ABS)
Colour depth: 12 bit
Feature: Plug and Play
Operational conditions
Operating temperature (T-T): 0 – 70 °C
Storage temperature (T-T): -10 – 80 °C
Operating relative humidity (H-H): 5 – 95%
Certificates
Certification: CE, UKCA, FCC, RoHS, REACH
Weight & dimensions
Cable diameter: 4.8 mm
Connector 1 dimensions (WxDxH): 37 x 42 x 14.5 mm
Connector 2 dimensions (WxDxH): 21 x 17.4 x 9.6 mm
Weight: 27 g
Packaging data
Package width: 160 mm
Package depth: 20 mm
Package height: 160 mm
Package weight: 37 g
Package type: Polybag
Packaging content
Quantity per pack: 1 pc(s)
Logistics data
Harmonized System (HS) code: 84733080
Connector 1 form factor: Straight
Connector 2 form factor: Straight
Cable length: 0.1 m
Connector 1: HDMI Type A (Standard)
Connector 2: VGA (D-Sub)
Connector 1 gender: Male
Connector 2 gender: Female
HDMI version: 1.3
Maximum resolution: 1920 x 1080 pixels
Supported graphics resolutions: 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Supported video modes: 1080p
Data transfer rate: 4.95 Gbit/s
Maximum refresh rate: 60 Hz
Product colour: Black
Chipset: Algoltek AG6200A
Jacket material: Polyvinyl chloride (PVC)
Connector housing material: Acrylonitrile butadiene styrene (ABS)
Colour depth: 12 bit
Feature: Plug and Play
Operational conditions
Operating temperature (T-T): 0 – 70 °C
Storage temperature (T-T): -10 – 80 °C
Operating relative humidity (H-H): 5 – 95%
Certificates
Certification: CE, UKCA, FCC, RoHS, REACH
Weight & dimensions
Cable diameter: 4.8 mm
Connector 1 dimensions (WxDxH): 37 x 42 x 14.5 mm
Connector 2 dimensions (WxDxH): 21 x 17.4 x 9.6 mm
Weight: 27 g
Packaging data
Package width: 160 mm
Package depth: 20 mm
Package height: 160 mm
Package weight: 37 g
Package type: Polybag
Packaging content
Quantity per pack: 1 pc(s)
Logistics data
Harmonized System (HS) code: 84733080
