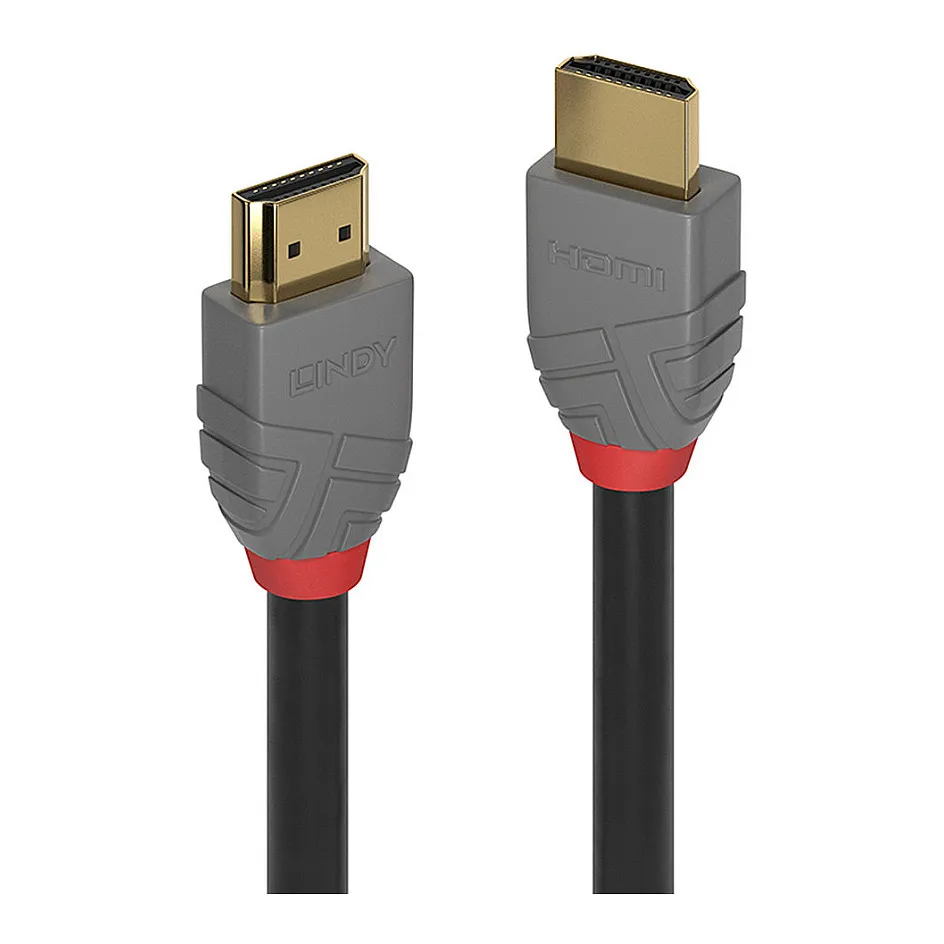

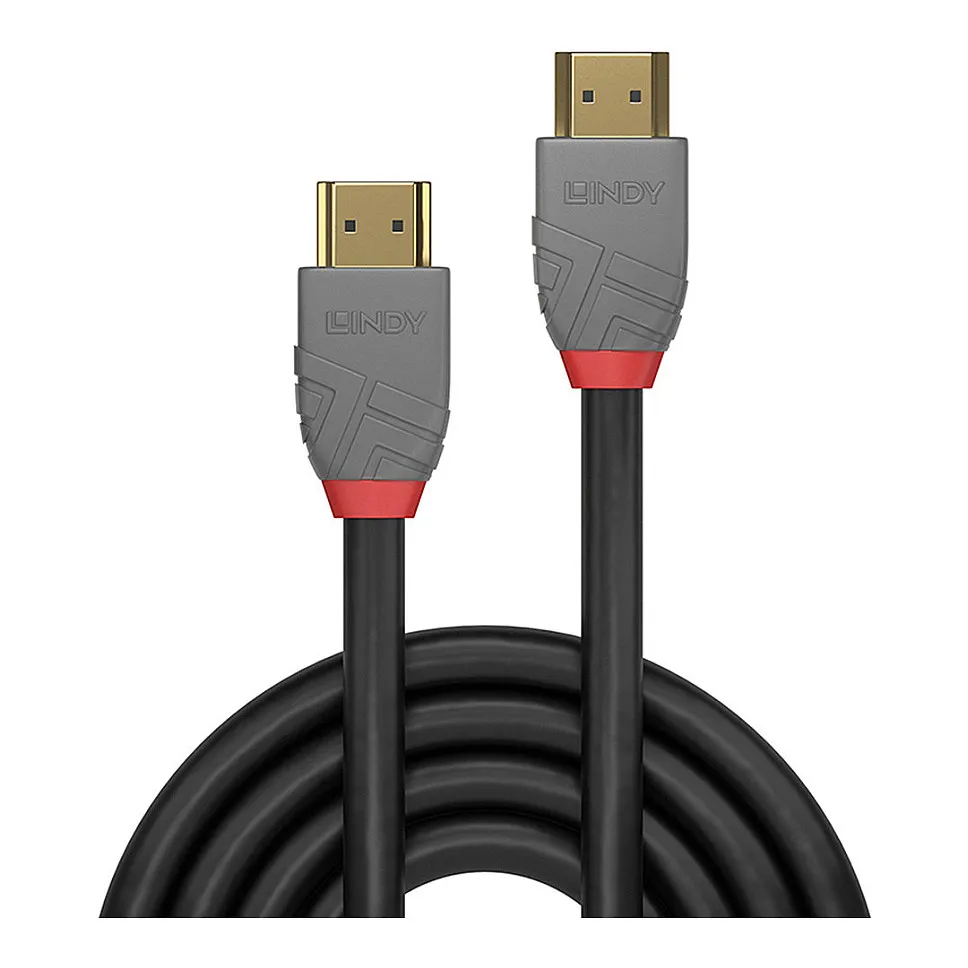

Lindy 7.5m Standard HDMI Cable, Anthra Line. Cable length: 7.5 m, Connector 1: HDMI Type A (Standard), Connector 1 gender: Male, Connector 2: HDMI Type A (Standard), Connector 2 gender: Male, Connector contacts plating: Gold, HDMI version: 2.0, 3D, Data transfer rate: 10.2 Gbit/s, Product colour: Black, Grey

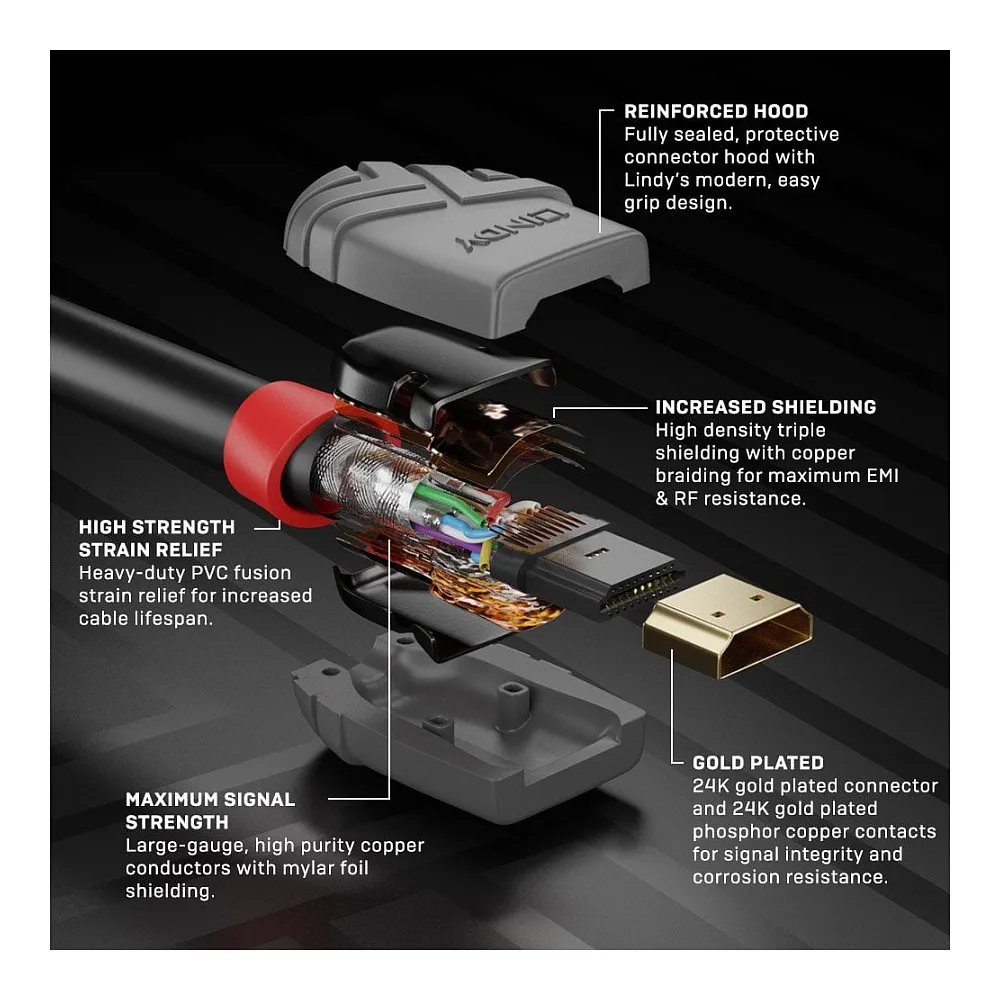

Anthra Line HDMI cables are premium connections that feature triple shielded with 24AWG copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 4K 4096×2160@60Hz 4:2:0 8bit are supported. Anthra Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® True HD.
These HDMI 2.0 cables support 10.2Gbps bandwidth capacity in cable lengths from 7.5m up to 20m.
Anthra Line HDMI cables are available in lengths from 0.3m to 20m.
Cable length: 7.5 m
Connector 1: HDMI Type A (Standard)
Connector 2: HDMI Type A (Standard)
Connector 1 gender: Male
Connector 2 gender: Male
Connector 1 form factor: Straight
Connector 2 form factor: Straight
Product colour: Black, Grey
HDMI version: 2.0
Feature: 3D
Supported graphics resolutions: 3840 x 2160
Dolby technologies: DTS-HD Master Audio, Dolby TrueHD
Data transfer rate: 10.2 Gbit/s
Maximum refresh rate: 60 Hz
AWG wire size: 24
Contact material: Phosphor bronze
Connector contacts plating: Gold
Connector housing material: Polyvinyl chloride (PVC)
Cable material: Copper
Cable type: Round cable
Cable jacket material: Polyvinyl chloride (PVC)
Shield material: Aluminium
Bend radius (min): 9.8 cm
Colour sampling: 4:2:0
Nominal attenuation: 300kHz-825MHz — 15dB825MHz-2.475GHz — 15 – 29dB2.475GHz-4.125GHz — 29 – 44dB4.125GHz-5.1GHz — 44 – 48dB
Operational conditions
Operating temperature (T-T): -20 – 80 °C
Storage temperature (T-T): -25 – 85 °C
Certificates
Compliance certificates: RoHS
Certification: RoHS, REACH, UL
Weight & dimensions
Cable diameter: 9.8 mm
Connector 1 dimensions (WxDxH): 21.4 x 41.44 x 12.7 mm
Connector 2 dimensions (WxDxH): 21.4 x 41.44 x 12.7 mm
Packaging data
Package type: Polybag
Quantity per pack: 1 pc(s)
Logistics data
Harmonized System (HS) code: 84733080
