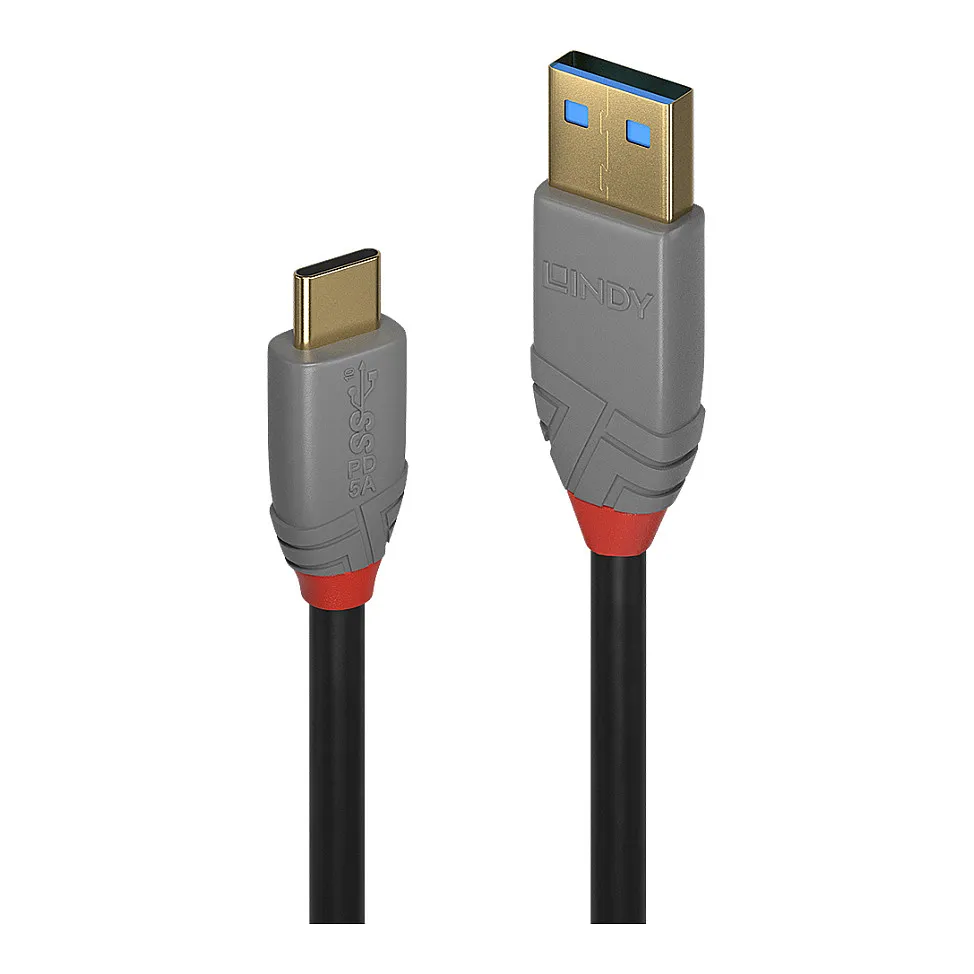

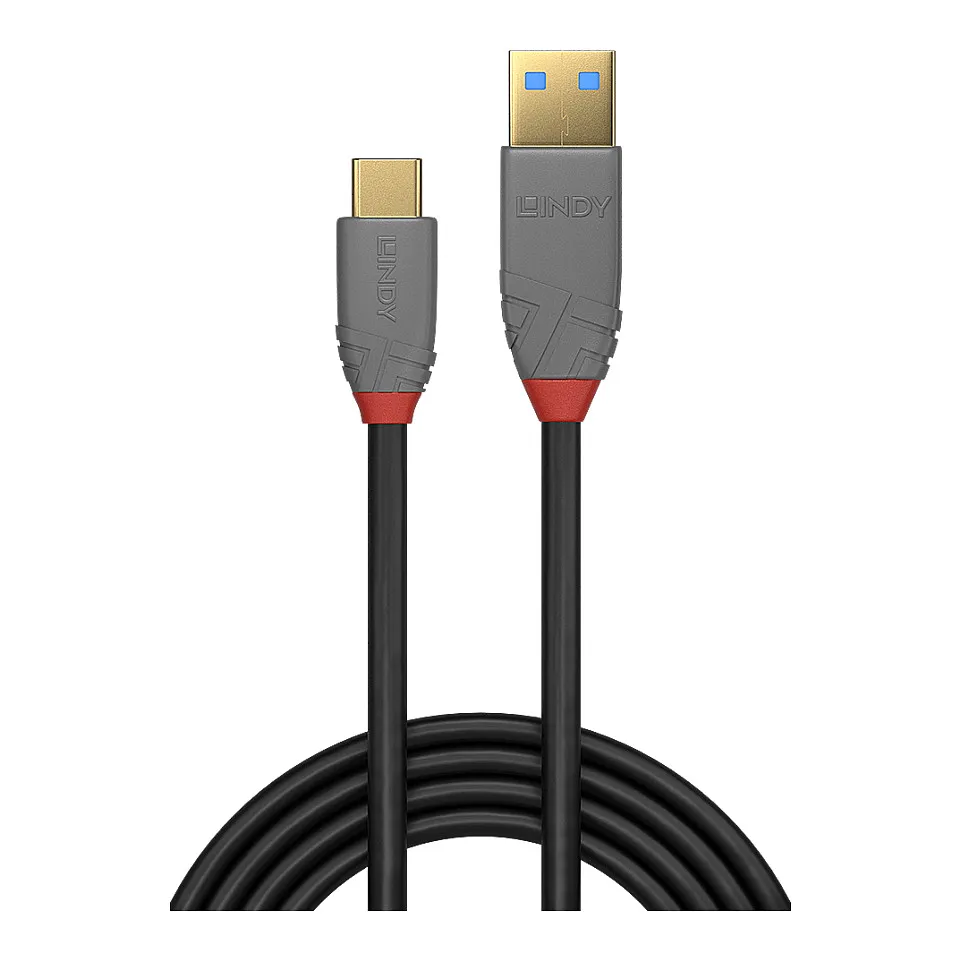

Lindy 1.5m USB 3.2 Type A to C Cable, 10Gbps, 5A, PD, Anthra Line. Cable length: 1.5 m. Connector 1: USB C, Connector 2: USB A, USB version: USB 3.2 Gen 2 (3.1 Gen 2), Maximum data transfer rate: 10 Gbit/s, Connector contacts plating: Gold, Product colour: Black, Grey, Magnetically shielded
Anthra Line USB 3.2 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
USB bandwidths up to 10Gbps are supported for rapid transfer of large data volumes. These cables are E-marked to provide 100W (5A) of power to devices using the most efficient power delivery profiles.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
Anthra Line USB 3.2 Type A to C, 5A cables are available in the following lengths: 0.5m, 1m and 1.5m.
Information about USB generations We have adapted the naming of our USB 3 cables to follow the updated USB specification. USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps USB 3.2 Gen 2×2 is a new standard, supporting data transfer rates up to 20 Gbps
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB version: USB 3.2 Gen 2 (3.1 Gen 2)
Connector 1: USB C
Connector 2: USB A
Connector 1 gender: Male
Connector 2 gender: Male
Connector 1 form factor: Straight
Connector 2 form factor: Straight
AWG wire size: 24/30/32
Connector material: Gold
Contact material: Phosphor bronze
Connector contacts plating: Gold
Feature: Magnetically shielded
Cable jacket material: Polyvinyl chloride (PVC)
Conductor material: Tinned copper
Feature: Connector shielding
Connector shield material: Copper
Connector housing material: Polyvinyl chloride (PVC)
Maximum data transfer rate: 10000 Mbit/s
Maximum data transfer rate: 10 Gbit/s
Product colour: Black, Grey
Cable type: Round cable
Nominal attenuation: 0.5Mhz €“ 15Ghz 40db
Weight & dimensions
Cable length: 1.5 m
Cable diameter: 4.5 mm
Bend radius (min): 4.5 cm
Connector 1 dimensions (WxDxH): 15.5 x 35 x 7.8 mm
Connector 2 dimensions (WxDxH): 12.7 x 30.8 x 7.3 mm
Packaging data
Package type: Polybag
Packaging content
Quantity per pack: 1 pc(s)
Operational conditions
Operating temperature (T-T): -20 – 80 °C
Storage temperature (T-T): -25 – 85 °C
Certificates
Certification: RoHS, REACH, UL
Logistics data
Harmonized System (HS) code: 84733080
