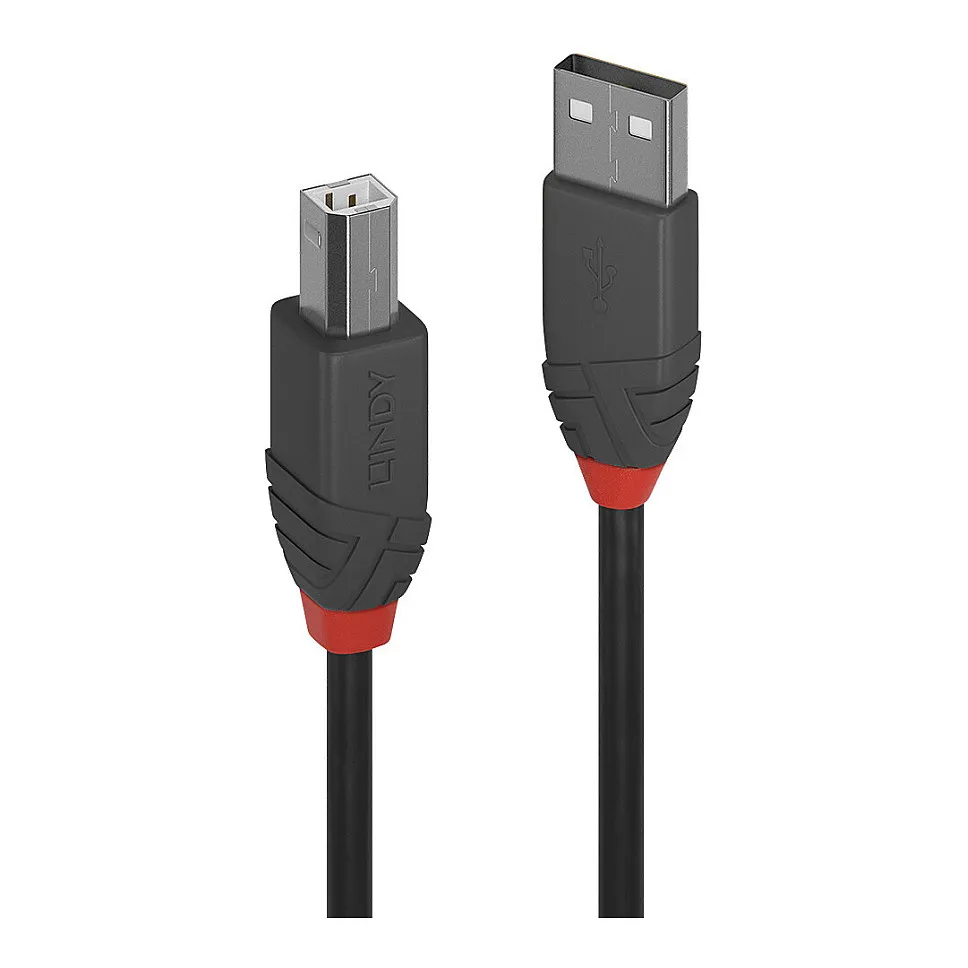

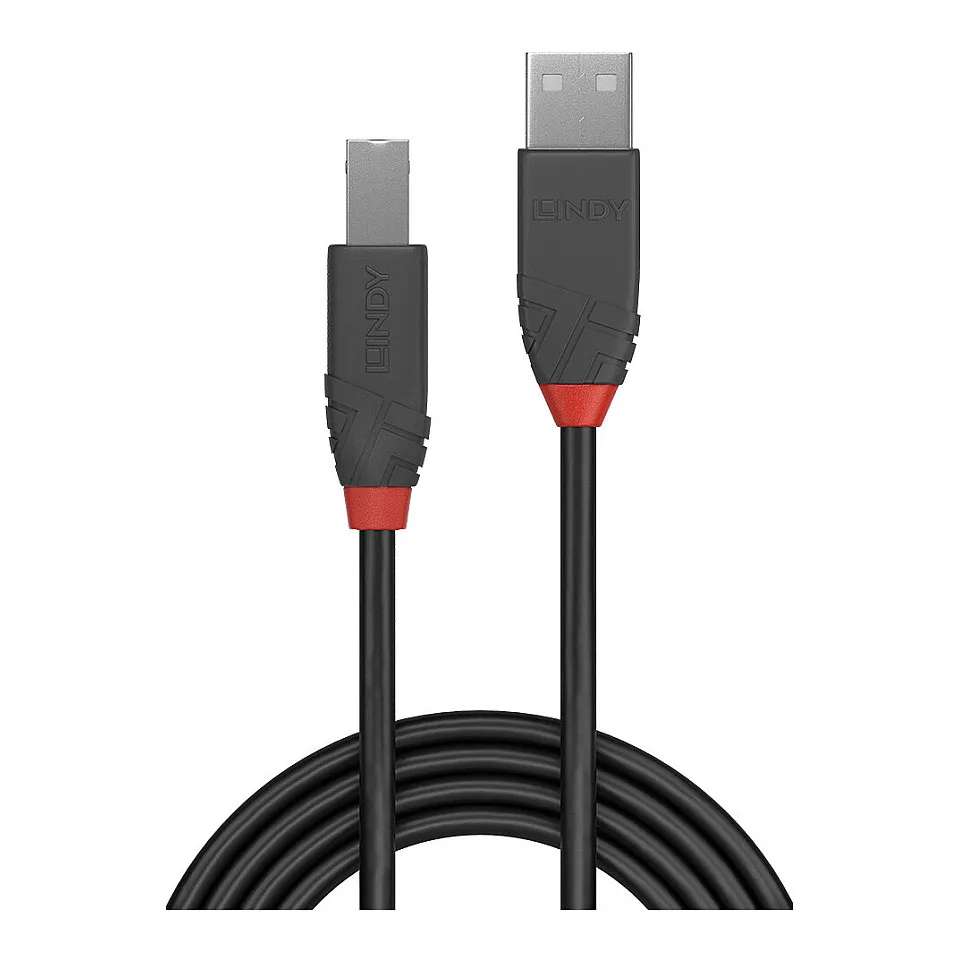

Lindy 7.5m USB 2.0 Type A to B Cable, Anthra Line. Cable length: 7.5 m. Connector 1: USB A, Connector 2: USB B, USB version: USB 2.0, Maximum data transfer rate: 0.48 Gbit/s, Connector contacts plating: Nickel, Product colour: Black
From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 2.0 Type A to B cables are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.
Anthra Line USB 2.0 Type A to B cables are available in lengths from 0.2m to 10m.
Features
USB version: USB 2.0
Connector 1: USB A
Connector 2: USB B
Connector 1 gender: Male
Connector 2 gender: Male
Connector 1 form factor: Straight
Connector 2 form factor: Straight
AWG wire size: 28/24
Connector material: Nickel
Contact material: Copper
Connector contacts plating: Nickel
Cable jacket material: Polyvinyl chloride (PVC)
Conductor material: Tinned copper
Feature: Connector shielding
Connector shield material: Aluminium
Connector housing material: Polyvinyl chloride (PVC)
Maximum data transfer rate: 480 Mbit/s
Maximum data transfer rate: 0.48 Gbit/s
Product colour: Black
Cable type: Round cable
Nominal attenuation: 5.8db/km
Weight & dimensions
Cable length: 7.5 m
Cable diameter: 5 mm
Bend radius (min): 1.6 cm
Connector 1 dimensions (WxDxH): 15.5 x 35 x 7.8 mm
Connector 2 dimensions (WxDxH): 11.8 x 35 x 10.2 mm
Packaging data
Package type: Polybag
Packaging content
Quantity per pack: 1 pc(s)
Operational conditions
Operating temperature (T-T): 0 – 60 °C
Storage temperature (T-T): 0 – 60 °C
Certificates
Certification: RoHS, REACH, UL
Logistics data
Harmonized System (HS) code: 84733080
USB version: USB 2.0
Connector 1: USB A
Connector 2: USB B
Connector 1 gender: Male
Connector 2 gender: Male
Connector 1 form factor: Straight
Connector 2 form factor: Straight
AWG wire size: 28/24
Connector material: Nickel
Contact material: Copper
Connector contacts plating: Nickel
Cable jacket material: Polyvinyl chloride (PVC)
Conductor material: Tinned copper
Feature: Connector shielding
Connector shield material: Aluminium
Connector housing material: Polyvinyl chloride (PVC)
Maximum data transfer rate: 480 Mbit/s
Maximum data transfer rate: 0.48 Gbit/s
Product colour: Black
Cable type: Round cable
Nominal attenuation: 5.8db/km
Weight & dimensions
Cable length: 7.5 m
Cable diameter: 5 mm
Bend radius (min): 1.6 cm
Connector 1 dimensions (WxDxH): 15.5 x 35 x 7.8 mm
Connector 2 dimensions (WxDxH): 11.8 x 35 x 10.2 mm
Packaging data
Package type: Polybag
Packaging content
Quantity per pack: 1 pc(s)
Operational conditions
Operating temperature (T-T): 0 – 60 °C
Storage temperature (T-T): 0 – 60 °C
Certificates
Certification: RoHS, REACH, UL
Logistics data
Harmonized System (HS) code: 84733080
