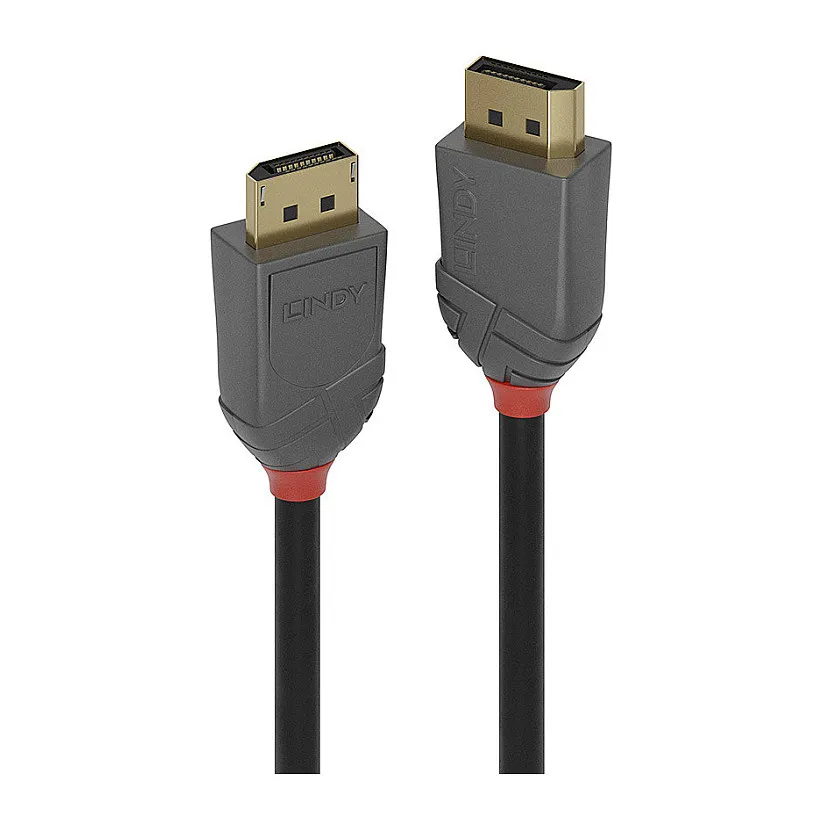

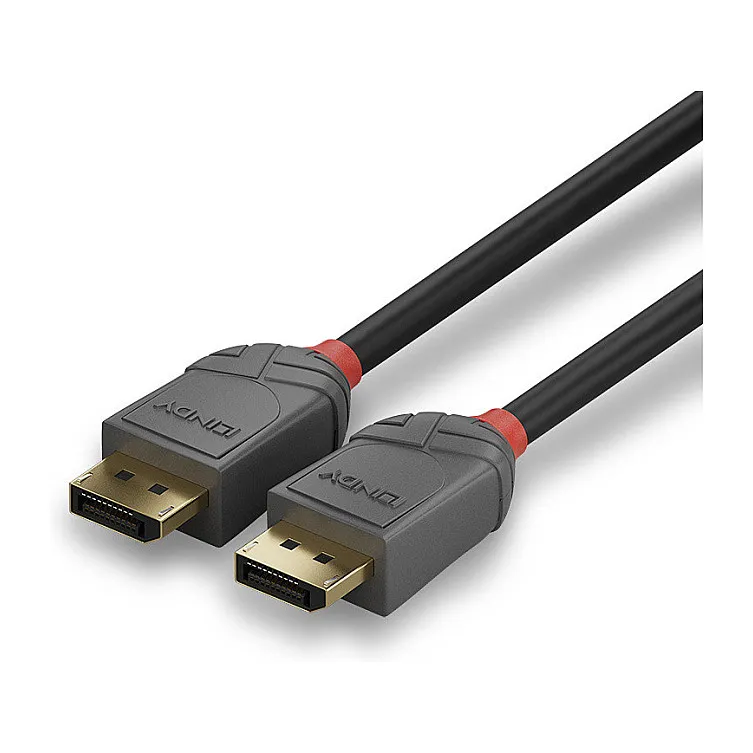

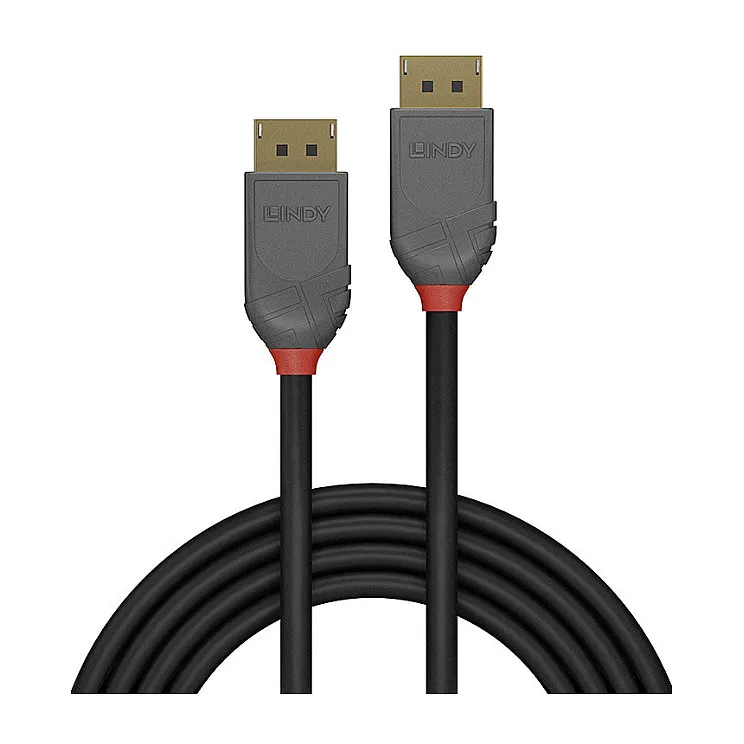

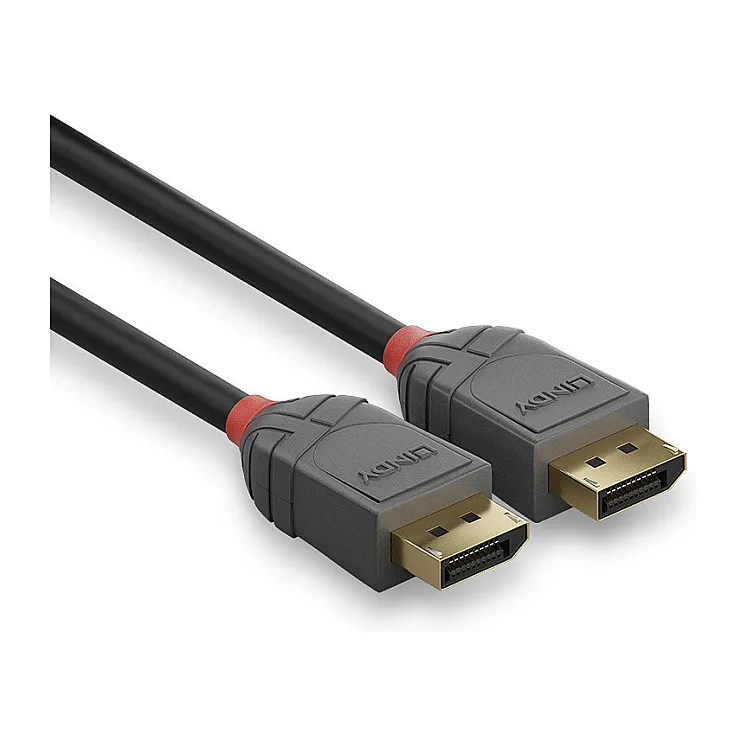

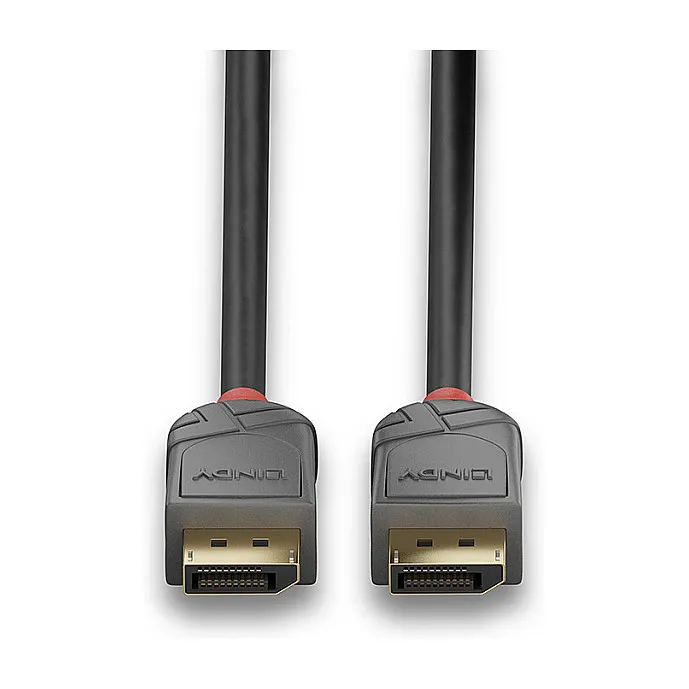

Lindy 2m DisplayPort 1.4 Cable, Anthra Line. Cable length: 2 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Certification: RoHS, REACH, UL. Cable diameter: 7.3 mm, Connector 1 dimensions (WxDxH): 21 x 38.9 x 13.6 mm, Bend radius (min): 5.84 cm. Package type: Polybag. Depth: 38.9 mm, Height: 13.6 mm, Width: 21 mm
Anthra Line DisplayPort cables are premium connections that feature triple shielded with 28AWG tinned copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 8K 7680×4320@60Hz 4:2:2 8bit, including 4K 4096×2160@144Hz 4:2:2 10bit and HDCP are supported. DisplayPort 1.4 technology and DisplayPort compliance certification ensures compatibility with all DisplayPort enabled devices.
Anthra Line DisplayPort cables are available in lengths from 0.5m to 5m.
Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector contacts plating: Gold
DisplayPort version: 1.4
Maximum resolution: 7680 x 4320 pixels
Supported graphics resolutions: 4096 x 2160, 7680 x 4320
Cable length: 2 m
Connector 1: DisplayPort
Connector 2: DisplayPort
Connector 1 gender: Male
Connector 2 gender: Male
Product colour: Black
Cable material: Tinned copper
Cable shielding: Copper
Jacket material: Polyvinyl chloride (PVC)
Connector housing material: Acrylonitrile butadiene styrene (ABS)
AWG wire size: 28
Data transfer rate: 32.4 Gbit/s
Contact material: Phosphor bronze
Connector material: Gold
Colour sampling: 4:2:2
Cable type: Round cable
Nominal attenuation: 100MHz-450MHz 5.1dB, 450MHz-8100MHz 33.28dB
Operational conditions
Operating temperature (T-T): -20 – 80 °C
Storage temperature (T-T): -25 – 85 °C
Certificates
Certification: RoHS, REACH, UL
Weight & dimensions
Cable diameter: 7.3 mm
Connector 1 dimensions (WxDxH): 21 x 38.9 x 13.6 mm
Bend radius (min): 5.84 cm
Packaging data
Package type: Polybag
Logistics data
Harmonized System (HS) code: 84733080
Other features
Depth: 38.9 mm
Height: 13.6 mm
Width: 21 mm
