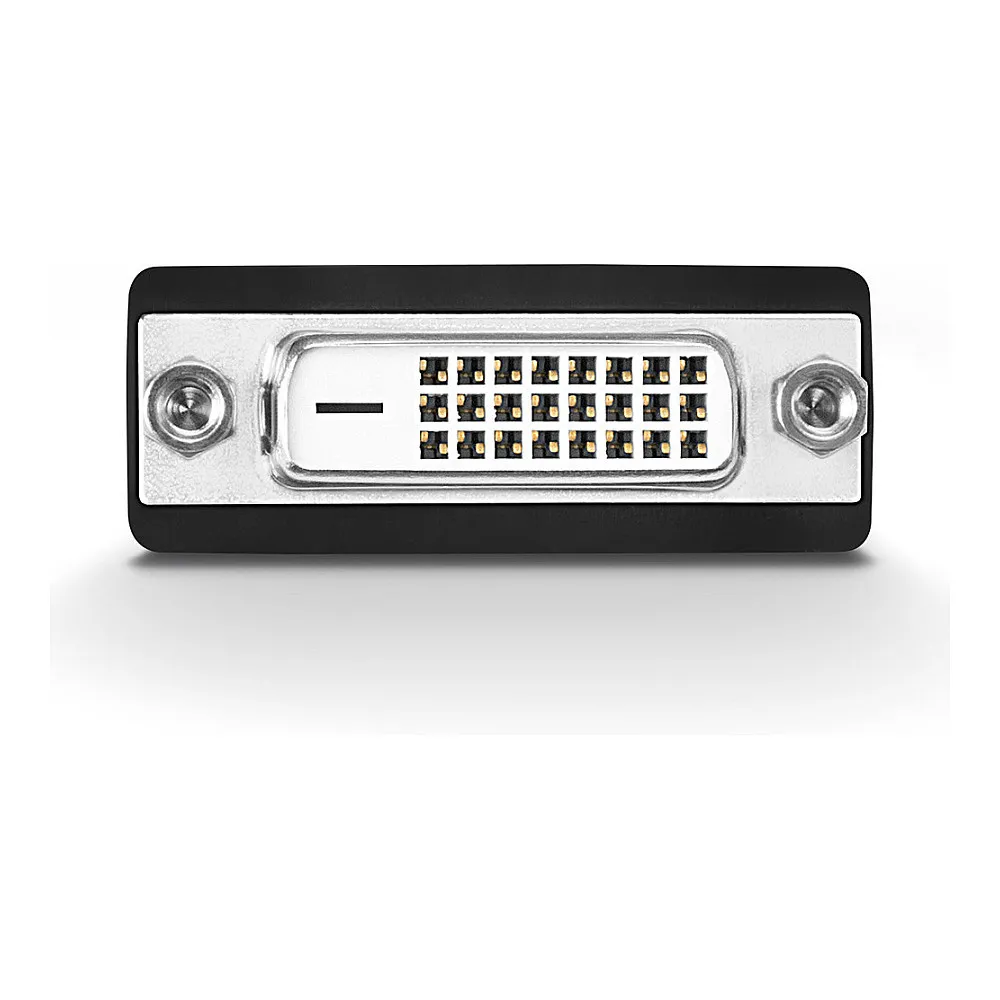

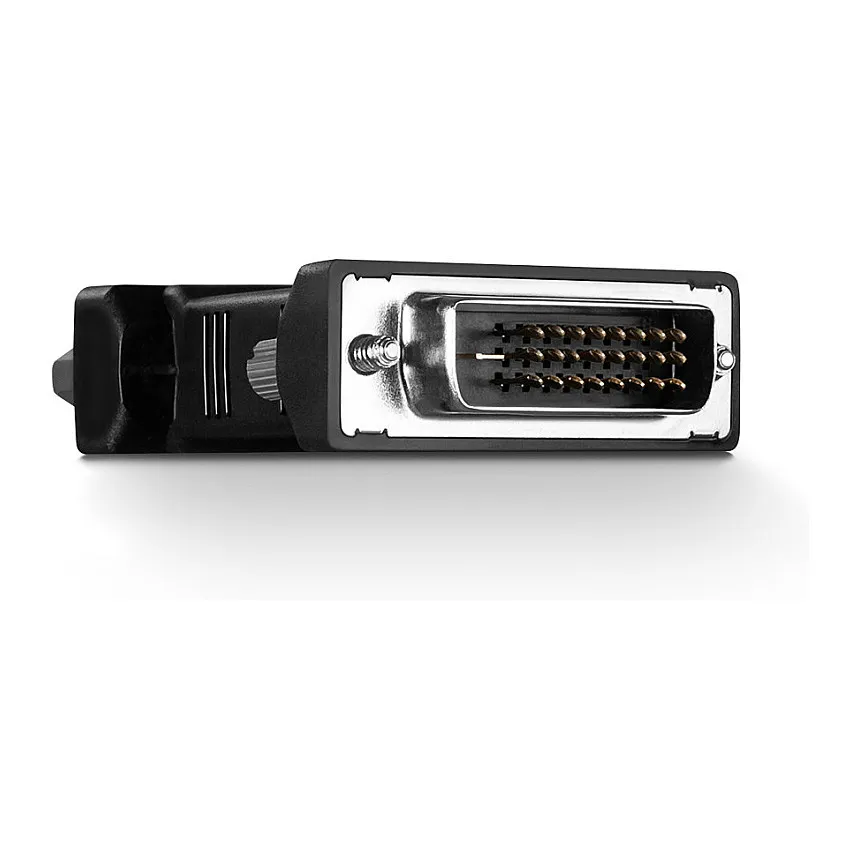

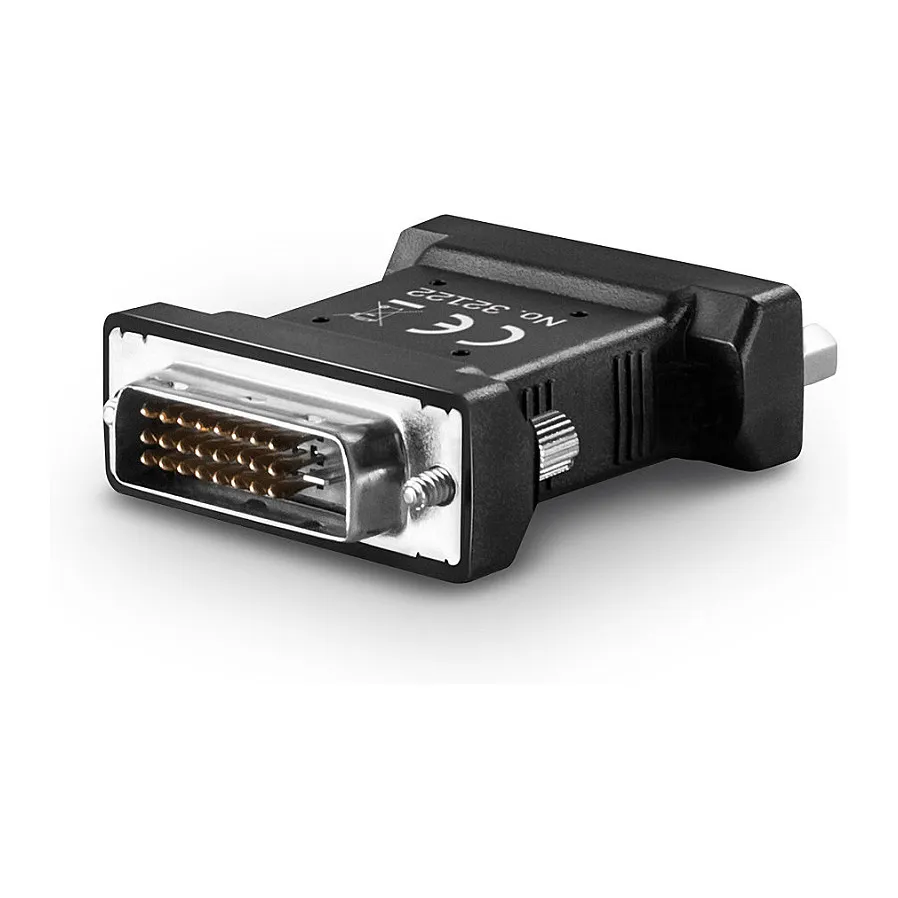

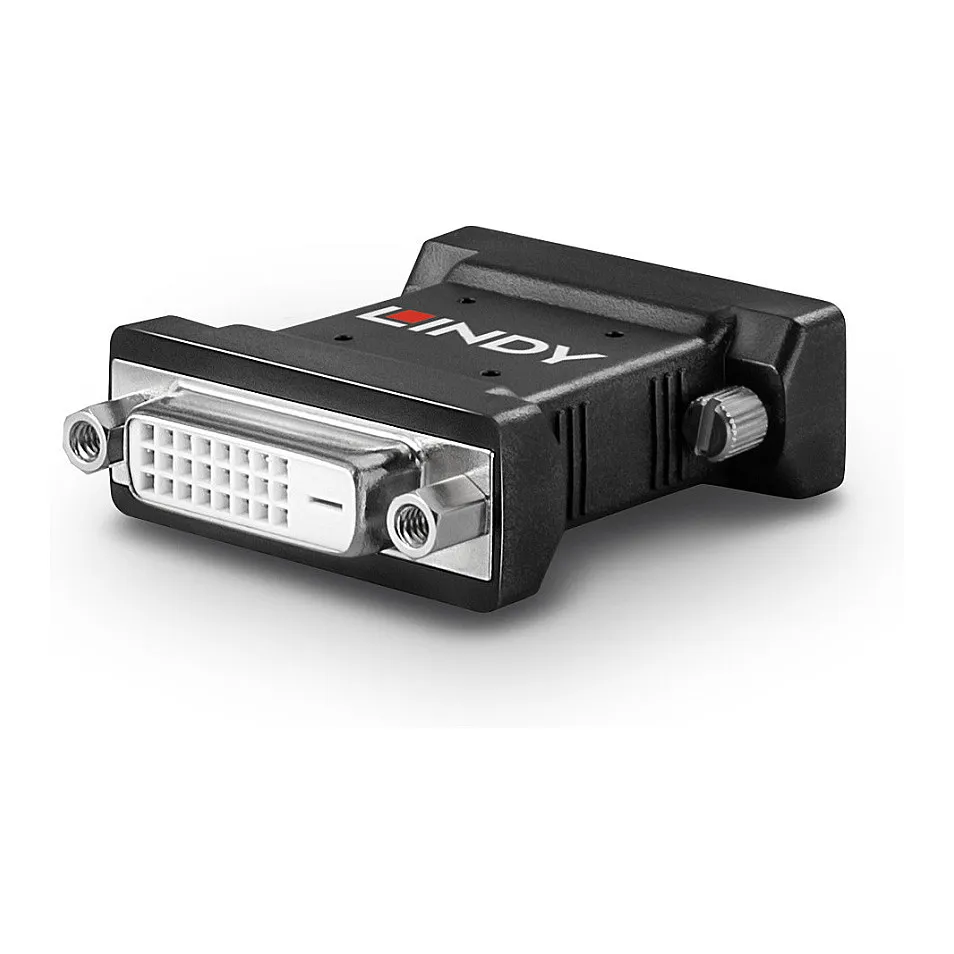

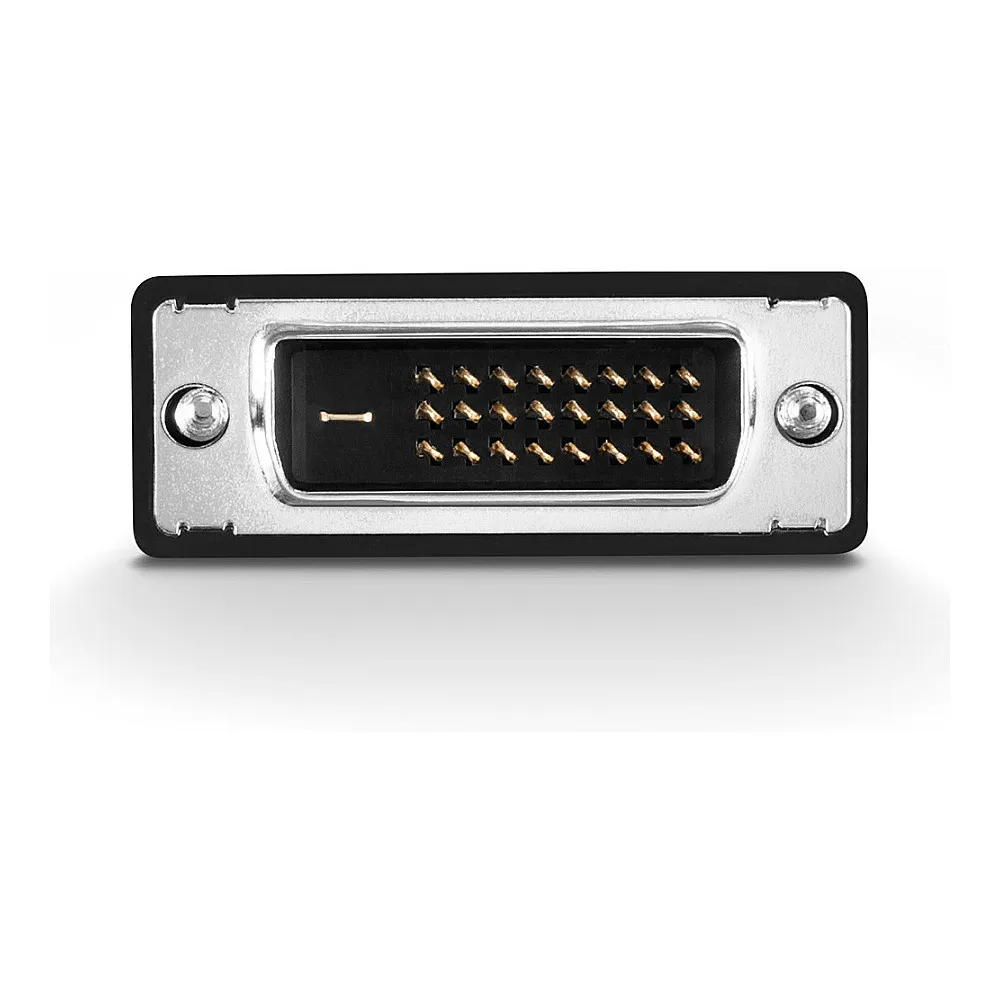

Lindy DVI EDID Emulator. Maximum video resolution: 2560 x 1600 pixels, Video resolutions: 720 x 400,640 x 480,800 x 600,1024 x 768,1280 x 1024,1280 x 720,1280 x 960,1600 x 1200,1680 x…, Bandwidth: 9.9 Gbit/s. Product colour: Black, Metallic, Housing material: Metal, Certification: : CE, FCC, RoHS, REACH & California Proposition 65. Video port type: DVI-D. Width: 39 mm, Depth: 54 mm, Height: 14 mm. Package width: 133 mm, Package depth: 144 mm, Package weight: 51 g
The Lindy DVI EDID Emulator is designed for systems that require EDID signals to be continuously provided without interruption and helps overcome EDID related problems which can occur when using AV/KVM extenders, switches and splitters. It can also be used in place of a monitor to keep the graphics card of a PC or server awake for remote access via IP. With support for resolutions up to 2560×1600@60Hz, the emulator is suitable for use with legacy PCs and displays. When used with the Lindy EDID recorder (32120) this device can provide cloned EDID information to the graphics card.
It is also possible to use the Emulator without cloning a display as it comes complete with pre-set EDID data for the most commonly used resolution/timing combinations, please see the Technical Information section for a full breakdown.
Maximum video resolution: 2560 x 1600 pixels
Video resolutions: 720 x 400,640 x 480,800 x 600,1024 x 768,1280 x 1024,1280 x 720,1280 x 960,1600 x 1200,1680 x 1050,1920 x 1080,1920 x 1200,2560 x 1440,2560 x 1600
Bandwidth: 9.9 Gbit/s
Design
Product colour: Black, Metallic
Housing material: Metal
Certification: : CE, FCC, RoHS, REACH & California Proposition 65
Ports & interfaces
Video port type: DVI-D
Number of video inputs: 1
Number of video outputs: 1
Weight & dimensions
Width: 39 mm
Depth: 54 mm
Height: 14 mm
Weight: 35 g
Packaging data
Package width: 133 mm
Package depth: 144 mm
Package weight: 51 g
