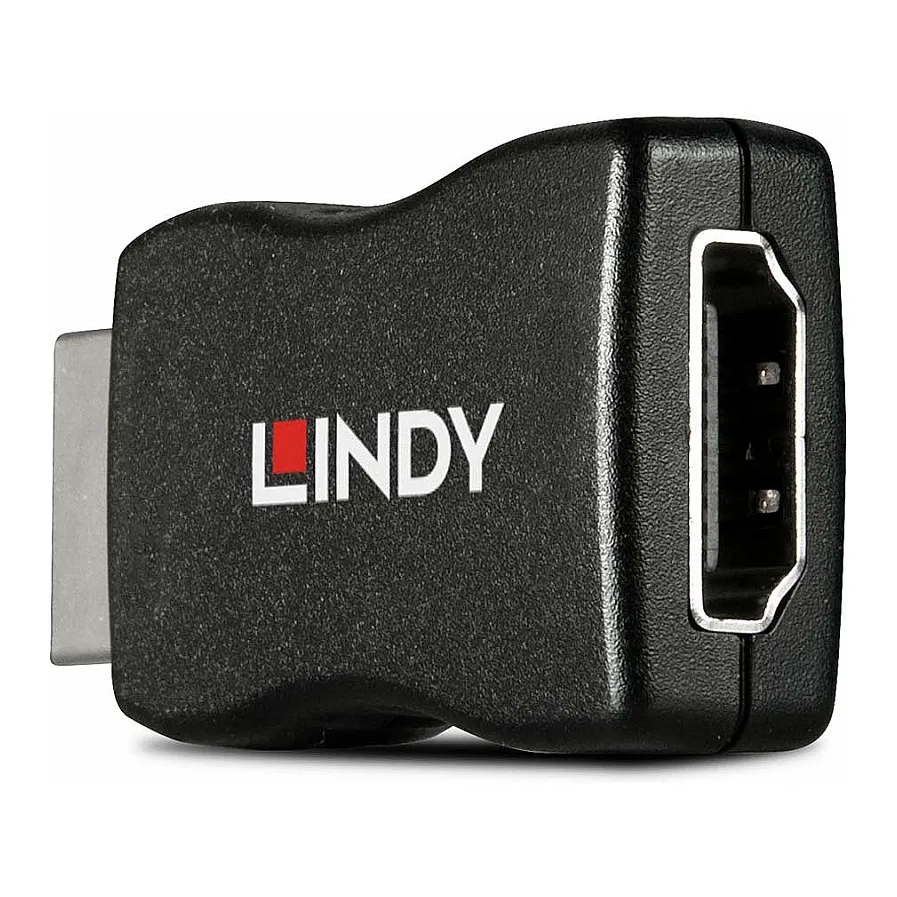

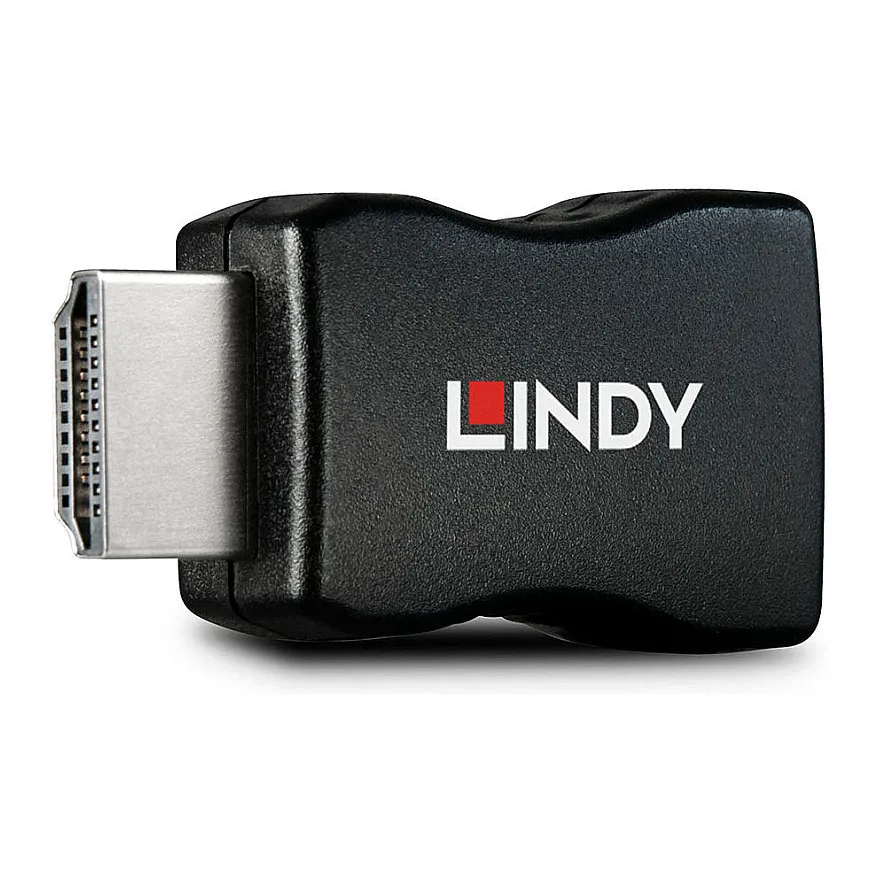

Lindy HDMI 10.2G EDID Emulator. Connector 1: HDMI-A, Connector 2: HDMI-A. Product colour: Black
The Lindy HDMI 10.2G EDID Emulator Adapter is designed for systems that require EDID signals to be continuously provided without interruption and helps overcome EDID related problems which can occur when using AV/KVM extenders, switches and splitters. It can also be used in place of a monitor to keep the graphics card of a PC or server awake for remote access via IP. With support for resolutions up to 2160p including the ability to passthrough HDCP content, the Emulator is suitable for use with a wide variety of PC and AV applications. When used with the Lindy HDMI / VGA / DVI EDID Recorder (32120) this compact device can provide cloned EDID information to your graphics card.
It is also possible to use the Emulator without cloning a display as it comes complete with preset EDID data for the most commonly used resolution/timing combinations, please see the Technical Information section for a full breakdown.
*Please note: This Emulator does not support HDMI 2.0 or HDCP 2.2 content. If you require this then please see our complete range of EDID emulators
Ports & interfaces
Connector 1: HDMI-A
Connector 2: HDMI-A
Connector 1 gender: Male
Connector 2 gender: Female
Performance
Product colour: Black
Housing material: Acrylonitrile butadiene styrene (ABS)
Data transfer rate: 18 Gbit/s
Maximum resolution (HDMI): 3840 x 2160 pixels
Compatible products: Lindy 32100
Operational conditions
Operating temperature (T-T): 0 – 60 °C
Storage temperature (T-T): -10 – 70 °C
Relative humidity: 0 – 80%
Certificates
Compliance certificates: RoHS
Certification: REACH, CE, FCC
Weight & dimensions
Width: 24 mm
Depth: 43 mm
Height: 12.3 mm
Weight: 8 g
Packaging content
Feature: Manual
Packaging data
Package width: 136 mm
Package height: 138 mm
Package type: Polybag
Connector 1: HDMI-A
Connector 2: HDMI-A
Connector 1 gender: Male
Connector 2 gender: Female
Performance
Product colour: Black
Housing material: Acrylonitrile butadiene styrene (ABS)
Data transfer rate: 18 Gbit/s
Maximum resolution (HDMI): 3840 x 2160 pixels
Compatible products: Lindy 32100
Operational conditions
Operating temperature (T-T): 0 – 60 °C
Storage temperature (T-T): -10 – 70 °C
Relative humidity: 0 – 80%
Certificates
Compliance certificates: RoHS
Certification: REACH, CE, FCC
Weight & dimensions
Width: 24 mm
Depth: 43 mm
Height: 12.3 mm
Weight: 8 g
Packaging content
Feature: Manual
Packaging data
Package width: 136 mm
Package height: 138 mm
Package type: Polybag
