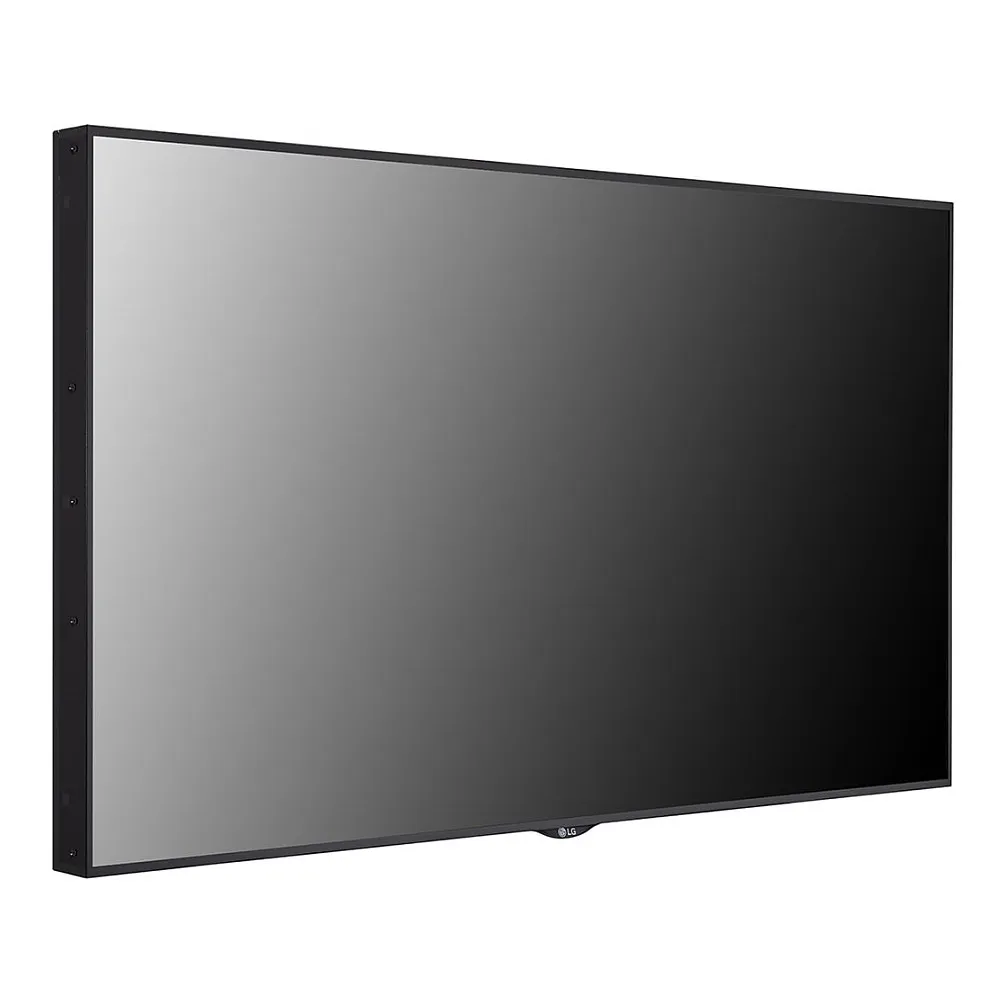

LG 49XS4P. Product design: Digital signage flat panel. Display diagonal: 124.5 cm (49"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 4000 cd/m², HD type: Full HD. Operating hours (hours/days): 24/7. Operating system installed: WebOS. Product colour: Black
World’s First UL Verification for Display Anti-Discoloration Characteristics
By focusing on the pain points of our customers, we obtained the world’s first UL Verification for Display Anti-Discoloration Characteristics. Our new technology helps prevent ‘screen-yellowing’, while safeguarding display quality and performance stability.
Window-facing Display
LG offers advanced technical solutions for cost-effective operations. The XS4P can maintain an astonishing brightness of 4,000 nits, yet has lower power consumption compared to RGB panels at the same brightness level.
Brightness Beyond the Window
A window-facing display requires higher nits, as it is exposed to direct sunlight through a window. The XS4P is designed especially for window-facing environments, providing brilliant brightness. Vibrant and dynamic content displayed through the window will attract customers to your business, despite the viewers wearing polarized sunglasses.
High-performance with
webOS 6.0
Quad Core SoC (System-on-Chip) can execute several tasks at the same time without a separate media player. In addition, webOS 6.0 platform enhances not only user convenience with intuitive UI but also web-app integration with updated Node JS / Chromium version.
Remotely Managed, Real-time Mastery (Content Manager)
A significant advantage of window-facing displays over temporary displays is their ability to effortlessly manage frequently changing promotional content and pricing information. LG’s web-based content solution is intuitive and user-friendly, providing users with complete access to current and historical data anytime, anywhere, through their mobile devices. This allows users to monitor, adjust, and control the unit remotely in real-time.
Wide Range of Operating Temperature
The XS4P can be used under a wide range of operating temperature from 0℃ to 40℃.
Conformal Coating
The conformal coating with dust protection shields the circuit and power boards from dust, metal particles, moisture, and other contaminants, providing solid durability and long-term reliability.
Upgraded Quiet Mode
The XS4P addresses concerns about display noise. It features an Upgraded Quiet Mode that operates at 2,500 nits with minimal fan noise.
Professional Content Partners
Pairing the XS4P Series with LG SW solutions would enhance its utilization.
Convenient Installation with Calculated Precision
The XS4P is equipped with a Leveler Tool that shows users the tilt of the device, allowing for precise display installation. Additionally, the Horizontal Sensor Tool assists users in verifying the correct installation direction. The XS4P even provides warning messages for proper installation if it is installed incorrectly.
Panel type: IPS
Feature: LED backlight
LED backlighting type: Direct-LED
Display diagonal: 124.5 cm (49″)
Display technology: LED
Display resolution: 1920 x 1080 pixels
Display brightness: 4000 cd/m²
HD type: Full HD
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1300:1
Contrast ratio (dynamic): 500000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Panel life: 50000 h
Native refresh rate: 60 Hz
Haze rate: 3%

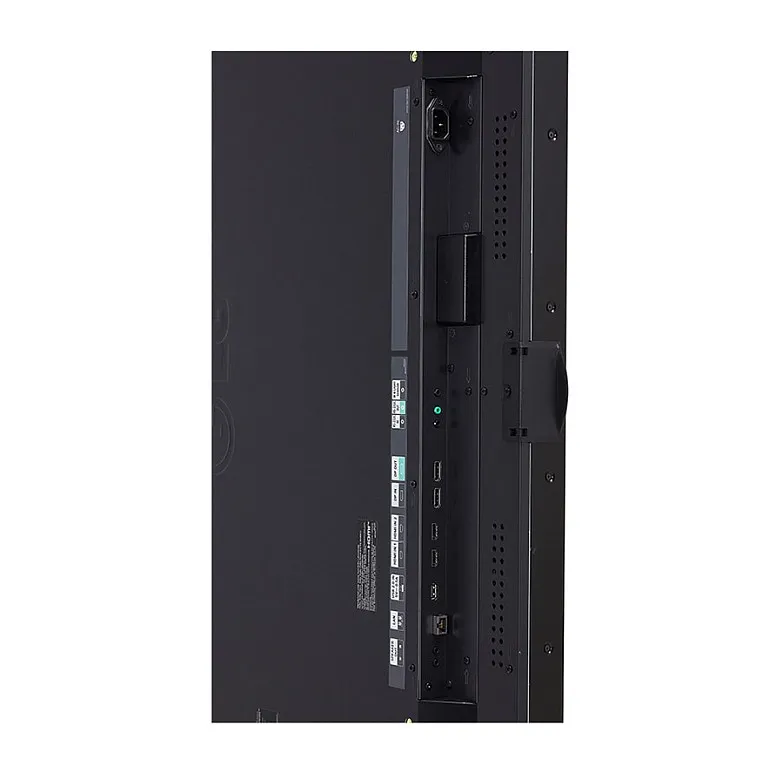

Ports & interfaces
HDMI ports quantity: 2
HDMI input ports quantity: 2
DVI-D ports quantity: 1
DisplayPorts quantity: 2
DisplayPorts in: 1
DisplayPorts out: 1
Feature: USB port
USB ports quantity: 1
USB version: 2.0
USB connector type: USB Type-A
Ethernet LAN (RJ-45) ports: 1
Audio (L/R) out: 1
Feature: RS-232C
Feature: Infrared data port
Remote (IR) input: 1
Remote (IR) output: 1
Audio
Feature: Built-in speaker(s)
RMS rated power: 20 W
Design
Product design: Digital signage flat panel
Placement supported: Outdoor
Orientation: Horizontal/Vertical
Product colour: Black
Screen shape: Flat
Feature: VESA mounting
Panel mounting interface: 600 x 400 mm
Bezel width (bottom): 1.2 cm
Bezel width (side): 9.9 mm
Bezel width (top): 1.2 cm
Bezel colour: Black
Performance
Purpose: Retail
Feature: On Screen Display (OSD)
Number of OSD languages: 22
Operating hours (hours/days): 24/7
Feature: HDCP
HDCP version: 1.4
Power
Power consumption (typical): 375 W
Power consumption (off): 0.5 W
Power consumption (max): 375 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Heat dissipation: 1280 BTU/h
Computer system
Feature: Computer system
Computer system type: System on Chip (SoC)
Internal memory: 16 GB
Operating system installed: WebOS
Operating system version: 6.0
Weight & dimensions
Display width: 1092.7 mm
Display depth: 83.5 mm
Display height: 626.4 mm
Display weight: 20.8 kg
Packaging data
Package width: 1181 mm
Package depth: 725 mm
Package height: 212 mm
Package weight: 25.3 kg
Packaging content
Feature: Remote control included
Cables included: AC, HDMI
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 10 – 80%
Network
Feature: Ethernet LAN
Features
Feature: Suitable for outdoor use
Heat dissipation (max): 1365 BTU/h
Technical details
Introduction year: 2024
Other features
Feature: Manual
