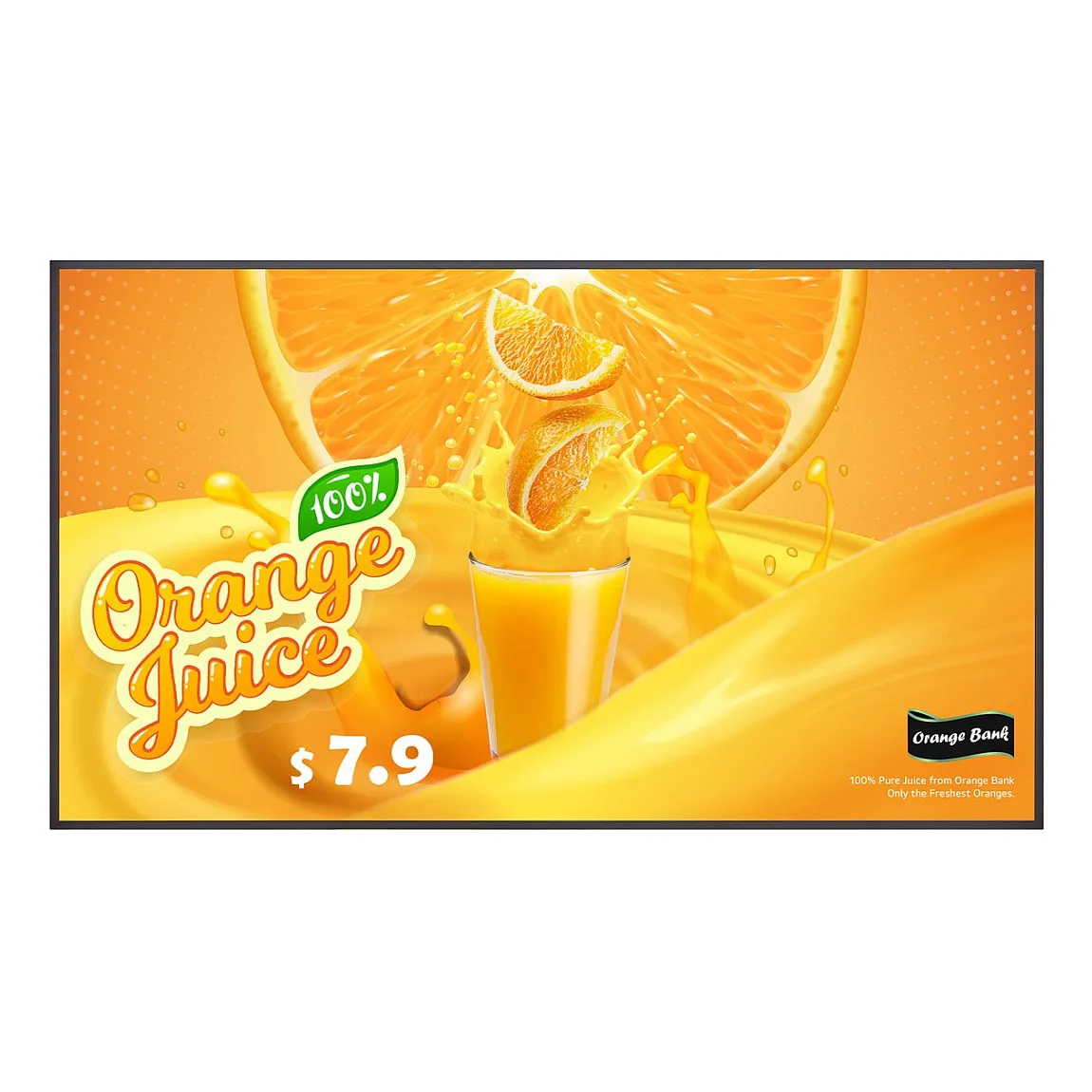

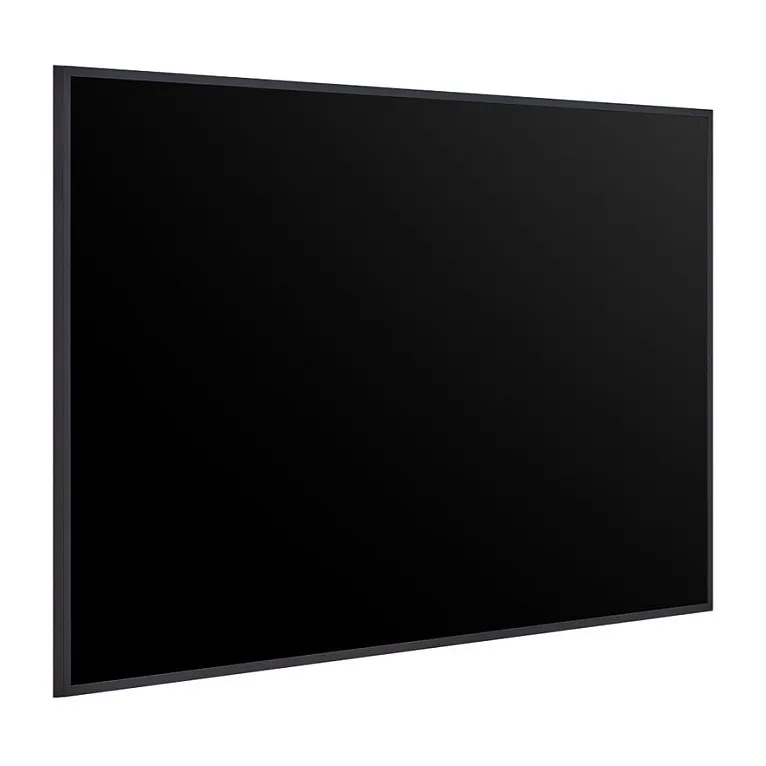

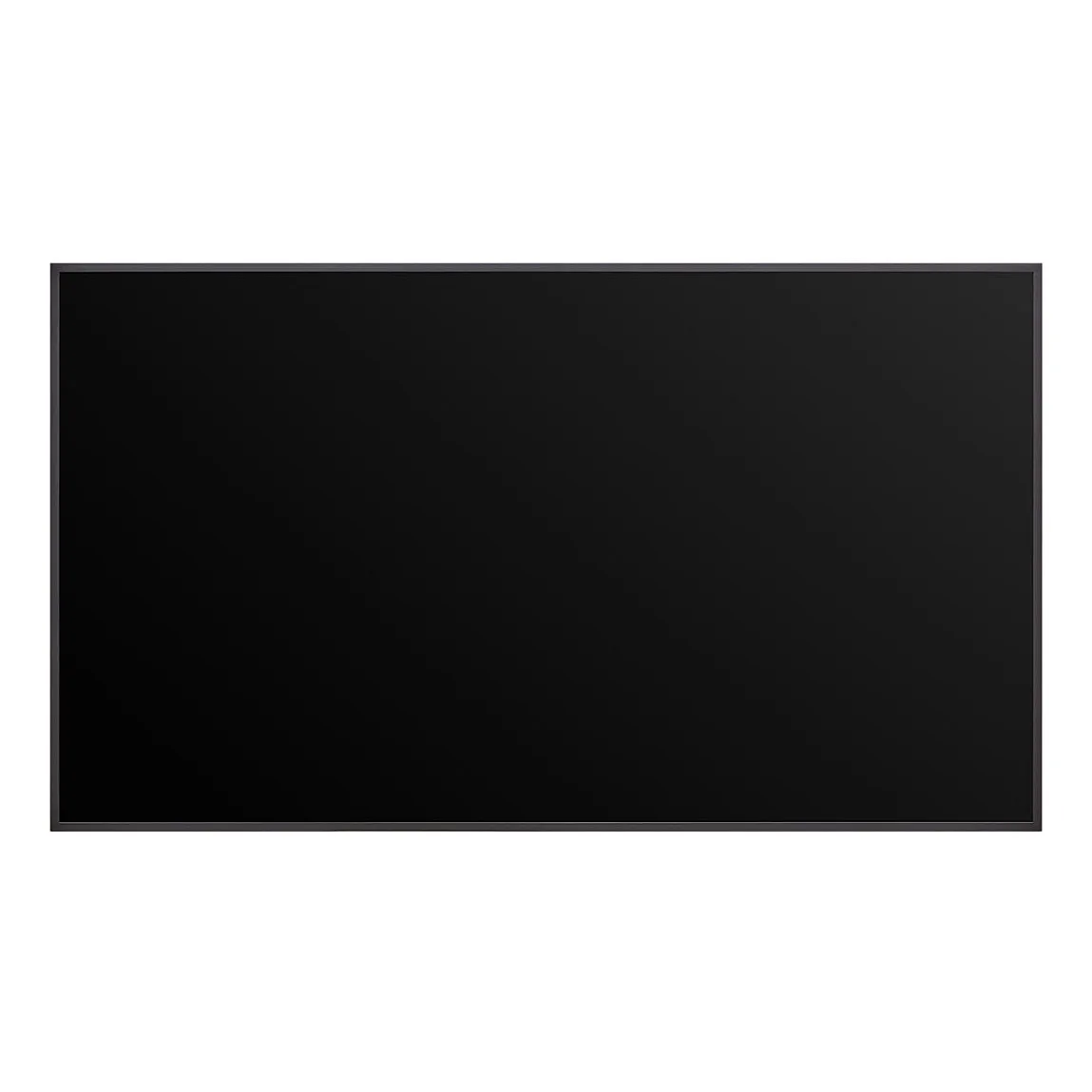

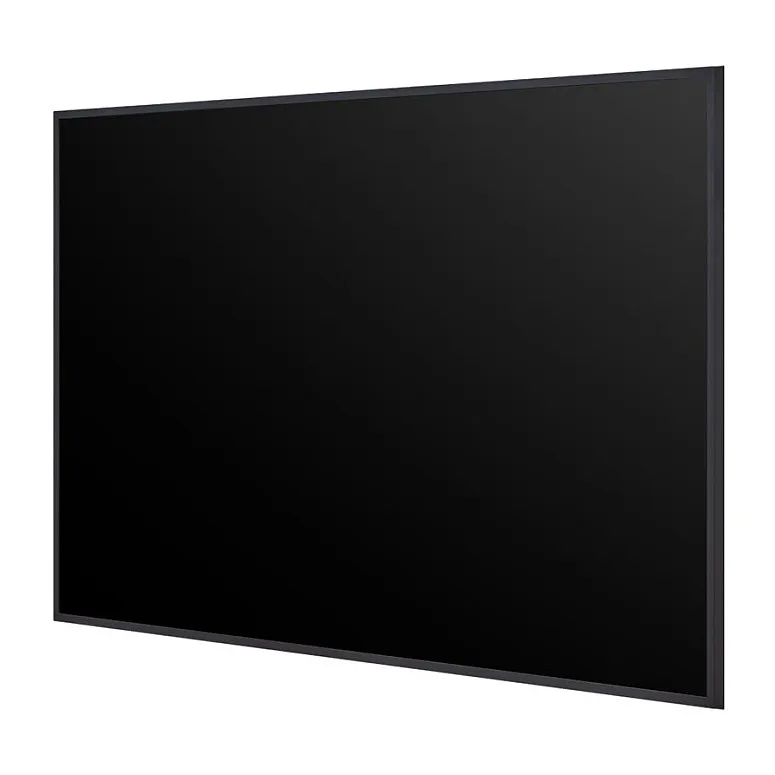

LG 43UH5Q. Product design: Digital signage flat panel. Display diagonal: 109.2 cm (43"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: WebOS. Product colour: Black
Superb Picture Quality with Ultra HD Resolution
With the resolution of UHD, it makes the colors and details of the content vivid and realistic. In addition, the wide viewing angle provides clear content.

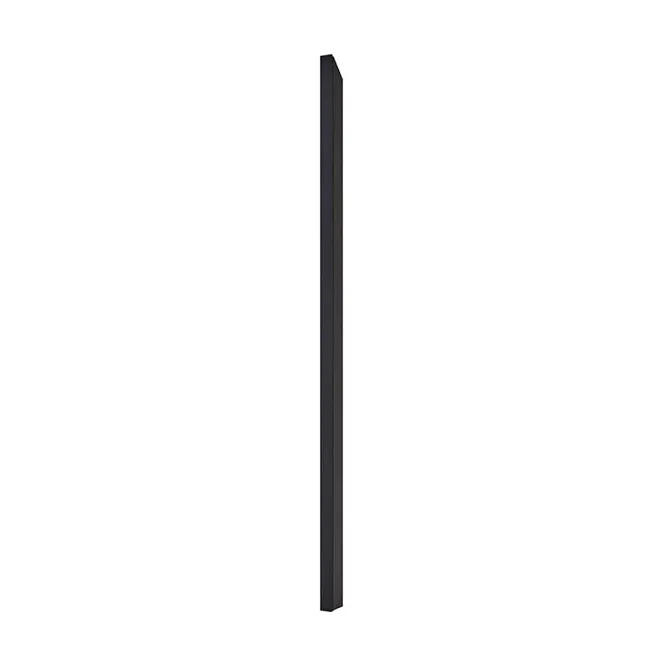

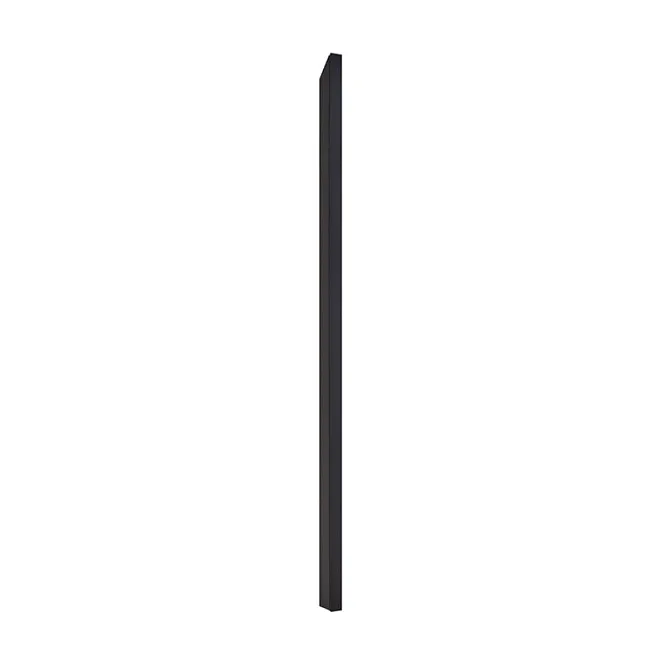

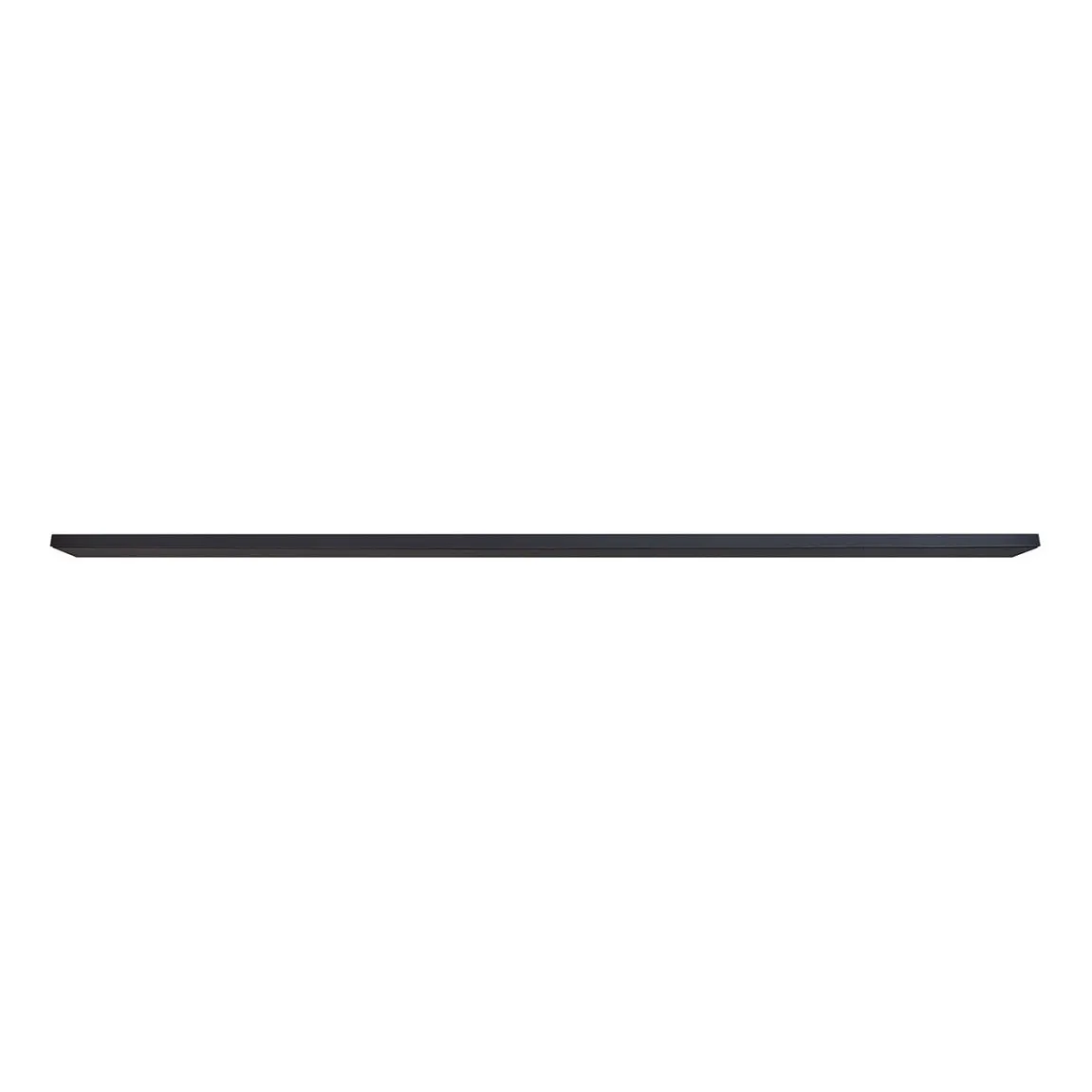

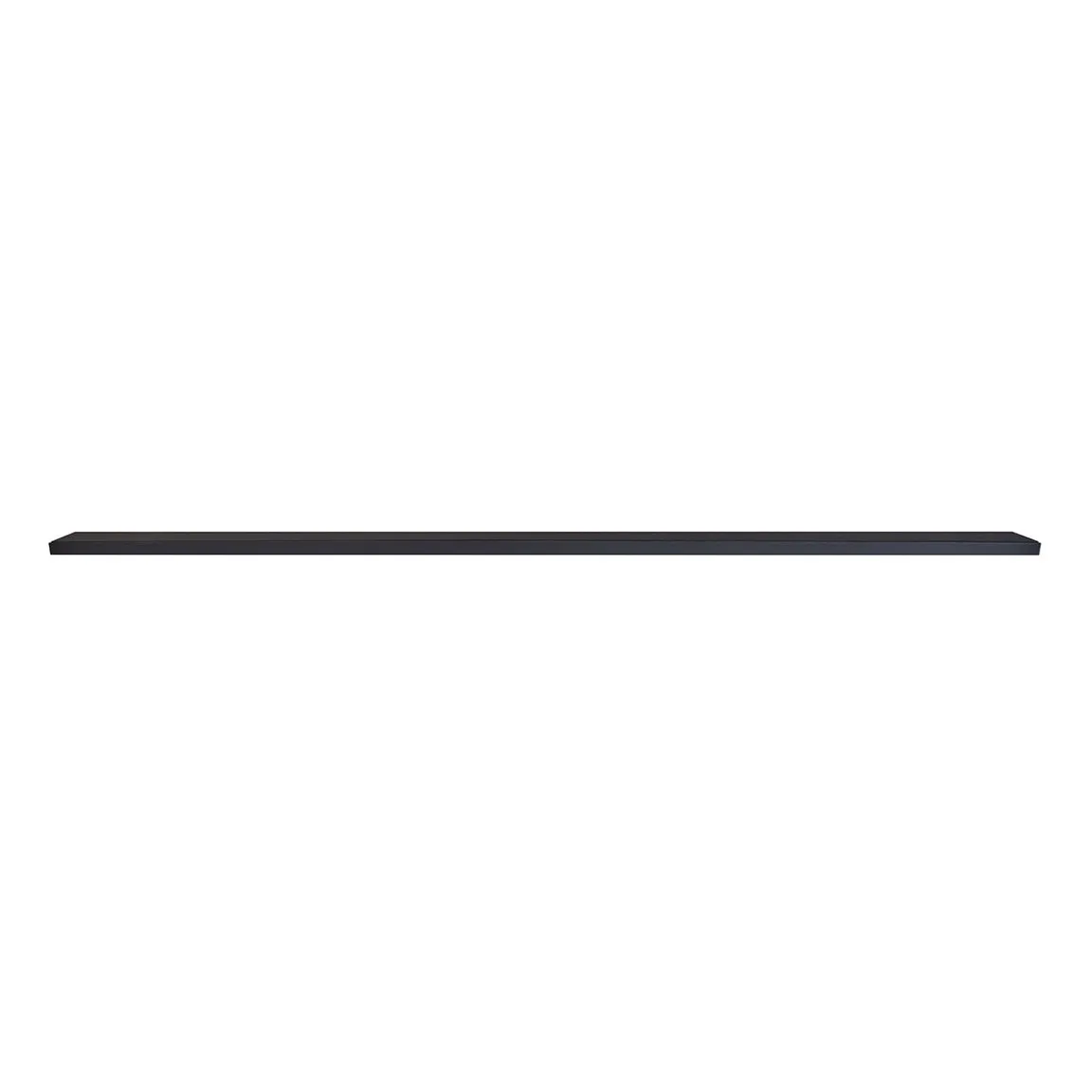

Even & Slim Bezel Design
The UH5Q series features perfectly balanced horizontal and vertical slim bezels, creating a visually harmonious display solution. Its specialized design simplifies installation in retail environments while delivering a truly immersive viewing experience.
Convenient webOS Platform
The UH5Q is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, and includes webOS partner apps to create an SI-friendly environment.
* SoC : System On Chip
** SI : System Integrator
Design for Space Utilization

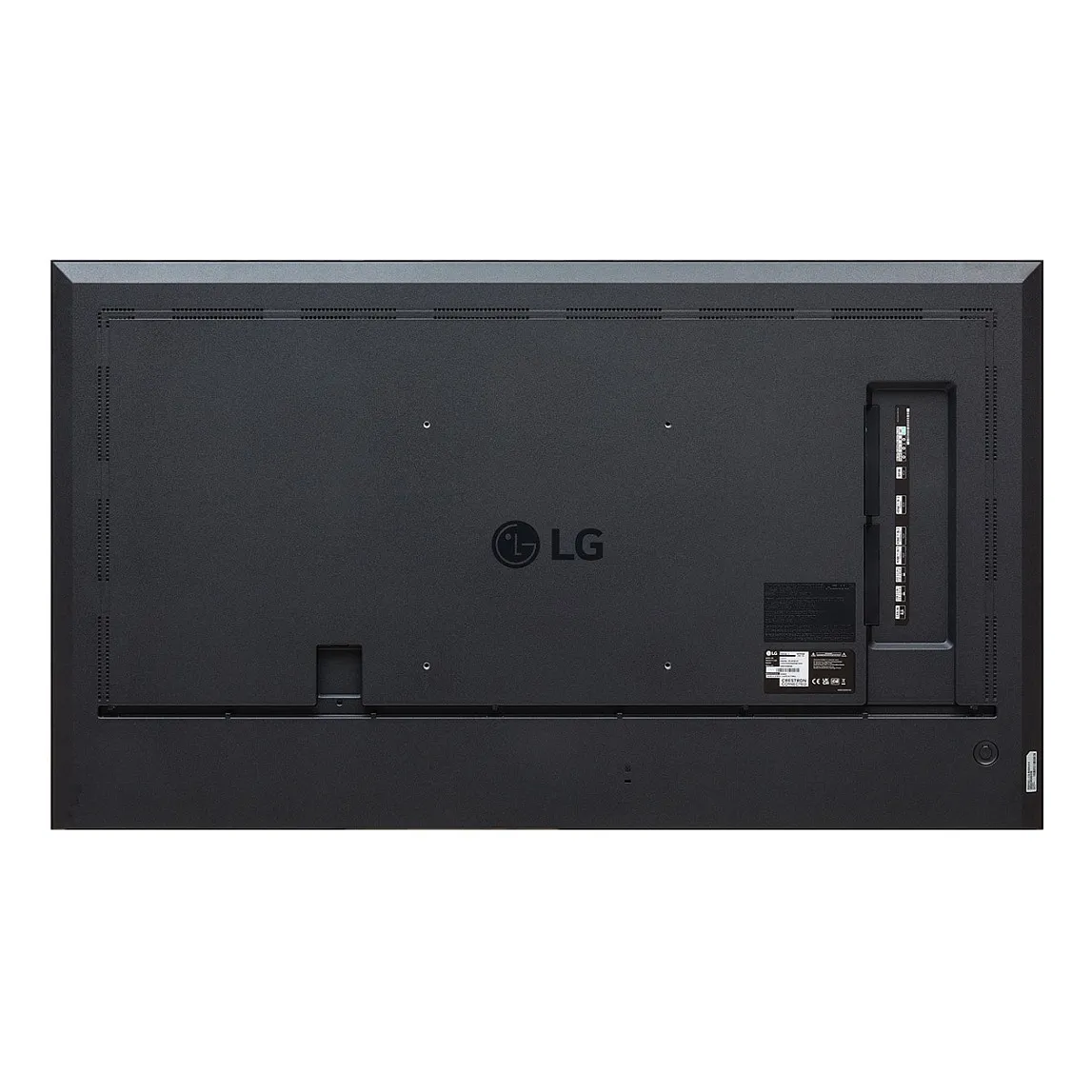

Designed with thin bezels and simple cable management, the UH5Q saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13.5 mm of space with the slim bracket.
* The product image will differ slightly from the actual appearance of the product due to the variance caused by each inch option.
Durability that Provides Reliability
Optimized for business environments, the UH5Q is protected against salt, dust, iron powder and humidity thanks to conformal partial coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x and Shock Monitoring*, provide both reliability and satisfaction.
* When a physical impact occurs on the product, an alert is provided to the administrator through the media controller.
Comprehensive Security
webOS Signage goes beyond security measures at the operating system (OS) level. LG Shield employs a five-tiered defense system, encompassing server, application, operating system, system, and hardware. Each layer operates independently, providing comprehensive protection against various threats. Also webOS platform support ETSI EN 303 645.
SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
* SuperSign must be purchased separately.
Panel type: ADS
Feature: LED backlight
LED backlighting type: Edge-LED
Display diagonal: 109.2 cm (43″)
Display technology: LCD
Display resolution: 3840 x 2160 pixels
Display brightness: 500 cd/m²
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1200:1
Contrast ratio (dynamic): 1000000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Panel life: 50000 h
Colour depth: 10 bit
Native refresh rate: 60 Hz
Colour gamut: 95%

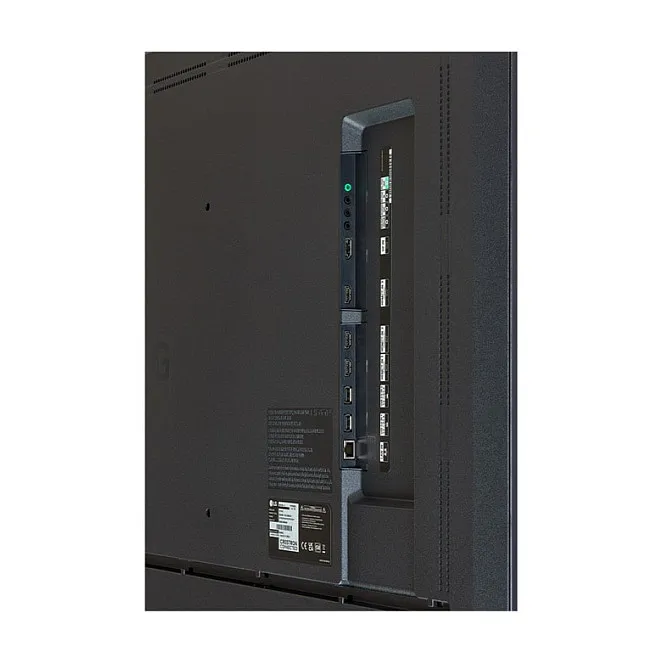

Ports & interfaces
HDMI ports quantity: 3
HDMI input ports quantity: 3
DisplayPorts quantity: 1
DisplayPorts in: 1
Feature: USB port
USB ports quantity: 2
USB version: 2.0
USB connector type: USB Type-A
Ethernet LAN (RJ-45) ports: 1
Feature: RS-232C
Remote (IR) input: 1
Feature: PC Audio out
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 20 W
Design
Product design: Digital signage flat panel
Placement supported: Indoor
Orientation: Horizontal/Vertical
Product colour: Black
Feature: VESA mounting
Panel mounting interface: 200 x 200 mm
Bezel colour: Black
Performance
Purpose: Universal
Feature: Picture-in-Picture
Feature: On Screen Display (OSD)
Number of OSD languages: 21
Operating hours (hours/days): 24/7
Feature: HDCP
Smart modes: Energy saving
Feature: Automatic brightness control
International Protection (IP) code: IP5X
HDCP version: 1.4/2.2
Power
Power consumption (typical): 65 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.5 W
Power consumption (max): 124 W
Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 82.6 kWh
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Heat dissipation: 222 BTU/h
Computer system
Feature: Computer system
Computer system type: System on Chip (SoC)
Internal memory: 16 GB
Operating system installed: WebOS
Operating system version: webOS 8.0
Weight & dimensions
Display width: 971.7 mm
Display depth: 29.7 mm
Display height: 561 mm
Display weight: 9.4 kg
Packaging data
Package width: 1055 mm
Package depth: 140 mm
Package height: 660 mm
Package weight: 11.3 kg
Packaging content
Feature: Remote control included
Feature: Batteries included
Cables included: AC
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 10 – 80%
Certificates
Certification: CB / NRTL / FCC Class „B” / CE / KC
Network
Feature: Ethernet LAN
Feature: Wi-Fi
Security algorithms: SNMP
Features
Heat dissipation (max): 423 BTU/h
Technical details
Surface treatment: 25%
Feature: Real Time Clock (RTC)
Sustainability certificates: ENERGY STAR, ErP
Other features
Power consumption (PowerSave): 46 W
Feature: Built-in brightness sensor
Power supply type: Internal
Bezel width: 1.14 cm
Feature: Plug and Play
