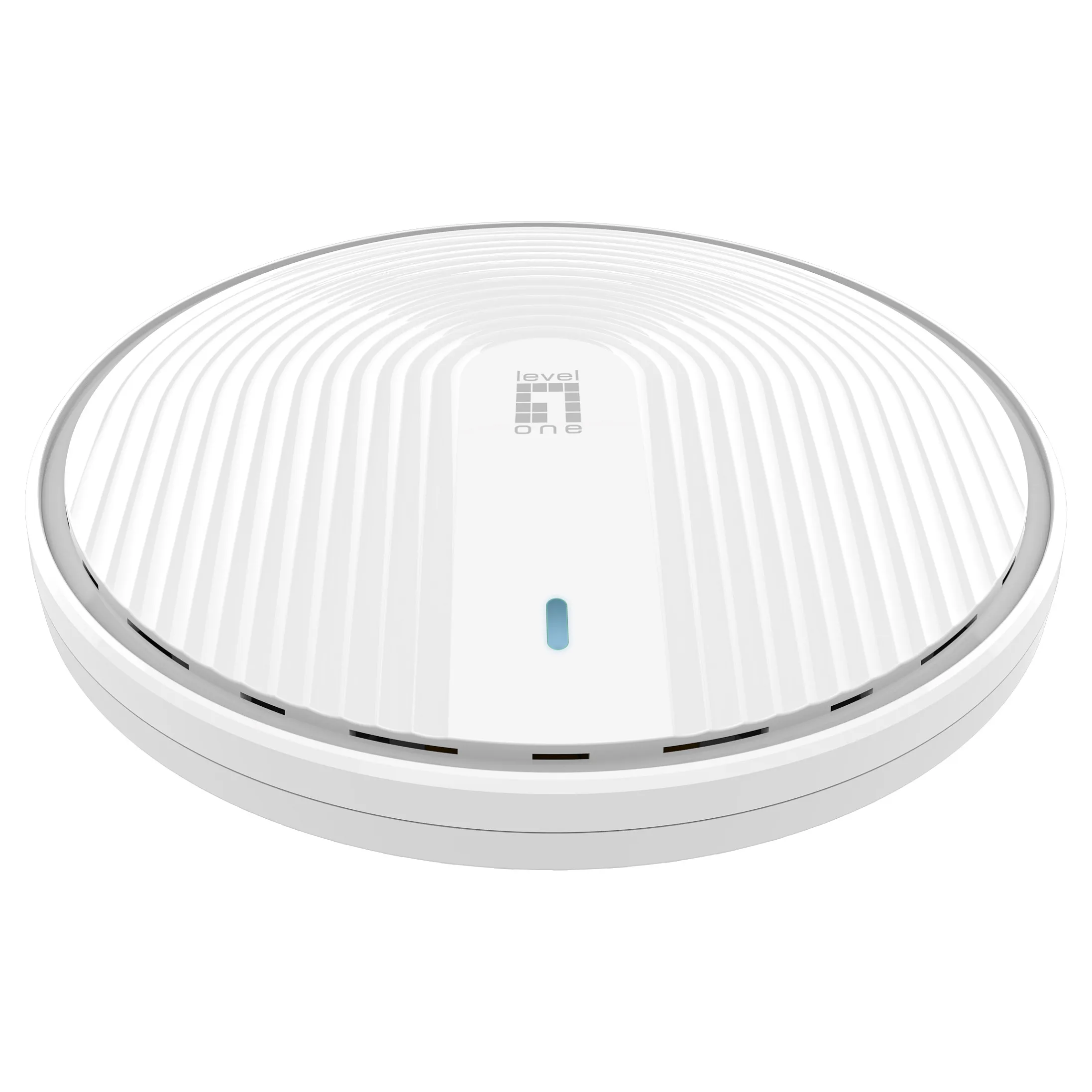

LevelOne AX1800 Dual Band Wi-Fi6 PoE Wireless Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1800 Mbit/s. Security algorithms: AES, WPA, WPA2, WPA3. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 14 W
The LevelOne WAP-8131 is a standalone, AX1800 dual-band Wi-Fi 6 PoE wireless access point that features dual Gigabit Ethernet ports and advanced 802.11ax Wave 2 MU-MIMO (Multi-User Multiple-Input Multiple-Output), allows multiple devices to get high-bandwidth Wi-Fi signal at the same time, distributing data more efficiently. capable of a combined speed of up to 1775 Mbps.
The WAP-8131 provides 2.4 and 5 GHz frequencies and can be used as a high-quality stand-alone access point in a corporate environment or for demanding installations. It also offers support for the new WPA3 encryption. Of course, the WAP-8131 is also equipped with PoE, which eliminates the need for an external power supply, simplifying installation. A fast, versatile and secure access point for a variety of network requirements, especially when high speeds are important for many users.
The WAP-8131 provides 2.4 and 5 GHz frequencies and can be used as a high-quality stand-alone access point in a corporate environment or for demanding installations. It also offers support for the new WPA3 encryption. Of course, the WAP-8131 is also equipped with PoE, which eliminates the need for an external power supply, simplifying installation. A fast, versatile and secure access point for a variety of network requirements, especially when high speeds are important for many users.
Features
Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 1800 Mbit/s
Maximum data transfer rate (2.4 GHz): 574 Mbit/s
Maximum data transfer rate (5 GHz): 1201 Mbit/s
Frequency band: 2.412 – 2.484, 5.18G -5.825
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
Channels quantity: 165 channels
Feature: MIMO
MIMO type: Multi User MIMO
Spread spectrum method: OFDMA
Operating modes: Gateway, Repeater, AP
Security
Security algorithms: AES, WPA, WPA2, WPA3
Service Set Identifier (SSID) features: Multiple SSIDs
Number of SSID supported: 8
Management features
Feature: Web-based management
Ports & interfaces

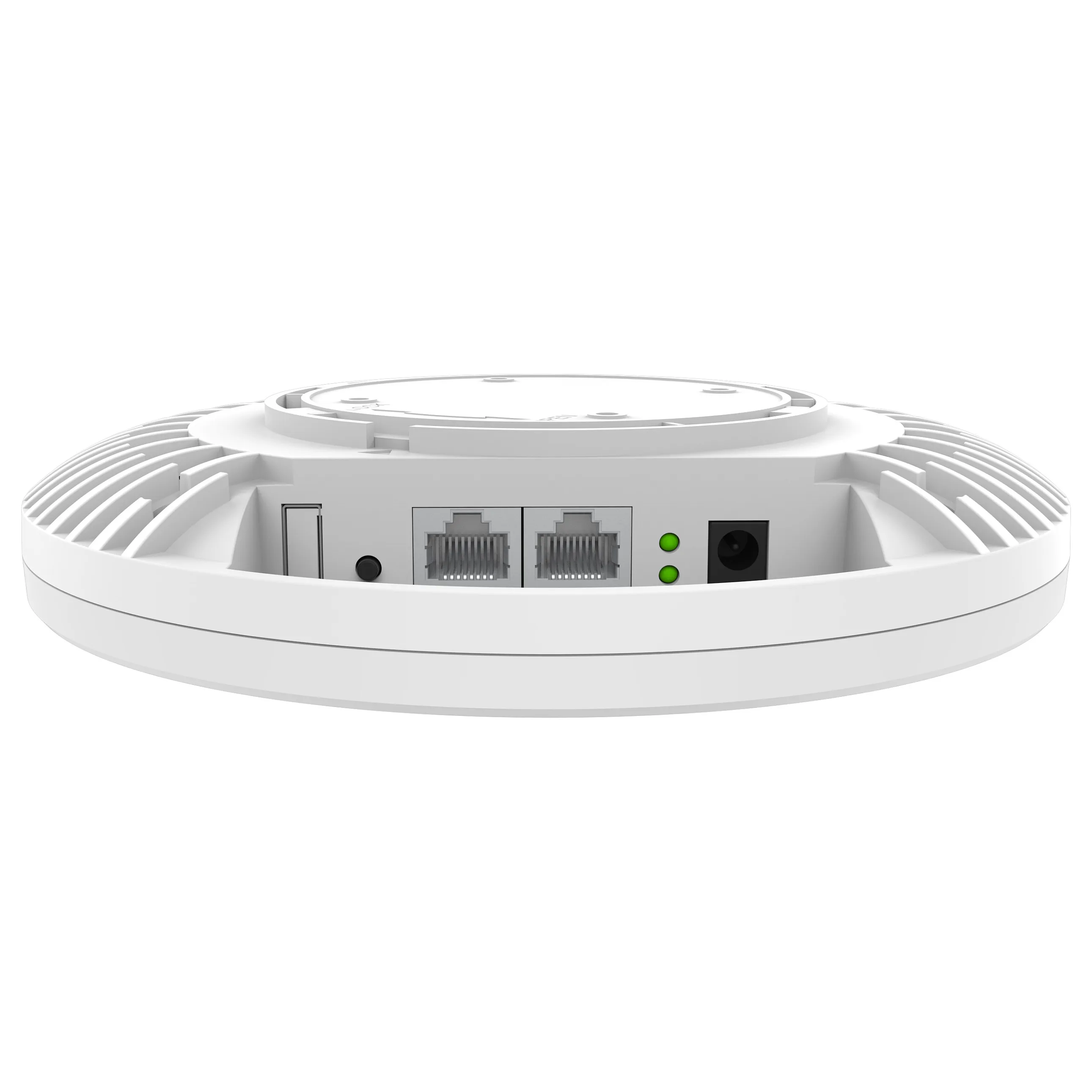

Ethernet LAN (RJ-45) ports: 2
Feature: DC-in jack
Power
Feature: Power over Ethernet (PoE)
Power consumption (max): 14 W
Design
Placement: Ceiling, Wall
Product colour: White
LED indicators: Status
Antenna
Antenna type: Internal
Antennas quantity: 4
Antenna gain level (max): 4 dBi
Performance
Chipset: Qualcomm IPQ6000
Flash memory: 128 MB
Internal memory: 512 MB
Technical details
Master (outer) cases per pallet (air): 10 pc(s)
Pallet net height: 164.4 cm
Pallet net length: 80 cm
Pallet net width: 120 cm
Certificates
Compliance certificates: CE, RoHS
Weight & dimensions
Width: 186 mm
Depth: 186 mm
Height: 42.5 mm
Weight: 418.5 g
Packaging data
Package width: 243 mm
Package depth: 235 mm
Package height: 76 mm
Package weight: 750 g
Packaging content
Cables included: LAN (RJ-45)
Feature: Quick start guide
Operational conditions
Operating relative humidity (H-H): 10 – 90%
Operating temperature (T-T): 0 – 55 °C
Storage temperature (T-T): 0 – 70 °C
Storage relative humidity (H-H): 5 – 90%
Sustainability
Feature: Sustainability compliance
Logistics data
Country of origin: China
Master (outer) case width: 410 mm
Master (outer) case length: 520 mm
Master (outer) case height: 500 mm
Master (outer) case gross weight: 16 kg
Products per master (outer) case: 20 pc(s)
Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 1800 Mbit/s
Maximum data transfer rate (2.4 GHz): 574 Mbit/s
Maximum data transfer rate (5 GHz): 1201 Mbit/s
Frequency band: 2.412 – 2.484, 5.18G -5.825
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
Channels quantity: 165 channels
Feature: MIMO
MIMO type: Multi User MIMO
Spread spectrum method: OFDMA
Operating modes: Gateway, Repeater, AP
Security
Security algorithms: AES, WPA, WPA2, WPA3
Service Set Identifier (SSID) features: Multiple SSIDs
Number of SSID supported: 8
Management features
Feature: Web-based management
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
Feature: DC-in jack
Power
Feature: Power over Ethernet (PoE)
Power consumption (max): 14 W
Design
Placement: Ceiling, Wall
Product colour: White
LED indicators: Status
Antenna
Antenna type: Internal
Antennas quantity: 4
Antenna gain level (max): 4 dBi
Performance
Chipset: Qualcomm IPQ6000
Flash memory: 128 MB
Internal memory: 512 MB
Technical details
Master (outer) cases per pallet (air): 10 pc(s)
Pallet net height: 164.4 cm
Pallet net length: 80 cm
Pallet net width: 120 cm
Certificates
Compliance certificates: CE, RoHS
Weight & dimensions
Width: 186 mm
Depth: 186 mm
Height: 42.5 mm
Weight: 418.5 g
Packaging data
Package width: 243 mm
Package depth: 235 mm
Package height: 76 mm
Package weight: 750 g
Packaging content
Cables included: LAN (RJ-45)
Feature: Quick start guide
Operational conditions
Operating relative humidity (H-H): 10 – 90%
Operating temperature (T-T): 0 – 55 °C
Storage temperature (T-T): 0 – 70 °C
Storage relative humidity (H-H): 5 – 90%
Sustainability
Feature: Sustainability compliance
Logistics data
Country of origin: China
Master (outer) case width: 410 mm
Master (outer) case length: 520 mm
Master (outer) case height: 500 mm
Master (outer) case gross weight: 16 kg
Products per master (outer) case: 20 pc(s)
