LevelOne AC900 5GHz Outdoor PoE Wireless Access Point. 5 GHz, Maximum data transfer rate: 867 Mbit/s. Security algorithms: WEP, WPA, WPA2. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White

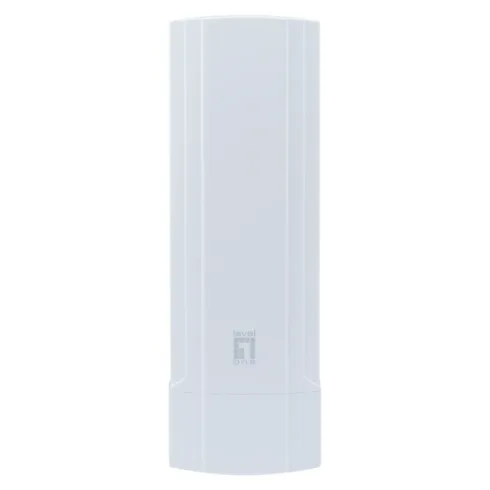

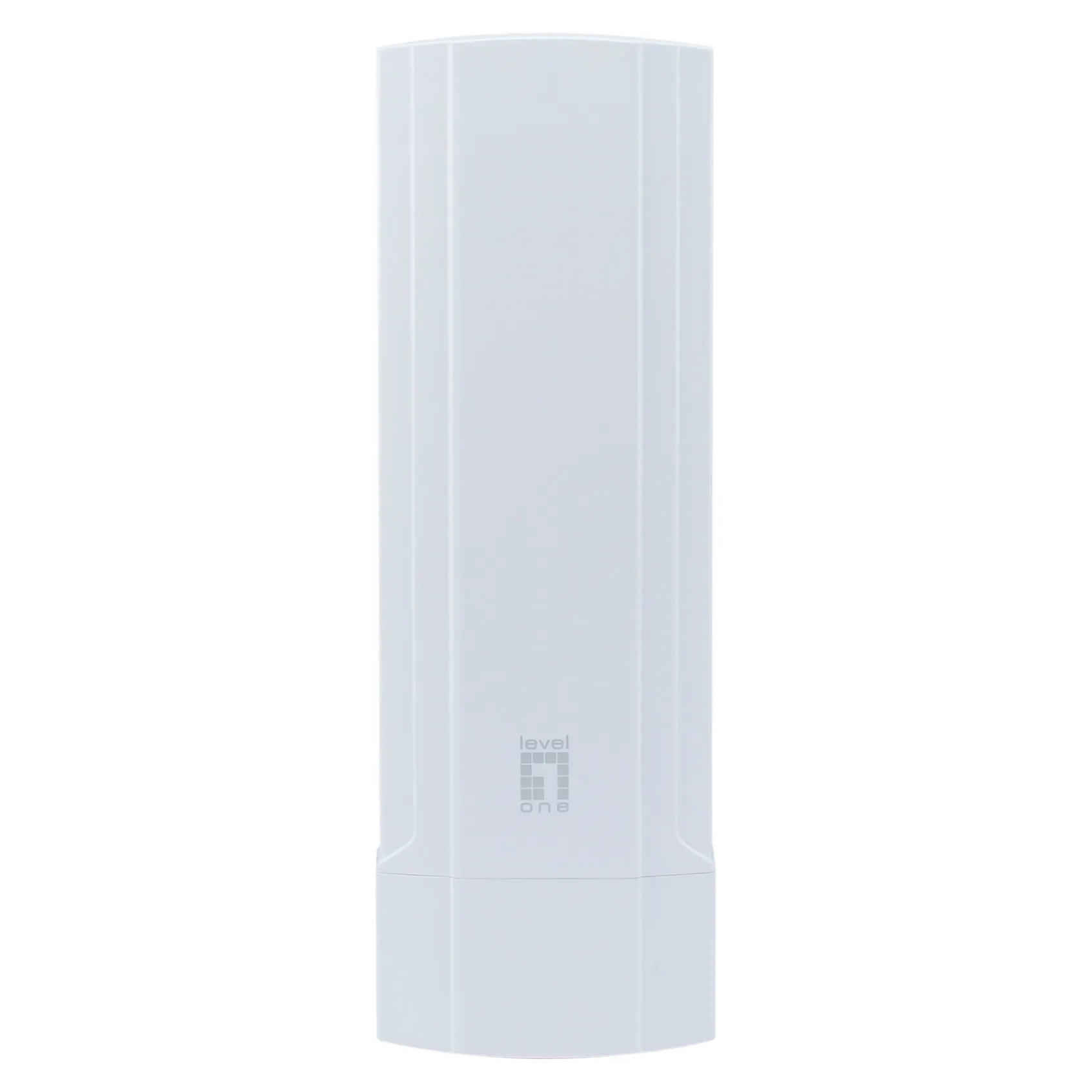

The LevelOne WAB-8010 outdoor single-band 802.11ac wireless access point, capable of 867 Mbps wireless internet speeds and distance of up to 5km. Supply 802.11ac Wave 2 MU-MIMO (Multi-User Multiple-Input Multiple-Output), allows multiple devices to get high- bandwidth Wi-Fi signal at the same time, distributing data more efficiently.
The device runs on 5 GHz frequency, also offers PoE, removing the need for an external power supply, which makes it easy to install. Advanced weatherproof design, rated to IP65 means the WAB-8010 is designed for outdoor deployments, and can withstand rain, humidity, dust and snow. A fast, versatile and secure access point for a wide variety of outdoor network requirements.
Features
Feature: 5 GHz
Maximum data transfer rate: 867 Mbit/s
Ethernet LAN data rates: 10,100,1000 Mbit/s
Frequency band: 4.92 – 5.92 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Cabling technology: 10/100/1000Base-T(X)
Channels quantity: 165 channels
Feature: MIMO
MIMO type: Multi User MIMO
Maximum outdoor range: 5000 m
Security
Security algorithms: WEP, WPA, WPA2
Number of SSID supported: 4
Ports & interfaces

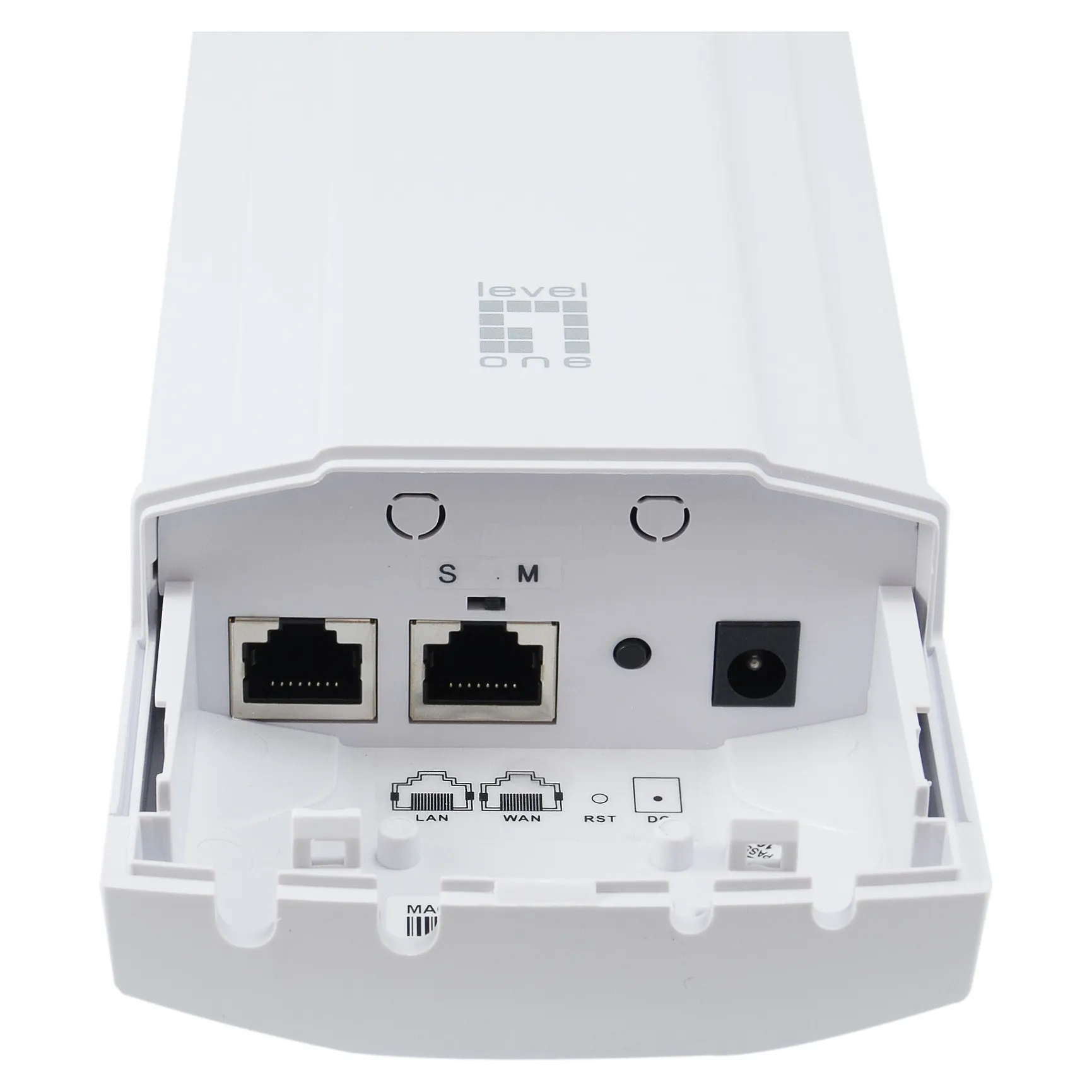

Ethernet LAN (RJ-45) ports: 1
WAN connection: Ethernet (RJ-45)
Feature: DC-in jack
Power
Feature: Power over Ethernet (PoE)
AC input voltage: 12 V
Input current: 1.5 A
Design
Placement: Pole
Product colour: White
International Protection (IP) code: IP65

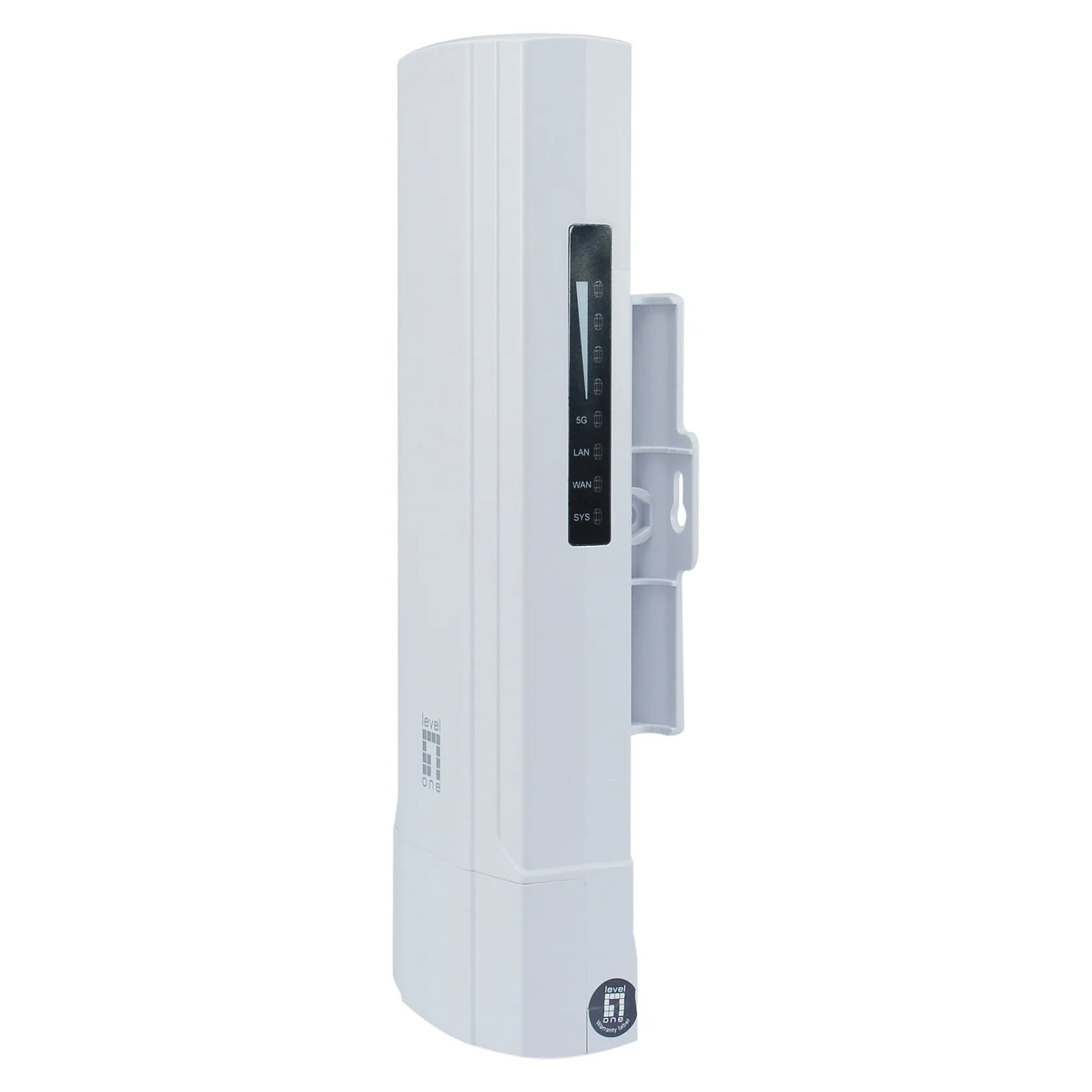

LED indicators: LAN, System, WAN
Antenna
Antenna type: Internal
Antennas quantity: 1
Antenna gain level (max): 14 dBi
Performance
Feature: Built-in processor
Processor manufacturer: Qualcomm
Flash memory: 16 MB
Internal memory: 128 MB
Internal memory type: DDR2
Technical details
Master (outer) cases per pallet (air): 24 pc(s)
Pallet net height: 164 cm
Pallet net length: 80 cm
Pallet net width: 120 cm
Certificates
Compliance certificates: CE, RoHS
Weight & dimensions
Width: 87 mm
Depth: 257 mm
Height: 45 mm
Weight: 440 g
Packaging data
Package width: 106 mm
Package depth: 332 mm
Package height: 95 mm
Package weight: 660 g
Packaging content
Cables included: LAN (RJ-45)
Feature: Mounting kit
Feature: Quick start guide
Operational conditions
Operating relative humidity (H-H): 10 – 90%
Operating temperature (T-T): -30 – 45 °C
Storage temperature (T-T): -40 – 75 °C
Storage relative humidity (H-H): 5 – 95%
Logistics data
Harmonized System (HS) code: 85176990
Country of origin: China
Master (outer) case width: 350 mm
Master (outer) case length: 495 mm
Master (outer) case height: 455 mm
Master (outer) case gross weight: 15 kg
Products per master (outer) case: 20 pc(s)
