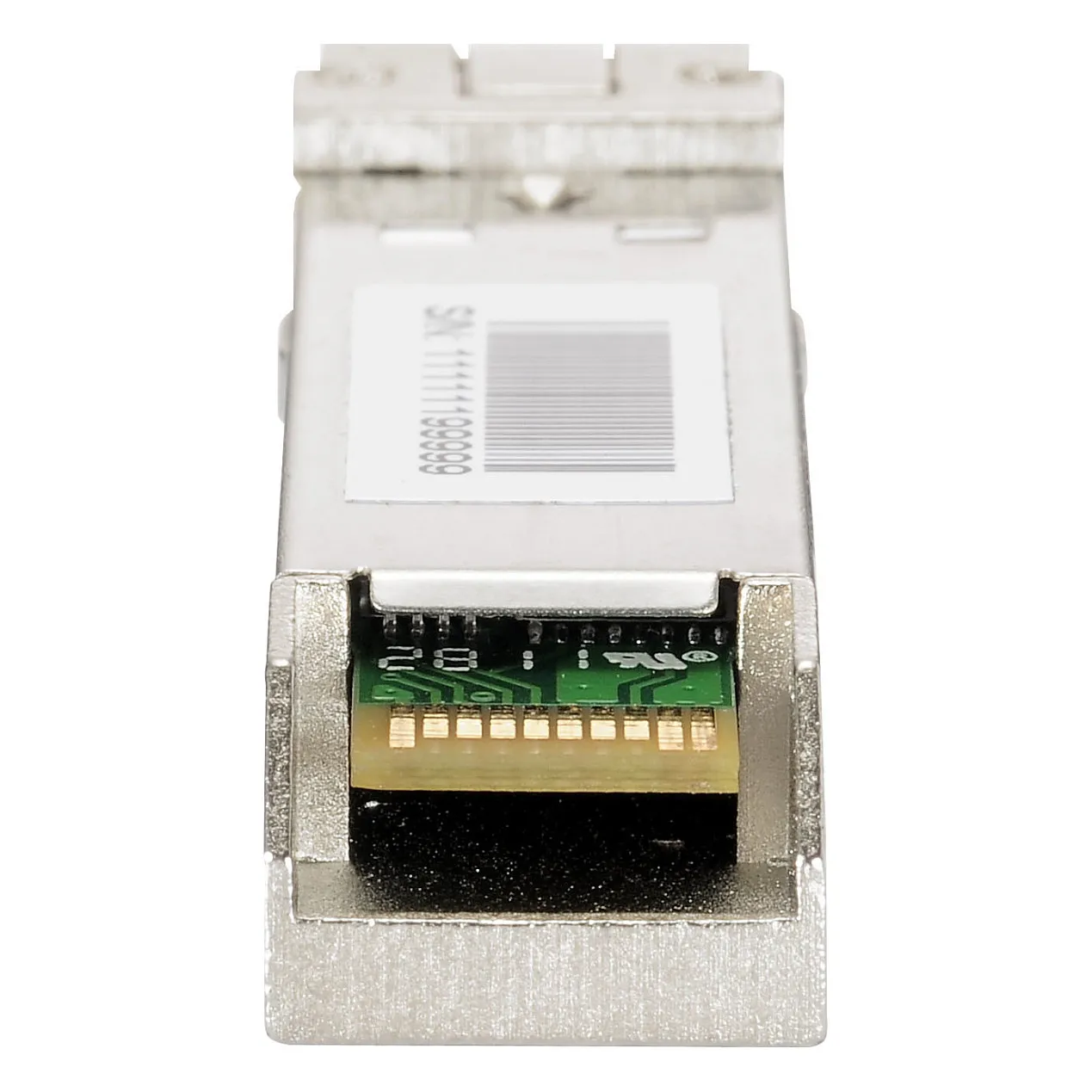

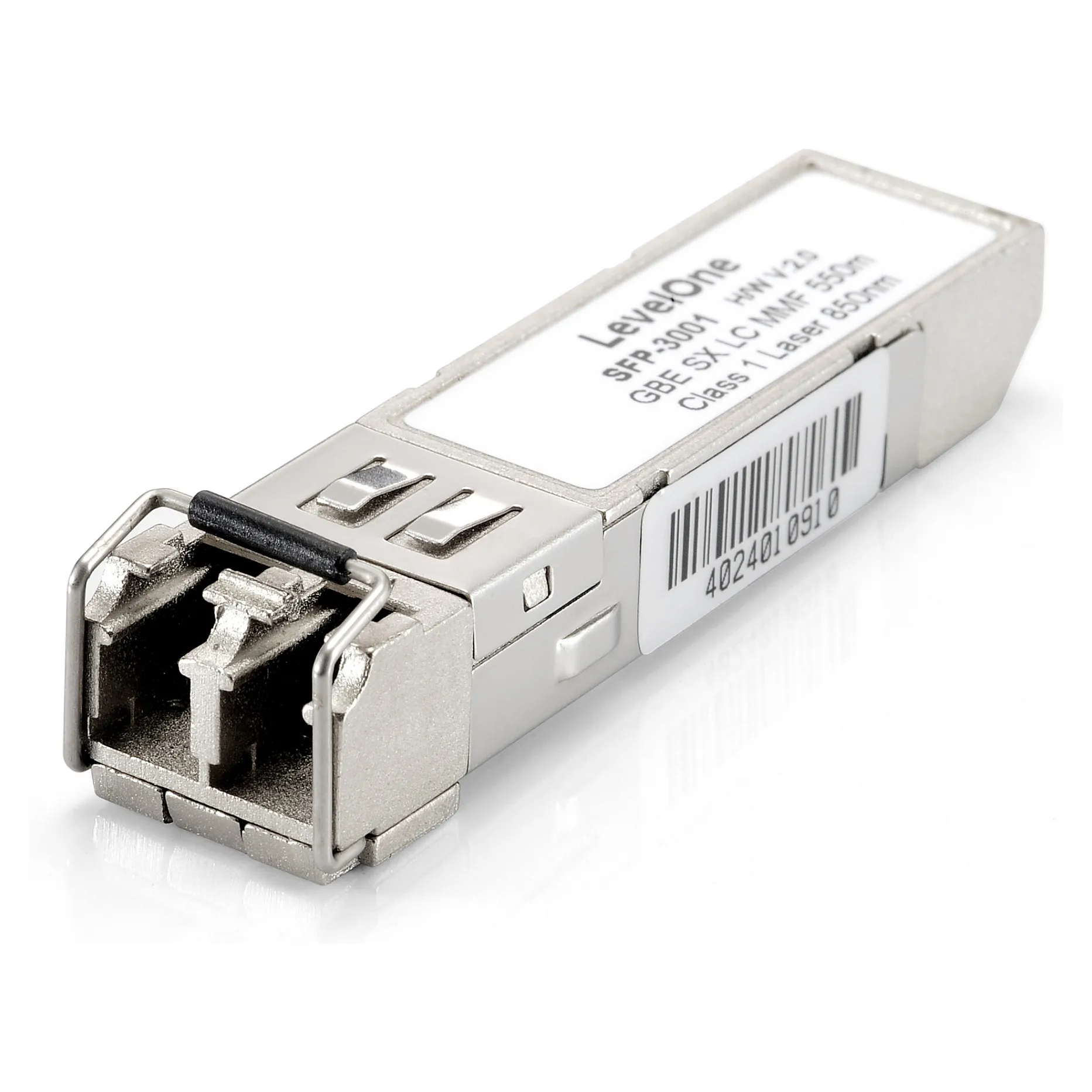

LevelOne 1.25Gbps Multi-mode SFP Transceiver, 500m, 850nm. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Input voltage: 3.3 V, Maximum voltage: 6 V, Maximum current: 0.3 A. Compliance certificates: RoHS, Safety: EN 60825-1, Certification: CE, FCC. Width: 57 mm, Depth: 12 mm, Height: 13.7 mm. Quantity per pack: 1 pc(s)
– 850nm VCSEL
– Data Rate: 1.25Gbps
– Single +3.3V Power Supply
– RoHS Compliant and Lead-free
– AC/AC Differential Electrical Interface
– Compliant with Multi-Source Agreement(MSA)

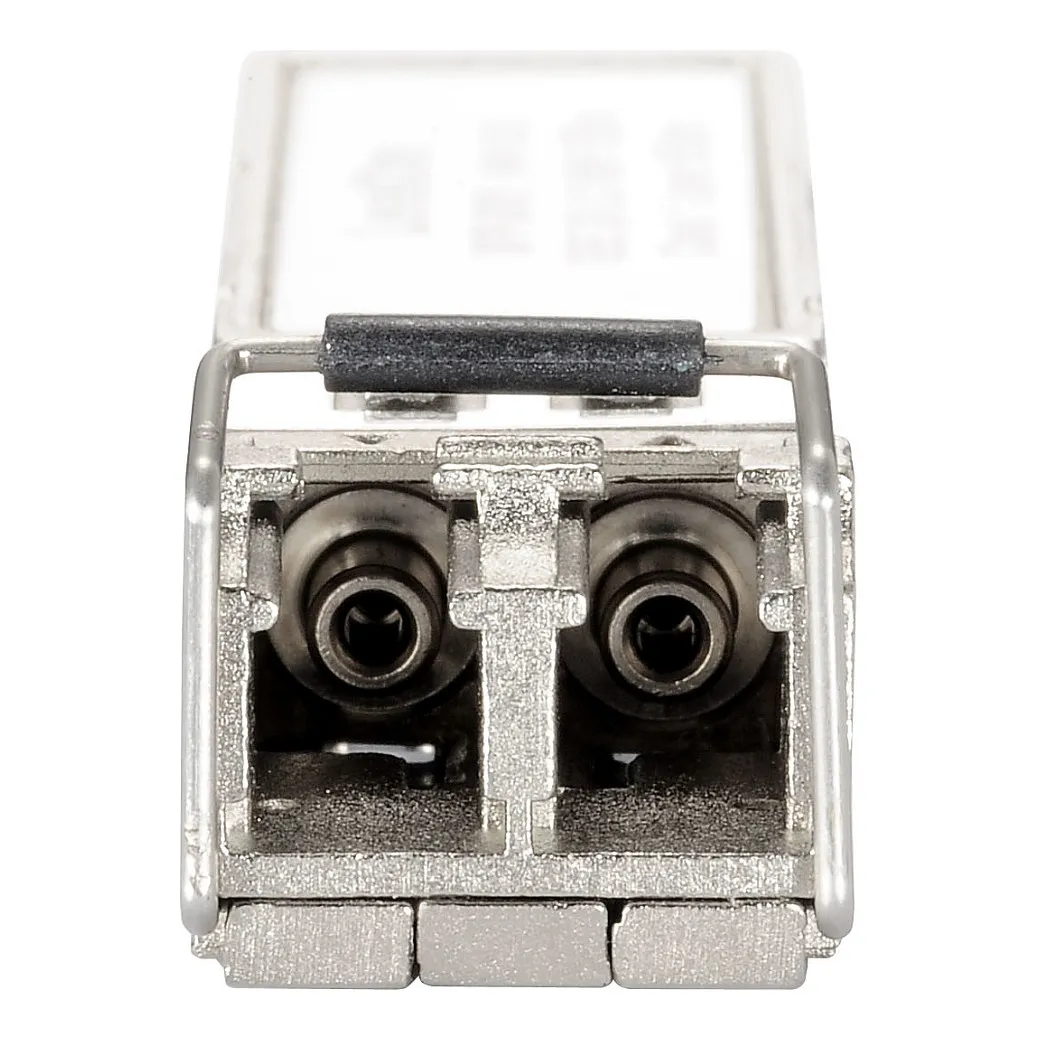

– Duplex LC Connector
– Compliance with specifications for IEEE 802.3z Gigabit Ethernet at 1.25Gbps
– Compliance with ANSI specifications for Fiber Channel applications at 1.06bps
– No configuration or installation software required
– Eye Safety Designed to meet LASER Class 1 comply with EN60825-1
SFP transceiver type: Fiber optic
Maximum data transfer rate: 1250 Mbit/s
Interface type: SFP
Feature: Multi-mode fiber (MMF) supported
Fiber optic connector: LC
Fiber cable diameters supported (core/cladding): 50/125,62.5/125 µm
Maximum transfer distance: 550 m
Wavelength: 850 nm
Tx power (min): -9.5 dBmW
Tx power (max): -3 dBmW
Networking standards: IEEE 802.3z
Duplex system: Full
Fiber ports quantity: 1
Features
Feature: Plug and Play
Feature: Hot-swap
Power
Input voltage: 3.3 V
Maximum voltage: 6 V
Maximum current: 0.3 A
Certificates
Compliance certificates: RoHS
Safety: EN 60825-1
Certification: CE, FCC
Operational conditions
Operating temperature (T-T): 0 – 70 °C
Storage temperature (T-T): -40 – 85 °C
Operating relative humidity (H-H): 5 – 95%
Weight & dimensions
Width: 57 mm
Depth: 12 mm
Height: 13.7 mm
Weight: 20 g
Packaging content
Quantity per pack: 1 pc(s)
Packaging data
Package width: 106 mm
Package depth: 20 mm
Package height: 65 mm
Package weight: 35 g
Logistics data
Harmonized System (HS) code: 85369010
