LevelOne Fast Ethernet PoE Splitter, 802.3af PoE, 5-12V DC Output. Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3u, Cabling technology: 10/100Base-TX, Product colour: Black. Certification: CE, FCC, EN 60950:2006, RoHS. Width: 55 mm, Depth: 80 mm, Height: 31 mm. Quantity per pack: 1 pc(s). Package width: 125 mm, Package depth: 190 mm, Package height: 55 mm

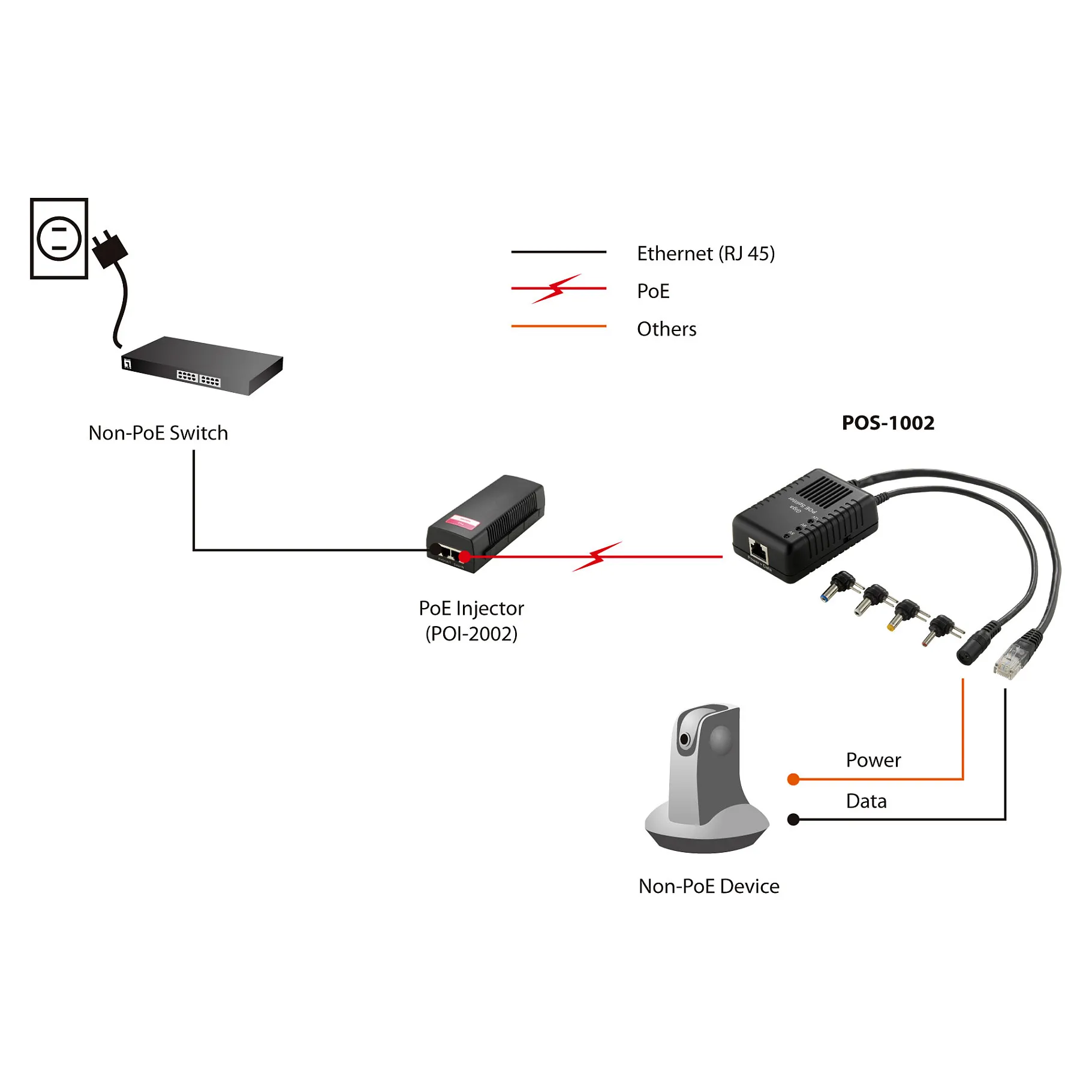

Save installation and equipment cost when installing access points, IP cameras and other devices in remote locations, with no need to install network devices near a power outlet. This compact splitter safeguards valuable network equipment with short circuit protection and quickly creates an integrated PoE and non-PoE network at Fast Ethernet speeds.
– IEEE 802.3af compliant
– Converts non-PoE devices with Power over Ethernet support

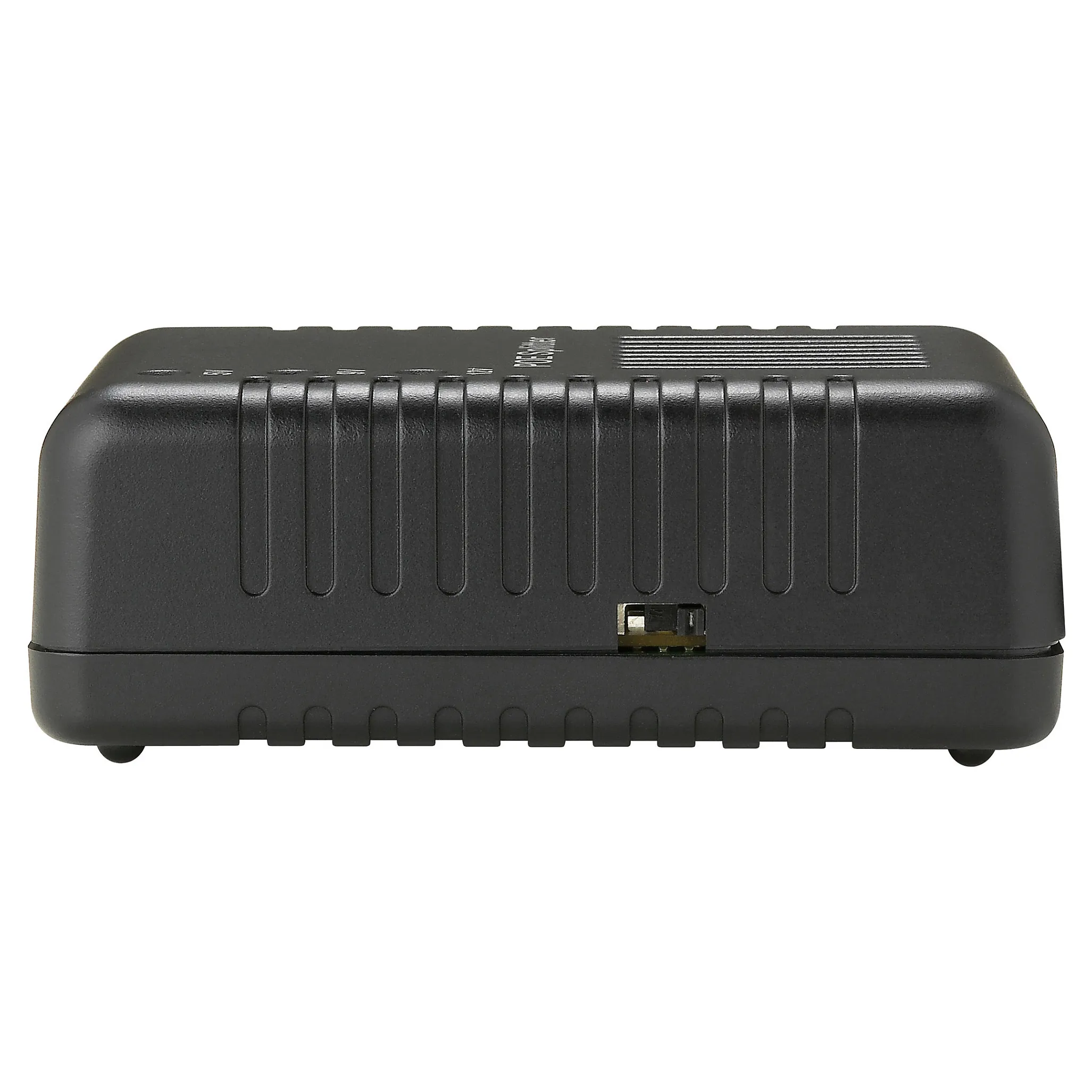

– DIP switch for 5V, 9V, and 12V adjustable output power
– Delivers power and data via a single Ethernet cable
– Eliminates the need for a bulky power adapter and powerline
– Compatible with Wireless Router, AP, Network Camera, Print Server, Converter
– Light weight and compact size

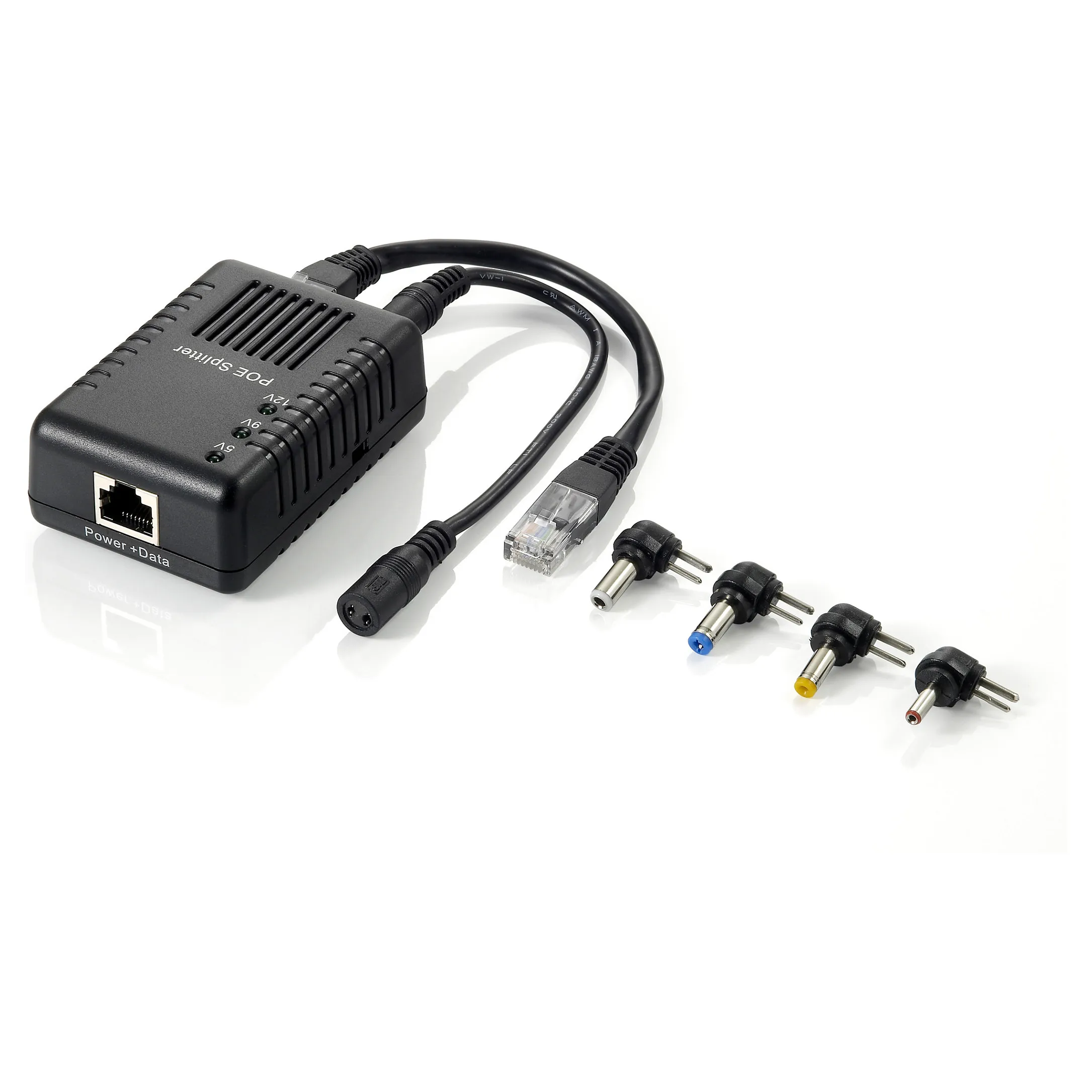

– Provides interchangeable tips
Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3u
Cabling technology: 10/100Base-TX
Feature: Power over Ethernet (PoE)
Product colour: Black
LED indicators: Power
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
RJ-45 input ports: 1
RJ-45 output ports: 1
Feature: DC-out jack
Feature: Detachable power connectors
Supplementary power connectors: 4
Operational conditions
Operating temperature (T-T): 0 – 45 °C
Operating relative humidity (H-H): 5 – 95%
Certificates
Certification: CE, FCC, EN 60950:2006, RoHS
Weight & dimensions
Width: 55 mm
Depth: 80 mm
Height: 31 mm
Weight: 76 g
Packaging content
Feature: Quick installation guide
Quantity per pack: 1 pc(s)
Packaging data
Package width: 125 mm
Package depth: 190 mm
Package height: 55 mm
Package weight: 260 g
Power
DC output voltage: 5V, 9V, 12V
Output current (5V): 2 A
Output current (9V): 1.1 A
Output current (12V): 1 A
Logistics data
Country of origin: China
