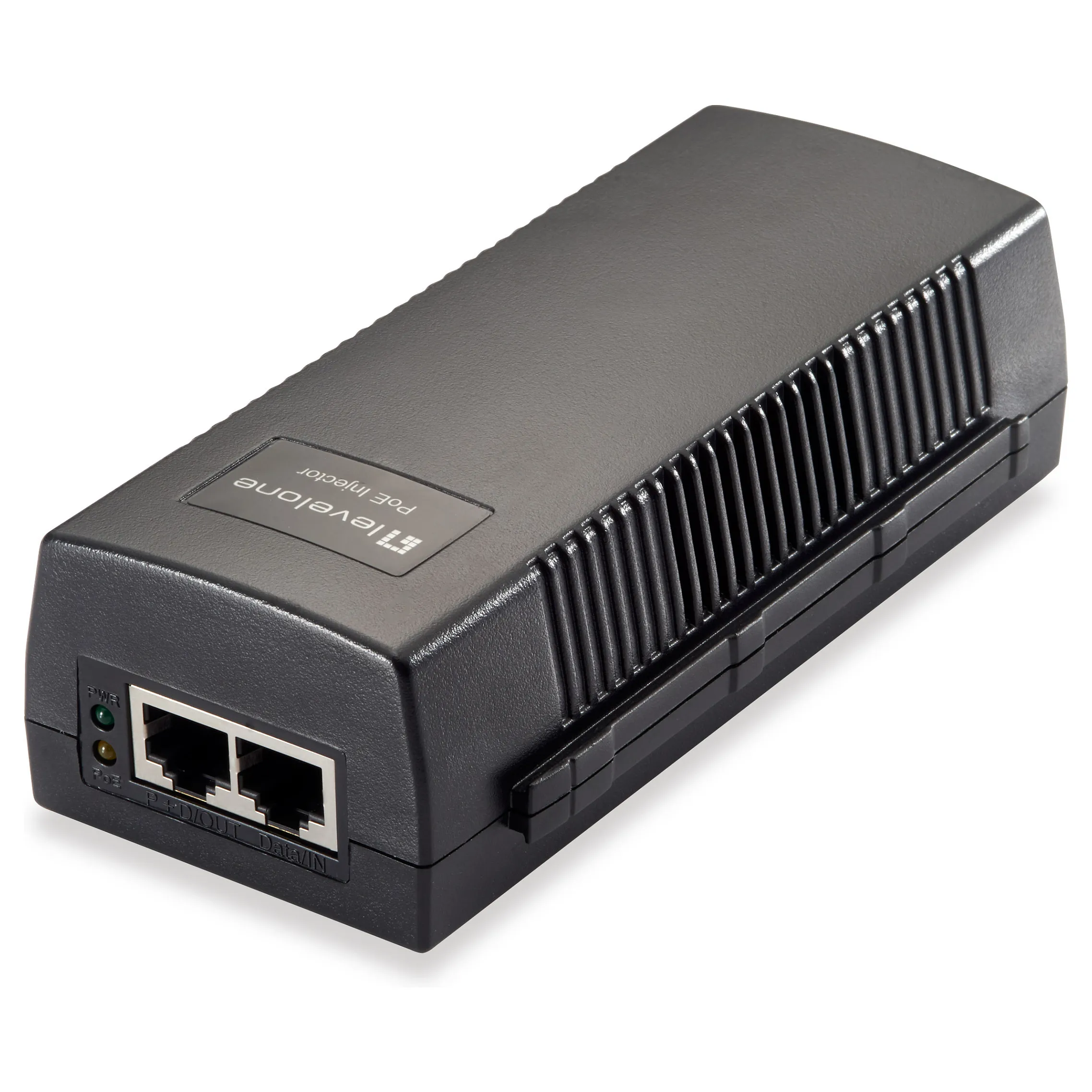

LevelOne POI-3014. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Product colour: Black, Maximum operating distance: 100 m, LED indicators: PoE, Power. Power over Ethernet (PoE) voltage: 52 V, AC adapter input voltage: 100 – 240 V, AC adapter frequency: 50/60 Hz. Compliance certificates: RoHS, Certification: FCC Part 15, CE. Width: 145.7 mm, Depth: 64.4 mm, Height: 43.4 mm
With the use of power injectors, DC power of up to 30W and the data that comes from a non-PoE switchare merged together and then transmitted to a PD such as a PoE network camera, through the Ethernetcabling. This allows you to extend the use of your existing hardware investment without needing to buyextra PoE switches.
Furthermore, non-PoE devices like wireless access points can also be powered up remotely by addingadditional PoE splitters, since power and data are further split into two cables. These devices can thereforebe installed in hard-to-reach areas like ceilings where there are no outlets or electrical wiring nearby.
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Power over Ethernet (PoE)
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Features
Product colour: Black
Feature: Wall mountable
Feature: Plug and Play
Feature: Surge protection
Maximum operating distance: 100 m

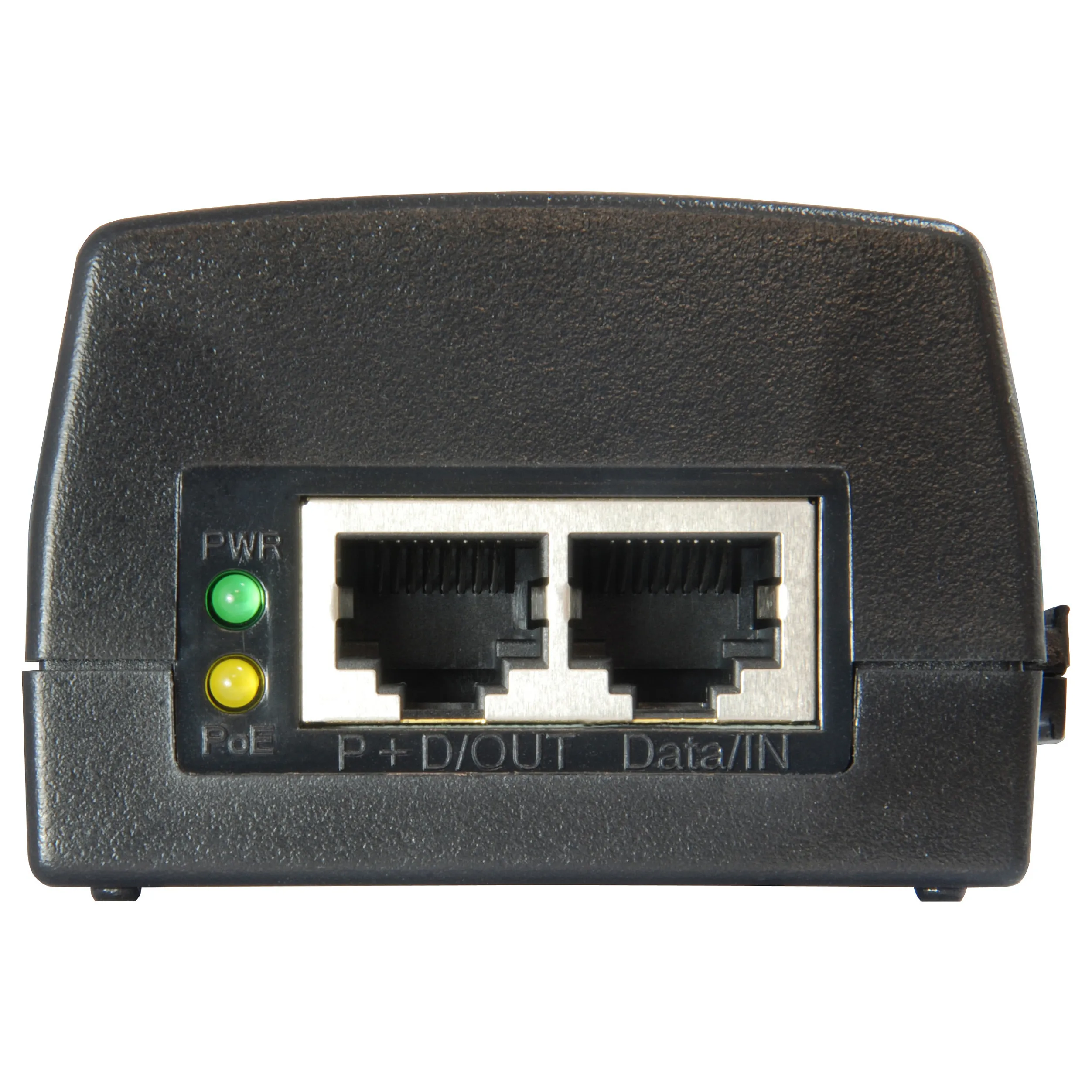

LED indicators: PoE, Power
Pin assignment & polarity: 4/5 (+), 7/8 (-)
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
Power
Power over Ethernet (PoE) voltage: 52 V
AC adapter input voltage: 100 – 240 V
AC adapter frequency: 50/60 Hz
Input current: 0.8 A
Output current: 0.6 A
Power consumption (max): 30 W
Power over Ethernet (PoE) power per port: 30 W
Certificates
Compliance certificates: RoHS
Certification: FCC Part 15, CE
Operational conditions
Operating temperature (T-T): 0 – 45 °C
Operating relative humidity (H-H): 5 – 95%
Storage temperature (T-T): 0 – 70 °C
Storage relative humidity (H-H): 5 – 95%
Weight & dimensions
Width: 145.7 mm
Depth: 64.4 mm
Height: 43.4 mm
Weight: 350 g
Packaging content
Number of products included: 1 pc(s)
Feature: Quick installation guide
Packaging data
Package width: 210 mm
Package depth: 145 mm
Package height: 55 mm
Package weight: 400 g
Logistics data
Harmonized System (HS) code: 85044095
