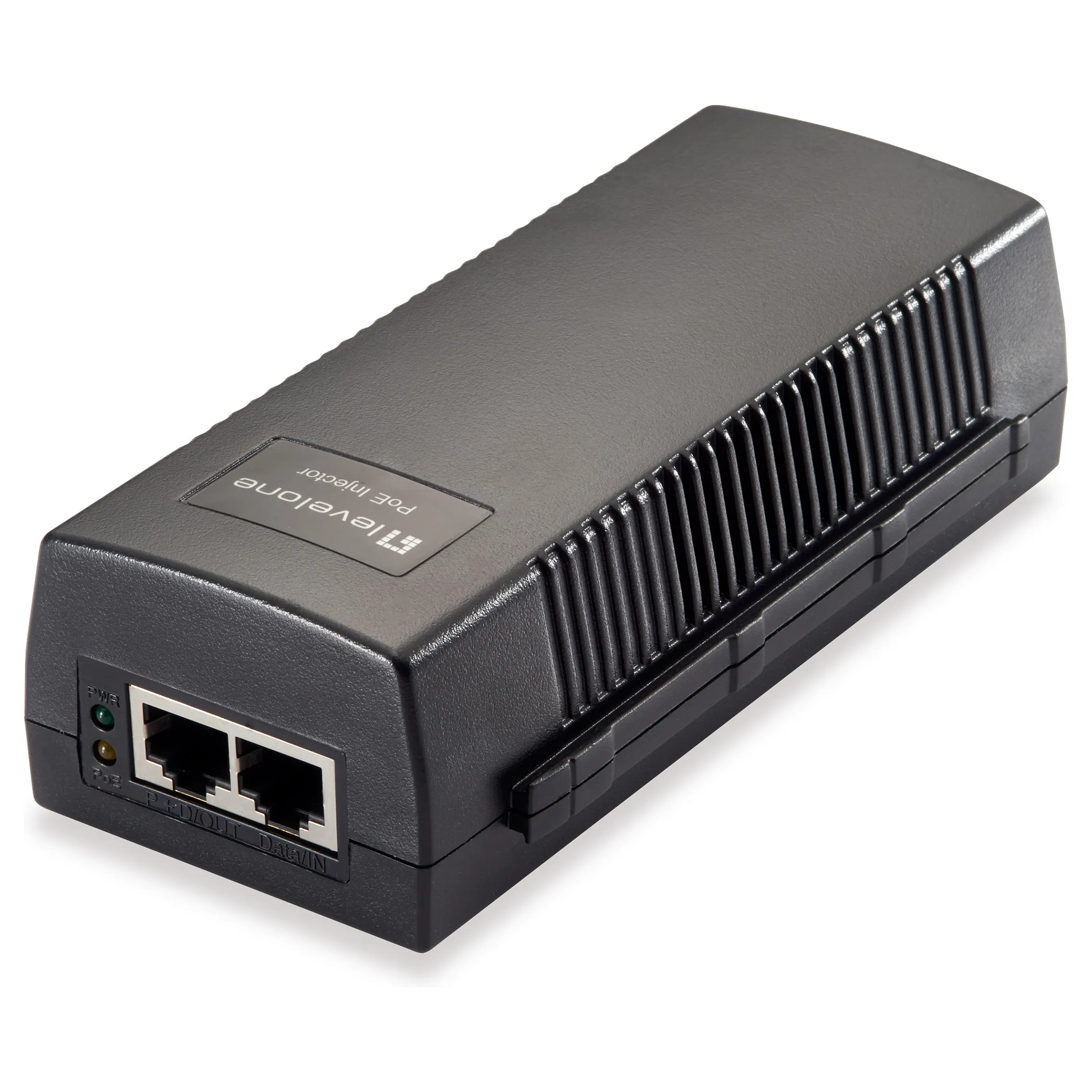

LevelOne POI-2012. Ethernet interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3u. Product colour: Black, Maximum operating distance: 100 m, LED indicators: PoE, Power. Power over Ethernet (PoE) voltage: 52 V, AC adapter input voltage: 100 – 240 V, AC adapter frequency: 50/60 Hz. Compliance certificates: RoHS, Certification: FCC Part 15, CE. Width: 143 mm, Depth: 51 mm, Height: 38 mm
The LevelOne POI-2012 is a Power over Ethernet injector that not only delivers a cost-effective solution for power distribution, but also provides a seamless way of deployment on the existing LAN infrastructure. With the use of power injectors, DC power of up to 15.4W and the data that comes from a non-PoE switch are merged together and then transmitted to the 802.3af compliant products such as PoE dome cameras through the Ethernet cabling. Hence, preserving your investment in hardware upgrade without the need for buying extra PoE switches. Furthermore, non-PoE devices like wireless access points can also be powered up remotely by adding additional PoE splitters, since power and data are further split into two cables, therefore these devices may be installed in hard-to-reach areas like ceilings where there are no any outlets or electrical wiring nearby.
Network
Ethernet interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Feature: Power over Ethernet (PoE)
Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3u
Features
Product colour: Black
Feature: Wall mountable
Feature: Plug and Play
Feature: Surge protection
Maximum operating distance: 100 m
LED indicators: PoE, Power
Pin assignment & polarity: 4/5 (+), 7/8 (-)
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
Power
Power over Ethernet (PoE) voltage: 52 V
AC adapter input voltage: 100 – 240 V
AC adapter frequency: 50/60 Hz
Input current: 0.8 A
Output current: 0.3 A
Power consumption (max): 15.4 W
Power over Ethernet (PoE) power per port: 15.4 W
Certificates
Compliance certificates: RoHS
Certification: FCC Part 15, CE
Operational conditions
Operating temperature (T-T): 0 – 45 °C
Operating relative humidity (H-H): 5 – 95%
Storage temperature (T-T): 0 – 70 °C
Storage relative humidity (H-H): 5 – 95%
Weight & dimensions
Width: 143 mm
Depth: 51 mm
Height: 38 mm
Weight: 350 g
Packaging content
Number of products included: 1 pc(s)
Feature: Quick installation guide
Packaging data
Package width: 210 mm
Package depth: 125 mm
Package height: 55 mm
Package weight: 400 g
Package type: Box
Logistics data
Harmonized System (HS) code: 85044095
Ethernet interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Feature: Power over Ethernet (PoE)
Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3u
Features
Product colour: Black
Feature: Wall mountable
Feature: Plug and Play
Feature: Surge protection
Maximum operating distance: 100 m
LED indicators: PoE, Power
Pin assignment & polarity: 4/5 (+), 7/8 (-)
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
Power
Power over Ethernet (PoE) voltage: 52 V
AC adapter input voltage: 100 – 240 V
AC adapter frequency: 50/60 Hz
Input current: 0.8 A
Output current: 0.3 A
Power consumption (max): 15.4 W
Power over Ethernet (PoE) power per port: 15.4 W
Certificates
Compliance certificates: RoHS
Certification: FCC Part 15, CE
Operational conditions
Operating temperature (T-T): 0 – 45 °C
Operating relative humidity (H-H): 5 – 95%
Storage temperature (T-T): 0 – 70 °C
Storage relative humidity (H-H): 5 – 95%
Weight & dimensions
Width: 143 mm
Depth: 51 mm
Height: 38 mm
Weight: 350 g
Packaging content
Number of products included: 1 pc(s)
Feature: Quick installation guide
Packaging data
Package width: 210 mm
Package depth: 125 mm
Package height: 55 mm
Package weight: 400 g
Package type: Box
Logistics data
Harmonized System (HS) code: 85044095
