LevelOne 20-Port L2 Plus Managed Industrial Switch, 8 x 1GbE RJ45, 8 x 1GbE SFP, 4 x 1/2.5/10GbE SFP+, DIN-Rail, -40°C to 80°C. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 112 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE…

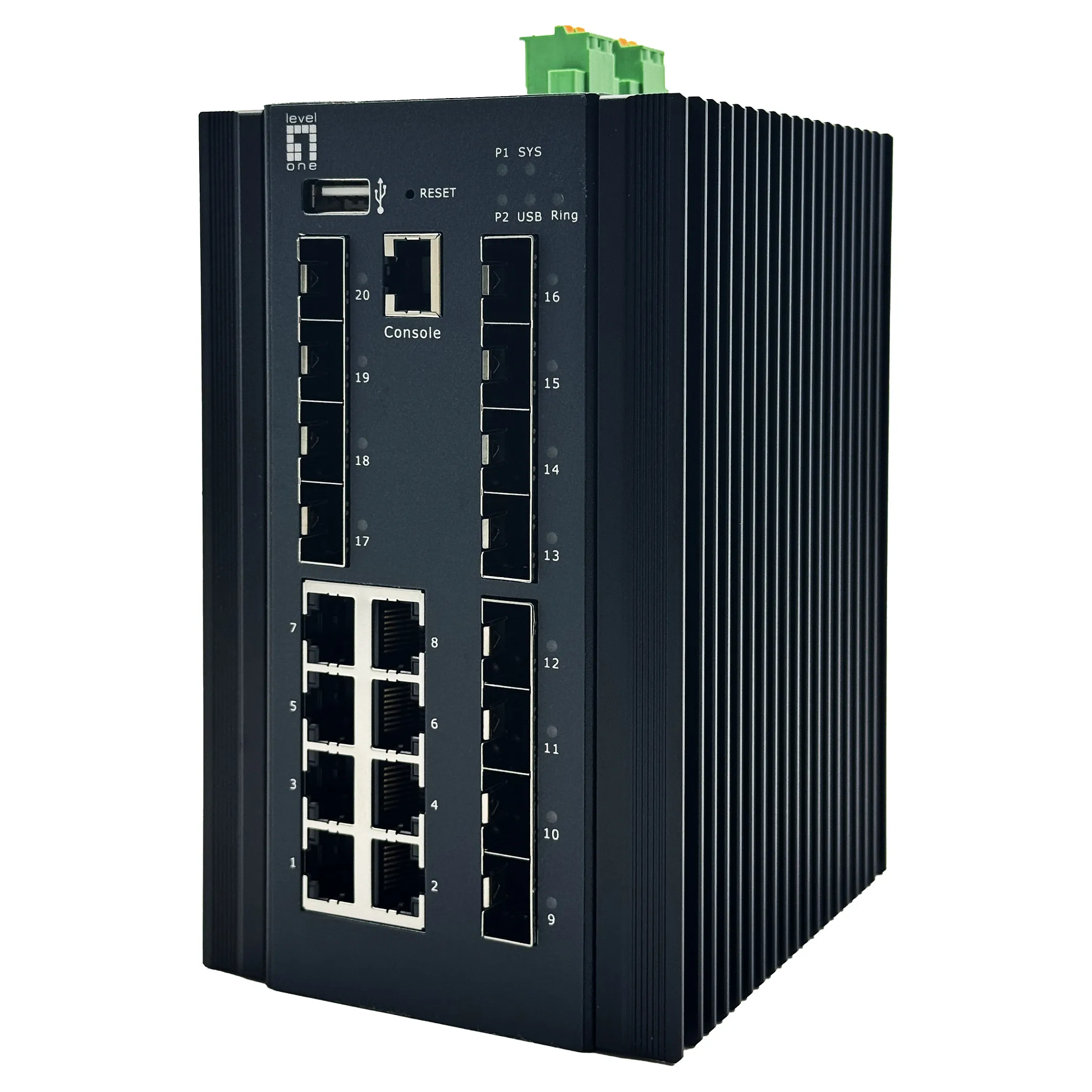

The LevelOne IGX-2072 is a rugged design L2+ managed industrial Ethernet switch designed for demanding environments. With its 8 Gigabit RJ45 ports, 8 Gigabit SFP ports, and 4 10-Gigabit SFP+ ports, it offers comprehensive Layer 2 management and rapid failover capabilities. This switch ensures uninterrupted operations with its ERPS redundant network, boasting a sub-20ms recovery time, it offers exceptional connectivity and bandwidth for mission-critical industrial applications.
Management features
Switch type: Managed
Switch layer: L2+
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: ARP inspection
Feature: Configuring Location Settings (CLI)
Feature: System event log
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 8
SFP module slots quantity: 8
SFP+ module slots quantity: 4
USB Type-A ports quantity: 1
Console port: RJ-45
Network
Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Feature: 10G support
Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Spanning tree protocol
Feature: Cable length detection
Feature: Ethernet Ring Protection Switching (ERPS)
Feature: VLAN support
Virtual LAN features: IP subnet–based VLAN, MAC address-based VLAN, Protocol-based VLAN, Stacked VLAN, VLAN mapping
Data transmission
Switching capacity: 112 Gbit/s
MAC address table: 16000 entries
Feature: Static route
Feature: Jumbo frames support
Jumbo frames: 10000
Packet buffer memory: 12 MB
Security
DHCP features: DHCP server
Feature: Access Control List (ACL)
Feature: IGMP snooping
Security algorithms: HTTPS
Feature: MAC address filtering
Feature: Loop protection
Feature: IP-MAC-Port binding
Feature: Password protection
Authentication type: IEEE 802.1x
Queue scheduling algorithms: SP, Weighted Round Robin (WRR)
Packet filtering: Y
Multicast features
Feature: Multicast support
Protocols
Feature: GARP VLAN Registration Protocol (GVRP)
Feature: IP Source Guard (IPSG)
Design
Product colour: Black
LED indicators: Ring, System, USB
International Protection (IP) code: IP40

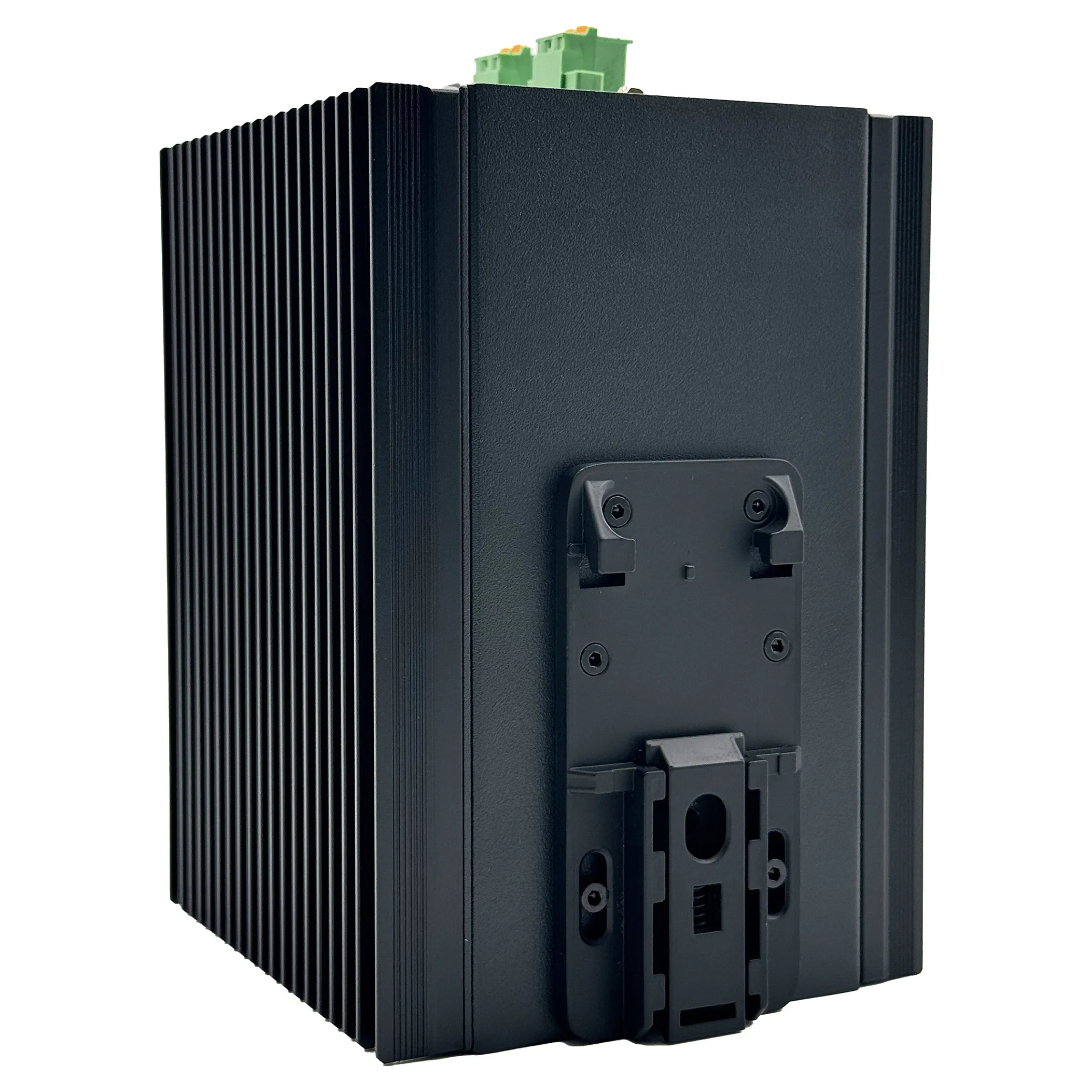

Feature: DIN rail mounting
Performance
Feature: Firmware upgradeable
Feature: Telnet
Feature: Dying Gasp
Feature: Fanless
Mean time between failures (MTBF): 200000 h
Power
Power source: DC
Feature: Redundant power supply (RPS) support

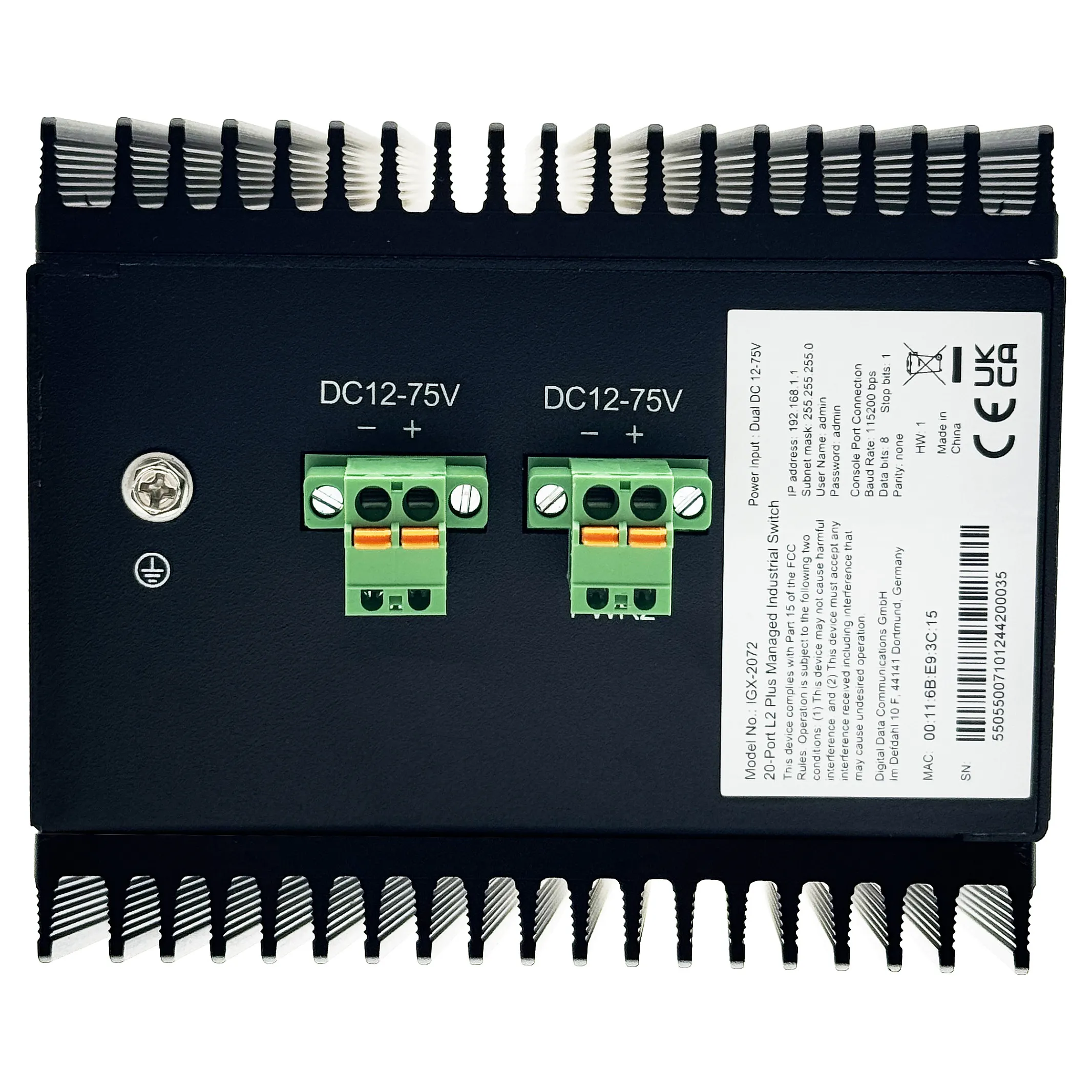

Input voltage: 12 – 75 V
Power consumption (max): 27 W
Feature: Surge protection
Surge protection voltage: 6 kV
Other features
Feature: Terminal block port
Operational conditions
Operating temperature (T-T): -40 – 80 °C
Storage temperature (T-T): -40 – 85 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 95%
Weight & dimensions
Width: 110 mm
Depth: 115 mm
Height: 158 mm
Weight: 1.79 kg

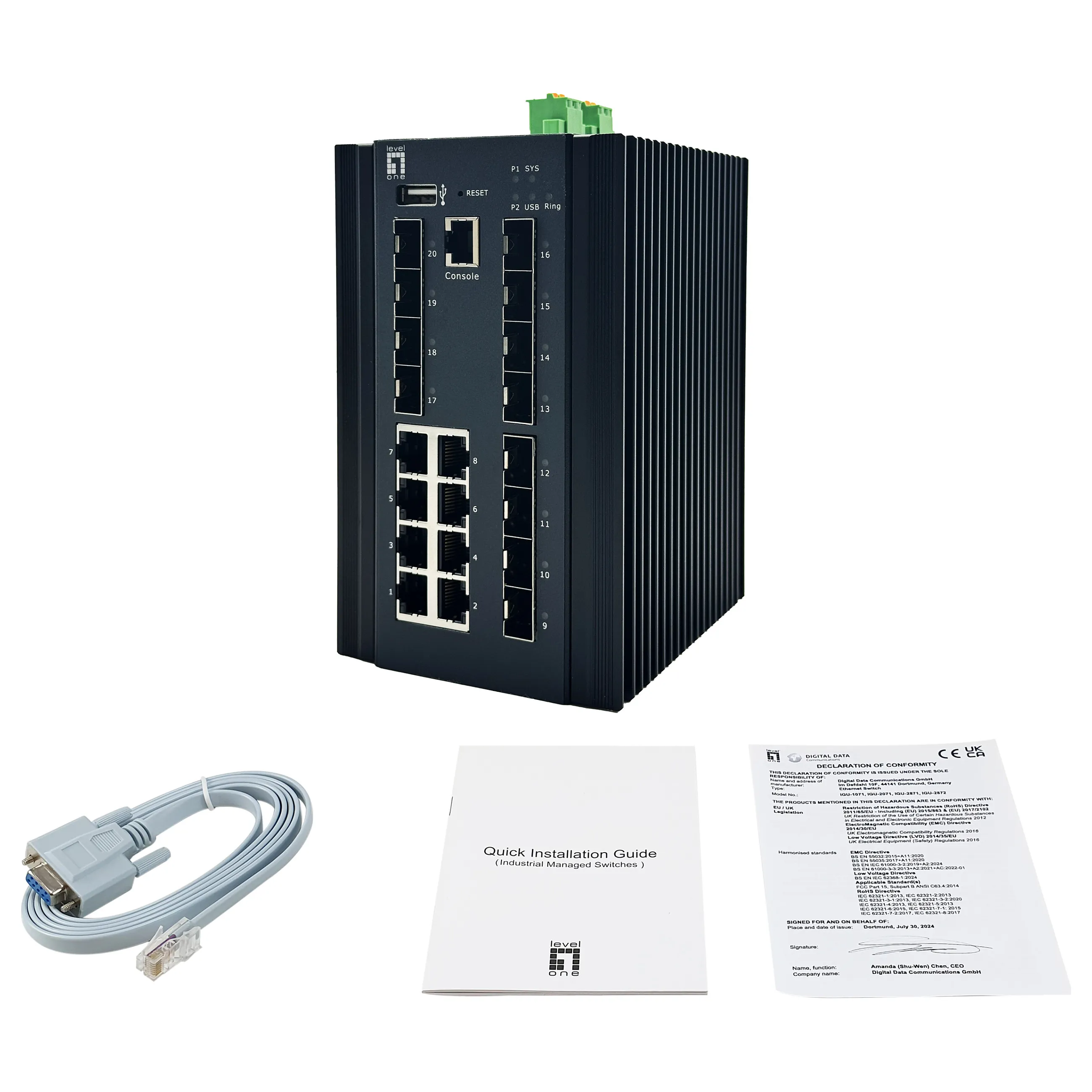

Packaging content
Cables included: LAN (RJ-45) to DB9
Feature: Quick start guide
Packaging data
Feature: DIN rail included
Package width: 232 mm
Package depth: 180 mm
Package height: 138 mm
Package weight: 2.12 kg
Technical details
Pallet gross length: 80 cm
Pallet gross width: 120 cm
Certificates
Compliance certificates: UKCA, Federal Communications Commission (FCC), RoHS, CE
Logistics data
Pallet gross height: 167.4 cm
Country of origin: China
Master (outer) case width: 440 mm
Master (outer) case length: 375 mm
Master (outer) case height: 255 mm
Harmonized System (HS) code: 851762
Master (outer) case gross weight: 15 kg
Products per master (outer) case: 6 pc(s)
