LevelOne Hilbert 8-Port Industrial Gigabit PoE Smart Lite Switch, 8 PoE Outputs, 802.3at/af PoE. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE…. DC input voltage: 44 – 57 V. Power over Ethernet (PoE)

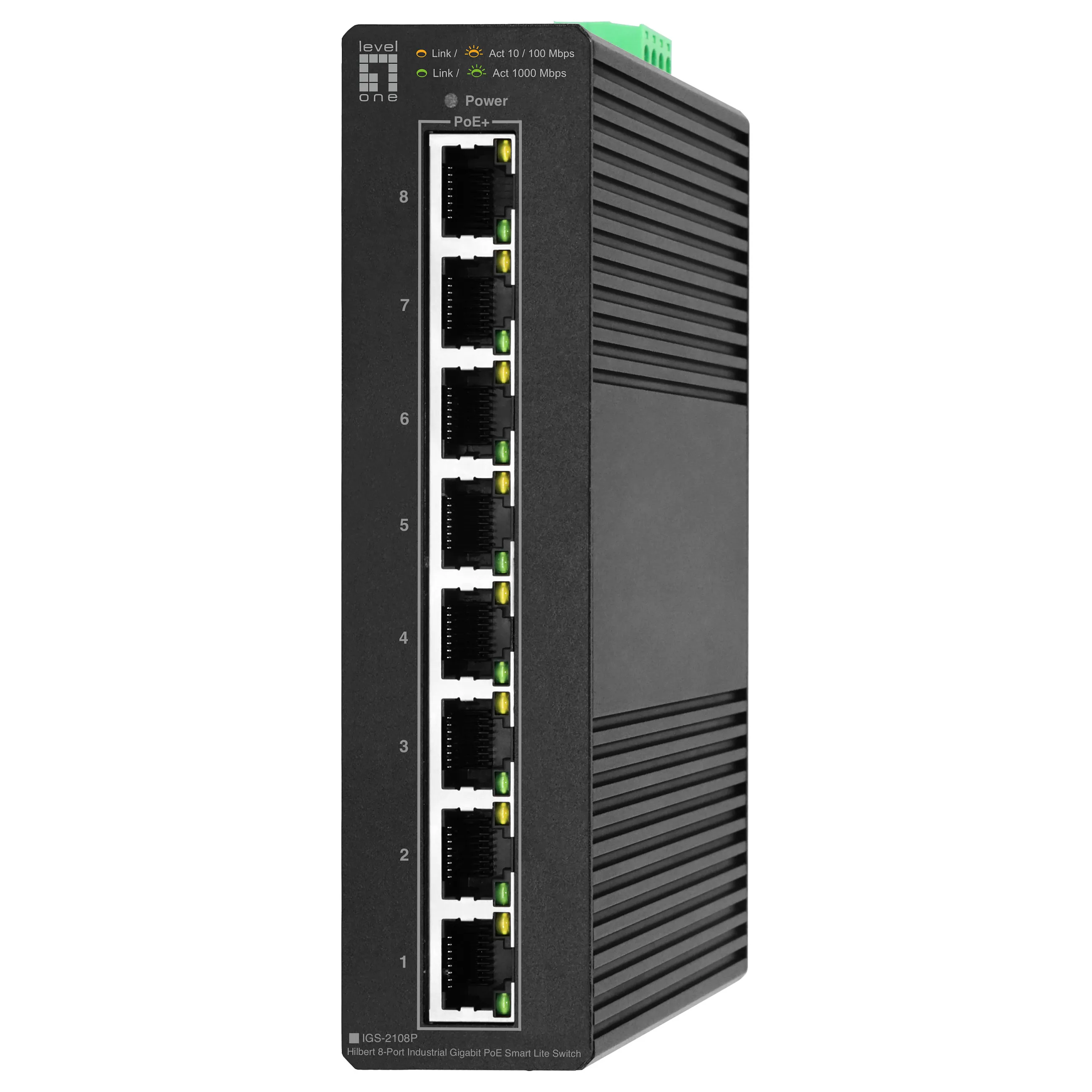

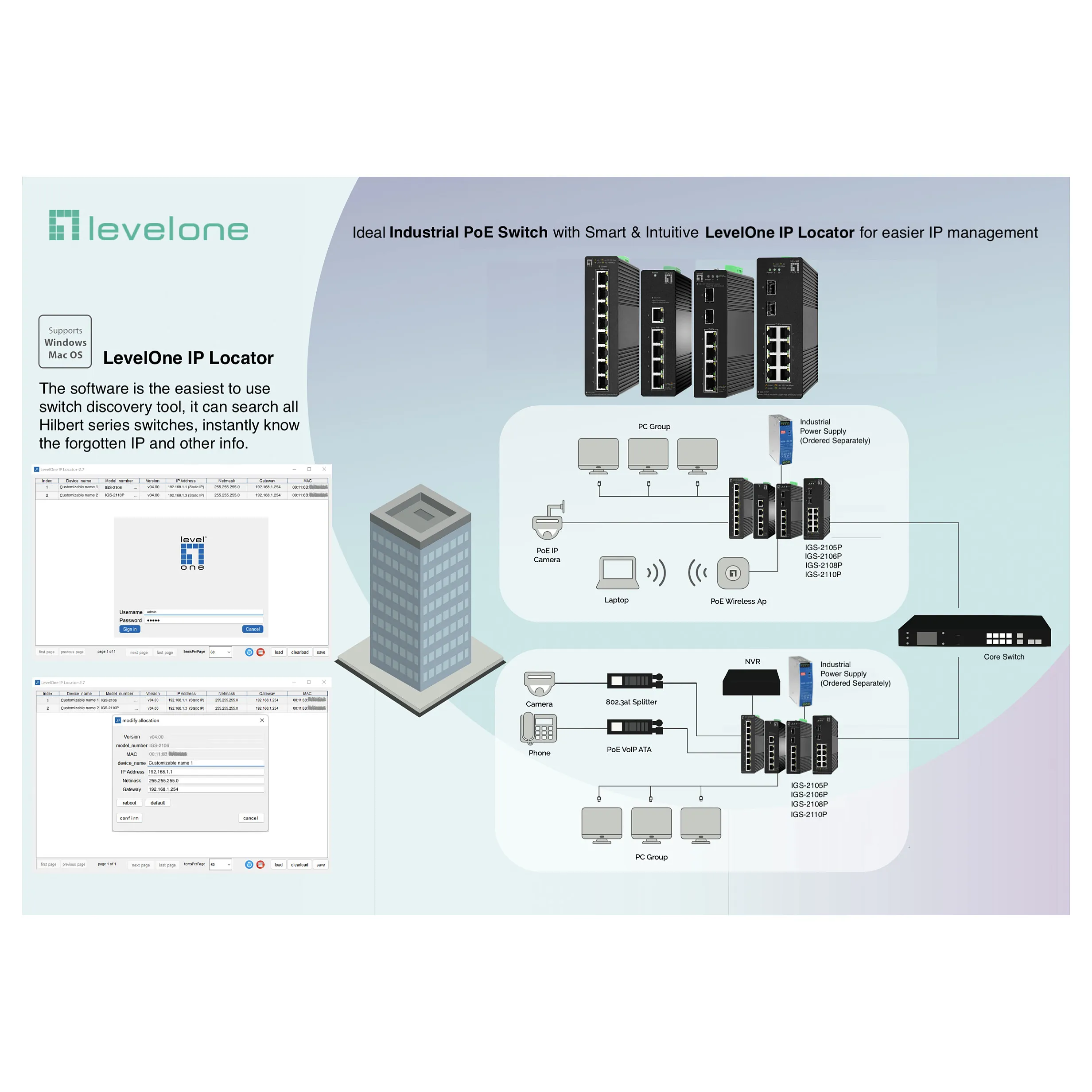

The LevelOne IGS-2108P Hilbert 8-Port Industrial Gigabit PoE Smart Lite switch is a next-generation Ethernet Switch offering powerful better PoE functionality and usability that delivers the cost-effectively business and transports Ethernet services via copper connections. the IGS-2108P offers 8 (10M/100M/1G) RJ45, of which 8 are PoE+ (support 802.3at/af) ports to enable high speed network at mission-critical environment. With the industrial standard DIN-rail mount, plus the clearly visible status LEDs provide simple monitoring of port link activity.. can be matched with the latest LevelOne IP Locator, the software is the easiest to use switch discovery tool, it can search all Hilbert series switches, instantly know the forgotten IP and other info. Compatible with mainstream Windows and Mac operating systems.
The LevelOne IGS-2108P provides high HW performance and environment flexibility for Enterprises. IGS-2108P is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership.
Management features
Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 8
Network
Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Feature: Port mirroring
Feature: Full duplex
Feature: Half duplex
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Auto MDI/MDI-X
Feature: Spanning tree protocol
Feature: Auto-negotiation
Feature: MAC address auto-learning supported
Feature: MAC address auto-aging supported
Feature: VLAN support
Virtual LAN features: Port-based VLAN, Tagged VLAN
Number of VLANs: 32
Data transmission
Switching capacity: 16 Gbit/s
Forwarding rate: 11.904 Mpps
MAC address table: 4000 entries
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 1.5 MB
Security
Feature: IGMP snooping
Queue scheduling algorithms: Priority queuing (PQ)
Multicast features
Feature: Multicast support
Design
Product colour: Black
LED indicators: Power, Link, Activity
Feature: Redundant fans support
International Protection (IP) code: IP30

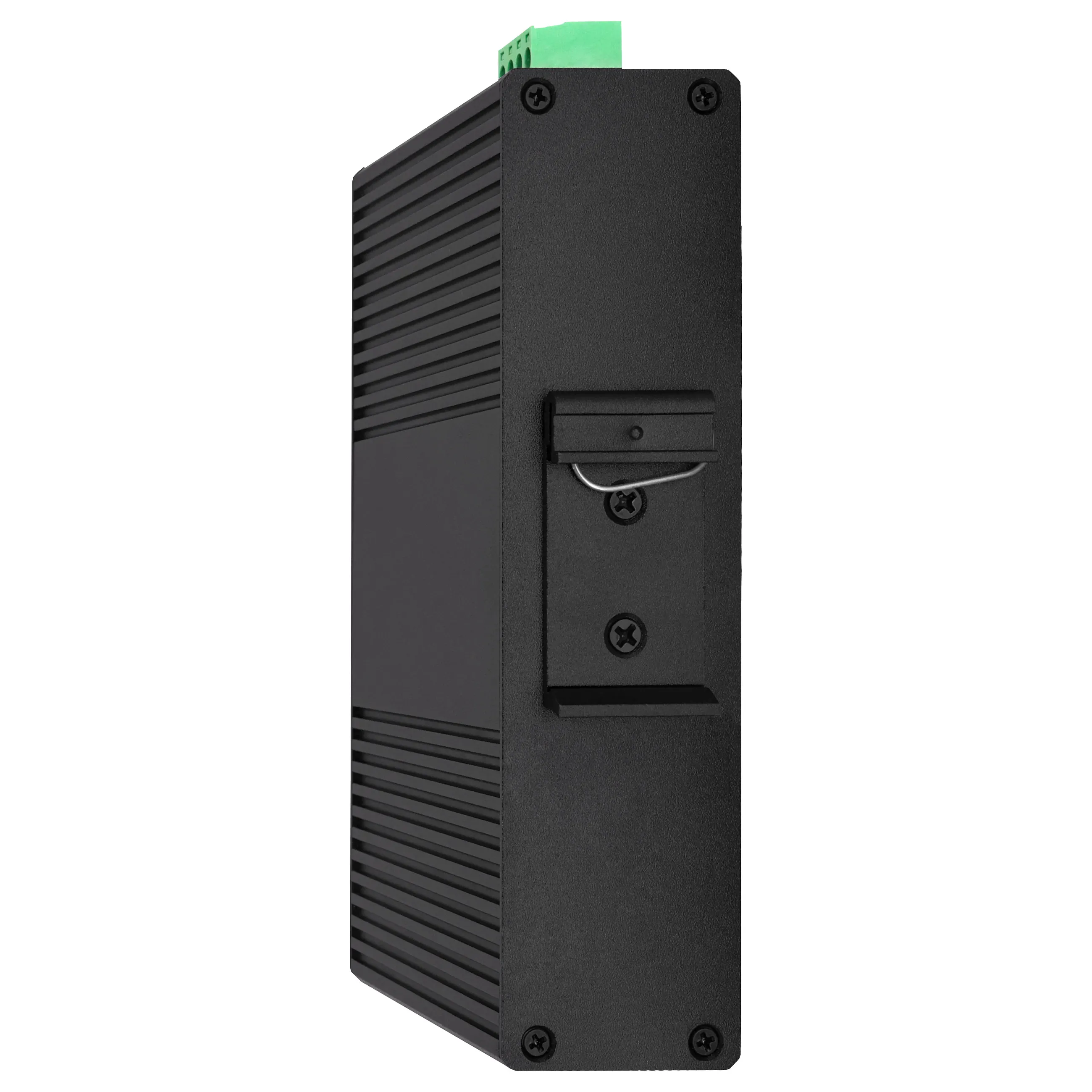

Feature: DIN rail mounting
Performance
Flash memory: 2 MB
Noise level: 0 dB
Feature: Fanless
Mean time between failures (MTBF): 43800 h
Power
Power source: DC/PoE
Feature: Redundant power supply (RPS) support
DC input voltage: 44 – 57 V
Power consumption (typical): 120 W
Feature: Surge protection
Surge protection voltage: 4 kV
Power protection features: Surge protection
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 8
Total Power over Ethernet (PoE) budget: 112 W
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Storage temperature (T-T): -40 – 85 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 95%
Heat dissipation: 40.94 BTU/h
Weight & dimensions
Width: 153 mm
Depth: 114 mm
Height: 38 mm
Weight: 550 g
Packaging content
Feature: Quick start guide
Packaging data
Feature: Terminal block included
Package type: Box
Feature: DIN rail included
Package width: 230 mm
Package depth: 160 mm
Package height: 73 mm
Package weight: 780 g
Sustainability
Feature: Sustainability compliance
Technical details
Layers per pallet (air): 16 pc(s)
Pallet gross length: 80 cm
Pallet gross width: 120 cm
Certificates
Compliance certificates: CE, Federal Communications Commission (FCC), RoHS, UKCA
Logistics data
Pallet gross height: 154.4 cm
Country of origin: China
Master (outer) case width: 480 mm
Master (outer) case length: 395 mm
Master (outer) case height: 350 mm
Harmonized System (HS) code: 8517620090
Master (outer) case gross weight: 16 kg
Products per master (outer) case: 20 pc(s)
Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 8
Network
Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Feature: Port mirroring
Feature: Full duplex
Feature: Half duplex
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Auto MDI/MDI-X
Feature: Spanning tree protocol
Feature: Auto-negotiation
Feature: MAC address auto-learning supported
Feature: MAC address auto-aging supported
Feature: VLAN support
Virtual LAN features: Port-based VLAN, Tagged VLAN
Number of VLANs: 32
Data transmission
Switching capacity: 16 Gbit/s
Forwarding rate: 11.904 Mpps
MAC address table: 4000 entries
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 1.5 MB
Security
Feature: IGMP snooping
Queue scheduling algorithms: Priority queuing (PQ)
Multicast features
Feature: Multicast support
Design
Product colour: Black
LED indicators: Power, Link, Activity
Feature: Redundant fans support
International Protection (IP) code: IP30
Feature: DIN rail mounting
Performance
Flash memory: 2 MB
Noise level: 0 dB
Feature: Fanless
Mean time between failures (MTBF): 43800 h
Power
Power source: DC/PoE
Feature: Redundant power supply (RPS) support
DC input voltage: 44 – 57 V
Power consumption (typical): 120 W
Feature: Surge protection
Surge protection voltage: 4 kV
Power protection features: Surge protection
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 8
Total Power over Ethernet (PoE) budget: 112 W
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Storage temperature (T-T): -40 – 85 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 95%
Heat dissipation: 40.94 BTU/h
Weight & dimensions
Width: 153 mm
Depth: 114 mm
Height: 38 mm
Weight: 550 g
Packaging content
Feature: Quick start guide
Packaging data
Feature: Terminal block included
Package type: Box
Feature: DIN rail included
Package width: 230 mm
Package depth: 160 mm
Package height: 73 mm
Package weight: 780 g
Sustainability
Feature: Sustainability compliance
Technical details
Layers per pallet (air): 16 pc(s)
Pallet gross length: 80 cm
Pallet gross width: 120 cm
Certificates
Compliance certificates: CE, Federal Communications Commission (FCC), RoHS, UKCA
Logistics data
Pallet gross height: 154.4 cm
Country of origin: China
Master (outer) case width: 480 mm
Master (outer) case length: 395 mm
Master (outer) case height: 350 mm
Harmonized System (HS) code: 8517620090
Master (outer) case gross weight: 16 kg
Products per master (outer) case: 20 pc(s)
