LevelOne Hilbert 6-Port Industrial Gigabit Smart Lite Switch, 4x RJ45, 2x SFP. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 2000 entries, Switching capacity: 12 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE…. DC input voltage: 12 – 57 V

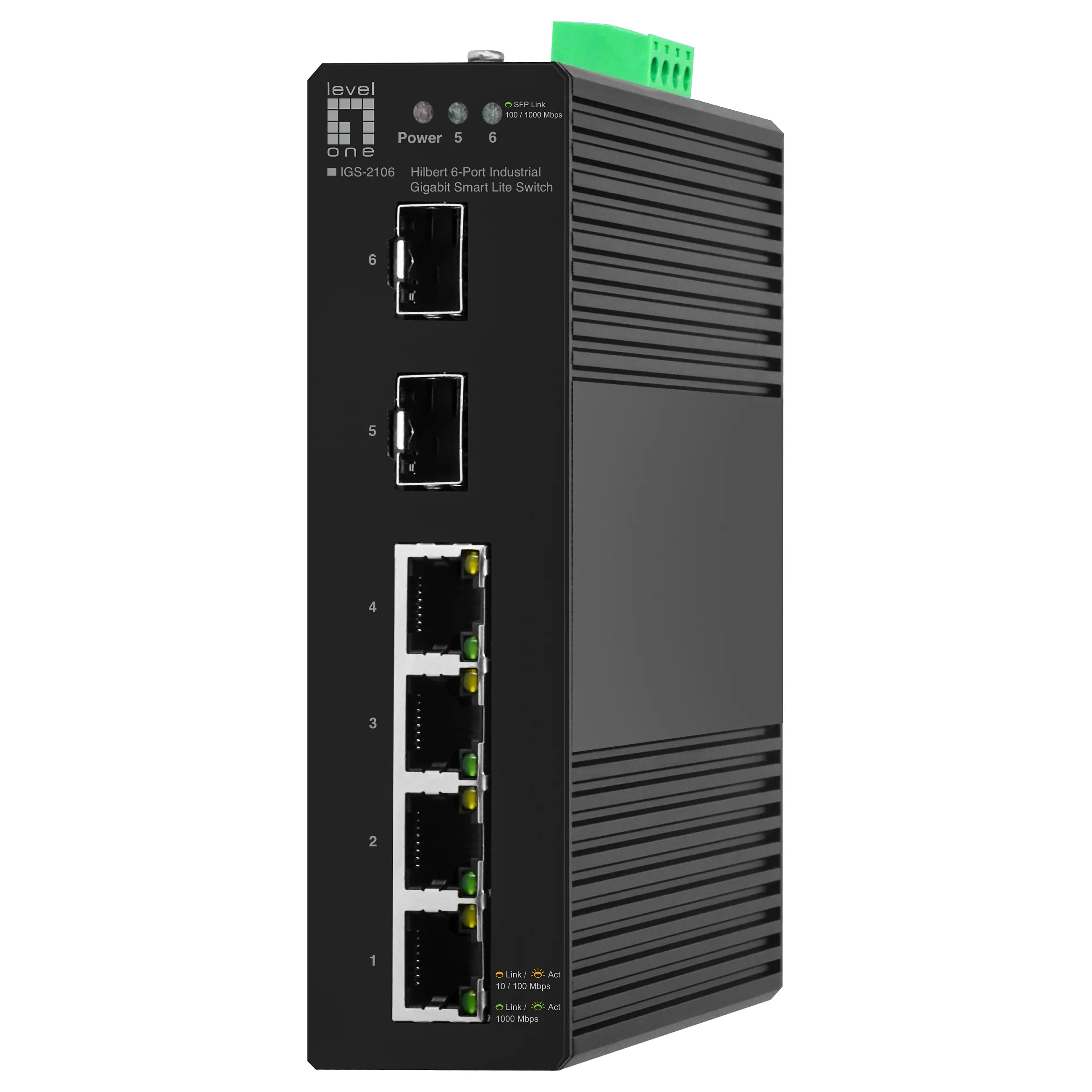

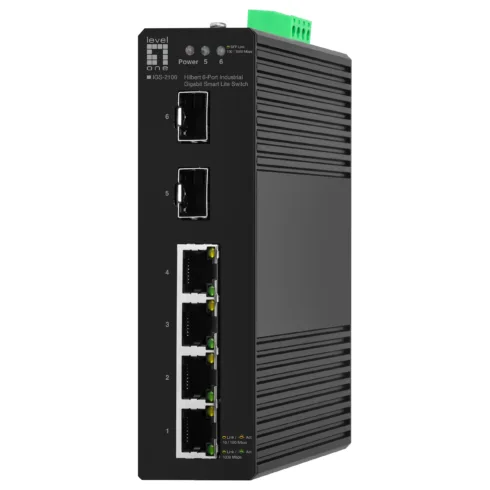

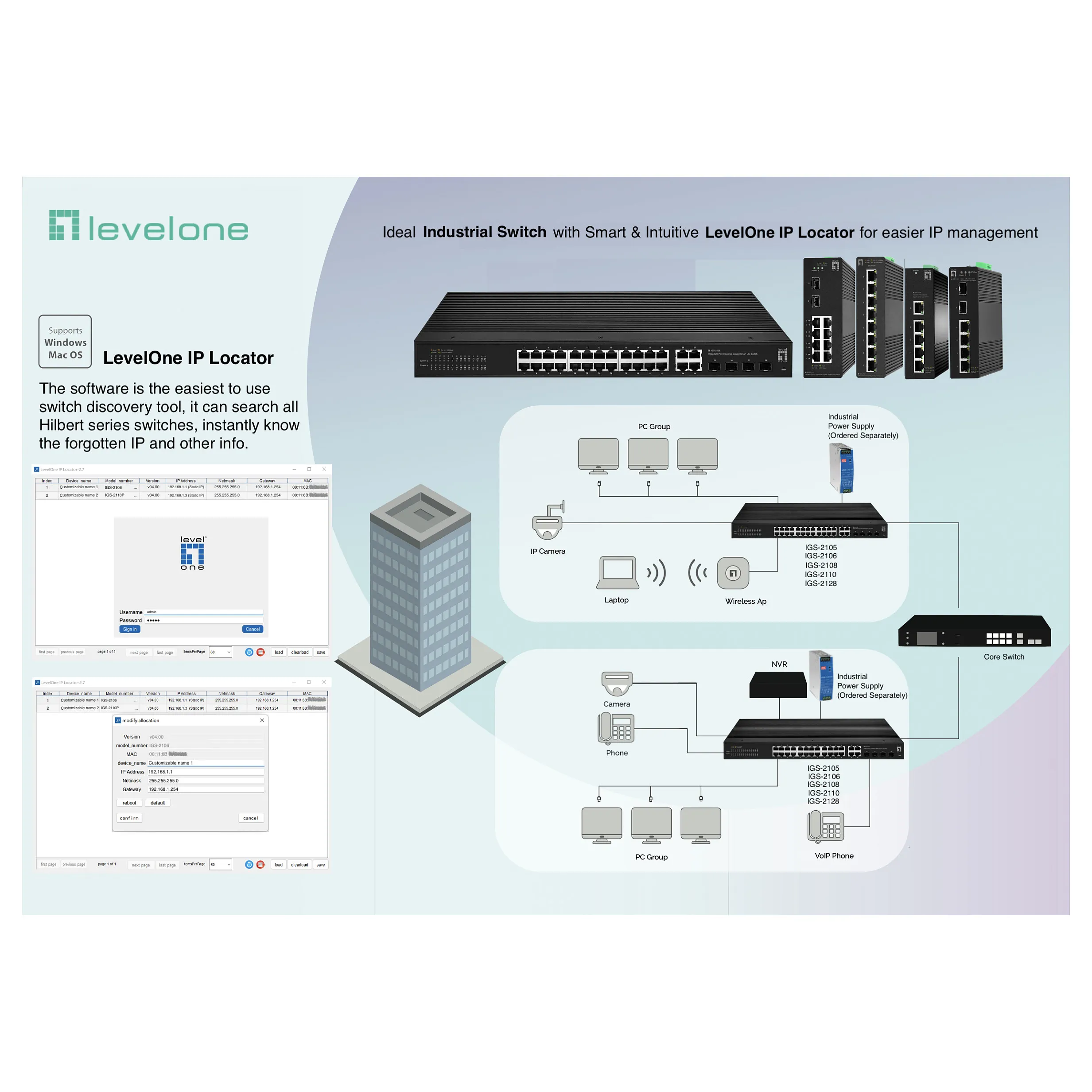

The LevelOne IGS-2106 Hilbert Industrial gigabit smart lite switch is a next-generation Ethernet Switch offering powerful better functionality and usability that delivers the cost-effectively business and transports Ethernet services via fiber or copper connections. IGS-2106 delivers 4 (10M/100M/1G) RJ45 ports and 2 Gigabit SFP ports. With the industrial standard DIN-rail mount, plus the clearly visible status LEDs provide simple monitoring of port link activity.. can be matched with the latest LevelOne IP Locator, the software is the easiest to use switch discovery tool, it can search all Hilbert series switches, instantly know the forgotten IP and other info. Compatible with mainstream Windows and Mac operating systems.
The LevelOne IGS-2106 provides high HW performance and environment flexibility for Enterprises. IGS-2106 is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership.
Management features
Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 4
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 4
SFP module slots quantity: 2
Fiber uplink ports quantity: 2
Network
Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X
Feature: Port mirroring
Feature: Full duplex
Feature: Half duplex
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Auto MDI/MDI-X
Feature: Spanning tree protocol
Feature: Auto-negotiation
Feature: MAC address auto-learning supported
Feature: MAC address auto-aging supported
Feature: VLAN support
Virtual LAN features: Port-based VLAN, Tagged VLAN
Number of VLANs: 32
Data transmission
Switching capacity: 12 Gbit/s
Forwarding rate: 8.928 Mpps
MAC address table: 2000 entries
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 1.5 MB
Security
Feature: IGMP snooping
Queue scheduling algorithms: Priority queuing (PQ)
Multicast features
Feature: Multicast support
Design
Product colour: Black
LED indicators: Activity, Link, Power
International Protection (IP) code: IP30

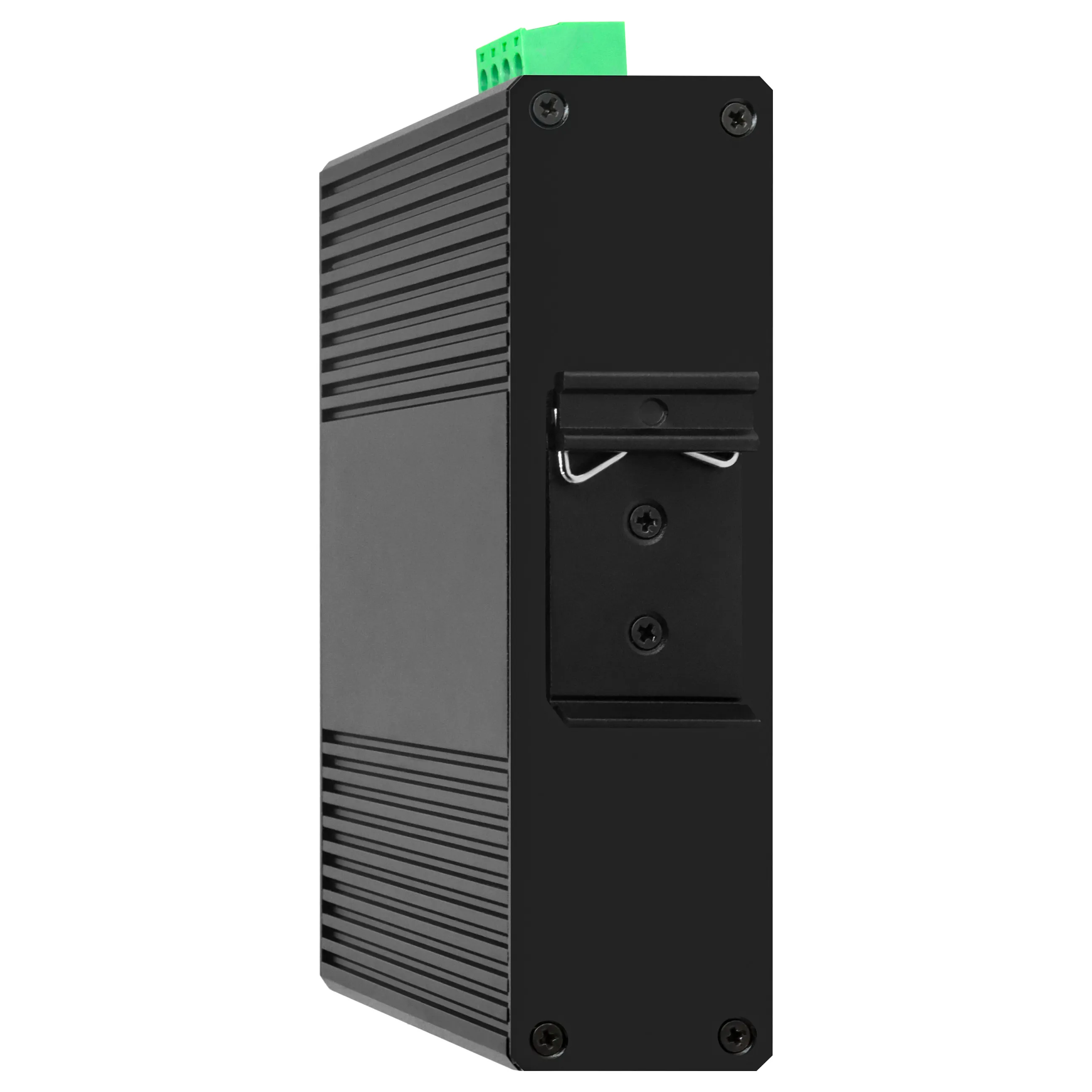

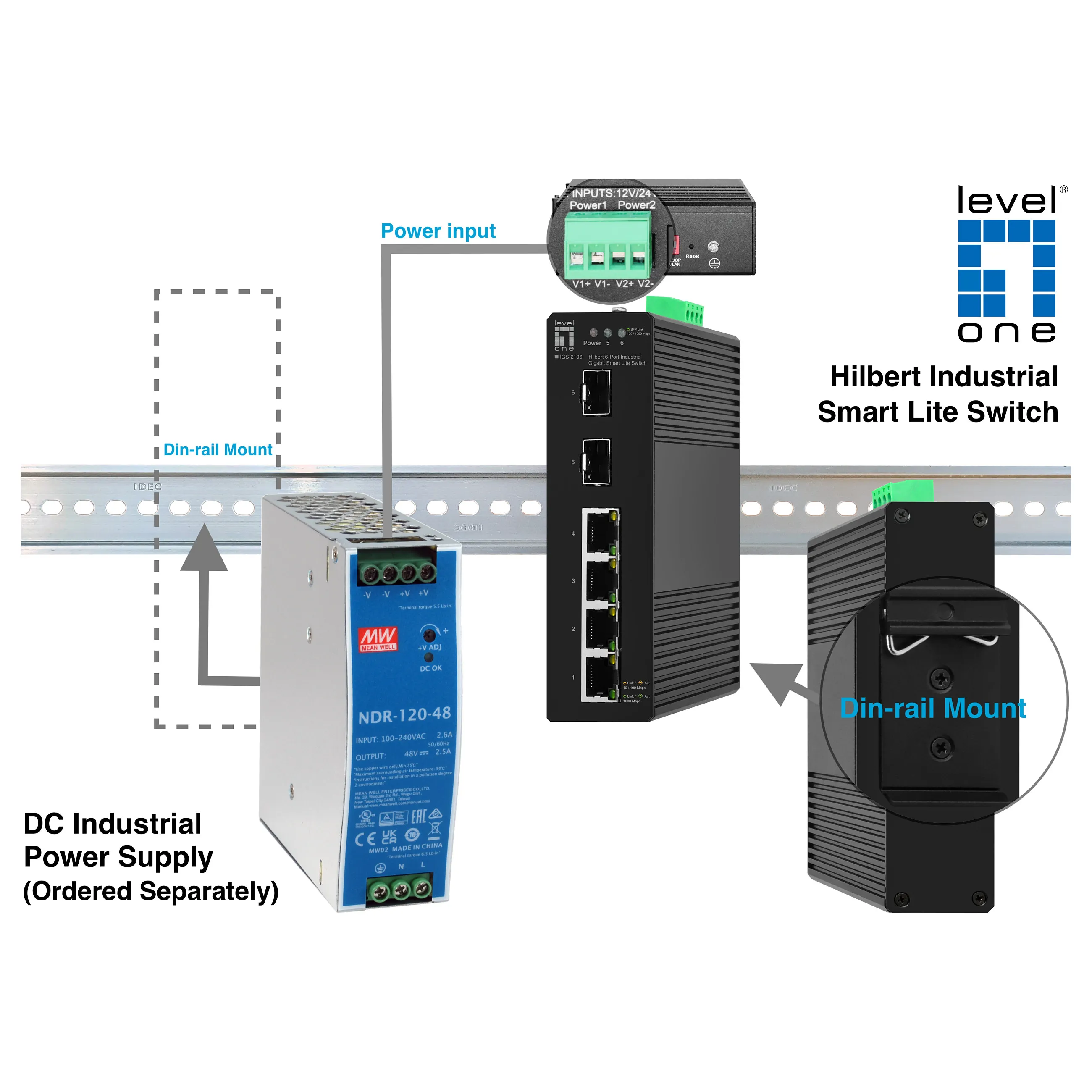

Feature: DIN rail mounting
Performance
Flash memory: 2 MB
Noise level: 0 dB
Feature: Fanless
Mean time between failures (MTBF): 43800 h
Power
Power source: DC
Feature: Redundant power supply (RPS) support

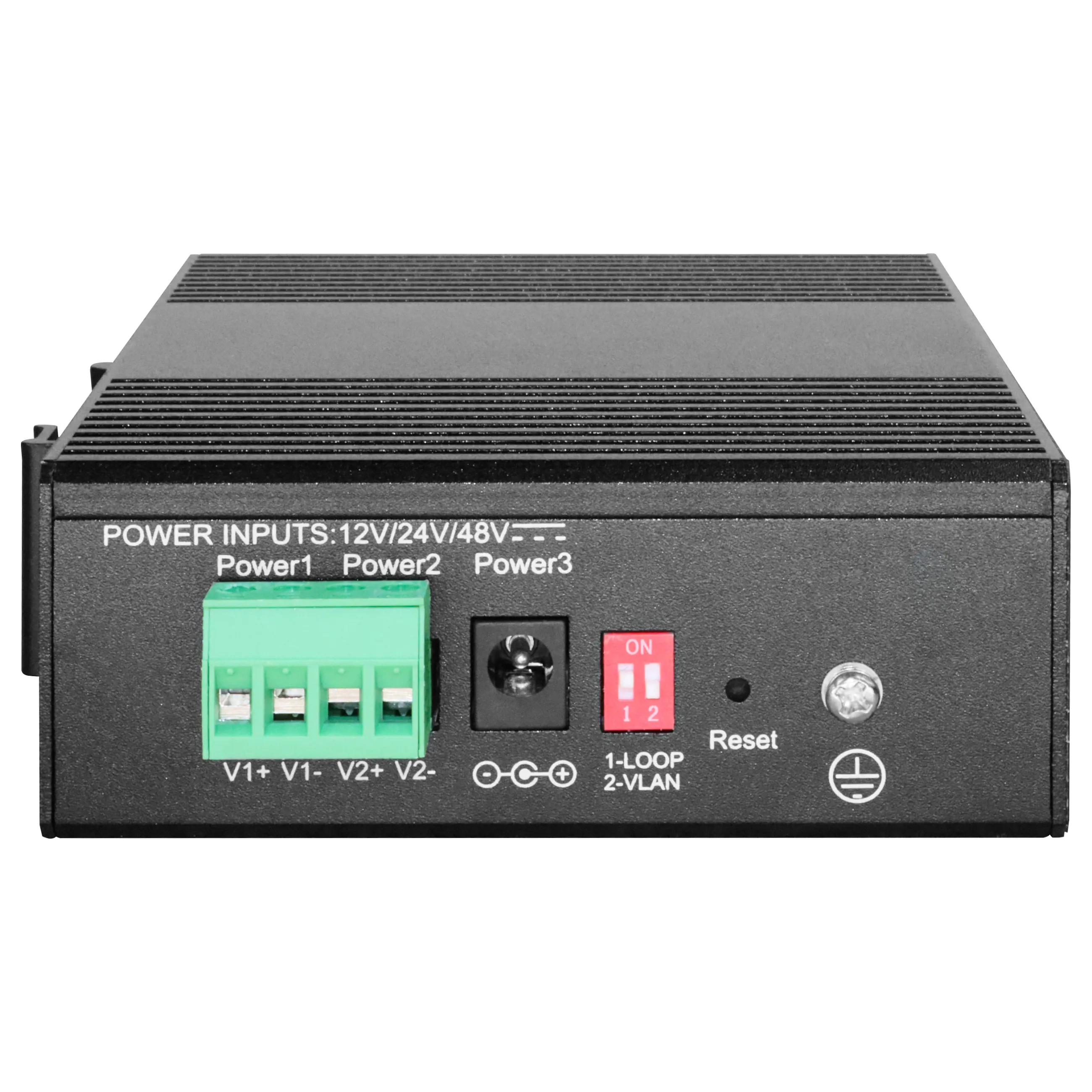

DC input voltage: 12 – 57 V
Power consumption (typical): 6 W
Feature: Surge protection
Surge protection voltage: 4 kV
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Storage temperature (T-T): -40 – 85 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 95%
Heat dissipation: 20.47 BTU/h
Weight & dimensions
Width: 136 mm
Depth: 108 mm
Height: 38.5 mm
Weight: 430 g
Packaging content
Feature: Quick start guide
Packaging data
Feature: Terminal block included
Package type: Box
Feature: DIN rail included
Package width: 191 mm
Package depth: 135 mm
Package height: 60 mm
Package weight: 680 g
Sustainability
Feature: Sustainability compliance
Technical details
Layers per pallet (air): 16 pc(s)
Pallet gross length: 80 cm
Pallet gross width: 120 cm
Certificates
Compliance certificates: CE, Federal Communications Commission (FCC), RoHS, UKCA
Logistics data
Pallet gross height: 154.4 cm
Country of origin: China
Master (outer) case width: 480 mm
Master (outer) case length: 395 mm
Master (outer) case height: 350 mm
Harmonized System (HS) code: 8517620090
Master (outer) case gross weight: 24 kg
Products per master (outer) case: 34 pc(s)
