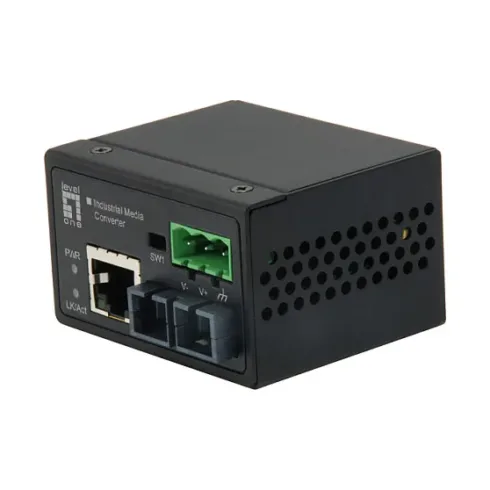

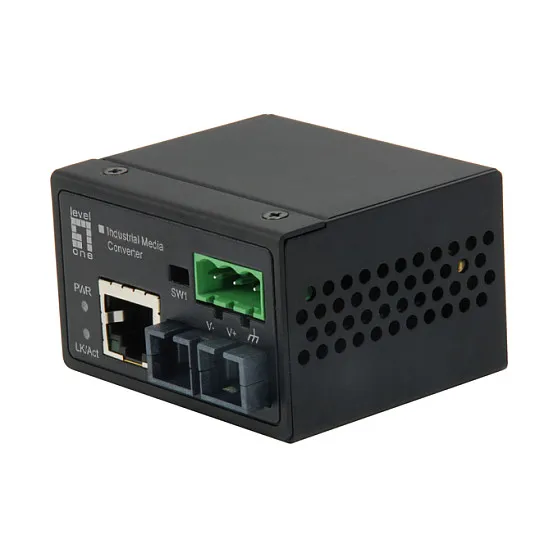

LevelOne RJ45 to SC Fast Ethernet Industrial Media Converter, Multi-Mode Fiber, 2km, -40°C to 75°C. Maximum data transfer rate: 100 Mbit/s, Converter input interface: 10Base-T, 100Base-TX, Converter output interface: 100Base-FX. Maximum transfer distance: 2000 m, Fiber mode structure: Multi-mode. LED indicators: Activity, Power, Status, Product colour: Black, Housing material: Aluminium. Fiber optic connector: SC, Connectivity technology: Wired. Input voltage: 12 – 60 V, Power consumption (typical): 1.44 W
– 10/100BaseT to 100Base-FX
– Rugged aluminium case design in a mini size form factor
– 18V-36VAC & 12V-60VDC with polarity protection
– Link Fault Pass through (LFP) function
– Supports switch and pure converter mode
– Surge & ESD protection
– Maximum noise & interference immunity
– 40°C to 75°C (-40°F to 167°F) operating temperature range

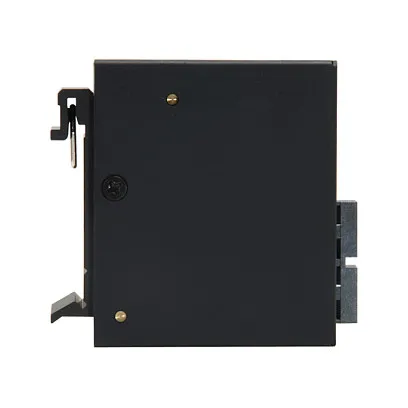

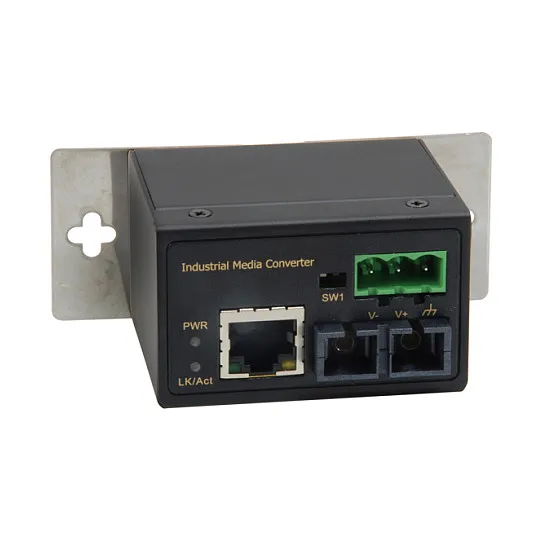

– DIN-Rail or panel mount installation
Maximum data transfer rate: 100 Mbit/s
Converter input interface: 10Base-T, 100Base-TX
Converter output interface: 100Base-FX
Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Feature: Store-and-forward
Duplex system: Full, Half
Performance
Maximum transfer distance: 2000 m
Fiber mode structure: Multi-mode
Features
LED indicators: Activity, Power, Status
Product colour: Black
Housing material: Aluminium
Ports & interfaces
Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SC
Power
Input voltage: 12 – 60 V
Power consumption (typical): 1.44 W
Weight & dimensions
Width: 59 mm
Depth: 49 mm
Height: 36 mm
Weight: 90 g
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Storage temperature (T-T): -40 – 75 °C
Operating relative humidity (H-H): 5 – 95%
Packaging content
Feature: Quick installation guide
Packaging data
Package width: 160 mm
Package depth: 105 mm
Package height: 65 mm
Package weight: 260 g
Package type: Box
Logistics data
Country of origin: Taiwan
Harmonized System (HS) code: 85176990
