LevelOne HVE-8111. Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat6. Connectivity technology: Wired, USB connector type: USB Type-A, USB Type-B. Power source type: DC, Operating voltage: 12 V, Input current: 1 A. Receiver dimensions (WxDxH): 94 x 70 x 28 mm, Receiver weight: 500 g, Transmitter dimensions (WxDxH): 94 x 70 x 28 mm. Quantity per pack: 2 pc(s), Package type: Box

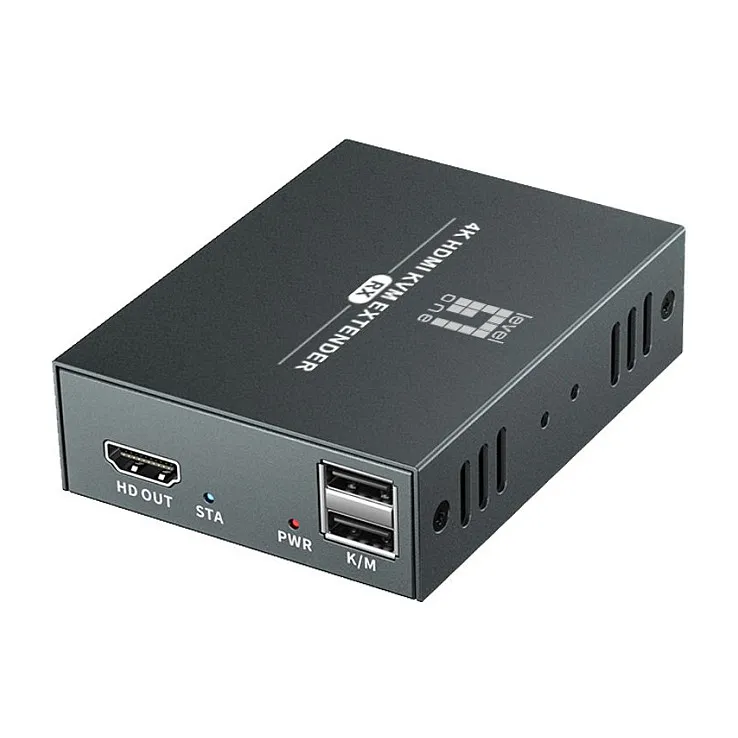

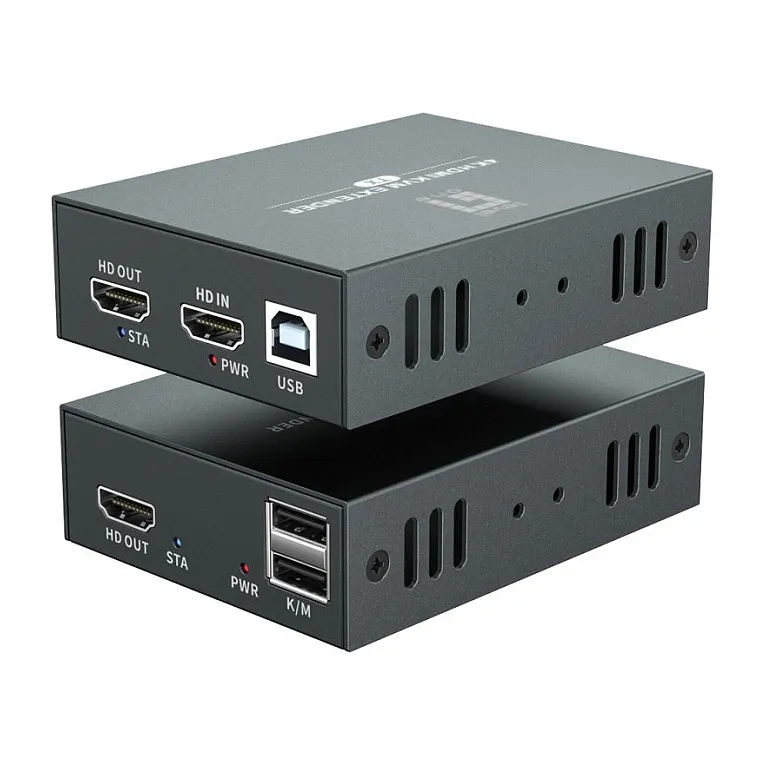

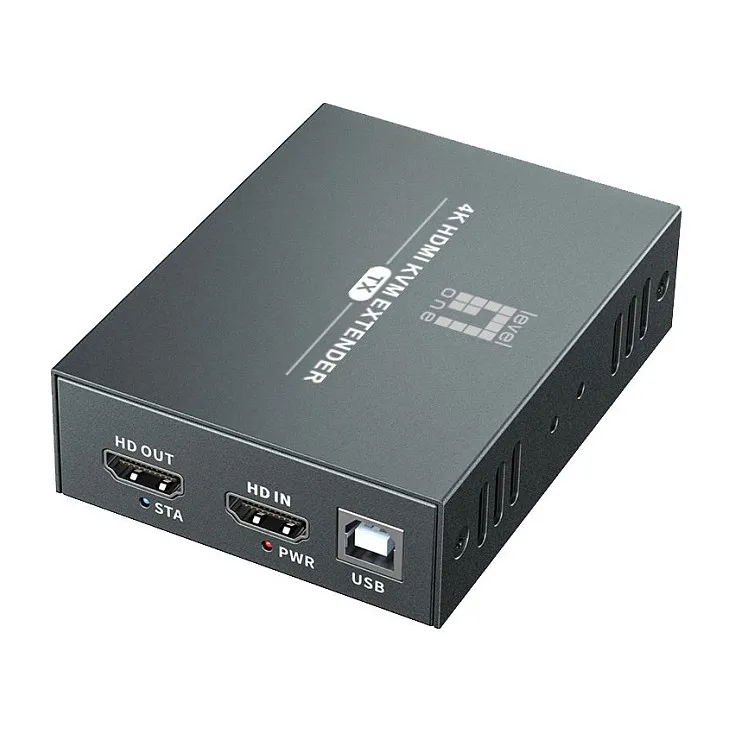

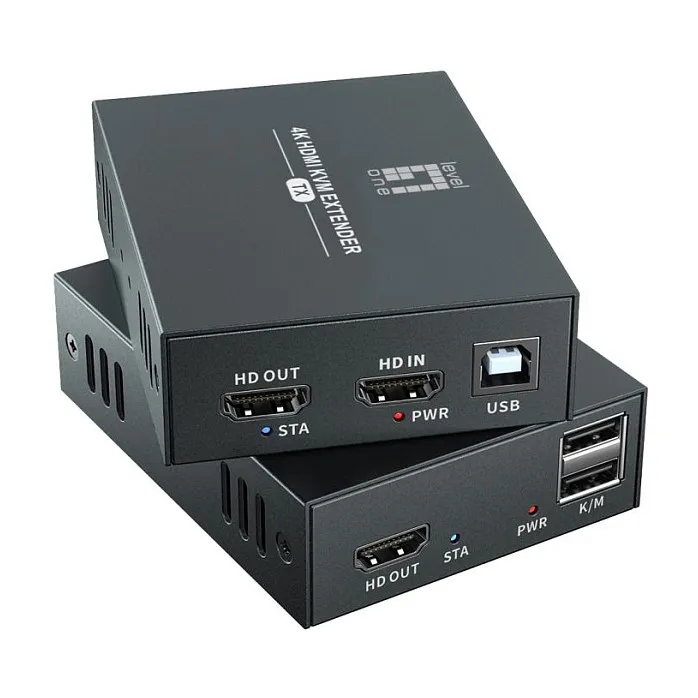

The LevelOne HVE-8111 HDMI Extender offers a ground-breaking solution for long range HDMI deployments, extending the range of Ultra HD signal broadcasts up to 100 metres from the source. Featuring both a transmitter and a receiver, signals are distributed over Ethernet cables, providing a crystal-clear, high-definition signal without the expense of using optical fiber.LevelOne HDMI Extender also supports both HDCP 2.2 which is sufficient to cover majority of HDMI devices. The integrated USB connection enable KVM functions
Features
Type: AV transmitter & receiver
Maximum resolution: 3840 x 2160 pixels
Cable types supported: Cat6
Maximum transfer distance: 100 m
Maximum refresh rate: 60 Hz
Bandwidth: 18 Gbit/s
Bandwidth: 600 MHz
Feature: HDCP
HDCP version: 2.2
Product colour: Black
Ports & interfaces
Connectivity technology: Wired
RJ-45 input ports: 1
RJ-45 output ports: 1
HDMI in: 1
Number of HDMI outputs: 2
HDMI version: 2.0
USB ports quantity: 3
USB version: 1.1
USB connector type: USB Type-A, USB Type-B
Power
Power source type: DC
Operating voltage: 12 V
Input current: 1 A
Power consumption (max): 5.16 W
Operational conditions
Operating temperature (T-T): 0 – 45 °C
Operating relative humidity (H-H): 0 – 90%
Weight & dimensions

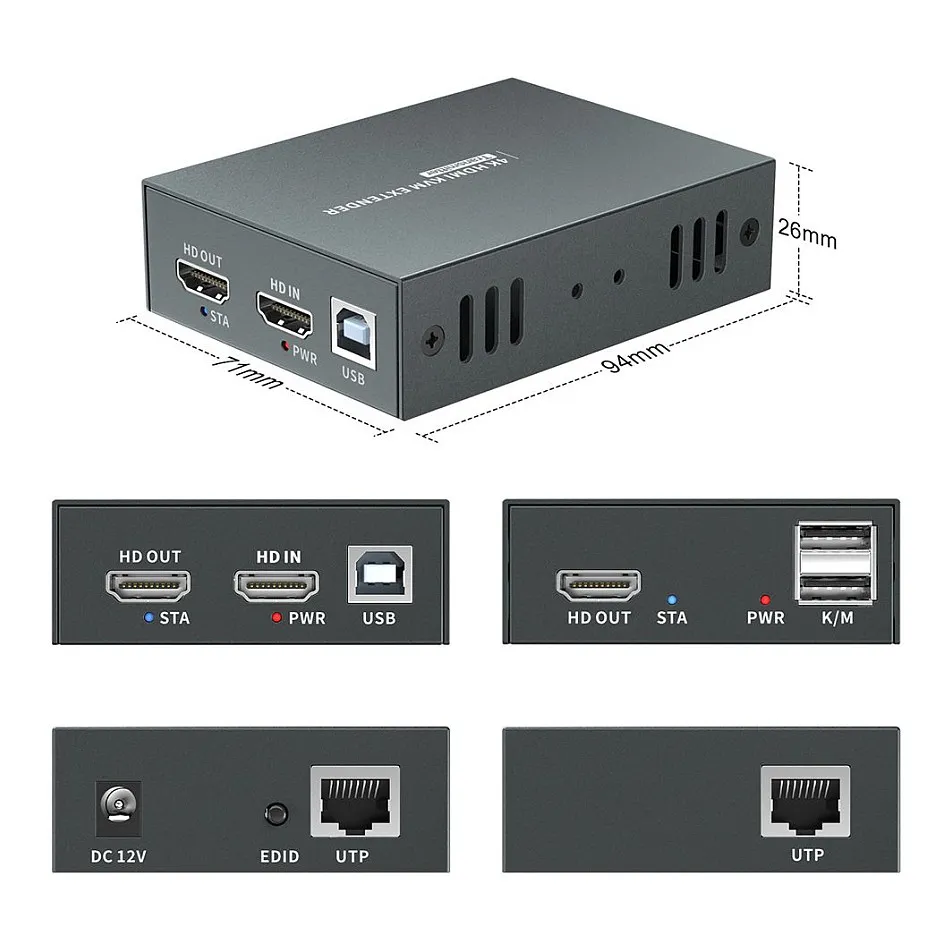

Receiver dimensions (WxDxH): 94 x 70 x 28 mm
Receiver weight: 500 g
Transmitter dimensions (WxDxH): 94 x 70 x 28 mm
Transmitter weight: 500 g
Packaging data
Quantity per pack: 2 pc(s)
Package type: Box
Packaging content

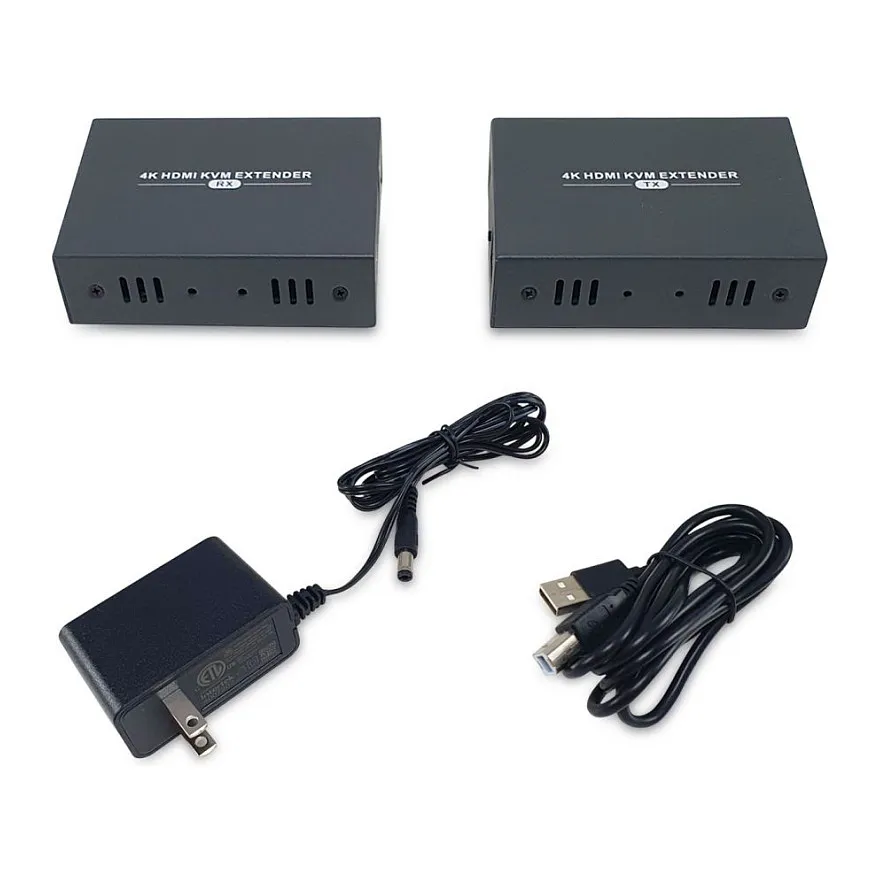

Feature: AC adapter included
Technical details
Compliance certificates: CE, Federal Communications Commission (FCC)
Type: AV transmitter & receiver
Maximum resolution: 3840 x 2160 pixels
Cable types supported: Cat6
Maximum transfer distance: 100 m
Maximum refresh rate: 60 Hz
Bandwidth: 18 Gbit/s
Bandwidth: 600 MHz
Feature: HDCP
HDCP version: 2.2
Product colour: Black
Ports & interfaces
Connectivity technology: Wired
RJ-45 input ports: 1
RJ-45 output ports: 1
HDMI in: 1
Number of HDMI outputs: 2
HDMI version: 2.0
USB ports quantity: 3
USB version: 1.1
USB connector type: USB Type-A, USB Type-B
Power
Power source type: DC
Operating voltage: 12 V
Input current: 1 A
Power consumption (max): 5.16 W
Operational conditions
Operating temperature (T-T): 0 – 45 °C
Operating relative humidity (H-H): 0 – 90%
Weight & dimensions
Receiver dimensions (WxDxH): 94 x 70 x 28 mm
Receiver weight: 500 g
Transmitter dimensions (WxDxH): 94 x 70 x 28 mm
Transmitter weight: 500 g
Packaging data
Quantity per pack: 2 pc(s)
Package type: Box
Packaging content
Feature: AC adapter included
Technical details
Compliance certificates: CE, Federal Communications Commission (FCC)
