LevelOne RJ45 to SFP Gigabit Media Converter, 802.3bt 60W PoE PSE. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE…, Ethernet interface type: Fast Ethernet, Gigabit Ethernet. Fiber mode structure: Multi-mode, Single-mode. LED indicators: LAN, PoE, Power, Product colour: Black. Fiber optic connector: SFP, Connectivity technology: Wired. Input voltage: 100 – 240 V, AC input frequency: 50 – 60 Hz, Input current: 1.8 A

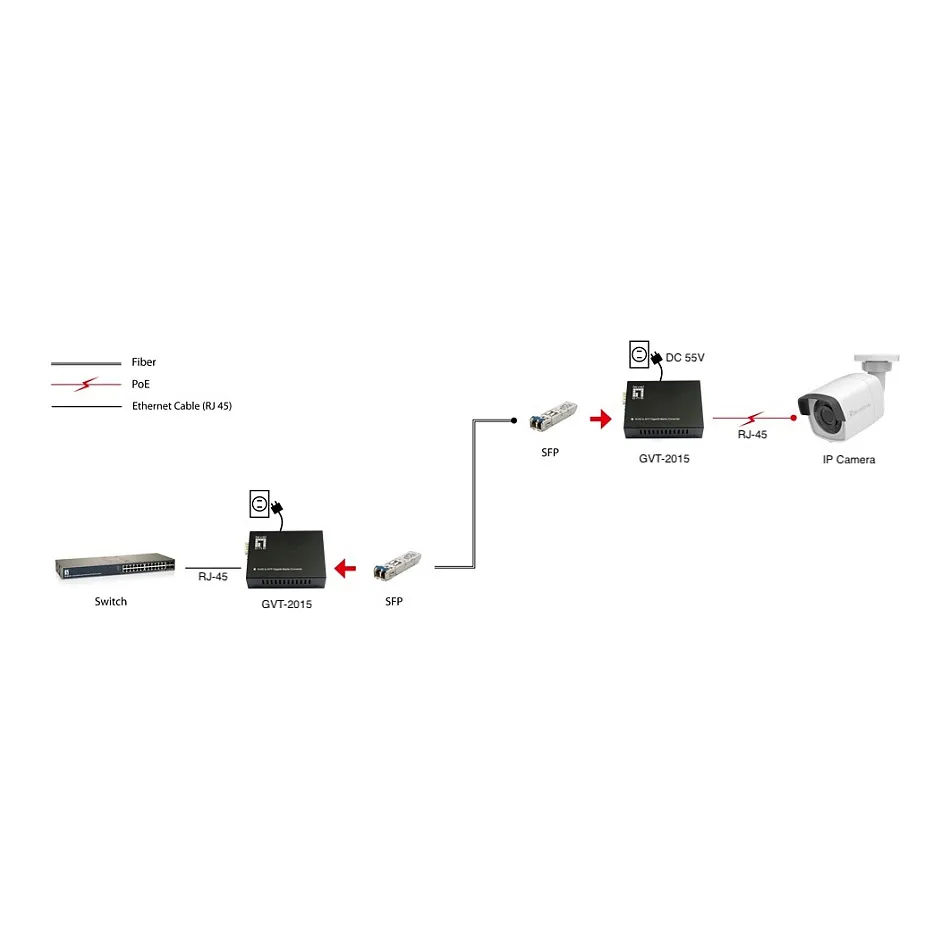

The LevelOne GVT-2015 is a Single-Port, End-Span IEEE 802.3bt High Power over Ethernet Media Converter with a total PoE budget of 60W. It is specifically designed to meet the growing power demands of network devices such as PTZ (Pan, Tilt & Zoom) network cameras, PTZ speed domes, color touchscreen VoIP telephones, multichannel (IEEE 802.11a/b/g/n/ac/ax) wireless LAN access points, and other network devices that require higher power to function normally. Equipped with an SFP port for Gigabit SFP transceivers, it can be used with both Multi Mode and Single Mode fibers, depending on the choice of transceiver. The GVT-2015 is the ideal solution for delivering data and power directly to network devices over the RJ45 interface, without the need for additional power outlets and electrical cabling, thanks to its high Power over Ethernet performance.
Network
Maximum data transfer rate: 1000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Copper ethernet cabling technology: 100BASE-TX, 1000BASE-T, 1000BASE-X
Feature: Jumbo frames support
Jumbo frames: 9000
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Performance
Fiber mode structure: Multi-mode, Single-mode
Features

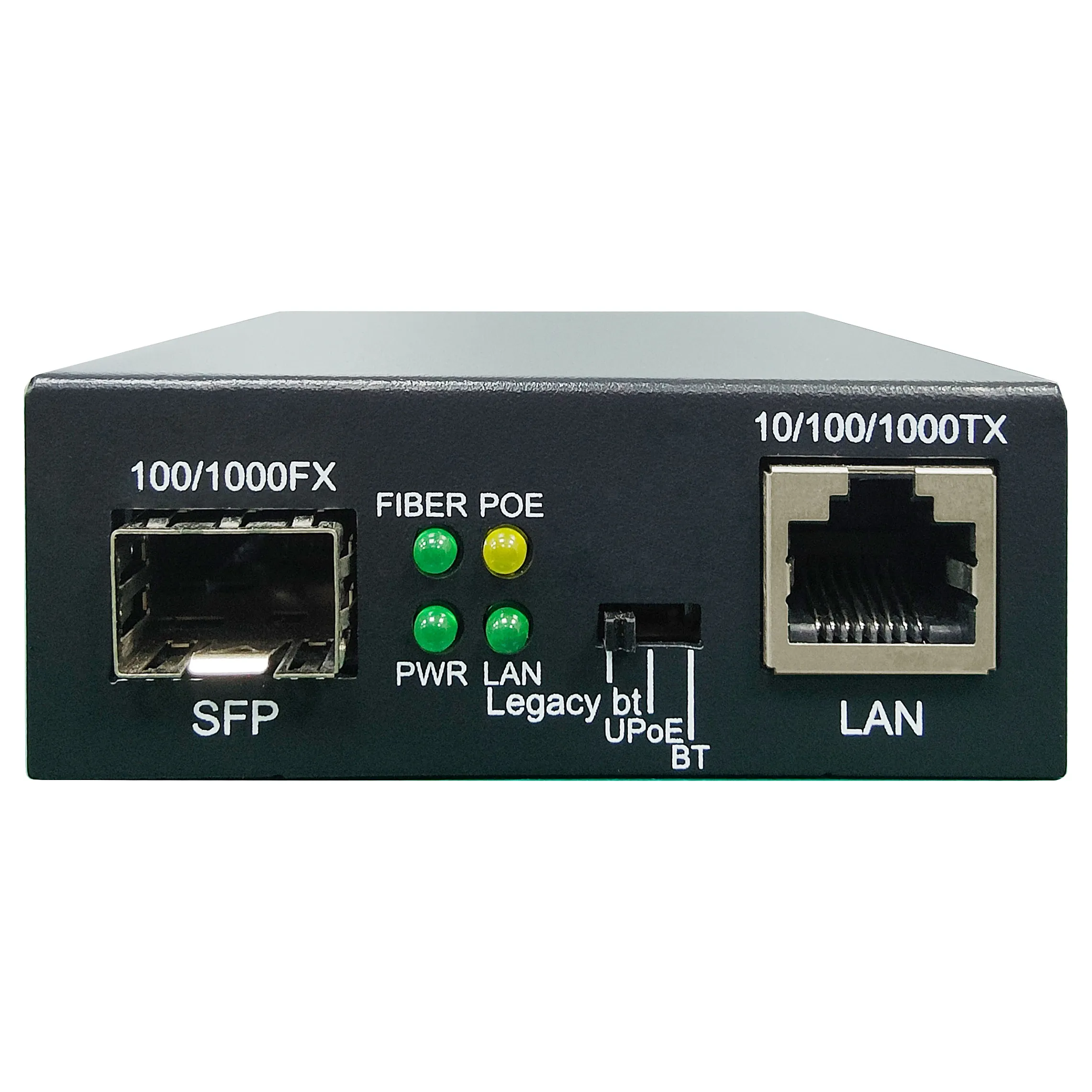

LED indicators: LAN, PoE, Power
Product colour: Black
Ports & interfaces
Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SFP
Power over Ethernet plus (PoE+) ports quantity: 1
Feature: DC-in jack
Power
Input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Input current: 1.8 A
Output voltage: 54.5 V
Output current: 1.32 A
Power consumption (typical): 0.97 W
Power consumption (max): 72.4 W
Feature: Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 60 W
Weight & dimensions
Width: 93.5 mm
Depth: 70 mm
Height: 26 mm
Weight: 320 g
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Storage temperature (T-T): -40 – 80 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 90%
Packaging content
Feature: AC adapter included
Feature: Quick installation guide
Packaging data
Package width: 240 mm
Package depth: 186 mm
Package height: 84 mm
Package weight: 715 g
Certificates
Compliance certificates: CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), RCM, RoHS, UKCA
Logistics data
Country of origin: China
Master (outer) cases per pallet (air): 32 pc(s)
Pallet gross length: 100 cm
Pallet gross width: 120 cm
Pallet height (air): 171 cm
Harmonized System (HS) code: 851762
Master (outer) case width: 450 mm
Master (outer) case length: 264 mm
Master (outer) case height: 390 mm
Master (outer) case gross weight: 8.24 kg
Products per master (outer) case: 10 pc(s)
Maximum data transfer rate: 1000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Copper ethernet cabling technology: 100BASE-TX, 1000BASE-T, 1000BASE-X
Feature: Jumbo frames support
Jumbo frames: 9000
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Performance
Fiber mode structure: Multi-mode, Single-mode
Features
LED indicators: LAN, PoE, Power
Product colour: Black
Ports & interfaces
Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SFP
Power over Ethernet plus (PoE+) ports quantity: 1
Feature: DC-in jack
Power
Input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Input current: 1.8 A
Output voltage: 54.5 V
Output current: 1.32 A
Power consumption (typical): 0.97 W
Power consumption (max): 72.4 W
Feature: Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 60 W
Weight & dimensions
Width: 93.5 mm
Depth: 70 mm
Height: 26 mm
Weight: 320 g
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Storage temperature (T-T): -40 – 80 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 90%
Packaging content
Feature: AC adapter included
Feature: Quick installation guide
Packaging data
Package width: 240 mm
Package depth: 186 mm
Package height: 84 mm
Package weight: 715 g
Certificates
Compliance certificates: CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), RCM, RoHS, UKCA
Logistics data
Country of origin: China
Master (outer) cases per pallet (air): 32 pc(s)
Pallet gross length: 100 cm
Pallet gross width: 120 cm
Pallet height (air): 171 cm
Harmonized System (HS) code: 851762
Master (outer) case width: 450 mm
Master (outer) case length: 264 mm
Master (outer) case height: 390 mm
Master (outer) case gross weight: 8.24 kg
Products per master (outer) case: 10 pc(s)
