LevelOne RJ45 to SC Gigabit Media Converter, PoE PSE, Single-Mode Fiber, 20km. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, Ethernet LAN data rates: 10,100,1000 Mbit/s. Maximum transfer distance: 20000 m, Wavelength: 1310 nm, Fiber mode structure: Single-mode. LED indicators: Activity, Link, Power, Product colour: Grey. Fiber optic connector: SC, Connectivity technology: Wired. Input voltage: 100 – 240 V, AC input frequency: 50 – 60 Hz, Input current: 1.6 A

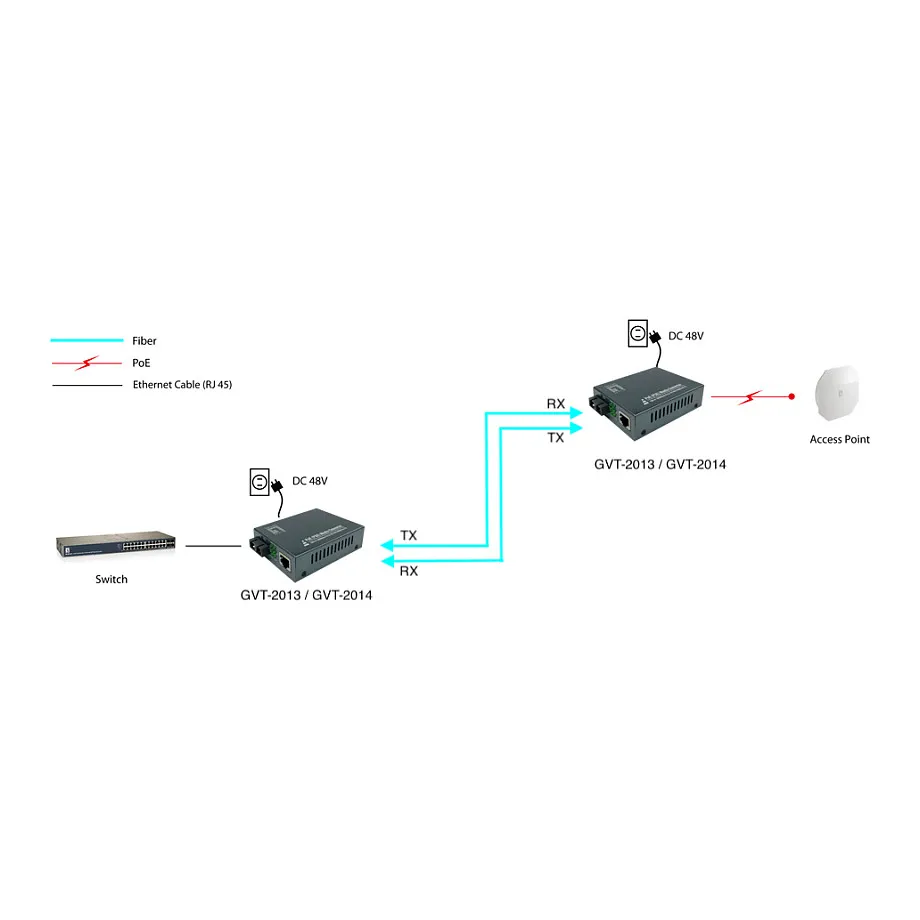

The GVT-2014 is a Single-Port, End-Span IEEE 802.3at High Power over Ethernet converter designed specifically to satisfy the growing demand for higher power required network equipment such as PTZ (Pan, Tilt & Zoom) network cameras, PTZ speed dome, color touch-screen VoIP telephones, multi-channel (IEEE 802.11a / b / g / n) wireless LAN access points and other network devices that need higher power to function normally. The GVT-2014 is High Power over Ethernet converter series is an ideal solution to delivering data and power to network devices directly via the RJ45 Port interface without the need for installing extra power outlets and electrical cabling.
Network
Maximum data transfer rate: 1000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet LAN data rates: 10,100,1000 Mbit/s
Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T
Feature: Jumbo frames support
Jumbo frames: 9000
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Feature: Store-and-forward
Duplex system: Full, Half
Performance
Maximum transfer distance: 20000 m
Wavelength: 1310 nm
Fiber mode structure: Single-mode
Features

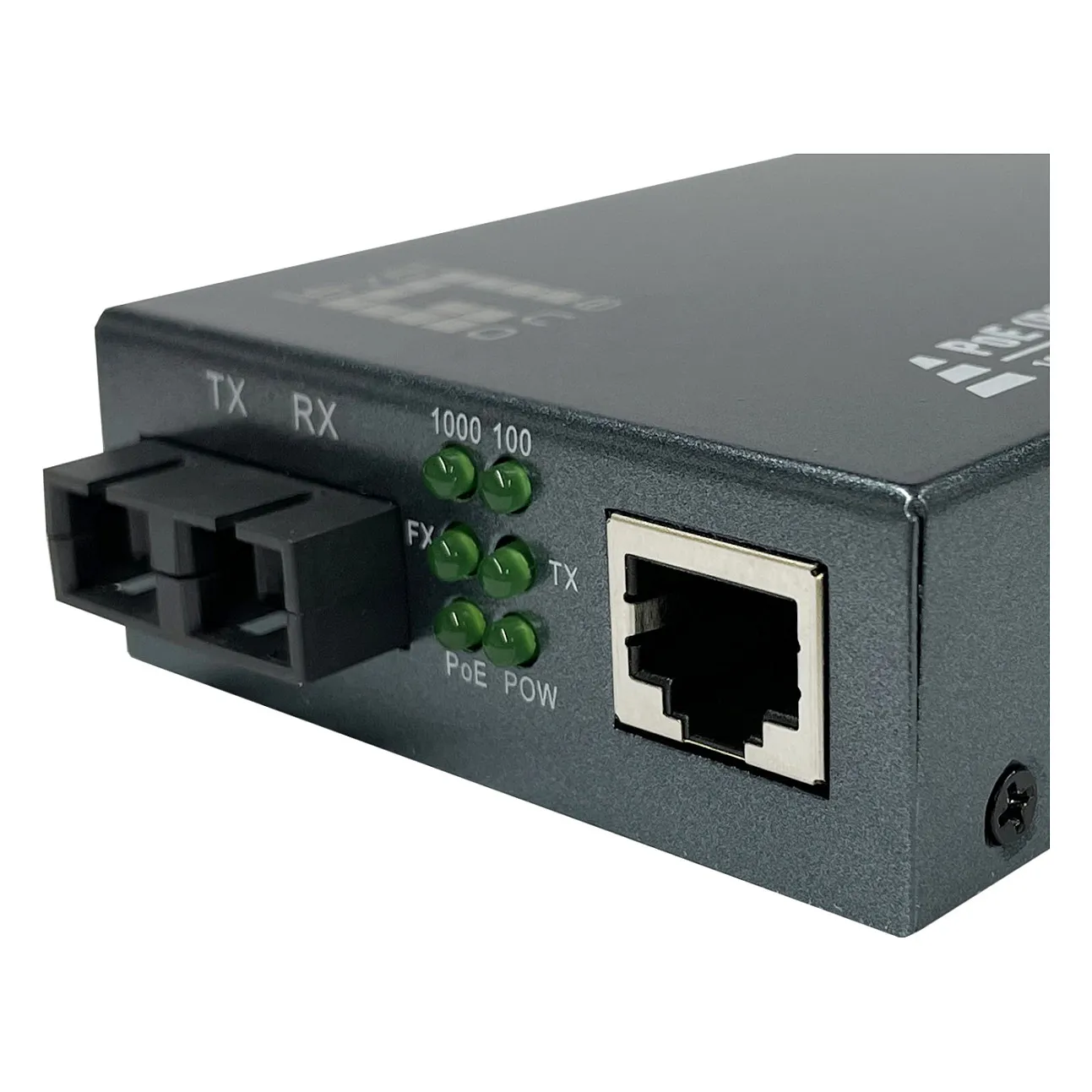

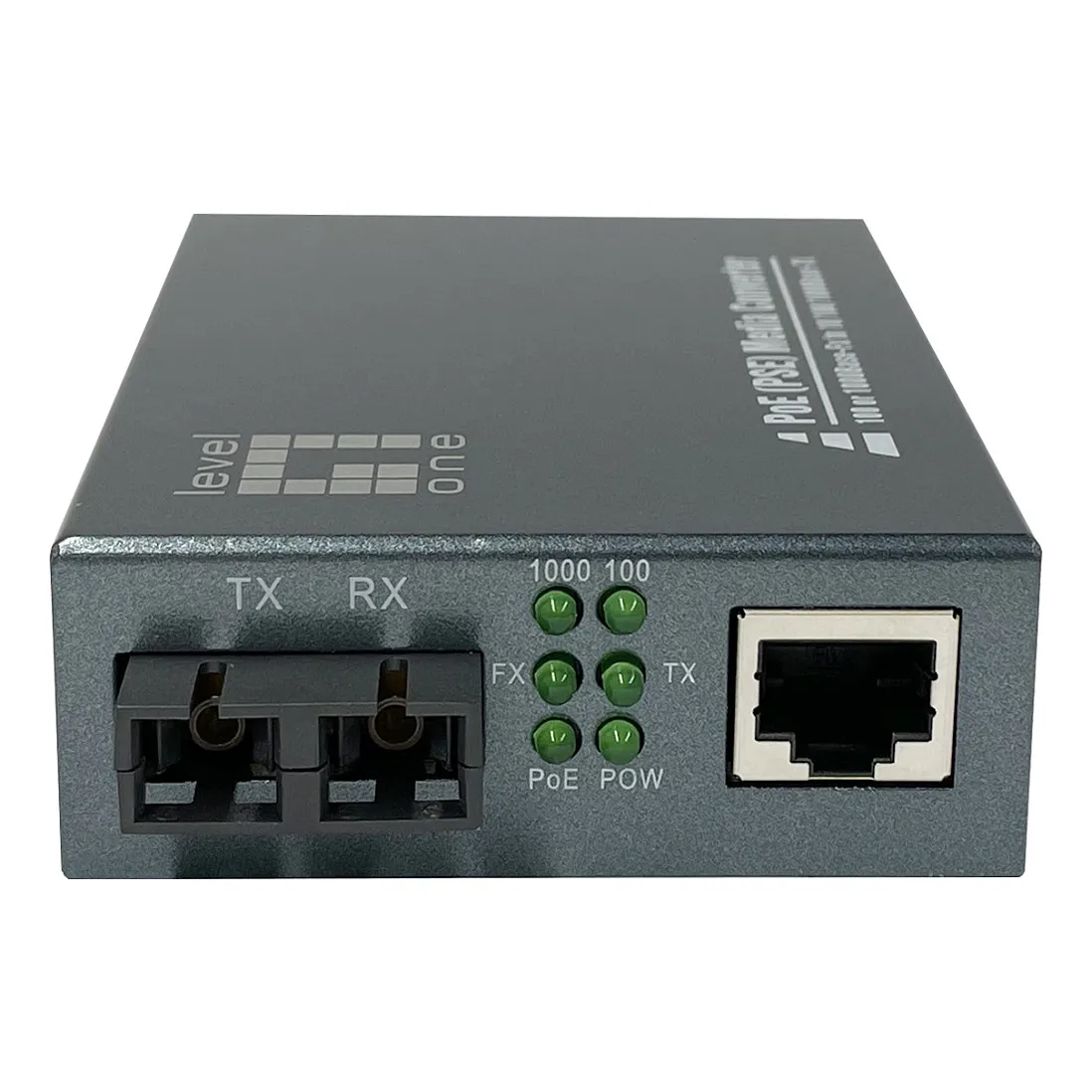

LED indicators: Activity, Link, Power
Product colour: Grey
Ports & interfaces
Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SC
Power
Input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Input current: 1.6 A
Output voltage: 48 V
Output current: 2 A
Power consumption (max): 40 W
Feature: Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 30 W
Feature: External power adapter
Weight & dimensions
Width: 70 mm
Depth: 94 mm
Height: 26 mm
Weight: 200 g
Operational conditions
Operating temperature (T-T): 10 – 60 °C
Operating relative humidity (H-H): 5 – 90%
Packaging content
Feature: AC adapter included
Feature: User guide
Packaging data
Package width: 230 mm
Package depth: 150 mm
Package height: 60 mm
Package weight: 650 g
Logistics data
Country of origin: China
Master (outer) cases per pallet (air): 23 pc(s)
Pallet gross length: 80 cm
Pallet gross width: 120 cm
Pallet height (air): 176.9 cm
Master (outer) case width: 480 mm
Master (outer) case length: 305 mm
Master (outer) case height: 325 mm
Master (outer) case gross weight: 13.8 kg
Products per master (outer) case: 20 pc(s)
Maximum data transfer rate: 1000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet LAN data rates: 10,100,1000 Mbit/s
Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T
Feature: Jumbo frames support
Jumbo frames: 9000
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Feature: Store-and-forward
Duplex system: Full, Half
Performance
Maximum transfer distance: 20000 m
Wavelength: 1310 nm
Fiber mode structure: Single-mode
Features
LED indicators: Activity, Link, Power
Product colour: Grey
Ports & interfaces
Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SC
Power
Input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Input current: 1.6 A
Output voltage: 48 V
Output current: 2 A
Power consumption (max): 40 W
Feature: Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 30 W
Feature: External power adapter
Weight & dimensions
Width: 70 mm
Depth: 94 mm
Height: 26 mm
Weight: 200 g
Operational conditions
Operating temperature (T-T): 10 – 60 °C
Operating relative humidity (H-H): 5 – 90%
Packaging content
Feature: AC adapter included
Feature: User guide
Packaging data
Package width: 230 mm
Package depth: 150 mm
Package height: 60 mm
Package weight: 650 g
Logistics data
Country of origin: China
Master (outer) cases per pallet (air): 23 pc(s)
Pallet gross length: 80 cm
Pallet gross width: 120 cm
Pallet height (air): 176.9 cm
Master (outer) case width: 480 mm
Master (outer) case length: 305 mm
Master (outer) case height: 325 mm
Master (outer) case gross weight: 13.8 kg
Products per master (outer) case: 20 pc(s)
