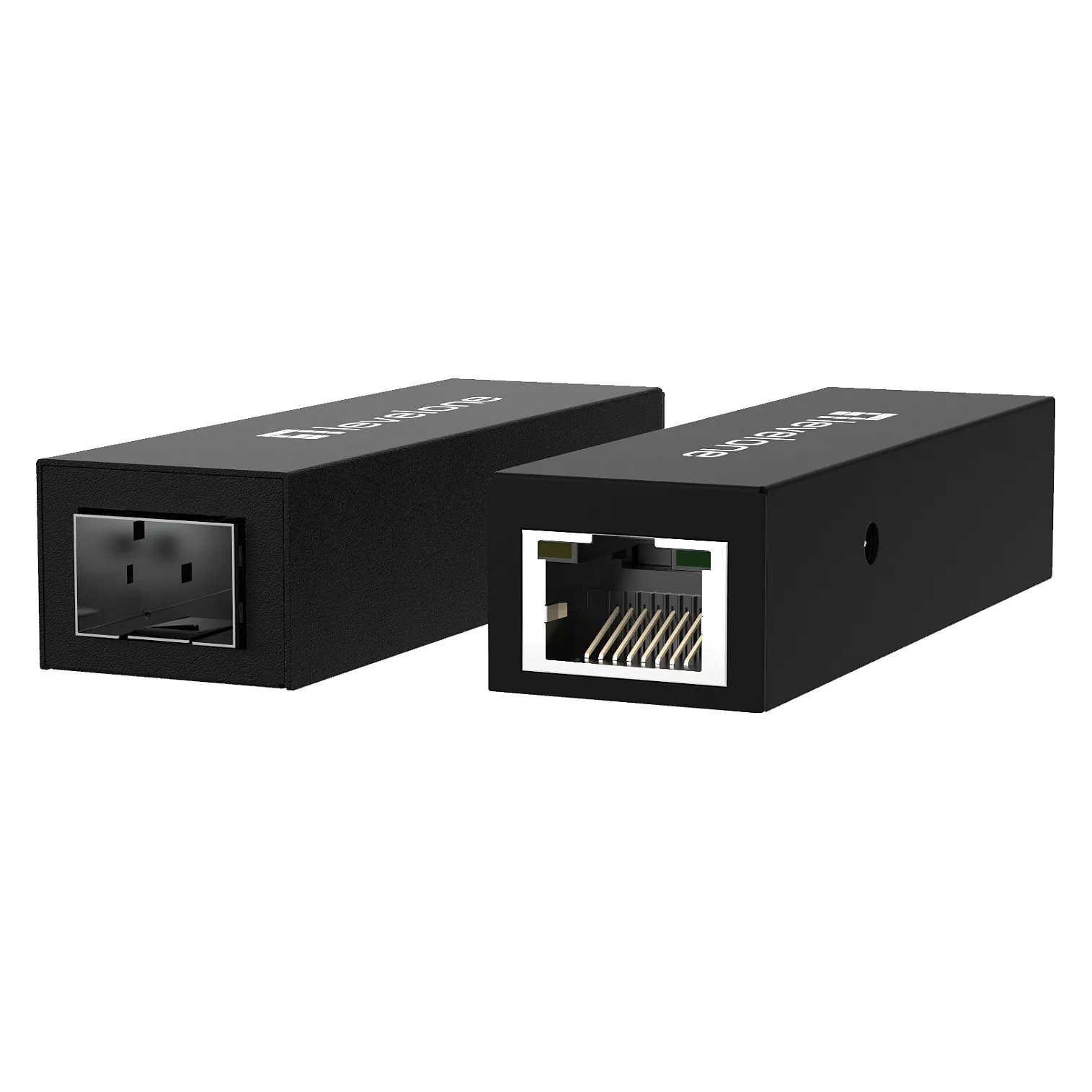

LevelOne Ultra-Slim RJ45 to SFP Gigabit Media Converter. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3z, Ethernet LAN data rates: 1000 Mbit/s. Mean time between failures (MTBF): 100000 h. LED indicators: Activity, Link, Product colour: Yellow. Fiber optic connector: SFP, Connectivity technology: Wired. Input voltage: 5 V, Input current: 1 A, Power consumption (typical): 1.2 W

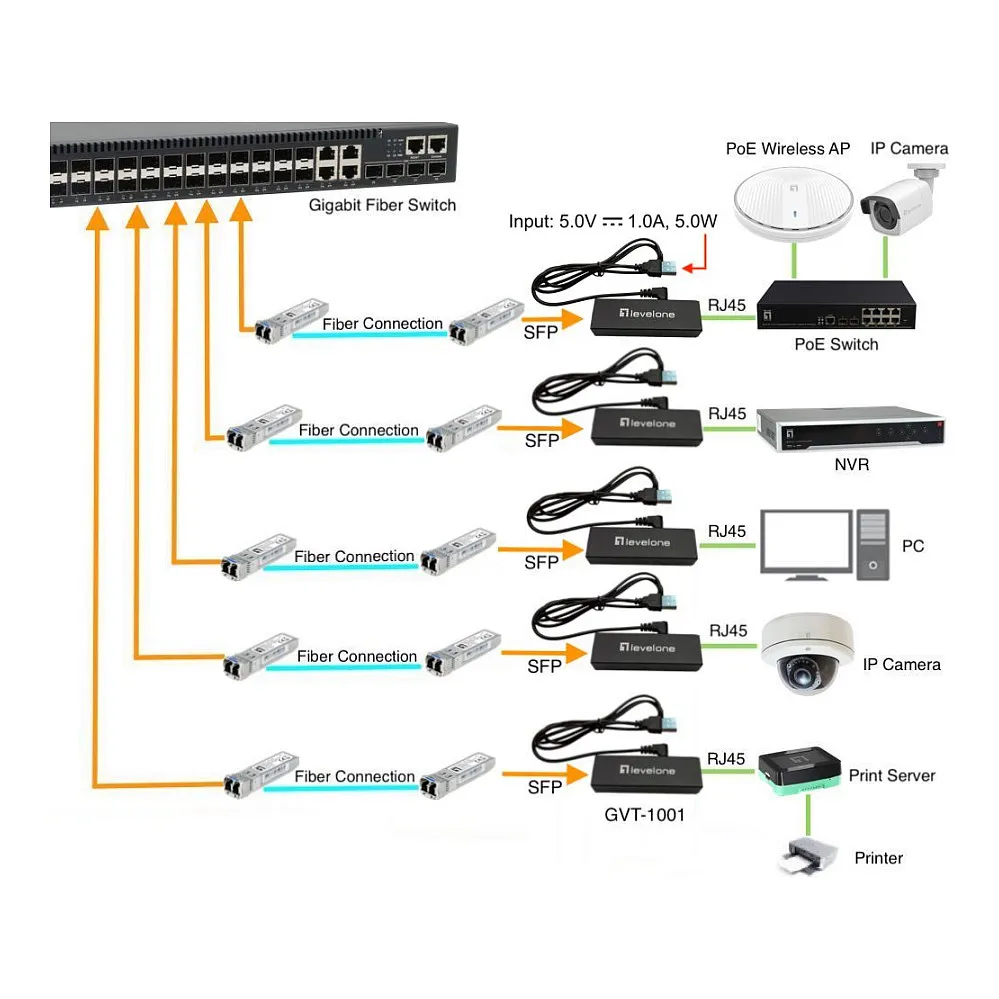

This Ultra-Slim RJ45 to SFP gigabit media converter can be USB powered by USB 1.0 or 2.0 port, which is ideal for connections to fiber in areas where a spare power outlet may not be available. When plugged into a computer’s USB port, the media converter shuts down automatically when you turn off the computer, which saves energy. So this ultra-slim media converter is an ideal solution for fiber-to-the-laptop where it needs Gigabit connectivity but local power isn’t available. For applications not utilizing USB power, this converter is also available with a USB power adapter, providing compatibility with electrical outlet types. This media converter supports Jumbo frame 10 Kbytes and watchdog function, it can automatically reboot if frozen.
Maximum data transfer rate: 1000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3z
Ethernet LAN data rates: 1000 Mbit/s
Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T
Feature: Jumbo frames support
Jumbo frames: 10000
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Performance
Mean time between failures (MTBF): 100000 h
Features
Feature: Plug and Play
LED indicators: Activity, Link
Product colour: Yellow
Ports & interfaces
Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SFP
Power
Input voltage: 5 V
Input current: 1 A
Power consumption (typical): 1.2 W
Sustainability
Feature: Sustainability compliance
Weight & dimensions
Width: 23.3 mm
Depth: 79 mm
Height: 18.5 mm
Weight: 56 g
Operational conditions
Operating temperature (T-T): -20 – 70 °C
Operating relative humidity (H-H): 5 – 95%
Packaging content
Feature: AC adapter included
Feature: Quick installation guide
Packaging data
Package width: 135 mm
Package depth: 105 mm
Package height: 45 mm
Package weight: 160 g
Package type: Box
Certificates
Compliance certificates: CE, UKCA, WEEE
Logistics data
Country of origin: China
Master (outer) cases per pallet (air): 15 pc(s)
Pallet gross length: 80 cm
Pallet gross width: 120 cm
Pallet height (air): 154.4 cm
Harmonized System (HS) code: 85176990
Master (outer) case width: 475 mm
Master (outer) case length: 560 mm
Master (outer) case height: 275 mm
Master (outer) case gross weight: 17 kg
Products per master (outer) case: 100 pc(s)
