LevelOne 1.25Gbps Single-mode SFP Transceiver, 10km, 1310nm. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Compatible products: GSW-2453 GVT-4000. Input voltage: 3.5 V, Maximum voltage: 6 V, Maximum current: 0.3 A. Certification: Class 1 Laser: EN60825-1 FDA 21: 1040.10, 1040.11. Width: 13.5 mm, Depth: 55.5 mm, Height: 8.5 mm

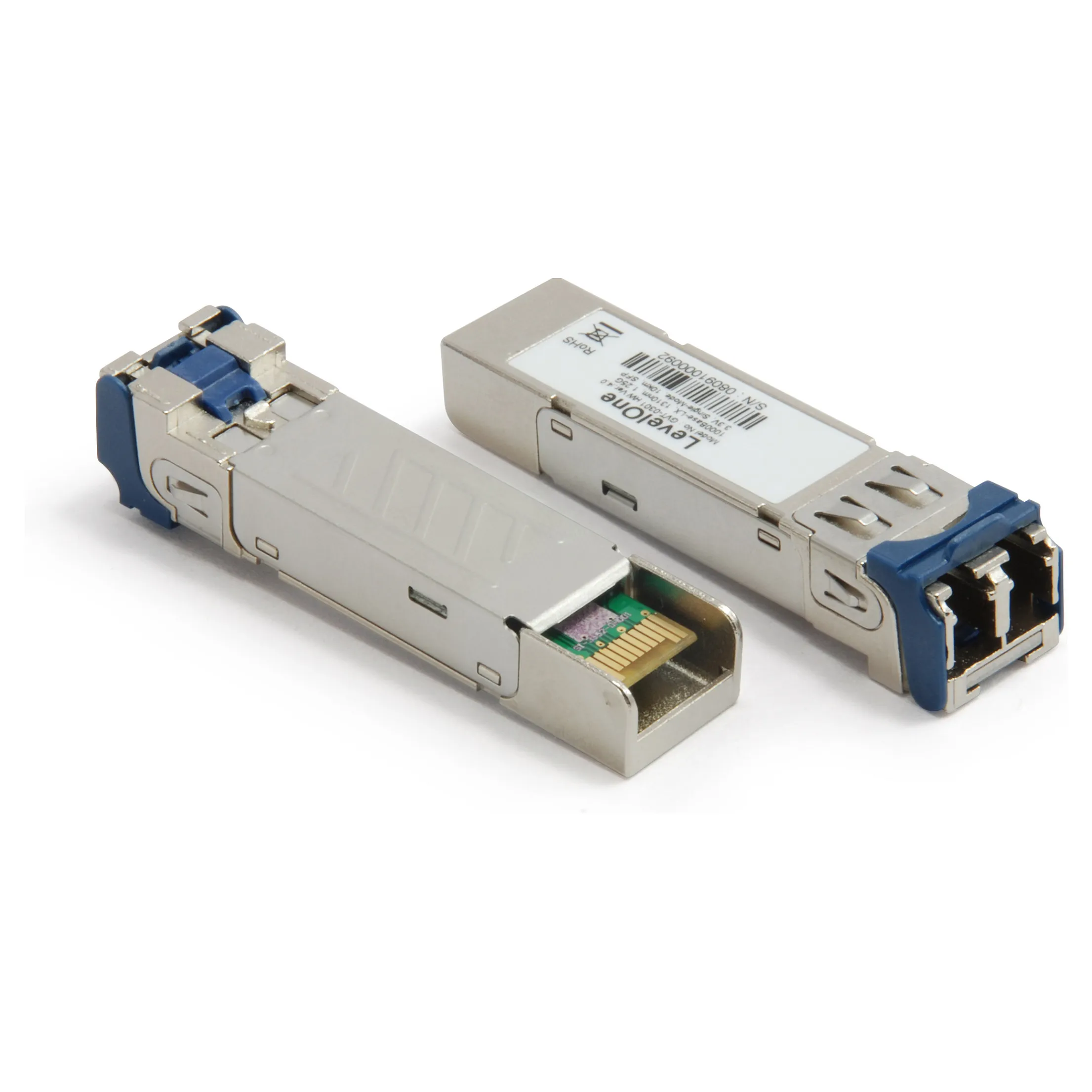

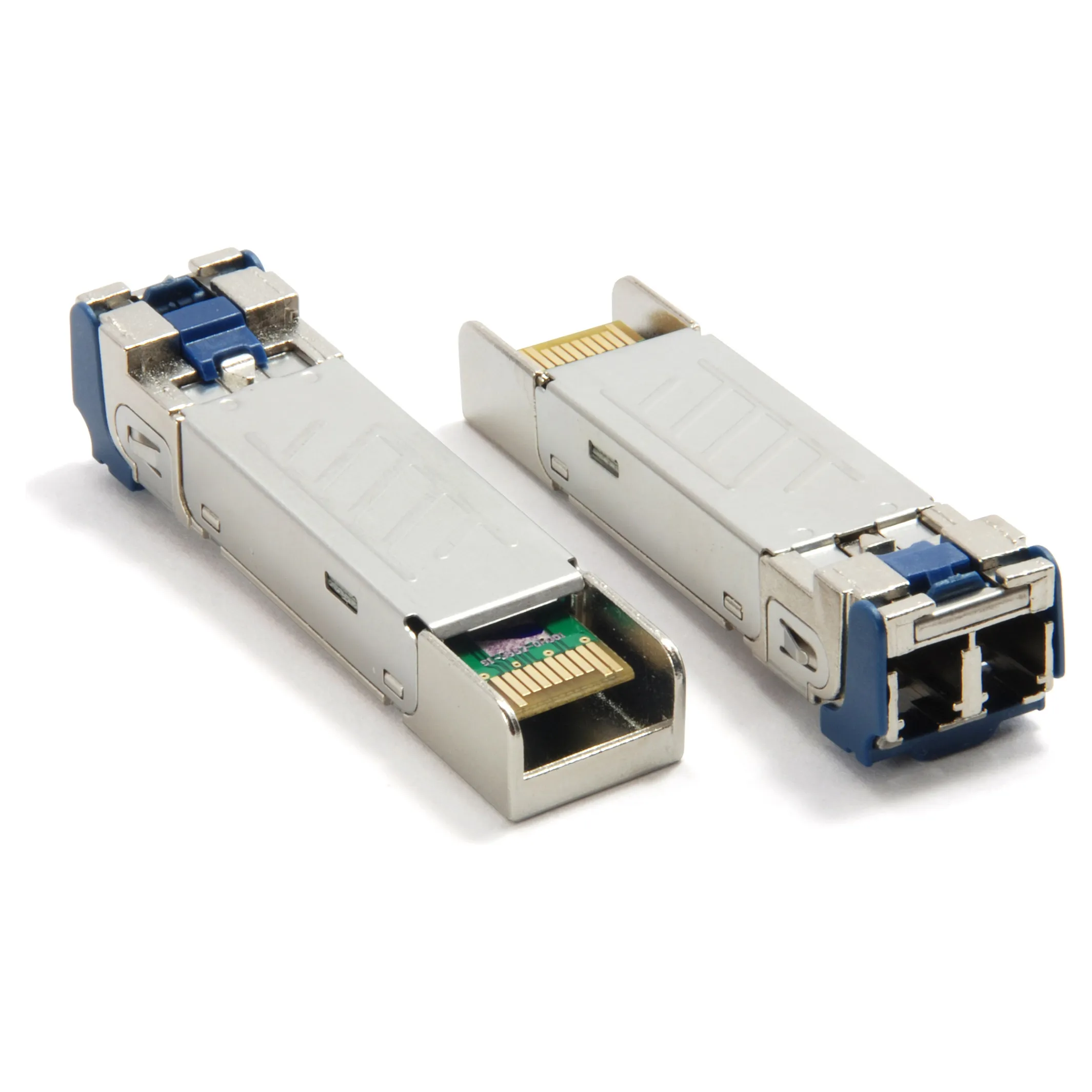

The LevelOne GVT-0301 SFP (Small form-factor pluggable) Transceiver provide flexibility for utilizing fiber Gigabit network connections in both data and telecommunication applications.
Support for Mini GBIC Connectivity
GVT-0301 SFP Transceiver Series transceivers support LX standard optic with single-mode mini GBIC connectors. They provide signal amplification to transfer and receive data between two ends of mini GBIC ports.
Multi-Purpose Usage
GVT-0301 SFP transceivers can be used for distributed multi-processing, switch-to-switch interfaces, high-speed I/O file transfer, bus extension applications, and for a channel extender or data storage applications.
The LevelOne GVT-0301 can be used in any LevelOne switch or modules that support SFP modules.
– Add a 1000Base-LX connection to LevelOne switchs with mini GBIC/SFP ports
– Connect switches up to 10km away with each other
– TTL signal detect indicator
– Compliant with IEEE802.3z Gigabit Ethernet
– Easy to install and hot-swappable
– Differential LVPECL input and output
– Single 3.3V power supply
– Duplex LC connector
SFP transceiver type: Fiber optic
Maximum data transfer rate: 1250 Mbit/s
Interface type: SFP
Feature: Single-mode fiber (SMF) supported
Fiber optic connector: LC
Fiber cable diameters supported (core/cladding): 9/125 µm
SFP transceiver standard: LX
Maximum transfer distance: 10000 m
Wavelength: 1310 nm
Tx power (min): -9.5 dBmW
Tx power (max): -3 dBmW
Link budget: 10.5 dB
Networking standards: IEEE 802.3z
Features
Feature: Hot-Plug support
Compatible products: GSW-2453GVT-4000
Power
Input voltage: 3.5 V
Maximum voltage: 6 V
Maximum current: 0.3 A
Certificates
Certification: Class 1 Laser: EN60825-1FDA 21: 1040.10, 1040.11
Operational conditions
Operating temperature (T-T): 0 – 70 °C
Operating relative humidity (H-H): 5 – 90%
Weight & dimensions
Width: 13.5 mm
Depth: 55.5 mm
Height: 8.5 mm
Packaging content
Quantity per pack: 1 pc(s)
Packaging data
Package width: 70 mm
Package depth: 50 mm
Package height: 130 mm
Package weight: 70 g
Logistics data
Harmonized System (HS) code: 85369010
Country of origin: Taiwan
