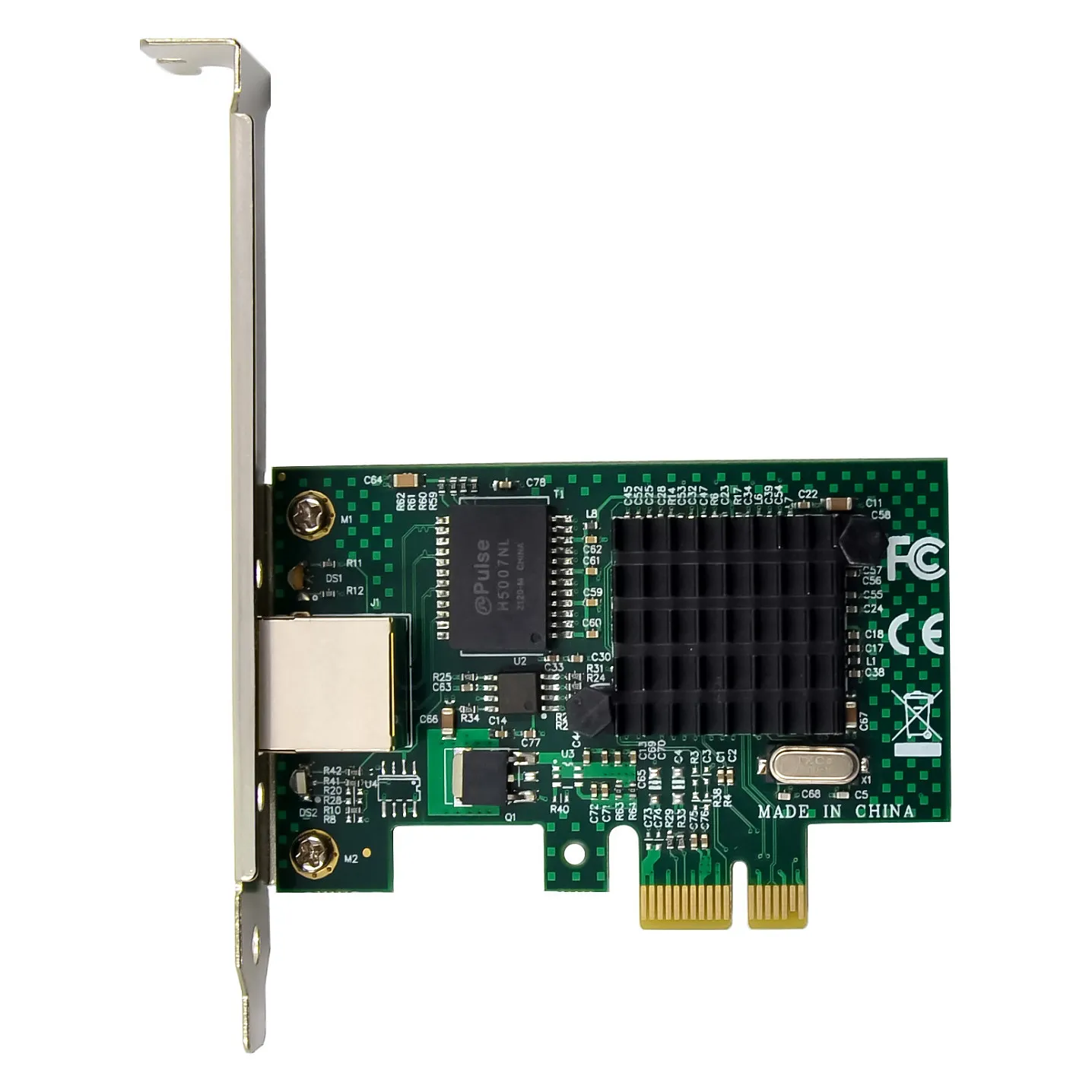

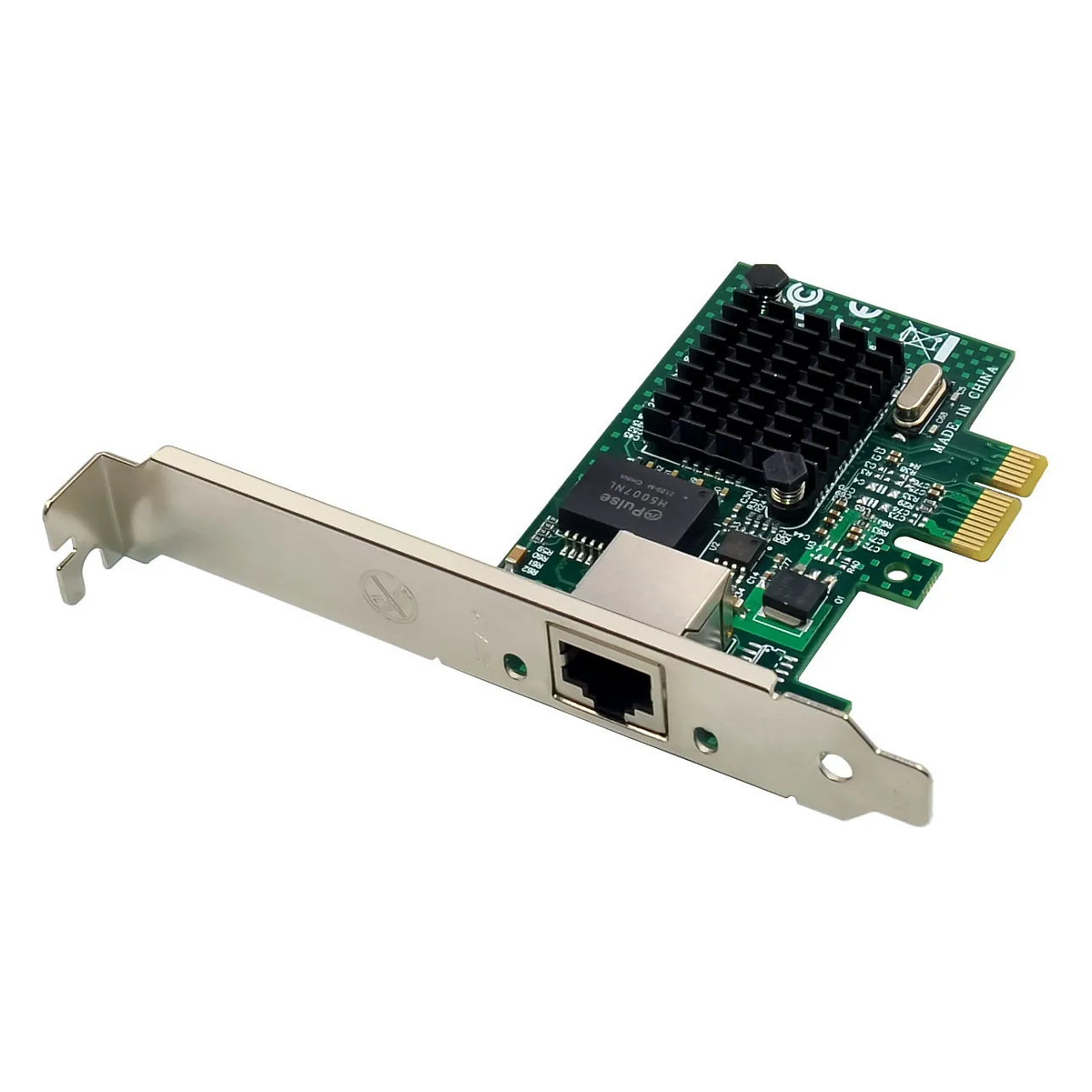

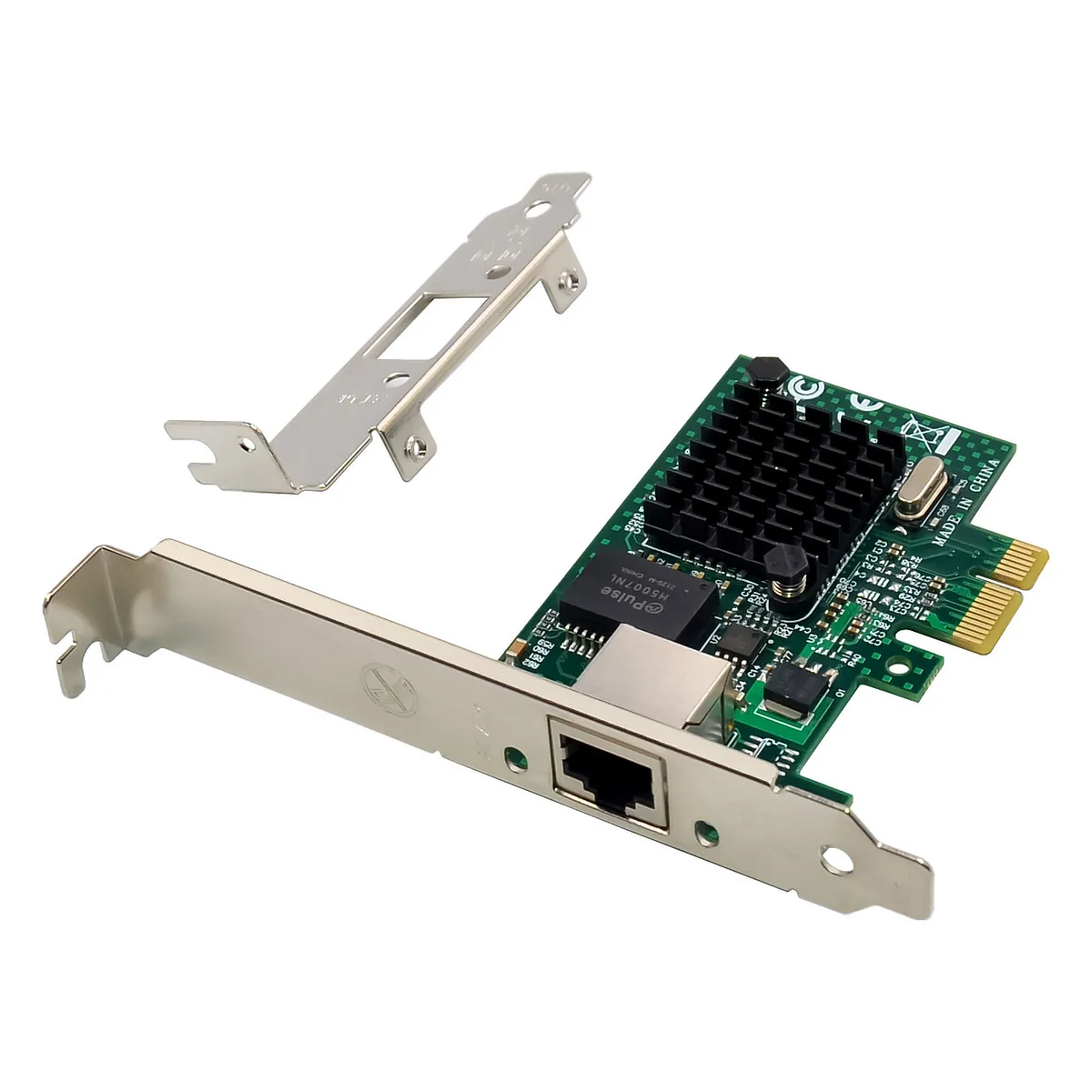

LevelOne Gigabit PCIe Network Card, Low Profile Bracket included, Low Profile Bracket. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 1000 Mbit/s. Product colour: Black, Green, Silver
The LevelOne GNC-0112 Gigabit network card facilitates high-speed connectivity within network, with PCI Express (v1.1 compliant) supporting speeds of up to 2.5 Gbps. Wake-on-LAN functionality allows remote start-up. GNC-0112 Supports IEEE 802.1P Layer 2 Priority Queuing for improving traffic flow. IEEE 802.1Q VLAN allows network segmentation, further enhancing performance and security.
Ports & interfaces
Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1
Network
Maximum data transfer rate: 1000 Mbit/s
Networking standards: IEEE 802.1ab, IEEE 802.3, IEEE 802.3u
Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Wake-on-LAN ready
Design
Component for: PC
Product colour: Black, Green, Silver
Feature: Internal
Chipset: Broadcom BCM5751
LED indicators: Activity, Link
Certification: CERoHS
System requirements
Windows operating systems supported: Windows 10, Windows 7, Windows XP
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2003
Operational conditions
Operating temperature (T-T): 0 – 45 °C
Operating relative humidity (H-H): 5 – 95%
Weight & dimensions
Width: 82 mm
Depth: 56 mm
Height: 20 mm
Weight: 45.6 g
Packaging content
Feature: Mounting brackets included
Feature: Resource CD
Feature: Quick installation guide
Logistics data
Harmonized System (HS) code: 85176990
Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1
Network
Maximum data transfer rate: 1000 Mbit/s
Networking standards: IEEE 802.1ab, IEEE 802.3, IEEE 802.3u
Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Wake-on-LAN ready
Design
Component for: PC
Product colour: Black, Green, Silver
Feature: Internal
Chipset: Broadcom BCM5751
LED indicators: Activity, Link
Certification: CERoHS
System requirements
Windows operating systems supported: Windows 10, Windows 7, Windows XP
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2003
Operational conditions
Operating temperature (T-T): 0 – 45 °C
Operating relative humidity (H-H): 5 – 95%
Weight & dimensions
Width: 82 mm
Depth: 56 mm
Height: 20 mm
Weight: 45.6 g
Packaging content
Feature: Mounting brackets included
Feature: Resource CD
Feature: Quick installation guide
Logistics data
Harmonized System (HS) code: 85176990
