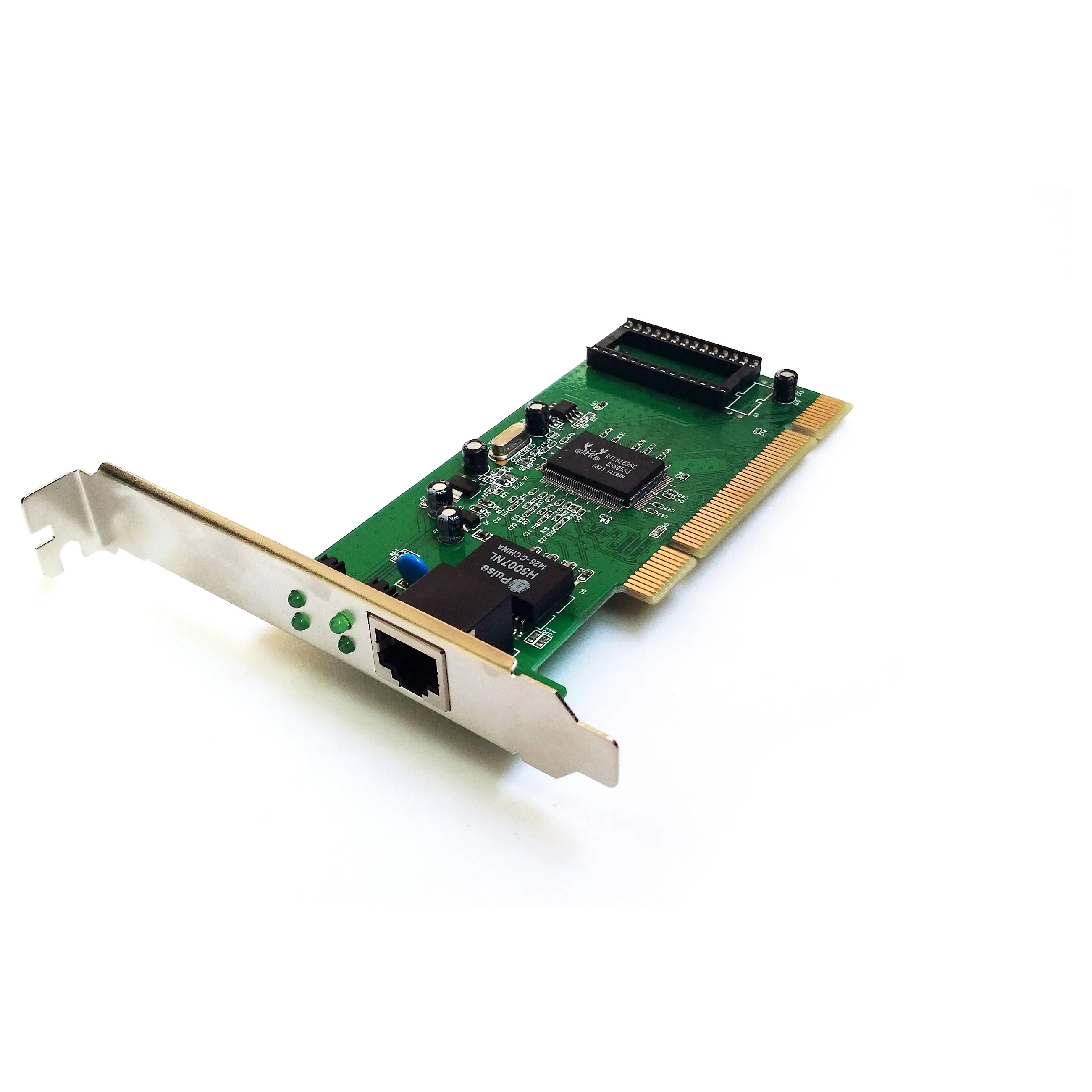

LevelOne Gigabit PCI Network Card. Internal. Connectivity technology: Wired, Host interface: PCI, Interface: Ethernet. Maximum data transfer rate: 2000 Mbit/s. Product colour: Aluminium
The LevelOne GNC-0105 Gigabit network card facilitates high-speed connectivity within network. Wake-on-LAN functionality allows remote start-up and shutdown, The network card offers supports 32 bit PCI 1.0 and PCI 2.2 bus, while offering remote management and support for most Network Operating Systems.
– Built-in Wake-on-LAN feature to startup/shutdown computers remotely
– IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
– IEEE 802.1Q VLAN allows network segmentation to enhance performance and security
– Supports IEEE 802.1P Layer 2 Priority Queuing for improving traffic flow
– Supports most network operating systems (NOS)
Ports & interfaces
Connectivity technology: Wired
Host interface: PCI
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1
Network
Maximum data transfer rate: 2000 Mbit/s
Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000BaseT(X)
Feature: Wake-on-LAN ready
Feature: Full duplex
Design
Product colour: Aluminium
Feature: Internal
LED indicators: Activity, LAN, Link
Country of origin: China
Certification: FCC Class, CE
System requirements
Server operating systems supported: Windows Server 2003, Windows Server 2008, Windows Server 2008 R2
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Operating relative humidity (H-H): 5 – 90%
Weight & dimensions
Width: 115 mm
Depth: 140 mm
Height: 17 mm
Weight: 60 g
Packaging data
Quantity per pack: 1 pc(s)
Package width: 145 mm
Package depth: 220 mm
Package height: 30 mm
Package weight: 62 g
Packaging content
Feature: Manual
Technical details
Compliance certificates: RoHS
Logistics data
Harmonized System (HS) code: 85176990
Other features
Feature: Quick start guide
Connectivity technology: Wired
Host interface: PCI
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1
Network
Maximum data transfer rate: 2000 Mbit/s
Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000BaseT(X)
Feature: Wake-on-LAN ready
Feature: Full duplex
Design
Product colour: Aluminium
Feature: Internal
LED indicators: Activity, LAN, Link
Country of origin: China
Certification: FCC Class, CE
System requirements
Server operating systems supported: Windows Server 2003, Windows Server 2008, Windows Server 2008 R2
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Operating relative humidity (H-H): 5 – 90%
Weight & dimensions
Width: 115 mm
Depth: 140 mm
Height: 17 mm
Weight: 60 g
Packaging data
Quantity per pack: 1 pc(s)
Package width: 145 mm
Package depth: 220 mm
Package height: 30 mm
Package weight: 62 g
Packaging content
Feature: Manual
Technical details
Compliance certificates: RoHS
Logistics data
Harmonized System (HS) code: 85176990
Other features
Feature: Quick start guide
