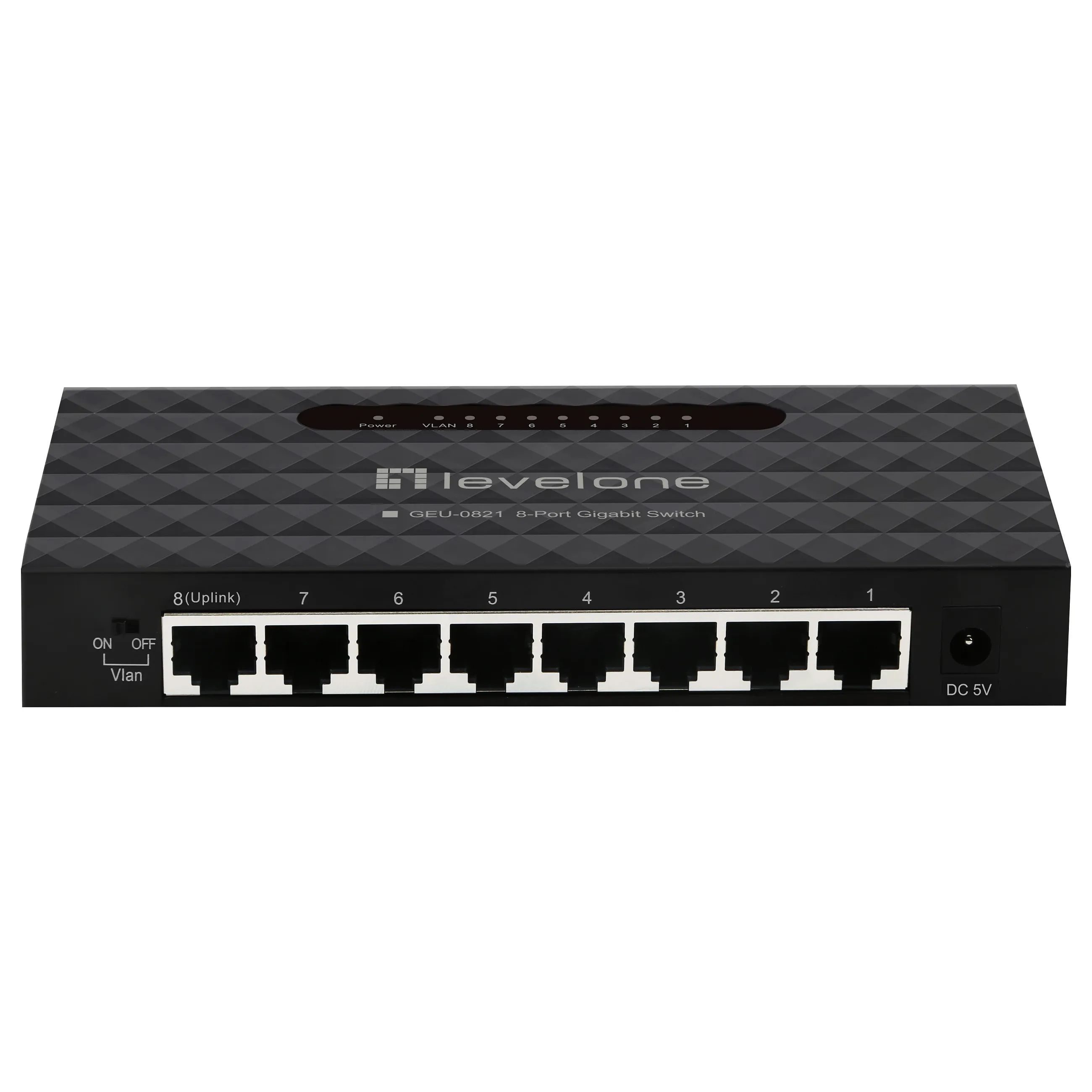

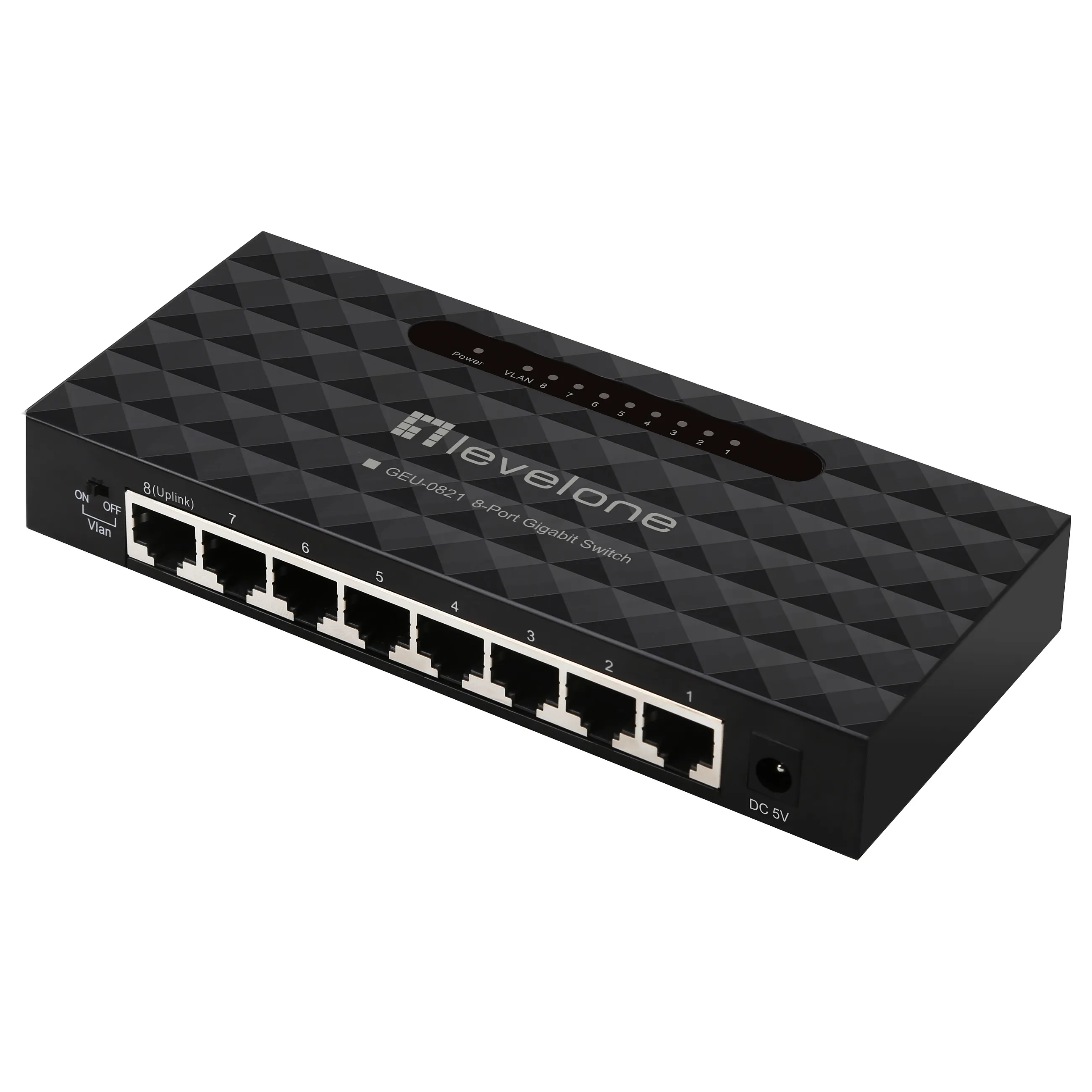

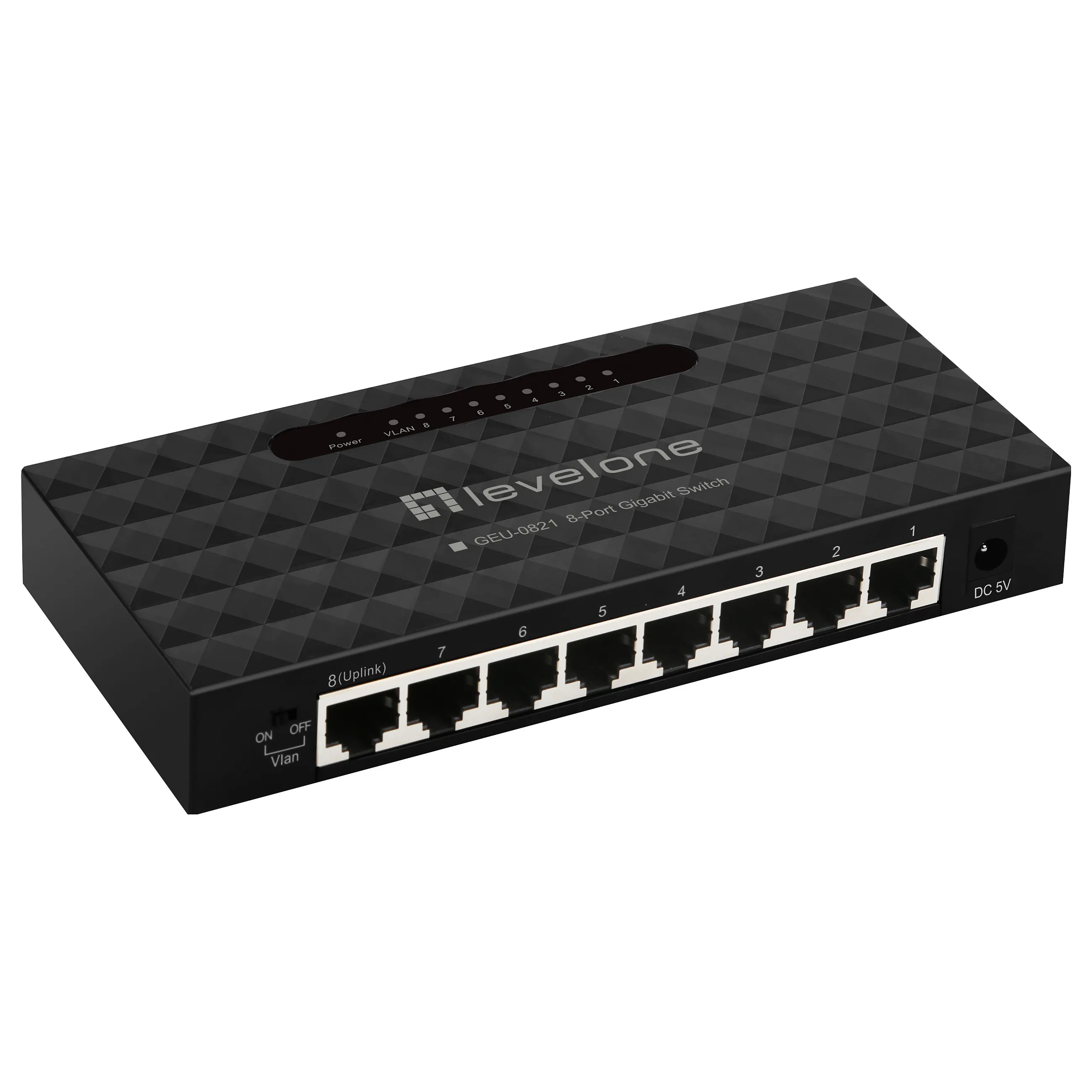

LevelOne GEU-0821. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries. DC input voltage: 5 V. Wall mountable
Power Saving Features
The GEU-0821 supports IEEE 802.3az Energy Efficient Ethernet to provide power-saving benefits without compromising performance. One way is to automatically detecting the length of connected cables and to adjust power usage by saving energy on shorter cable connections.
Compact and Stylish Design
The stylish, compact wall-mountable housing of GEU-0821 fits any working environment. It comes with 8 x 10/100/1000Mbps ports to meet SOHO and home network expansion needs.
Easy to Use
The GEU-0821 features plug-and-play for easy installation. No configuration is required. Autonegotiation on each port senses the link speed of a network device and adjusts for compatibility and optimal performance.
Switch type: Managed
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 8
Network
Feature: Full duplex
Feature: Auto-negotiation
Feature: MAC address auto-learning supported
Feature: MAC address auto-aging supported
Feature: VLAN support
Data transmission
MAC address table: 8000 entries
Feature: Jumbo frames support
Jumbo frames: 9000
Design
LED indicators: Yes
Feature: Wall mountable
Power
Power source: AC
Feature: Power supply included
DC input voltage: 5 V
Input current: 1 A
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 90%
Weight & dimensions
Width: 160.9 mm
Depth: 71.6 mm
Height: 26.3 mm
Weight: 280 g
Packaging content
Feature: Quick start guide
Packaging data
Package type: Box
Package width: 175 mm
Package depth: 80 mm
Package height: 80 mm
Package weight: 447 g
Logistics data
Country of origin: China
Harmonized System (HS) code: 85176990
