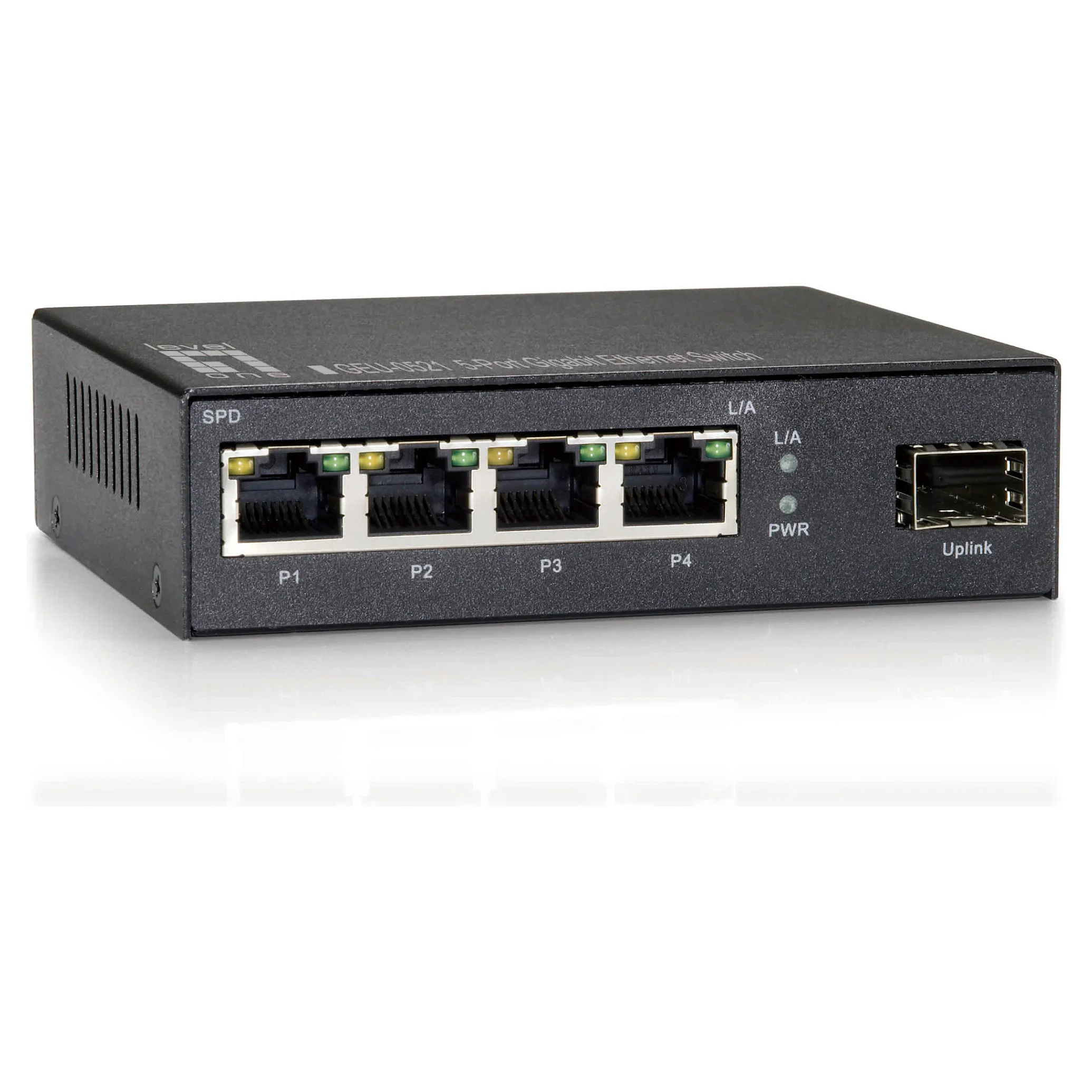

LevelOne 5-Port Gigabit Switch, 1 x SFP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 4000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Wall mountable
Providing 10Gbps internal switching fabric, the GEU-0521 can handle an extremely large amount of data in a secure topology linking to a backbone or high capacity servers. The GEU-0521 provides 4K MAC address table, 9K bytes JUMBO Frame, and offers wire-speed packet transfer performance without risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit environments, especially for the network to be upgraded to a Gigabit environment.
Switch type: Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 4
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 1
Fiber optic connector: SFP
Network
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported: Cat5, Cat5e
Feature: Full duplex
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Feature: MAC address auto-learning supported
Feature: MAC address auto-aging supported
Optical fiber
Fiber ethernet cabling technology: 1000BASE‑LX, 1000BASE‑SX
Transmission distance (max): 0.55 km
Data transmission
Switching capacity: 1 Gbit/s
MAC address table: 4000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 9000
Packet forwarding rate (1 Gbps): 1488000 pps
Packet forwarding rate (100 Mbps): 148800 pps
Packet forwarding rate (10 Mbps): 14880 pps
Packet buffer memory: 1 MB
Design
Product colour: Grey
Housing material: Metal
LED indicators: Activity, Link, Power
Feature: Wall mountable
Power
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Input current: 2.5 A
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 90 °C
Operating relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 96 mm
Depth: 112 mm
Height: 30 mm
Weight: 380 g
Packaging content
Feature: Quick start guide
Packaging data
Feature: AC adapter included
Feature: Rubber feet
Package width: 140 mm
Package depth: 250 mm
Package height: 55 mm
Package weight: 540 g
Certificates
Certification: FCC Class B, CE
Logistics data
Country of origin: China
Harmonized System (HS) code: 85176990
