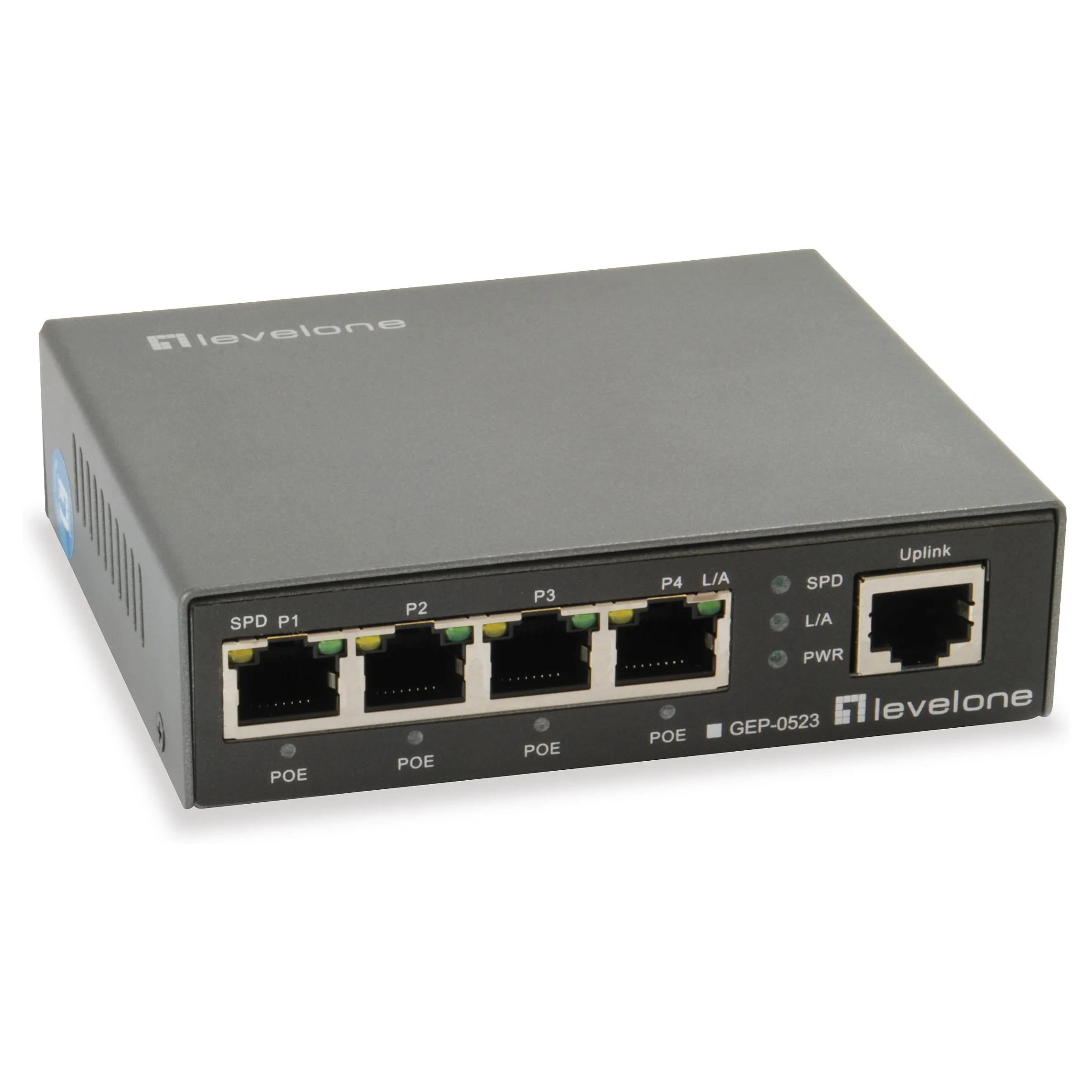

LevelOne 5-Port Gigabit PoE Switch, 802.3at/af PoE, 4 PoE Outputs, 60W. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 8000 entries. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. DC input voltage: 52 – 57 V. Power over Ethernet (PoE)
The GEP-0523\’s four PoE-enabled ports make it the ideal solution for office users using PoE-enabled devices in the workplace. This can include a mix of PoE IP phones, PoE Wifi APs and PoE IP cams. It is the perfect solution for offices that want to upgrade their office equipment and LAN infrastructure to PoE capability or upgrade with Gigabit performance. The switch automatically detects the connected IEEE 802.3at/af standard device and provides these devices with power and data over a single cable.
In addition, the GEP-0523 enables users to provide a stable and reliable high-speed LAN environment with store-and-forward switching architecture, packet error filtering and blockage-free packet forwarding. The 802.3x flow control mechanisms operate in both full and half duplex modes. This device supports the N-Way Auto Negotiation protocol, which automatically detects network speed and duplex mode.
For instant fault detection, the GEP-0523 is equipped with a full range of LEDs to help monitor and troubleshoot the network.
Feature: Traffic classification
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Data transmission
MAC address table: 8000 entries
Feature: Store-and-forward
Maximum data transfer rate: 1000 Gbit/s
Feature: Jumbo frames support
Jumbo frames: 9126
Packet buffer memory: 1 MB
Design
Product colour: Black
Performance
Mean time between failures (MTBF): 30000 h
Power
Feature: Power supply included

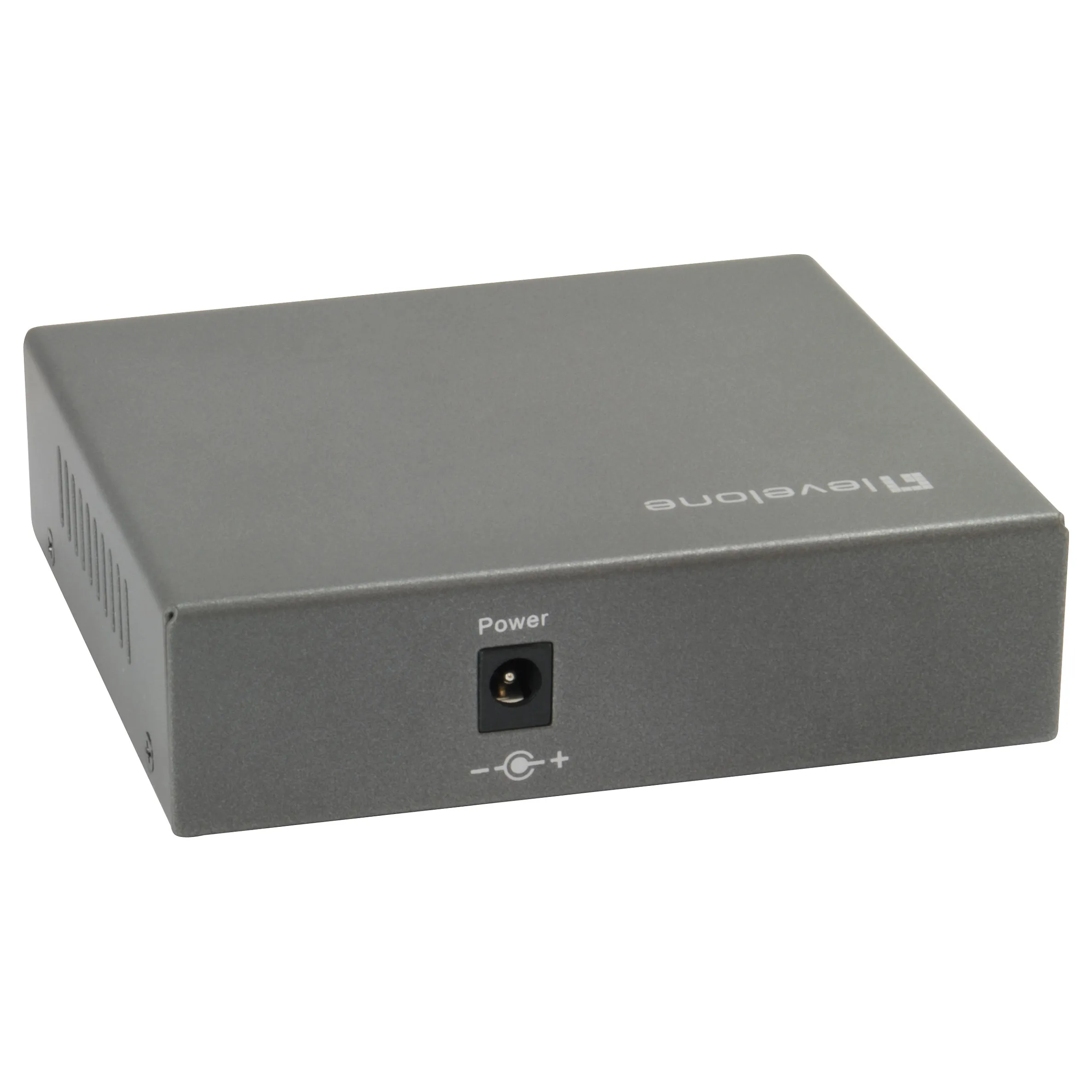

DC input voltage: 52 – 57 V
Input current: 1.25 A
Power consumption (typical): 5 W
Power protection features: Over current, Short circuit
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 4
Total Power over Ethernet (PoE) budget: 60 W
Operational conditions
Operating temperature (T-T): -20 – 70 °C
Storage temperature (T-T): -20 – 70 °C
Operating relative humidity (H-H): 5 – 90%
Storage relative humidity (H-H): 5 – 90%
Weight & dimensions
Width: 96 mm
Depth: 30 mm
Height: 111 mm
Weight: 350 g
Packaging content
Feature: Quick start guide
Packaging data
Feature: AC adapter included
Package width: 190 mm
Package depth: 55 mm
Package height: 230 mm
Package weight: 750 g
Certificates
Certification: CE,FCC
Logistics data
Harmonized System (HS) code: 85176990
