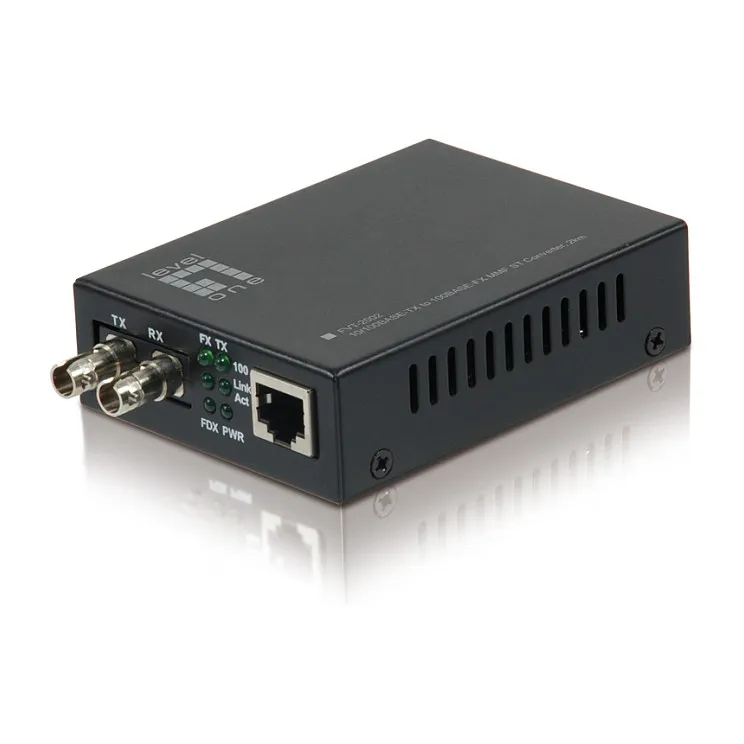

LevelOne RJ45 to ST Fast Ethernet Media Converter, Multi-Mode Fiber, 2km. Maximum data transfer rate: 100 Mbit/s, Converter input interface: 10Base-T, 100Base-TX, Converter output interface: 100Base-FX. Maximum transfer distance: 2000 m, Wavelength: 1310 nm, Fiber cable diameters supported (core/cladding): 50/125,62.5/125 µm. LED indicators: Activity, Link, Product colour: Black. Fiber optic connector: ST, Connectivity technology: Wired. Input voltage: 5 V, Input current: 1 A

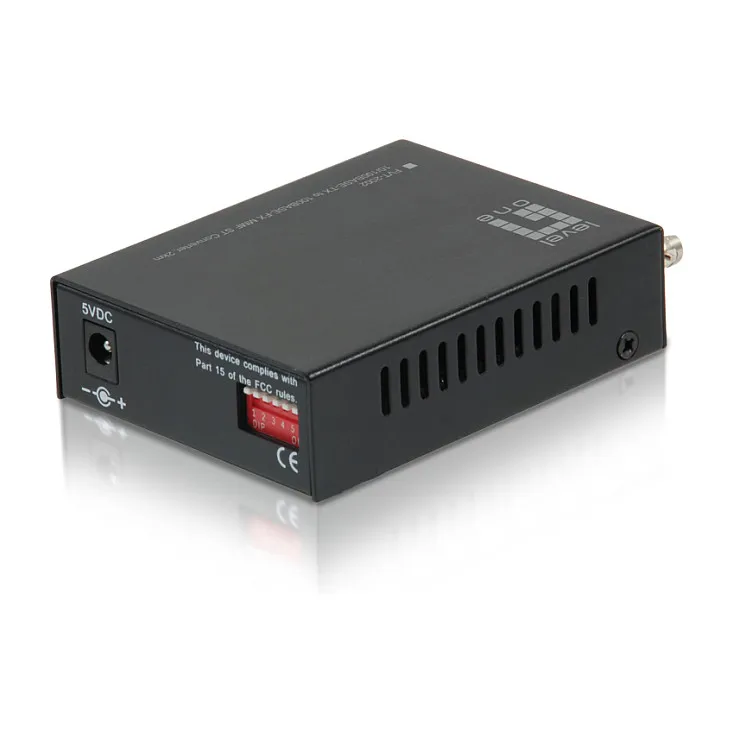

The device features built-in Dip switches for easy converter configuration, which function on the Smart LFP (Link Fault Pass-through), allowing the converter to monitor both the fiber and copper ports for signal loss, as well as converter transmission method, auto-negotiation mode for adjusting copper speed and full & half duplex mode.
The FVT-2002 is able to operate in temperatures from -10° up to 55° Celsius. The converter can be used as a standalone unit or as a slide-in module to the CHV-2000 19” Converter Chassis, which can accommodate up to 14 units for use in a central wiring closet.
Maximum data transfer rate: 100 Mbit/s
Converter input interface: 10Base-T, 100Base-TX
Converter output interface: 100Base-FX
Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Feature: Store-and-forward
Duplex system: Full, Half
Feature: Link Loss Carry Forward (LLCF) supported
Feature: Link Loss Return (LLR) supported
Performance
Maximum transfer distance: 2000 m
Wavelength: 1310 nm
Fiber cable diameters supported (core/cladding): 50/125,62.5/125 µm
Features
LED indicators: Activity, Link
Product colour: Black
Ports & interfaces
Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: ST
Feature: DC-in jack
Power
Input voltage: 5 V
Input current: 1 A
Weight & dimensions
Width: 94 mm
Depth: 70 mm
Height: 25 mm
Weight: 420 g
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Storage temperature (T-T): -10 – 55 °C
Operating relative humidity (H-H): 5 – 90%
Packaging content
Feature: AC adapter included
Feature: Quick installation guide
Packaging data
Package width: 235 mm
Package depth: 125 mm
Package height: 55 mm
Package weight: 494 g
Package type: Box
Certificates
Compliance certificates: RoHS
Certification: FCC, CE
Logistics data
Country of origin: China
Harmonized System (HS) code: 85176990
