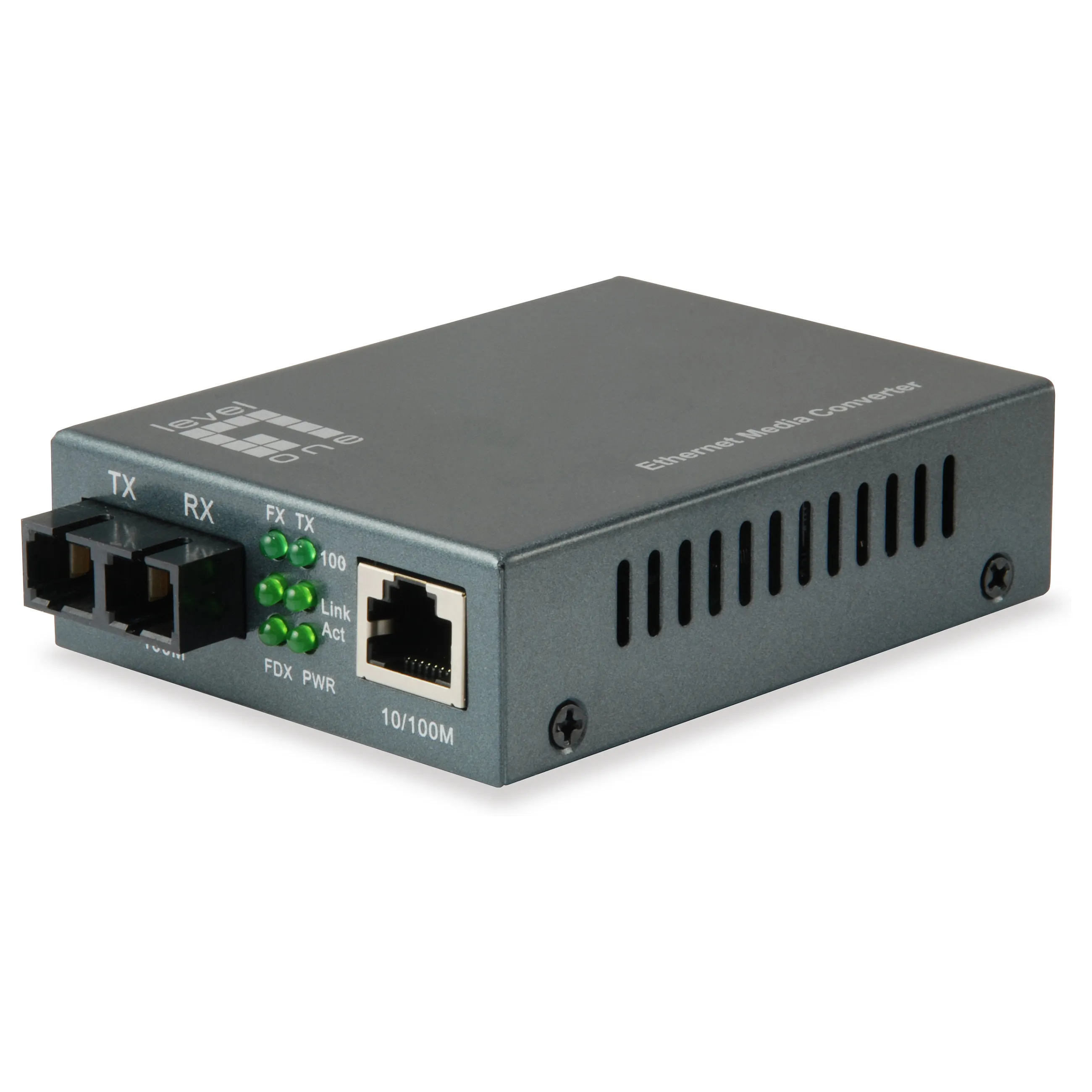

LevelOne RJ45 to SC Fast Ethernet Media Converter, Single-Mode Fiber, 1310nm, 20km. Maximum data transfer rate: 100 Mbit/s, Converter input interface: 10Base-T, 100Base-TX, Converter output interface: 100Base-FX. Maximum transfer distance: 20000 m, Wavelength: 1310 nm, Fiber mode structure: Single-mode. Product colour: Black. Fiber optic connector: SC, Connectivity technology: Wired. Input voltage: 5 V, Input current: 1 A
The FVT-1102 SMF SC media converter can convert network signals between copper and fiber-optic based networks. The converter provides a 10/100Base-TX RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T and 100Base-TX auto-sensing. Used in single-mode with fiber-optic cabling, this can extend a network range up to 20km.
The converter can be used as a standalone unit or as a slide-in module to the CHV-2000 19” Converter Chassis, which can accommodate up to 14 units for use in a central wiring closet.
The converter can be used as a standalone unit or as a slide-in module to the CHV-2000 19” Converter Chassis, which can accommodate up to 14 units for use in a central wiring closet.
Network
Maximum data transfer rate: 100 Mbit/s
Converter input interface: 10Base-T, 100Base-TX
Converter output interface: 100Base-FX
Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
Fiber ethernet cabling technology: 100BASE-FX
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Feature: Store-and-forward
Duplex system: Full
Performance
Maximum transfer distance: 20000 m
Wavelength: 1310 nm
Fiber mode structure: Single-mode
Fiber cable diameters supported (core/cladding): 50/125,62.5/125 µm
Mean time between failures (MTBF): 100000 h
Features
LED indicators: Yes
Product colour: Black
Ports & interfaces
Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SC
Feature: DC-in jack
Power
Input voltage: 5 V
Input current: 1 A
Weight & dimensions
Width: 94 mm
Depth: 71 mm
Height: 26 mm
Weight: 200 g
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Storage temperature (T-T): -20 – 70 °C
Operating relative humidity (H-H): 5 – 90%
Packaging content
Feature: AC adapter included
Feature: Quick installation guide
Packaging data
Package width: 230 mm
Package depth: 150 mm
Package height: 58 mm
Package weight: 300 g
Package type: Blister
Certificates
Compliance certificates: RoHS
Certification: FCC, CE
Logistics data
Country of origin: China
Harmonized System (HS) code: 85176990
Master (outer) case width: 440 mm
Master (outer) case length: 420 mm
Master (outer) case height: 305 mm
Master (outer) case gross weight: 32 kg
Products per master (outer) case: 40 pc(s)
Maximum data transfer rate: 100 Mbit/s
Converter input interface: 10Base-T, 100Base-TX
Converter output interface: 100Base-FX
Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
Fiber ethernet cabling technology: 100BASE-FX
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Feature: Store-and-forward
Duplex system: Full
Performance
Maximum transfer distance: 20000 m
Wavelength: 1310 nm
Fiber mode structure: Single-mode
Fiber cable diameters supported (core/cladding): 50/125,62.5/125 µm
Mean time between failures (MTBF): 100000 h
Features
LED indicators: Yes
Product colour: Black
Ports & interfaces
Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SC
Feature: DC-in jack
Power
Input voltage: 5 V
Input current: 1 A
Weight & dimensions
Width: 94 mm
Depth: 71 mm
Height: 26 mm
Weight: 200 g
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Storage temperature (T-T): -20 – 70 °C
Operating relative humidity (H-H): 5 – 90%
Packaging content
Feature: AC adapter included
Feature: Quick installation guide
Packaging data
Package width: 230 mm
Package depth: 150 mm
Package height: 58 mm
Package weight: 300 g
Package type: Blister
Certificates
Compliance certificates: RoHS
Certification: FCC, CE
Logistics data
Country of origin: China
Harmonized System (HS) code: 85176990
Master (outer) case width: 440 mm
Master (outer) case length: 420 mm
Master (outer) case height: 305 mm
Master (outer) case gross weight: 32 kg
Products per master (outer) case: 40 pc(s)
