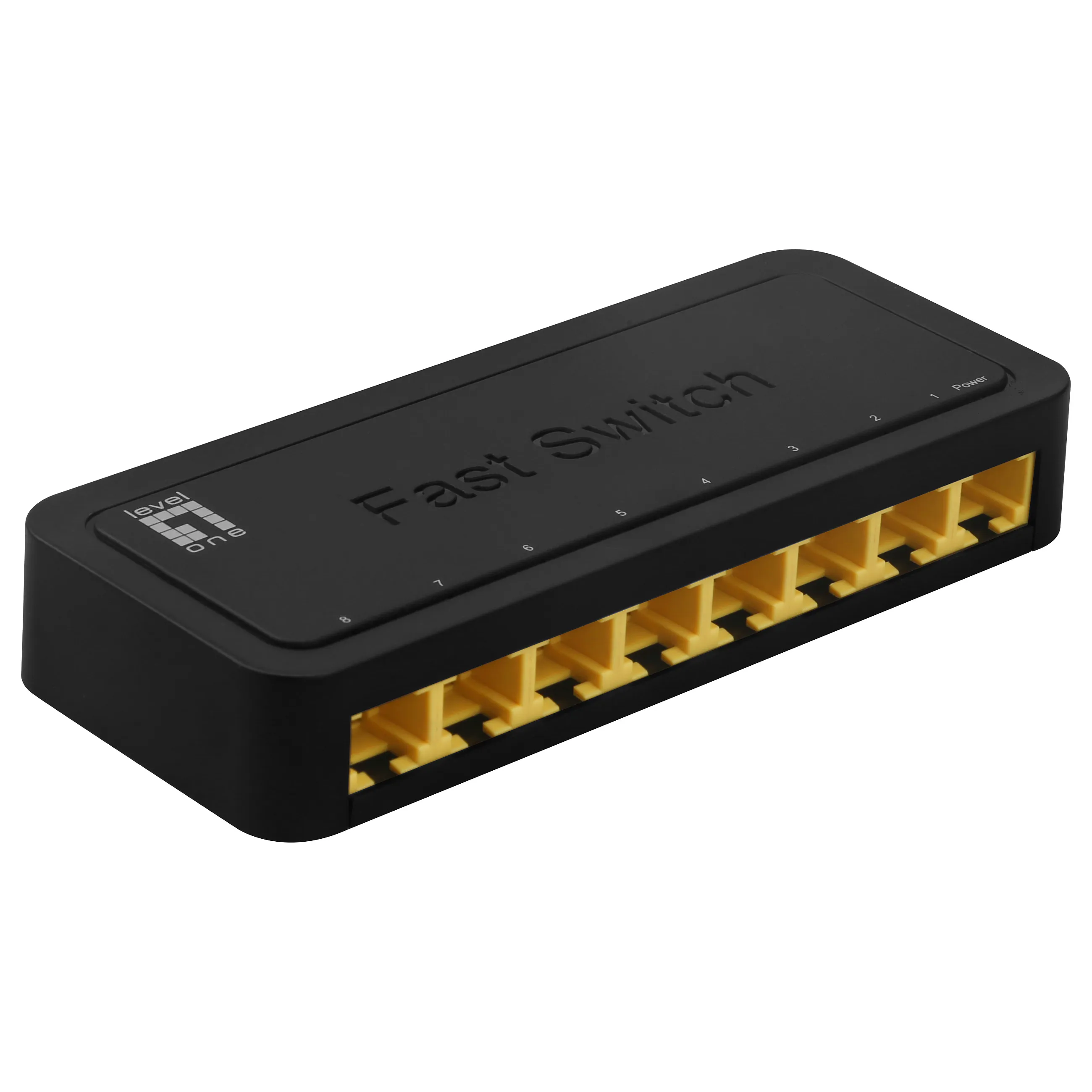

LevelOne FEU-0812. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 1000 entries. Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z. DC input voltage: 5 V. Power connector: DC-in jack
The LevelOne FEU-0812 is a wire-speed, non-blocking networking device that provides 8 ports 10/100 Mbps Ethernet connections. All ports support auto-negotiation and auto-MDI/MDIX sensing, eliminating the need for crossover cables or Uplink Ports. Each port can be used as general network port or as connecting port into a router, server, hub or another network switch.
Management features
Switch type: Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Power connector: DC-in jack
Network
Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z
Copper ethernet cabling technology: 10BASE-T, 100BASE-T
Feature: Full duplex
Feature: Half duplex
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Data transmission
MAC address table: 1000 entries
Packet buffer memory: 1.19 MB
Design
Product colour: Black
LED indicators: Activity, Link, Power
Performance
Feature: Plug and Play
Feature: Fanless
Power
Power source: DC
Feature: Power supply included
DC input voltage: 5 V
Input current: 0.55 A
Power consumption (typical): 1.7 W
Operational conditions
Operating temperature (T-T): 0 – 45 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 90%
Weight & dimensions
Width: 130.7 mm
Depth: 52.3 mm
Height: 20 mm
Weight: 110 g
Packaging data
Feature: AC adapter included
Package type: Box
Package width: 145 mm
Package depth: 80 mm
Package height: 80 mm
Package weight: 214 g
Certificates
Certification: CERoHS
Logistics data
Country of origin: China
Harmonized System (HS) code: 85176990
Switch type: Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Power connector: DC-in jack
Network
Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z
Copper ethernet cabling technology: 10BASE-T, 100BASE-T
Feature: Full duplex
Feature: Half duplex
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Data transmission
MAC address table: 1000 entries
Packet buffer memory: 1.19 MB
Design
Product colour: Black
LED indicators: Activity, Link, Power
Performance
Feature: Plug and Play
Feature: Fanless
Power
Power source: DC
Feature: Power supply included
DC input voltage: 5 V
Input current: 0.55 A
Power consumption (typical): 1.7 W
Operational conditions
Operating temperature (T-T): 0 – 45 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 90%
Weight & dimensions
Width: 130.7 mm
Depth: 52.3 mm
Height: 20 mm
Weight: 110 g
Packaging data
Feature: AC adapter included
Package type: Box
Package width: 145 mm
Package depth: 80 mm
Package height: 80 mm
Package weight: 214 g
Certificates
Certification: CERoHS
Logistics data
Country of origin: China
Harmonized System (HS) code: 85176990
