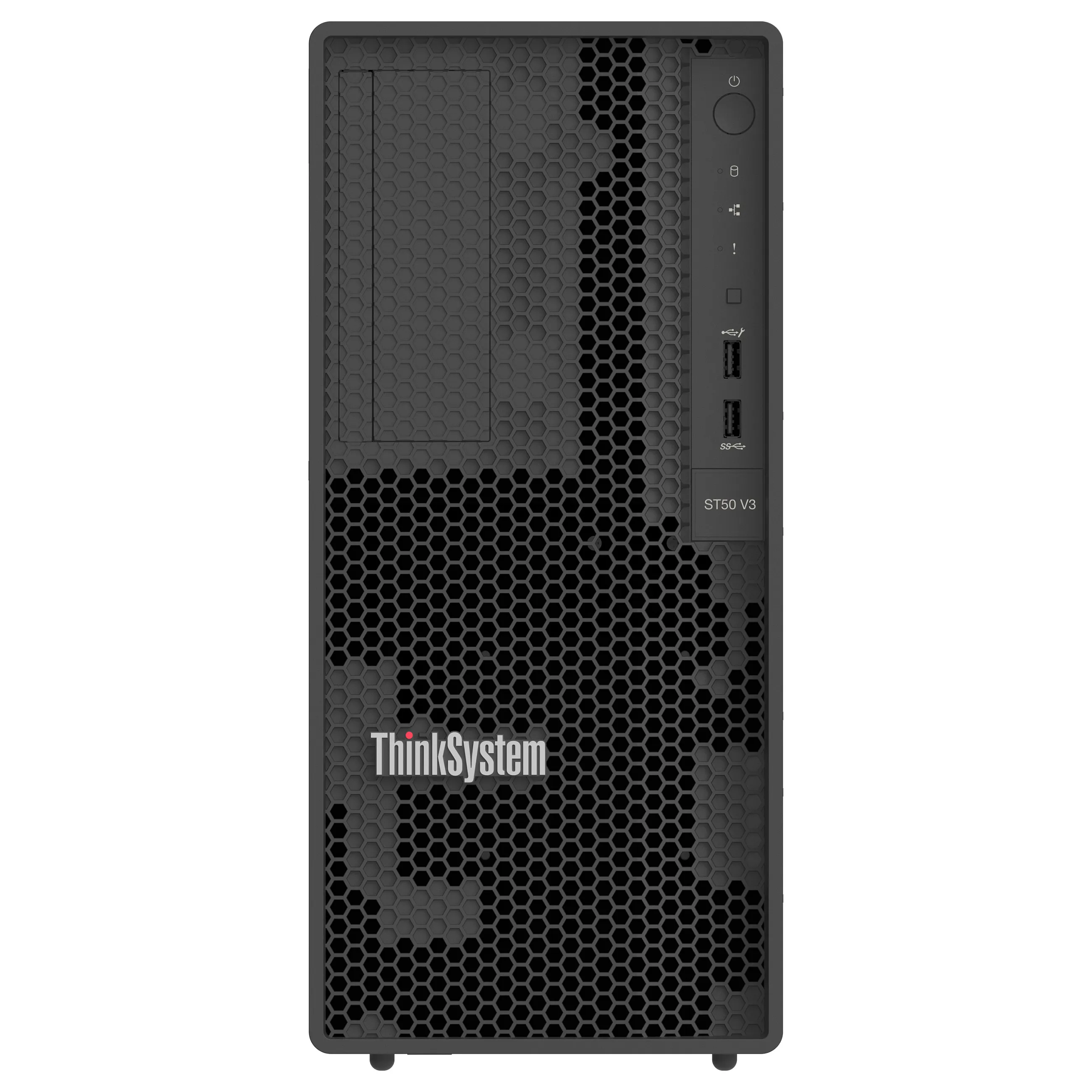

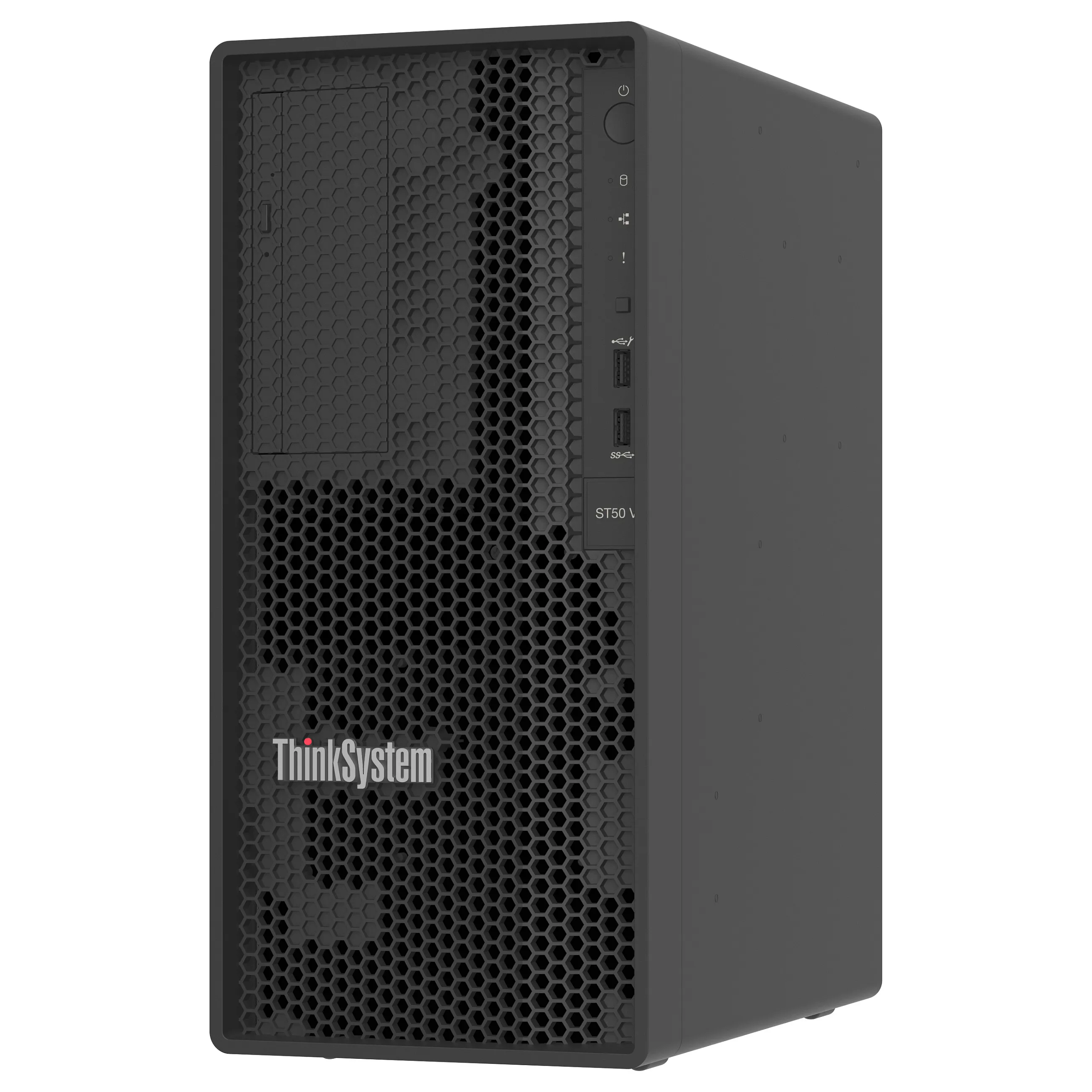

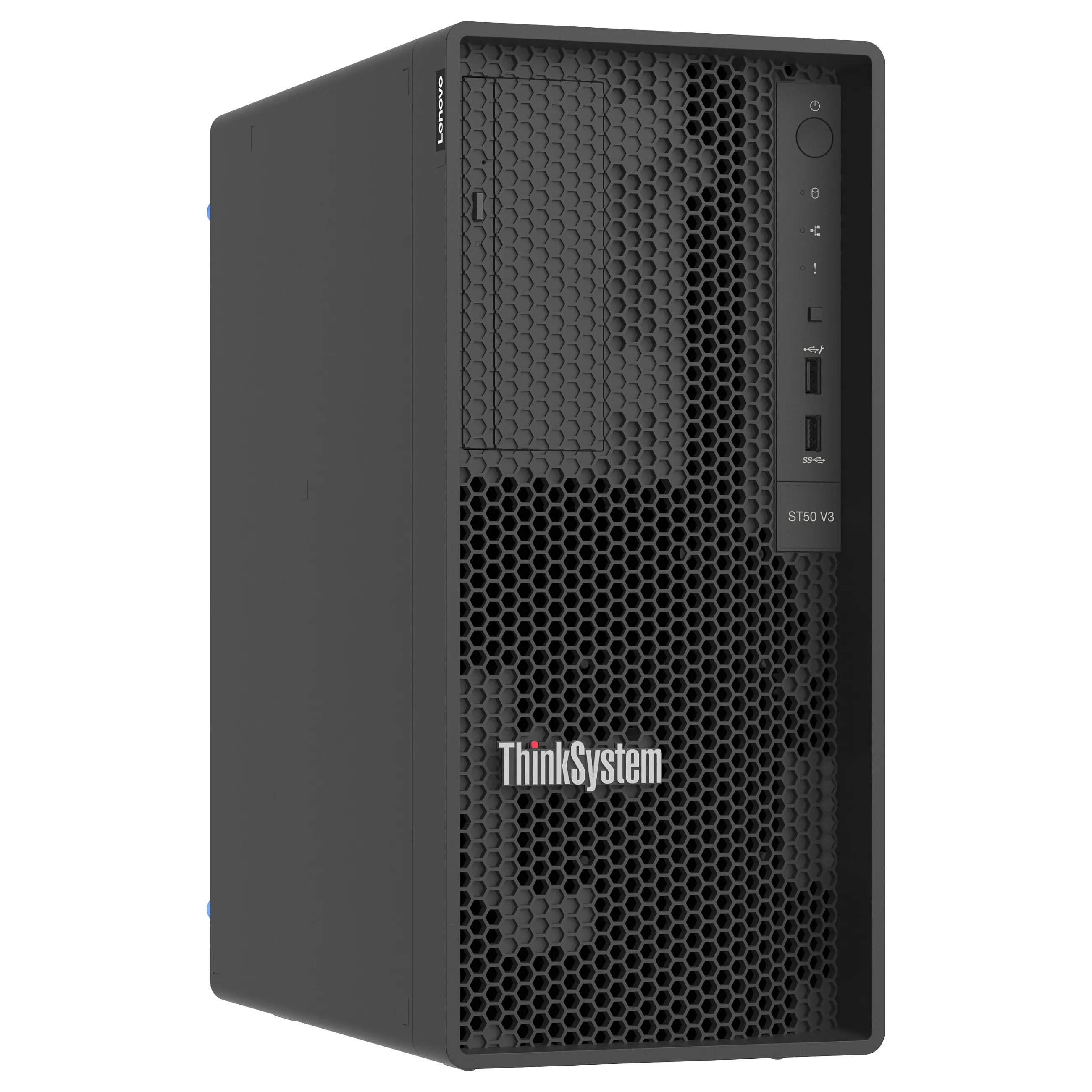

Lenovo ThinkSystem ST50 V3. Processor family: Intel Xeon 6, Processor frequency: 2.8 GHz, Processor model: 6315P. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory layout (slots x size): 1 x 16 GB. Total storage capacity: 1.92 TB. Ethernet LAN, Cabling technology: 10/100/1000Base-T(X). Power supply: 500 W. Chassis type: Tower
The Lenovo ThinkSystem ST50 V3 is a value 1-socket tower server that also be rack mounted as a rack server. It is ideal for small-to-medium businesses, remote offices, branch offices, banking and public sector. The server supports the new Intel Xeon E-2400 Series processors, formerly codenamed „Raptor Lake”.
This product guide provides essential presales information to understand the ThinkSystem ST50 V3 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ST50 V3 and consider its use in IT solutions.
Processor
Processor manufacturer: Intel
Processor family: Intel Xeon 6
Processor model: 6315P
Processor frequency: 2.8 GHz
Processor boost frequency: 4.7 GHz
Performance cores: 4
Processor cores: 4
Processor cache: 12 MB
Motherboard chipset: Intel C266
Number of processors installed: 1
Memory
Internal memory: 16 GB
Internal memory type: DDR5-SDRAM
Memory slots: 4x DIMM
Feature: ECC
Memory clock speed: 4400 MHz
Memory layout (slots x size): 1 x 16 GB
Maximum internal memory: 128 GB
Storage
Total storage capacity: 1.92 TB
Number of SSDs installed: 2
SSD capacity: 960 GB
Optical drive type: No
Internal drive bays: 3
Supported storage drive interfaces: Serial ATA
Graphics
Feature: On-board graphics card
Maximum graphics card memory: 16 MB
Network
LAN controller: Broadcom BCM5720
Feature: Ethernet LAN
Cabling technology: 10/100/1000Base-T(X)
Ethernet interface type: Gigabit Ethernet

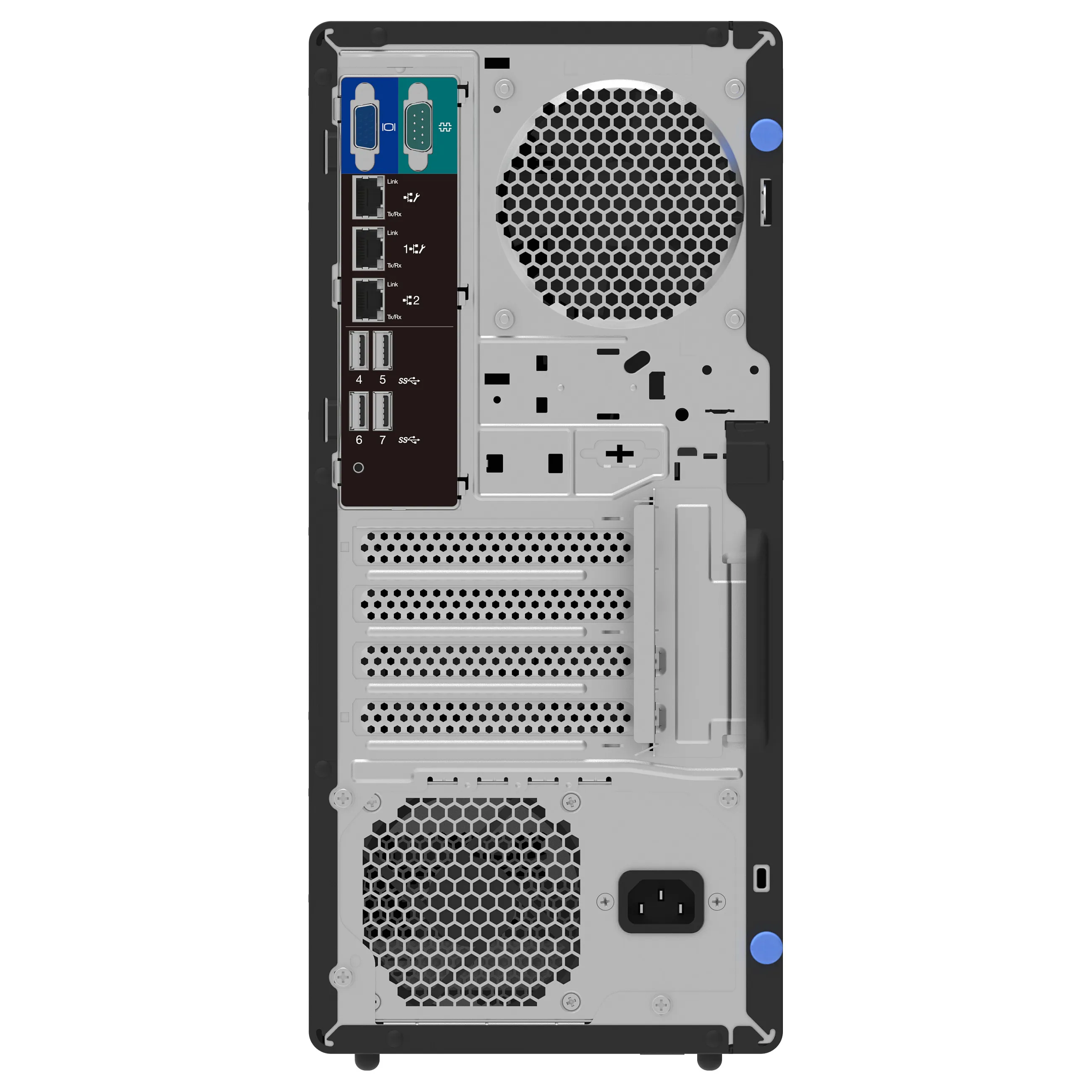

Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 5
VGA (D-Sub) ports quantity: 1
Serial ports quantity: 1
Design
Chassis type: Tower
Product colour: Black
Performance
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0
Software
Compatible operating systems: Microsoft Windows ServerRed Hat Enterprise LinuxSUSE Linux Enterprise ServerVMware ESXi
Power
Power supply: 500 W
Power supply input voltage: 100 – 240 V
Power supply input frequency: 50/60 Hz
Operational conditions
Storage temperature (T-T): -20 – 60 °C
Storage relative humidity (H-H): 8 – 90%
Operating altitude: 0 – 3050 m
Certificates
80 PLUS certification: 80 PLUS Platinum
Weight & dimensions
Width: 170 mm
Depth: 370 mm
Height: 376 mm
Weight: 12 kg
Technical details
Supported storage drives form factor (internal): 3.5″
Processor manufacturer: Intel
Processor family: Intel Xeon 6
Processor model: 6315P
Processor frequency: 2.8 GHz
Processor boost frequency: 4.7 GHz
Performance cores: 4
Processor cores: 4
Processor cache: 12 MB
Motherboard chipset: Intel C266
Number of processors installed: 1
Memory
Internal memory: 16 GB
Internal memory type: DDR5-SDRAM
Memory slots: 4x DIMM
Feature: ECC
Memory clock speed: 4400 MHz
Memory layout (slots x size): 1 x 16 GB
Maximum internal memory: 128 GB
Storage
Total storage capacity: 1.92 TB
Number of SSDs installed: 2
SSD capacity: 960 GB
Optical drive type: No
Internal drive bays: 3
Supported storage drive interfaces: Serial ATA
Graphics
Feature: On-board graphics card
Maximum graphics card memory: 16 MB
Network
LAN controller: Broadcom BCM5720
Feature: Ethernet LAN
Cabling technology: 10/100/1000Base-T(X)
Ethernet interface type: Gigabit Ethernet
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 5
VGA (D-Sub) ports quantity: 1
Serial ports quantity: 1
Design
Chassis type: Tower
Product colour: Black
Performance
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0
Software
Compatible operating systems: Microsoft Windows ServerRed Hat Enterprise LinuxSUSE Linux Enterprise ServerVMware ESXi
Power
Power supply: 500 W
Power supply input voltage: 100 – 240 V
Power supply input frequency: 50/60 Hz
Operational conditions
Storage temperature (T-T): -20 – 60 °C
Storage relative humidity (H-H): 8 – 90%
Operating altitude: 0 – 3050 m
Certificates
80 PLUS certification: 80 PLUS Platinum
Weight & dimensions
Width: 170 mm
Depth: 370 mm
Height: 376 mm
Weight: 12 kg
Technical details
Supported storage drives form factor (internal): 3.5″
