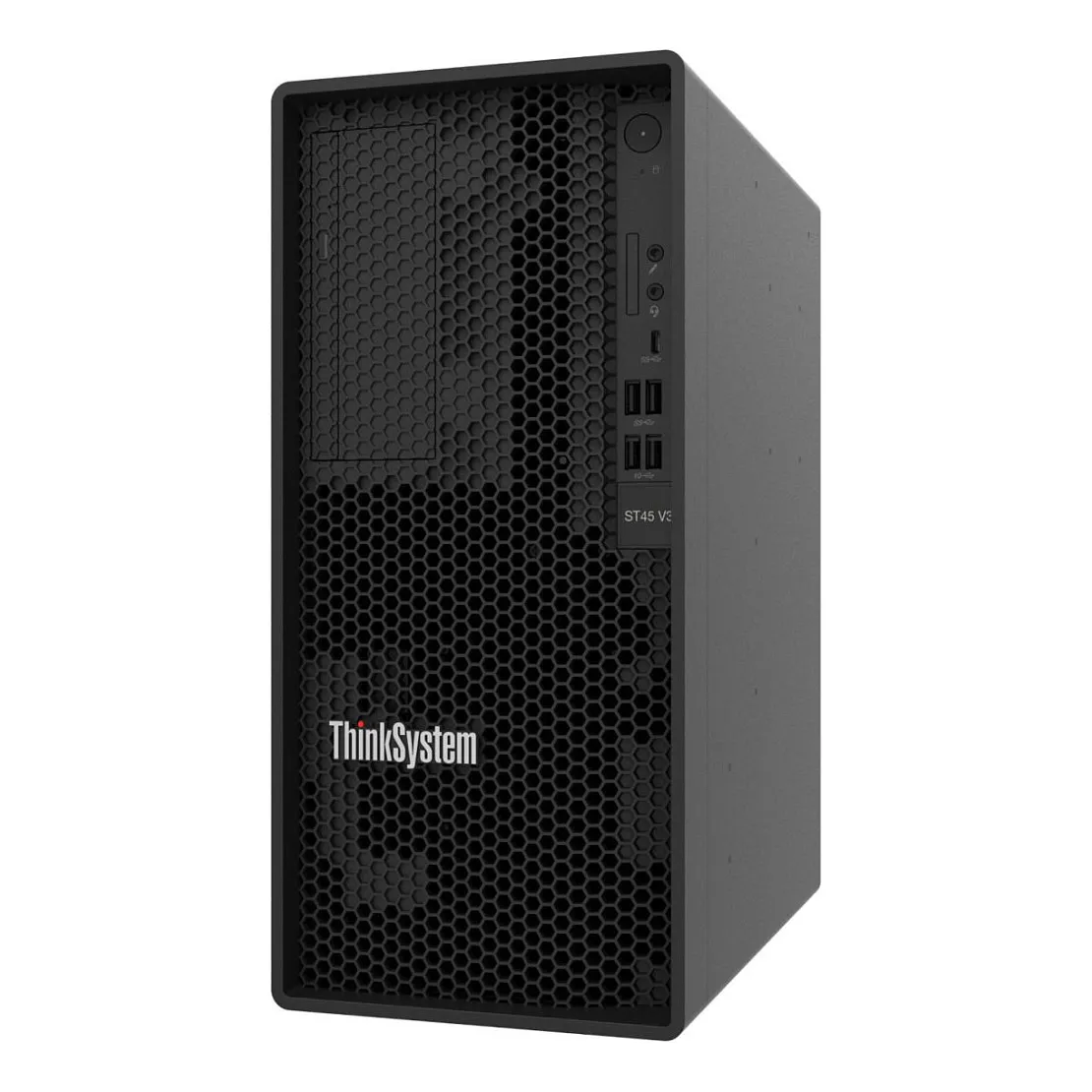

Lenovo ThinkSystem ST45 V3. Processor family: AMD EPYC, Processor frequency: 3.8 GHz, Processor model: 4344P. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM, Memory layout (slots x size): 1 x 32 GB. Total storage capacity: 1.92 TB. Ethernet LAN. Power supply: 500 W. Chassis type: Tower
The Lenovo ThinkSystem ST45 V3 single-socket tower server is an entry level server ideal for small businesses, home offices, retail, educational institutions and branch offices. The server is based on the AMD EPYC 4004 Series processor (formerly codenamed „Raphael”).
This product guide provides essential presales information to understand the ThinkSystem ST45 V3 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ST45 V3 and consider its use in IT solutions.
Processor
Processor manufacturer: AMD
Processor family: AMD EPYC
Processor model: 4344P
Processor frequency: 3.8 GHz
Processor boost frequency: 5.3 GHz
Processor cores: 8
Processor cache: 32 MB
Number of processors installed: 1
Thermal Design Power (TDP): 65 W
Processor threads: 16
Memory types supported by processor: DDR5-SDRAM
Memory
Internal memory: 32 GB
Internal memory type: DDR5-SDRAM
Memory slots: 2x DIMM
Feature: ECC
Memory clock speed: 5200 MHz
Memory layout (slots x size): 1 x 32 GB
Maximum internal memory: 64 GB
Storage
Total storage capacity: 1.92 TB
Number of SSDs installed: 2
SSD capacity: 960 GB
SSD interface: SATA
Feature: RAID support
Optical drive type: No
Internal drive bays: 2
Network
LAN controller: Realtek RTL8111FP
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 2
Power cables quantity: 1
Expansion slots
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 3.x) slots: 1
Design
Chassis type: Tower
Product colour: Black
Performance
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0
Software
Operating system installed: No
Power
Power supply: 500 W
Power supply input voltage: 115 – 230 V
Operational conditions
Operating temperature (T-T): 10 – 35 °C
Storage temperature (T-T): -20 – 60 °C
Operating relative humidity (H-H): 8 – 80%
Storage relative humidity (H-H): 8 – 90%
Operating altitude: 0 – 3050 m
Weight & dimensions
Width: 170 mm
Depth: 316 mm
Height: 376 mm
Weight: 8.56 kg
Technical details
Supported storage drives form factor (internal): 3.5″
Processor manufacturer: AMD
Processor family: AMD EPYC
Processor model: 4344P
Processor frequency: 3.8 GHz
Processor boost frequency: 5.3 GHz
Processor cores: 8
Processor cache: 32 MB
Number of processors installed: 1
Thermal Design Power (TDP): 65 W
Processor threads: 16
Memory types supported by processor: DDR5-SDRAM
Memory
Internal memory: 32 GB
Internal memory type: DDR5-SDRAM
Memory slots: 2x DIMM
Feature: ECC
Memory clock speed: 5200 MHz
Memory layout (slots x size): 1 x 32 GB
Maximum internal memory: 64 GB
Storage
Total storage capacity: 1.92 TB
Number of SSDs installed: 2
SSD capacity: 960 GB
SSD interface: SATA
Feature: RAID support
Optical drive type: No
Internal drive bays: 2
Network
LAN controller: Realtek RTL8111FP
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 2
Power cables quantity: 1
Expansion slots
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 3.x) slots: 1
Design
Chassis type: Tower
Product colour: Black
Performance
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0
Software
Operating system installed: No
Power
Power supply: 500 W
Power supply input voltage: 115 – 230 V
Operational conditions
Operating temperature (T-T): 10 – 35 °C
Storage temperature (T-T): -20 – 60 °C
Operating relative humidity (H-H): 8 – 80%
Storage relative humidity (H-H): 8 – 90%
Operating altitude: 0 – 3050 m
Weight & dimensions
Width: 170 mm
Depth: 316 mm
Height: 376 mm
Weight: 8.56 kg
Technical details
Supported storage drives form factor (internal): 3.5″
