Lenovo ThinkSystem ST250 V3. Processor family: Intel® Xeon®, Processor frequency: 2.8 GHz, Processor model: 6315P. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory layout (slots x size): 1 x 16 GB. Ethernet LAN, Cabling technology: 10/100/1000Base-T(X). Power supply: 800 W. Chassis type: Tower

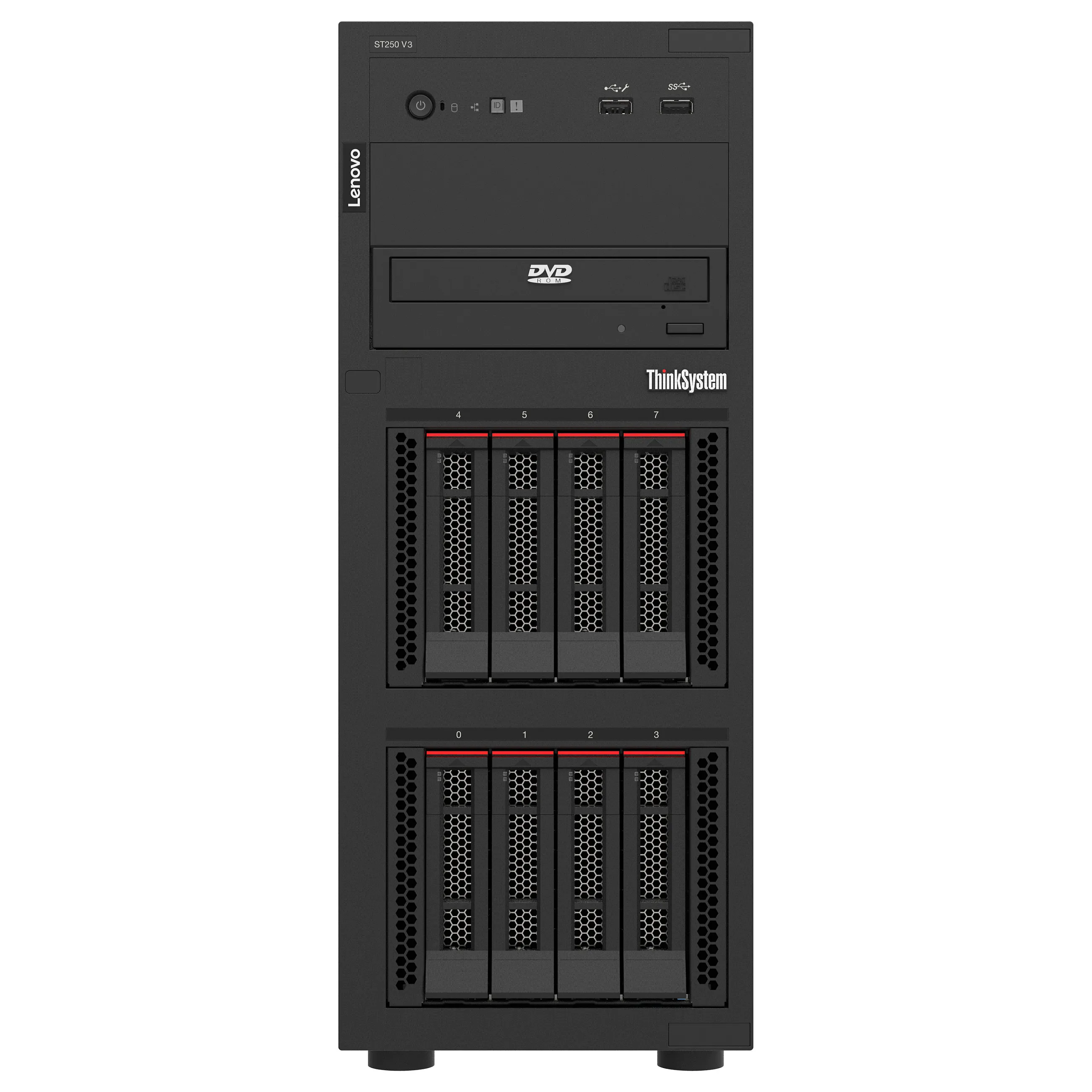

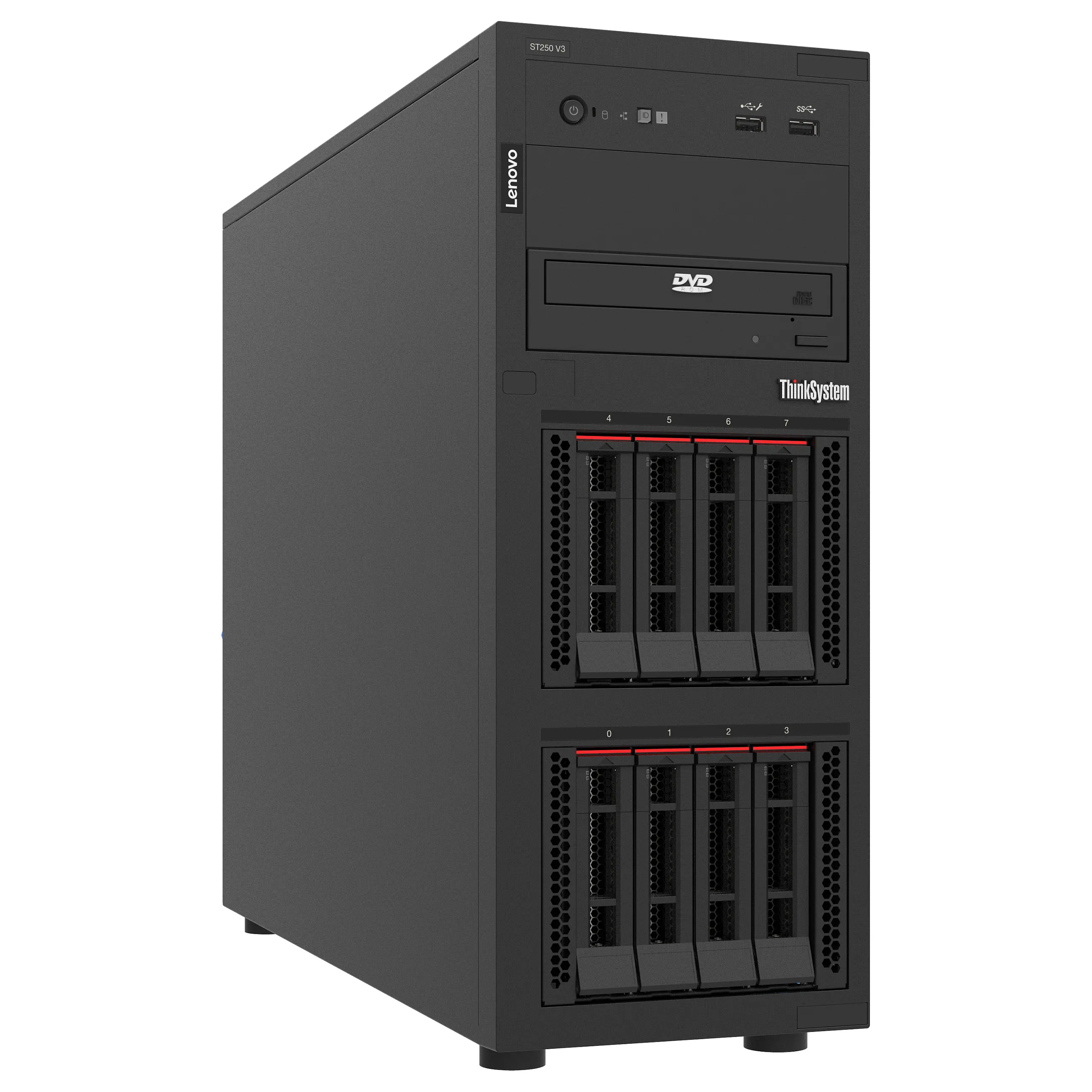

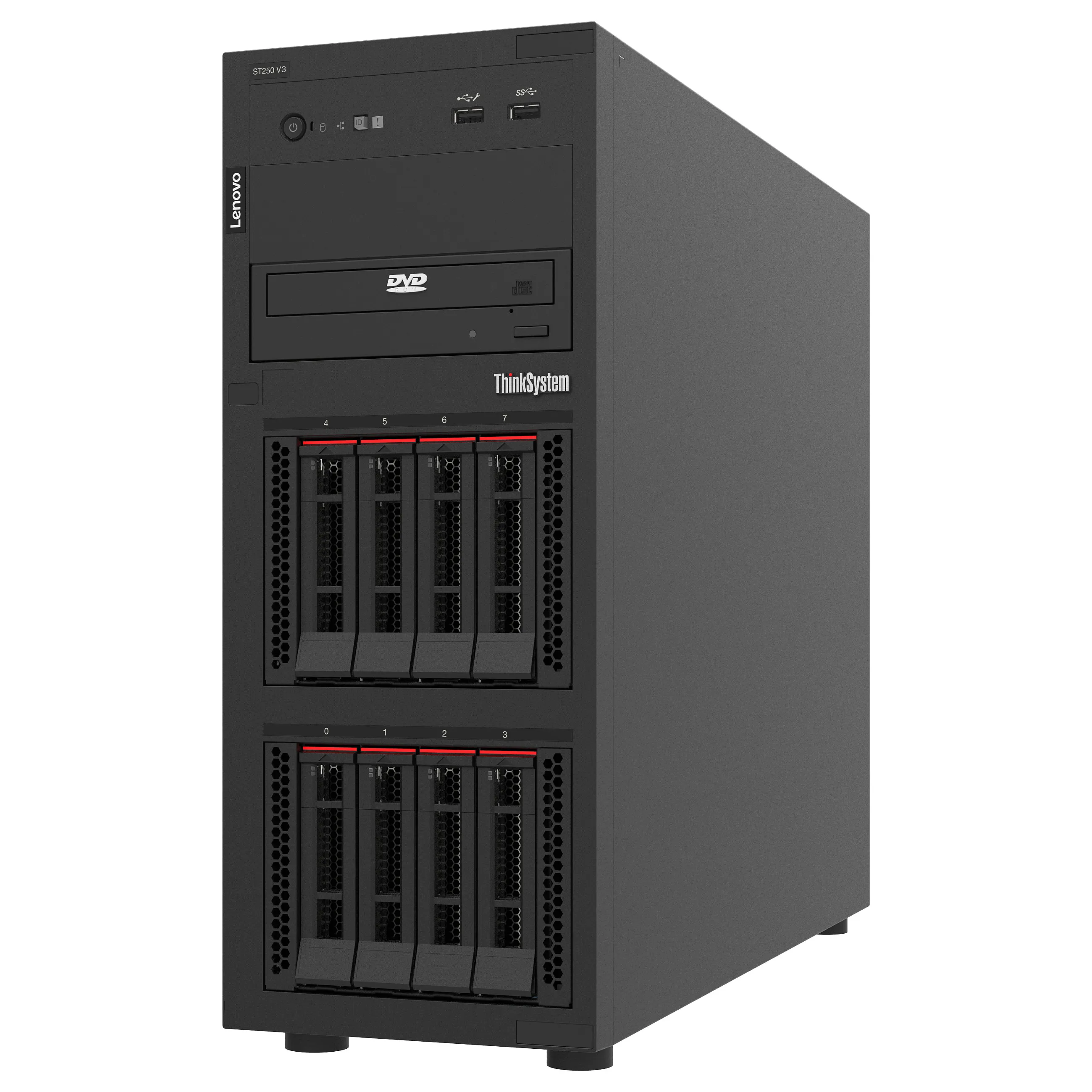

The Lenovo ThinkSystem ST250 V3 is a mainstream 1-socket tower server that also be rack mounted as a rack server. It is ideal for small-to-medium businesses, remote offices, branch offices, banking and public sector. The server supports the new Intel Xeon E-2400 Series processors, formerly codenamed „Raptor Lake”.
This product guide provides essential presales information to understand the ThinkSystem ST250 V3 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ST250 V3 and consider its use in IT solutions.
Processor
Processor manufacturer: Intel
Processor family: Intel® Xeon®
Processor model: 6315P
Processor frequency: 2.8 GHz
Processor boost frequency: 5.2 GHz
Performance cores: 4
Processor cores: 4
Processor cache: 12 MB
Number of processors installed: 1
Memory
Internal memory: 16 GB
Internal memory type: DDR5-SDRAM
Memory slots: 4x DIMM
Feature: ECC
Memory clock speed: 4800 MHz
Memory layout (slots x size): 1 x 16 GB
Maximum internal memory: 128 GB
Storage
Feature: RAID support
RAID levels: 0, 1, 5, 10, 50
Feature: Hot-swap
Internal drive bays: 8
Supported storage drive interfaces: SAS, Serial ATA
Graphics
Feature: On-board graphics card
Maximum graphics card memory: 16 MB
Network
LAN controller: Broadcom 5719
Feature: Ethernet LAN
Cabling technology: 10/100/1000Base-T(X)
Ethernet interface type: Gigabit Ethernet
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 5
VGA (D-Sub) ports quantity: 1
Serial ports quantity: 1
Design
Chassis type: Tower
Product colour: Black
Performance
Performance management: XCC Platinum
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0
Software
Compatible operating systems: Microsoft Windows ServerRed Hat Enterprise LinuxSUSE Linux Enterprise ServerVMware ESXi
Power
Power supply: 800 W
Number of main power supplies: 1
Operational conditions
Operating temperature (T-T): 5 – 45 °C
Storage temperature (T-T): -40 – 60 °C
Operating relative humidity (H-H): 8 – 90%
Storage relative humidity (H-H): 8 – 90%
Operating altitude: 0 – 3050 m
Certificates
80 PLUS certification: 80 PLUS Platinum
Weight & dimensions
Width: 176 mm
Depth: 578 mm
Height: 444 mm
Technical details
Supported storage drives form factor (rear): 2.5″
Processor manufacturer: Intel
Processor family: Intel® Xeon®
Processor model: 6315P
Processor frequency: 2.8 GHz
Processor boost frequency: 5.2 GHz
Performance cores: 4
Processor cores: 4
Processor cache: 12 MB
Number of processors installed: 1
Memory
Internal memory: 16 GB
Internal memory type: DDR5-SDRAM
Memory slots: 4x DIMM
Feature: ECC
Memory clock speed: 4800 MHz
Memory layout (slots x size): 1 x 16 GB
Maximum internal memory: 128 GB
Storage
Feature: RAID support
RAID levels: 0, 1, 5, 10, 50
Feature: Hot-swap
Internal drive bays: 8
Supported storage drive interfaces: SAS, Serial ATA
Graphics
Feature: On-board graphics card
Maximum graphics card memory: 16 MB
Network
LAN controller: Broadcom 5719
Feature: Ethernet LAN
Cabling technology: 10/100/1000Base-T(X)
Ethernet interface type: Gigabit Ethernet
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 5
VGA (D-Sub) ports quantity: 1
Serial ports quantity: 1
Design
Chassis type: Tower
Product colour: Black
Performance
Performance management: XCC Platinum
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0
Software
Compatible operating systems: Microsoft Windows ServerRed Hat Enterprise LinuxSUSE Linux Enterprise ServerVMware ESXi
Power
Power supply: 800 W
Number of main power supplies: 1
Operational conditions
Operating temperature (T-T): 5 – 45 °C
Storage temperature (T-T): -40 – 60 °C
Operating relative humidity (H-H): 8 – 90%
Storage relative humidity (H-H): 8 – 90%
Operating altitude: 0 – 3050 m
Certificates
80 PLUS certification: 80 PLUS Platinum
Weight & dimensions
Width: 176 mm
Depth: 578 mm
Height: 444 mm
Technical details
Supported storage drives form factor (rear): 2.5″
