Design
Product type: Laptop
Product colour: Black
Form factor: Clamshell
Housing material: Aluminium
Display back cover material: Aluminium
Display
Display diagonal: 40.6 cm (16″)
Display resolution: 1920 x 1200 pixels
HD type: WUXGA
Panel type: IPS
Feature: LED backlight
Native aspect ratio: 16:10
Feature: Anti-glare screen
Display brightness: 300 cd/m²
RGB colour space: NTSC
Colour gamut: 45%
Maximum refresh rate: 60 Hz
Contrast ratio (typical): 800:1
Processor
Processor manufacturer: Intel
Processor family: Intel Core Ultra 5
Processor generation: Intel Core Ultra (Series 2)
Processor model: 228V
Processor cores: 8
Processor threads: 8
Processor boost frequency: 4.5 GHz
Performance cores: 4
Low Power Efficient-cores: 4
Performance-core Max Turbo Frequency: 4.5 GHz
Low Power Efficient-core Max Turbo Frequency: 3.5 GHz
Performance-core base frequency: 2.1 GHz
Low Power Efficient-core Base Frequency: 2100 MHz
Processor cache: 8 MB
Processor cache type: Smart Cache
Processor base power: 17 W
Maximum turbo power: 37 W
Neural processor unit (NPU)
Feature: Copilot+ PC
Neural processor unit (NPU): Intel AI Boost
Feature: Sparsity support
Feature: Windows Studio effects support
AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to: 97 TOPs
NPU performance up to: 40 TOPs
GPU performance up to: 53 TOPs
Memory
Internal memory: 32 GB
Internal memory type: LPDDR5x-SDRAM
Memory clock speed: 8533 MHz
Memory form factor: On-board
Maximum internal memory: 32 GB
Memory channels: Dual-channel
Storage
Total storage capacity: 512 GB
Storage media: SSD
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
M.2 SSD size: 2242 (22 x 42 mm)
Optical drive type: No
Graphics
Discrete graphics card model: Not available
Feature: On-board graphics card
On-board GPU manufacturer: Intel
On-board graphics card family: Intel Arc Graphics
On-board graphics card model: Intel Arc Graphics 130V
Audio
Audio chip: Senary SN6147
Audio system: Dolby Atmos
Number of built-in speakers: 2
Speakers manufacturer: Harman Kardon
Speaker power: 2 W
Feature: Built-in microphone
Number of microphones: 2
Camera
Feature: Front camera
Front camera resolution: 1920 x 1080 pixels
Front camera HD type: Full HD
Feature: Infrared (IR) camera
Feature: Privacy camera
Privacy type: Privacy shutter
Network
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: Wi-Fi 6E (802.11ax)
Antenna type: 2×2
WLAN controller model: Intel Wi-Fi 6E AX211
WLAN controller manufacturer: Intel
Feature: Ethernet LAN
Ethernet LAN data rates: 100,1000 Mbit/s
Feature: Bluetooth
Bluetooth version: 5.3
Feature: Near Field Communication (NFC)
WWAN: Not installed

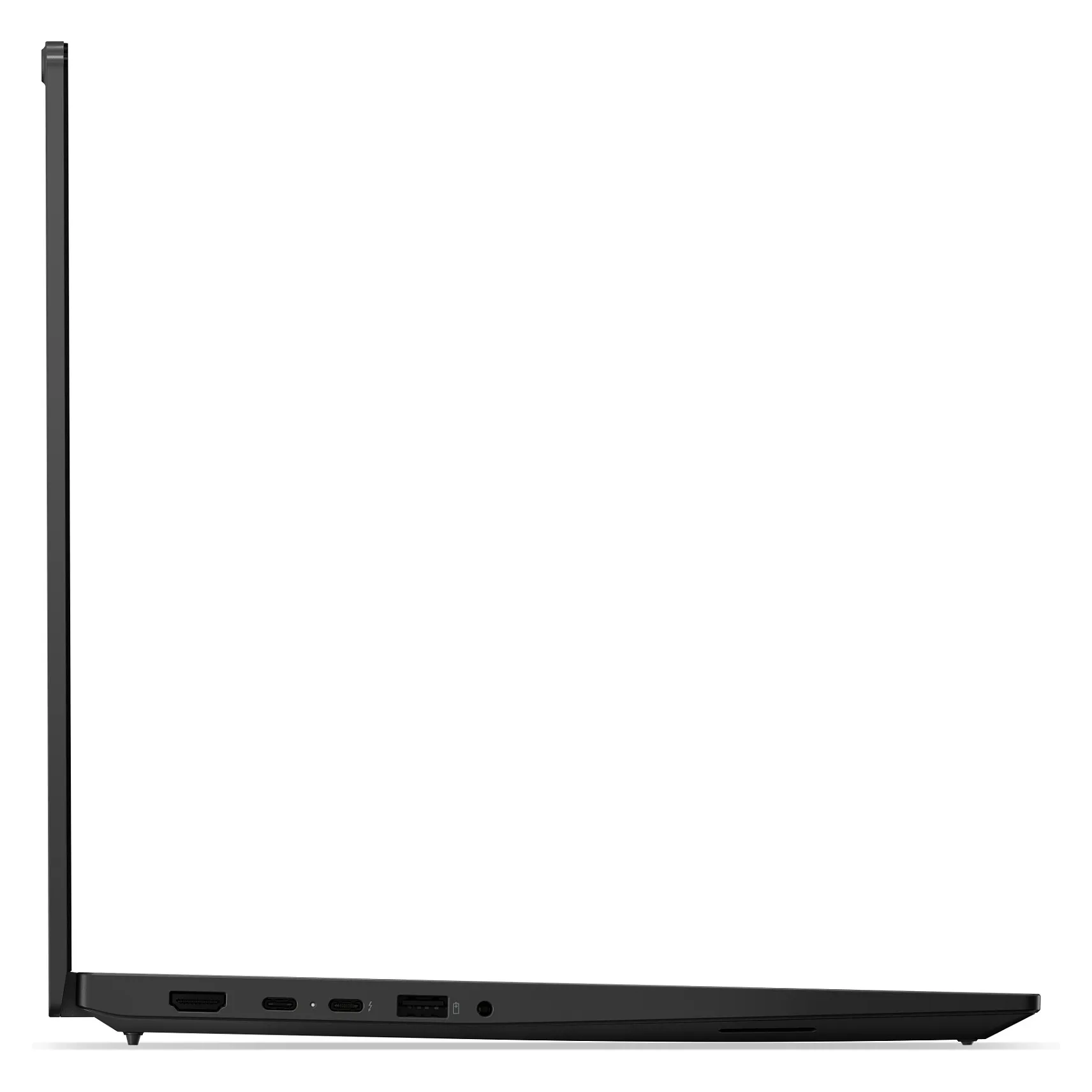

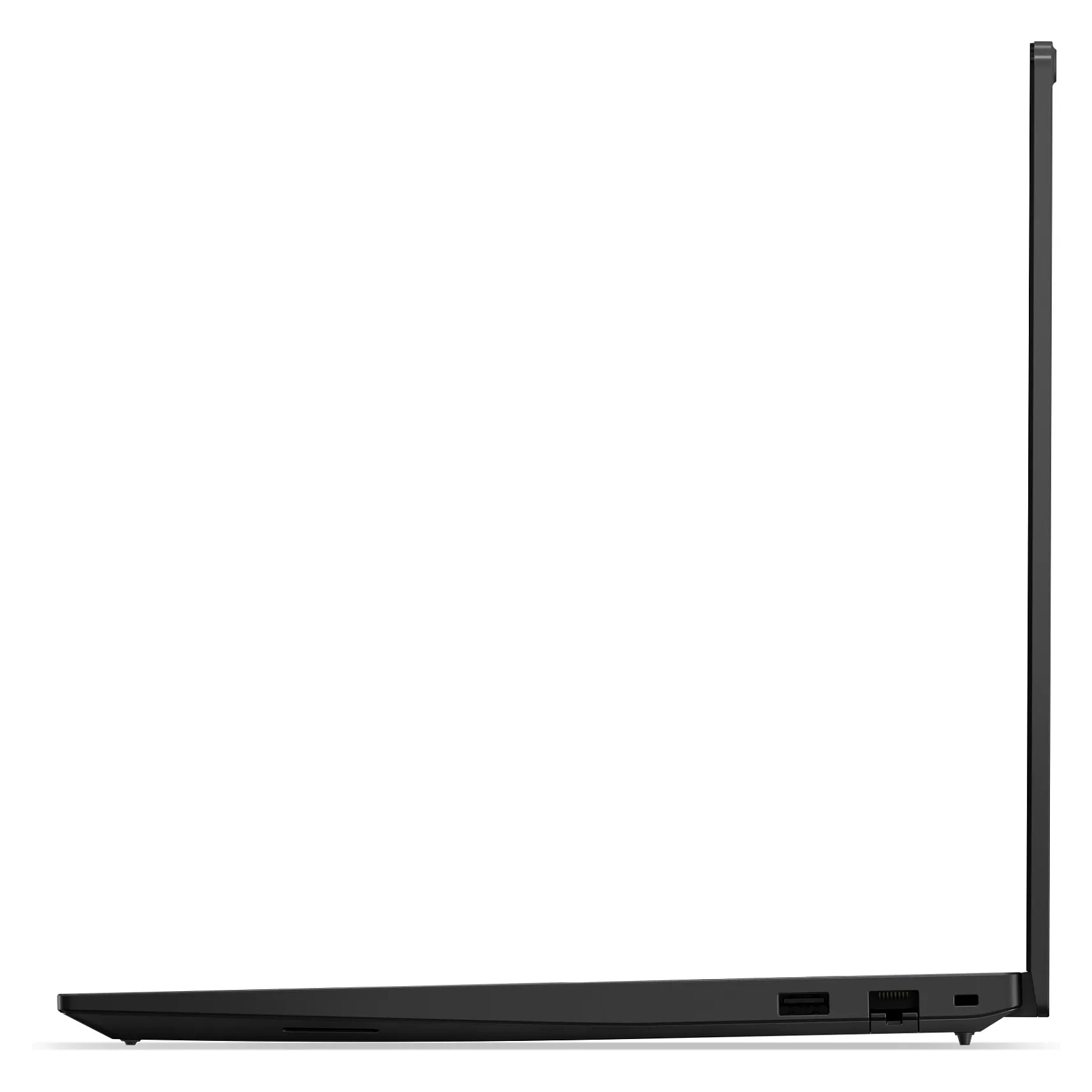

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
Thunderbolt 4 ports quantity: 2
Feature: Intel® Thunderbolt 4
Feature: Combo headphone/mic port
Feature: USB Type-C DisplayPort Alternate Mode
Feature: USB Sleep-and-Charge
USB Sleep-and-Charge ports: 1
Performance
Motherboard chipset: Intel SoC

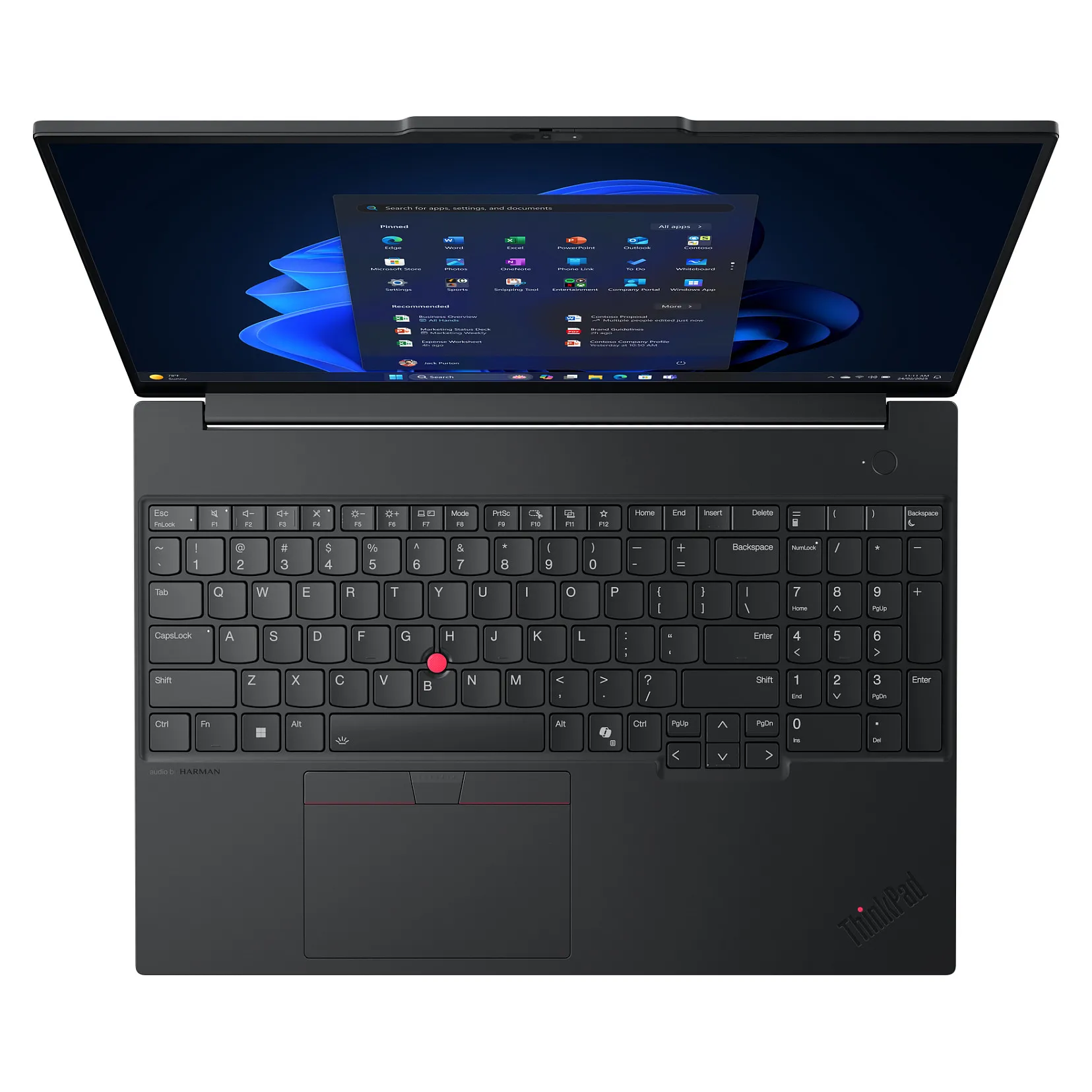

Keyboard
Pointing device: ThinkPad UltraNav
Feature: Numeric keypad
Feature: Keyboard backlit
Keyboard language: German
Feature: Copilot key
Software
Operating system language: German
Feature: Microsoft Copilot
Operating system installed: Windows 11 Pro
Bundled software: Lenovo AI Now
Battery
Battery technology: Lithium-Ion (Li-Ion)
Battery capacity: 64 Wh
Power
AC adapter power: 65 W
AC adapter frequency: 50/60 Hz
AC adapter input voltage: 100 – 240 V
Feature: USB Type-C charging port
Feature: USB Power Delivery (USB PD)
Security
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Fingerprint reader
Feature: Smart card reader
Feature: Windows Hello
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0
Operational conditions
Operating temperature (T-T): 5 – 35 °C
Storage temperature (T-T): 5 – 43 °C
Operating relative humidity (H-H): 8 – 95%
Storage relative humidity (H-H): 5 – 95%
Maximum shipping altitude: 3048 m
Certificates
Certification: ENERGY STAR,TCO,EPEAT Gold,RoHS
Weight & dimensions
Width: 356 mm
Depth: 249 mm
Height (front): 1.01 cm
Height (rear): 1.71 cm
Weight: 1.61 kg
Packaging content
Feature: AC adapter included
