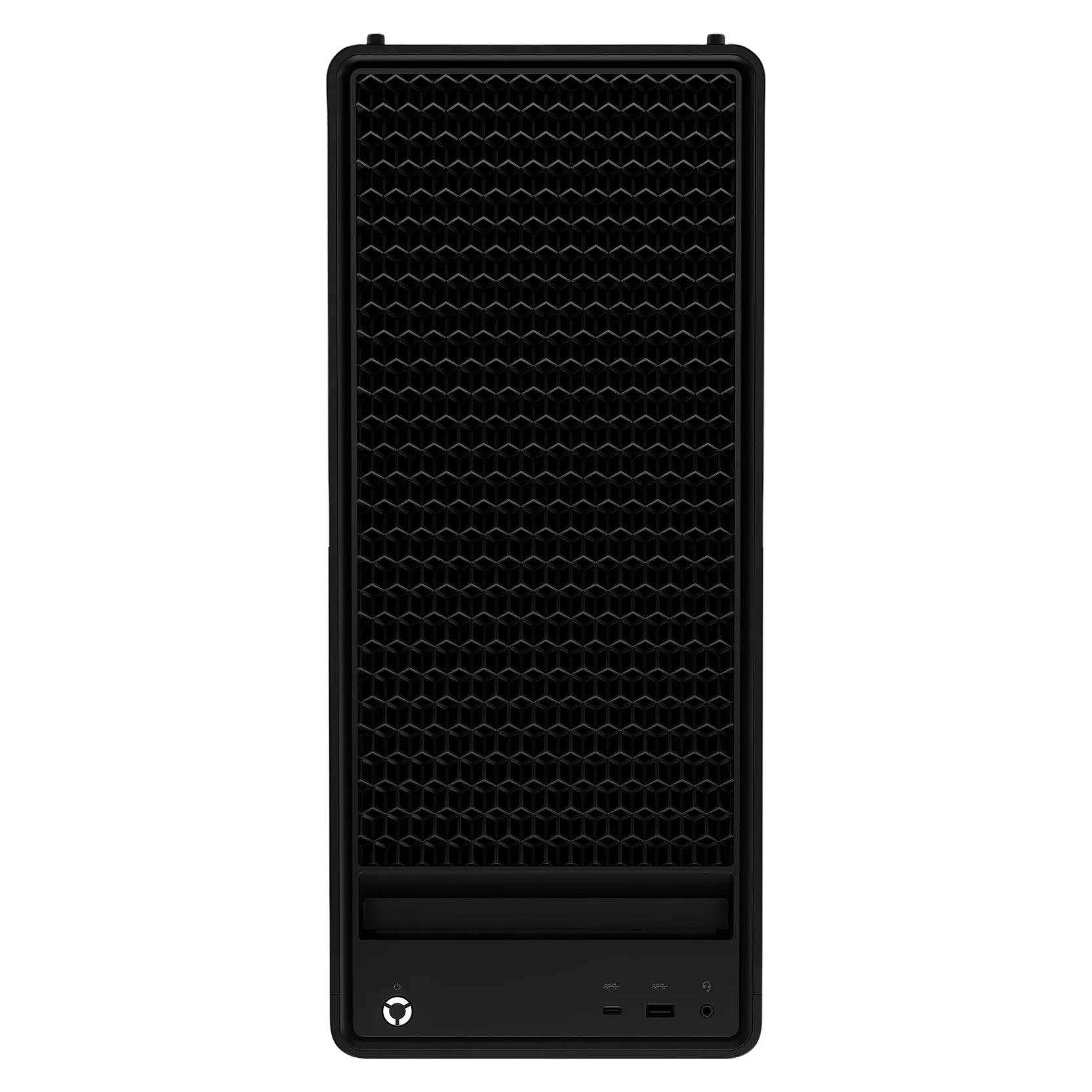

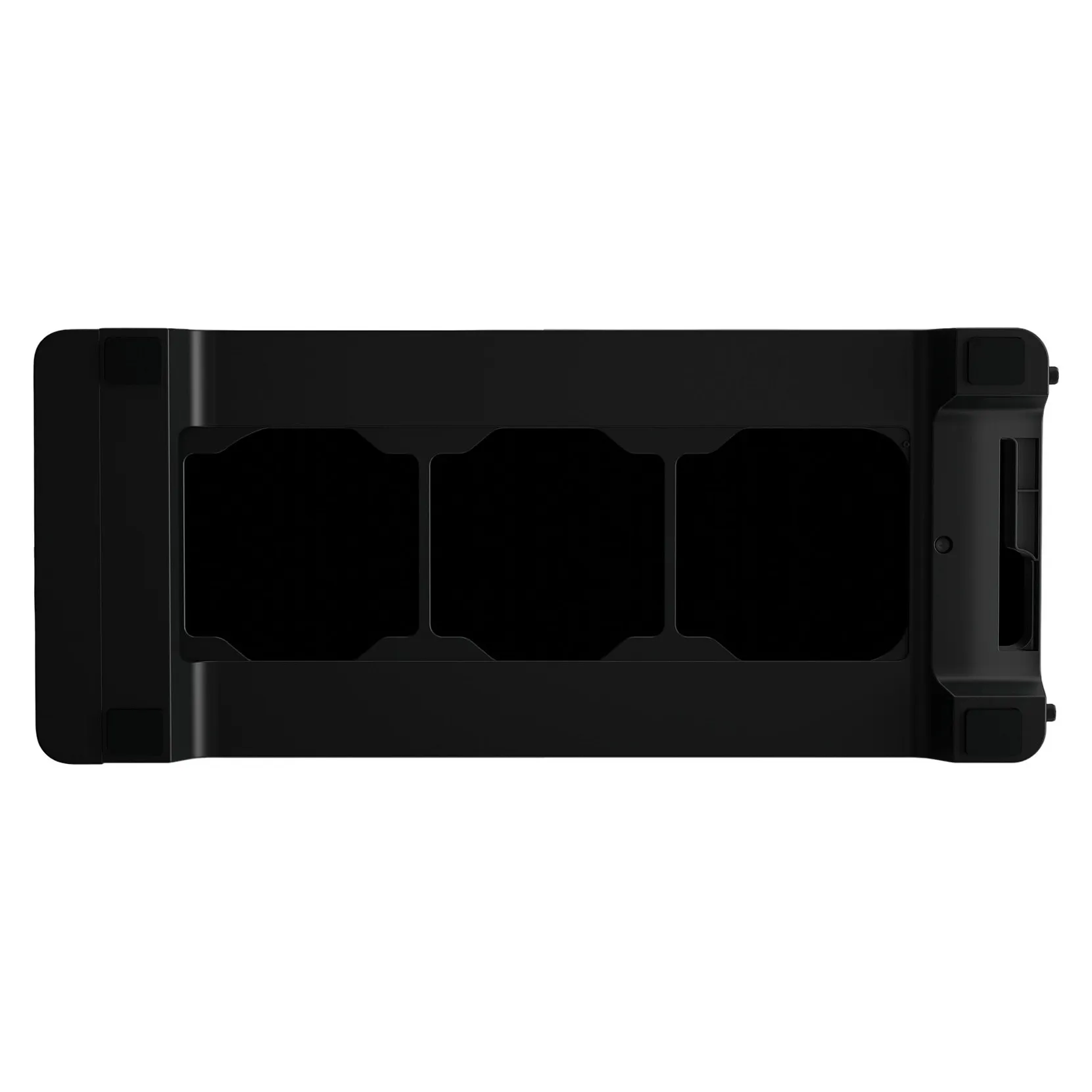

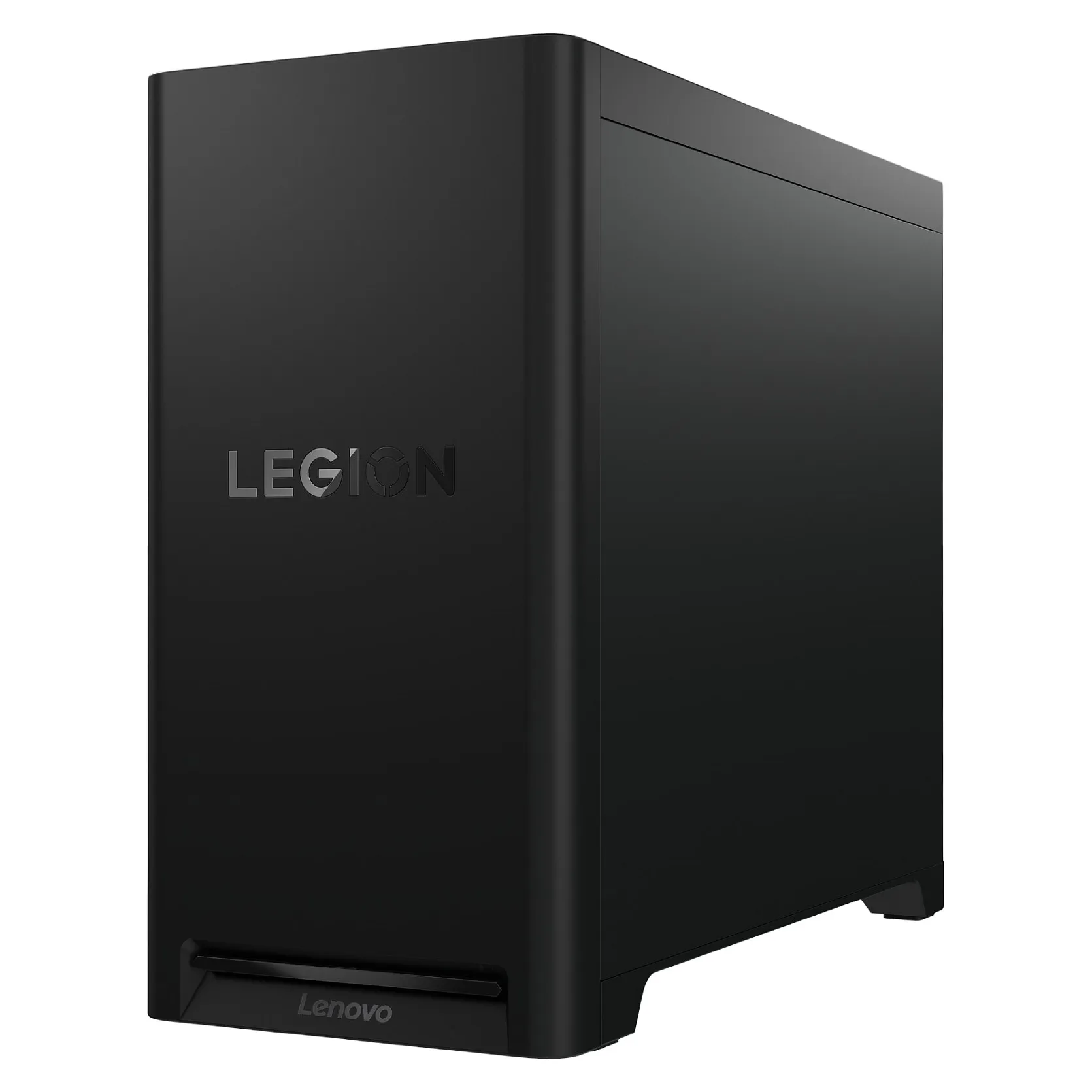

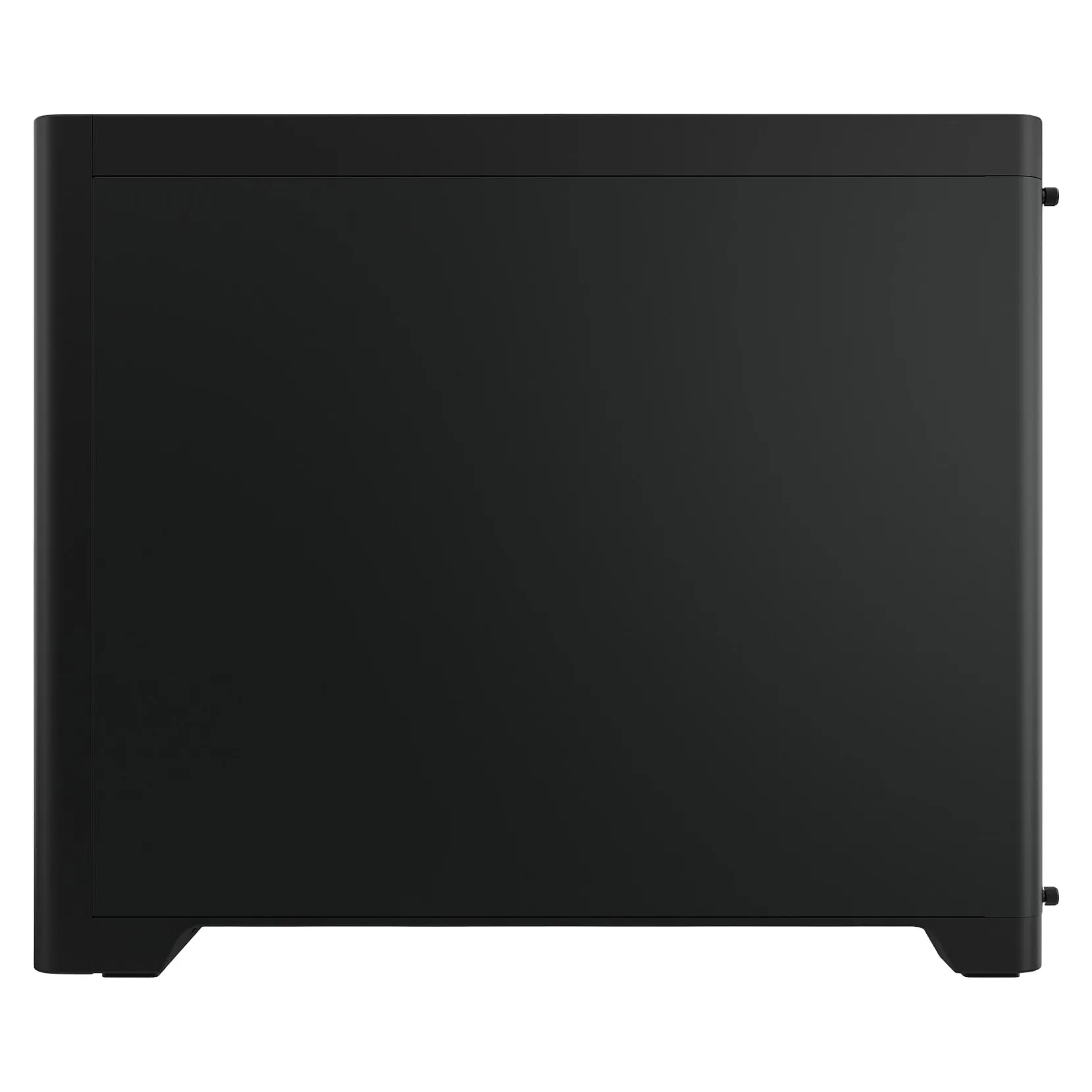

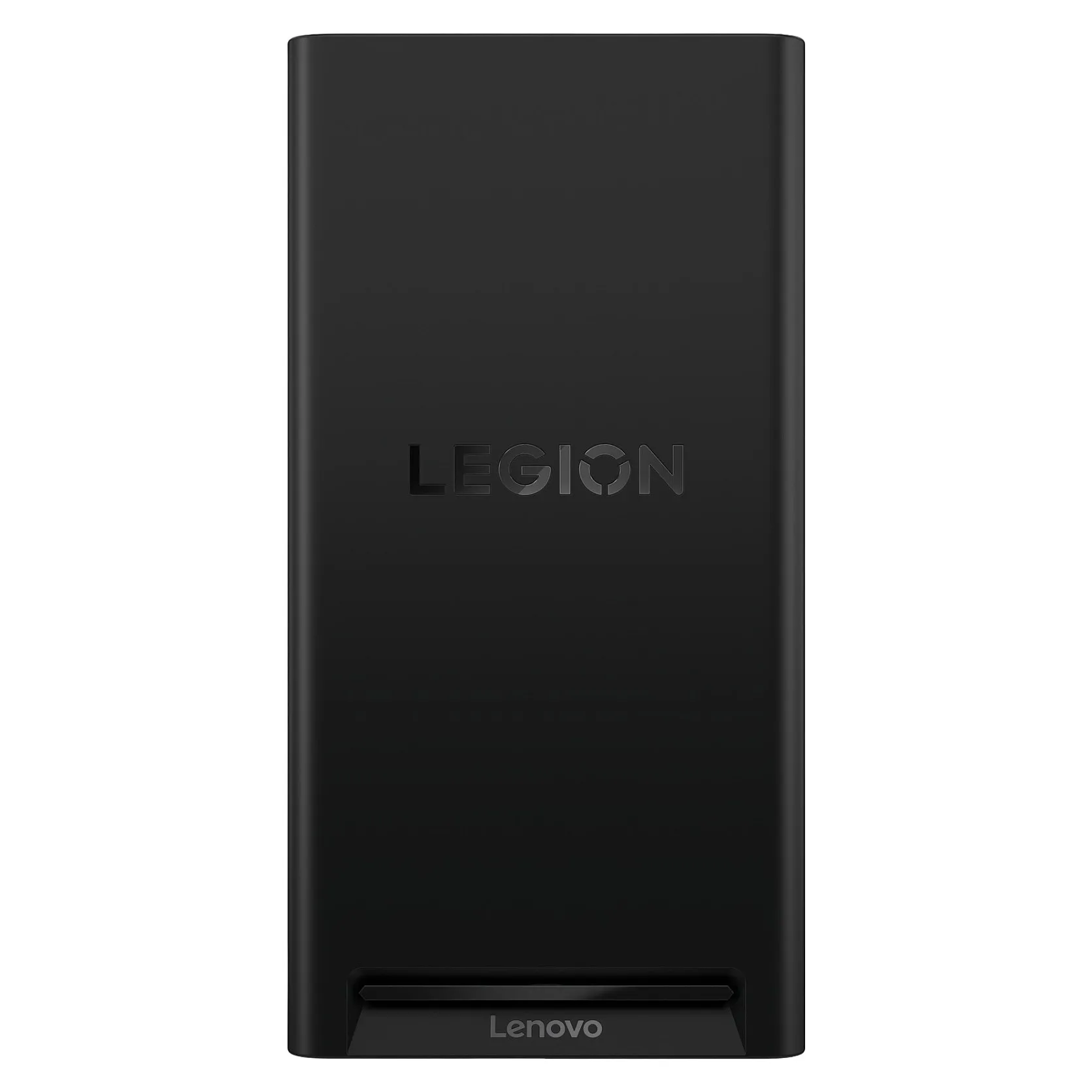

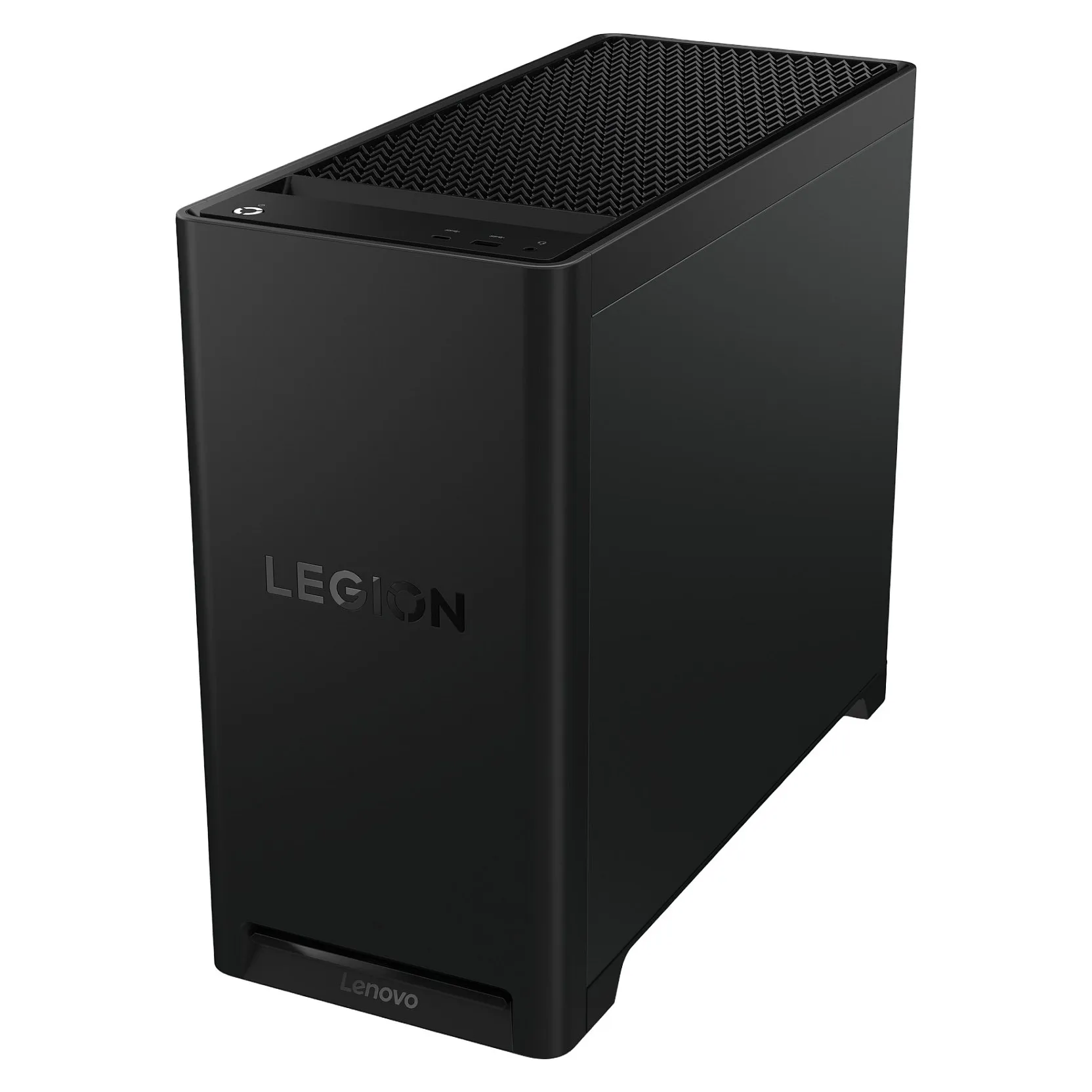

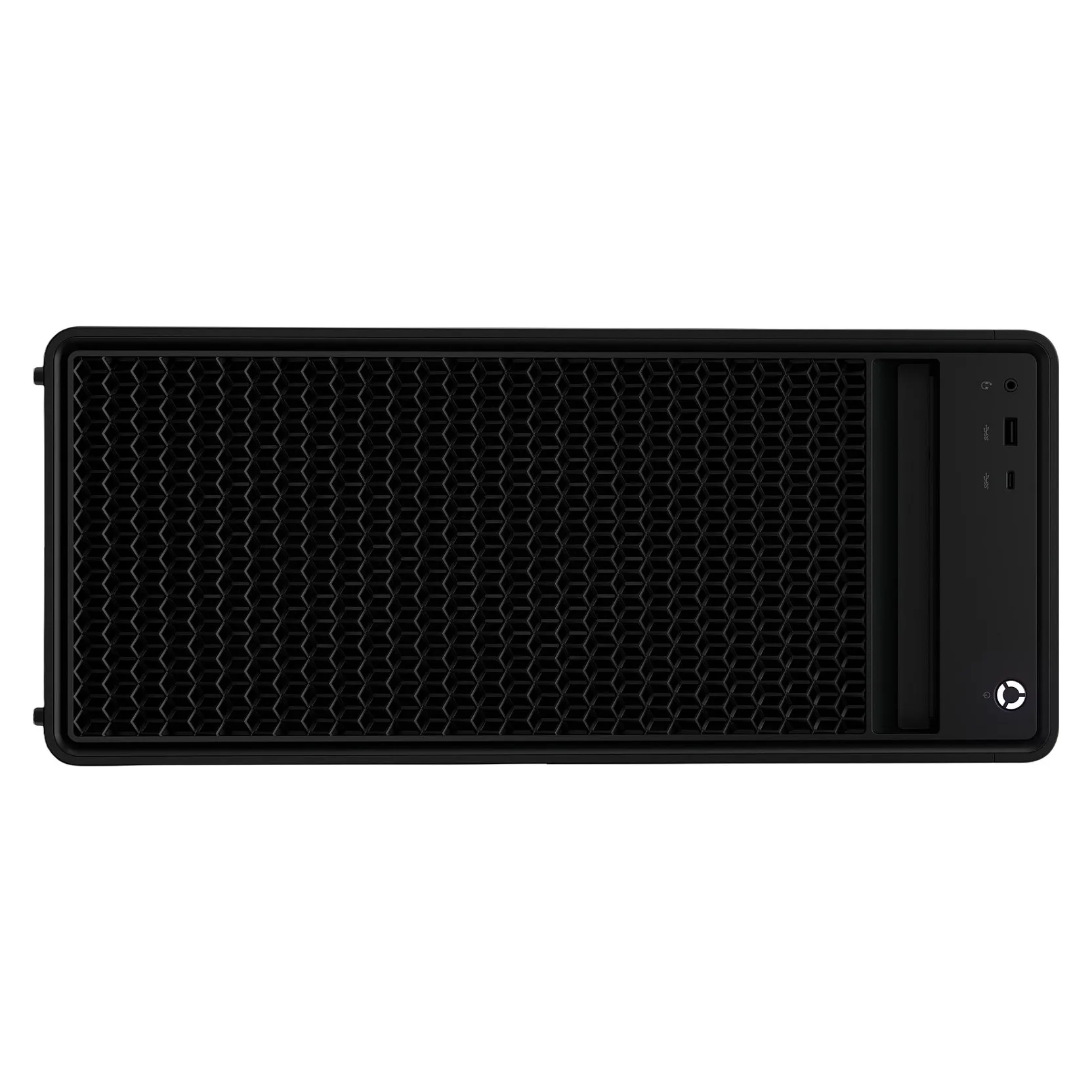

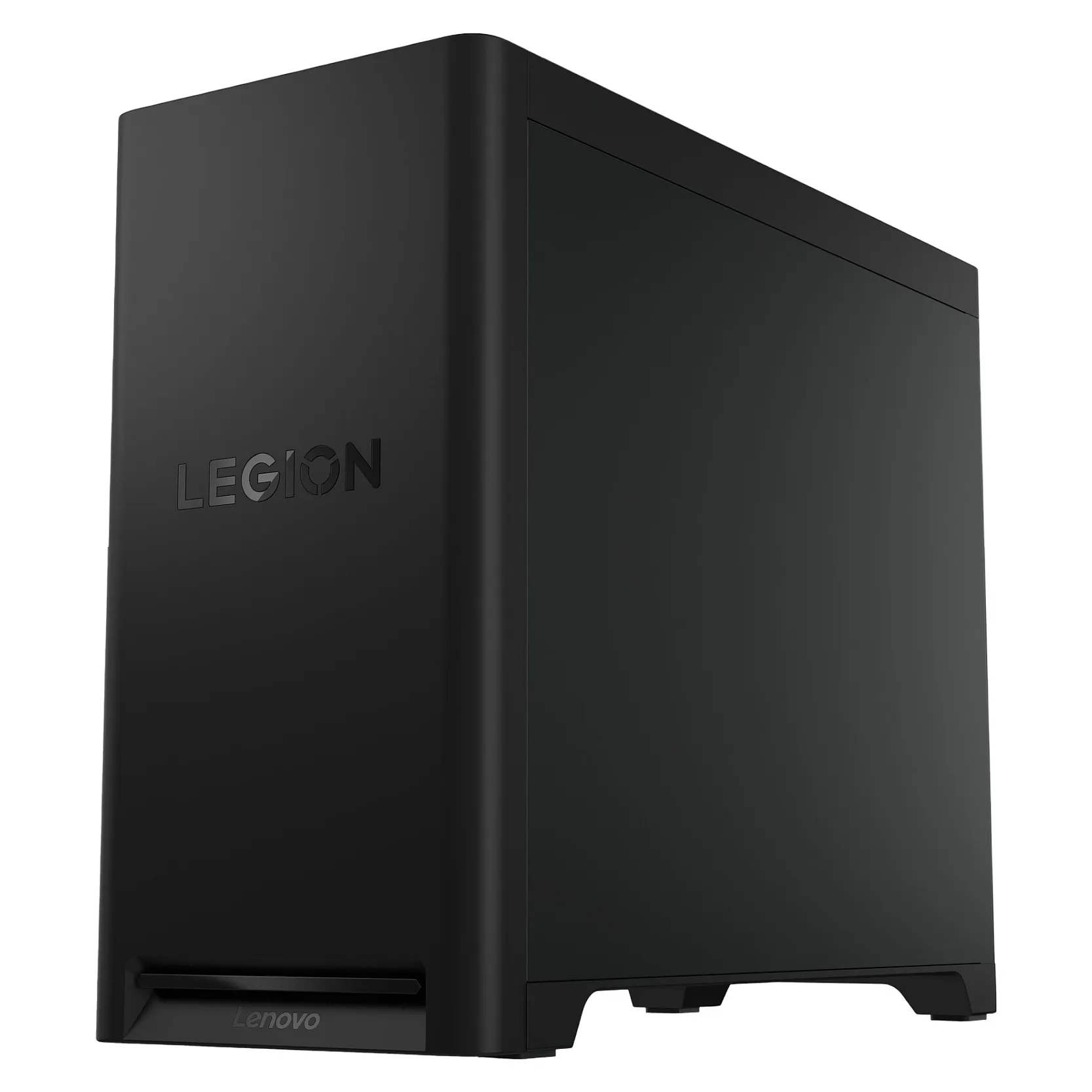

Lenovo Legion T5 30IAS10

Processor
Processor manufacturer: Intel
Processor family: Intel Core Ultra 5
Processor generation: Intel Core Ultra (Series 2)
Processor model: 225
Processor cores: 10
Processor threads: 10
Processor boost frequency: 4.9 GHz
Performance cores: 6
Efficient cores: 4
Performance-core Max Turbo Frequency: 4.9 GHz
Efficient-core Max Turbo Frequency: 4.4 GHz
Performance-core base frequency: 3.3 GHz
Efficient-core base frequency: 2.7 GHz
Processor cache: 20 MB
Processor cache type: Smart Cache
Processor base power: 65 W
Maximum turbo power: 121 W
Neural processor unit (NPU)
Neural processor unit (NPU): Intel AI Boost
Feature: Sparsity support
Feature: Windows Studio effects support
AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to: 23 TOPs
NPU performance up to: 13 TOPs
GPU performance up to: 4 TOPs
Memory
Internal memory: 32 GB
Maximum internal memory: 64 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 2 x 16 GB
Memory slots: 4x DIMM
Memory clock speed: 5600 MHz
Storage
Total storage capacity: 1 TB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 1 TB
Number of SSDs installed: 1
SSD capacity: 1 TB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
Graphics
Feature: Discrete graphics card
Discrete GPU manufacturer: NVIDIA
Feature: On-board graphics card
Discrete graphics card model: NVIDIA GeForce RTX 5060
Discrete graphics card memory: 8 GB
Discrete graphics memory type: GDDR7
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® Graphics
On-board graphics card model: Intel® Graphics
Performance
Motherboard chipset: Intel B860
Feature: Trusted Platform Module (TPM)
Product type: PC
Network
Feature: Ethernet LAN
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Antenna type: 2×2
Feature: Bluetooth
Bluetooth version: 5.4
Ports & interfaces
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Feature: Combo headphone/mic port
Power
Power supply: 500 W
Power supply input voltage: 100 – 240 V
Power supply input frequency: 50/60 Hz
Design
Chassis type: Tower
Colour name: Eclipse Black
Volume: 30 L
Product colour: Black
Software
Operating system architecture: 64-bit
Operating system language: German
Operating system installed: Windows 11 Home
Audio
Audio chip: Realtek ALC623
Audio system: High Definition Audio
Operational conditions
Operating temperature (T-T): 5 – 35 °C
Storage temperature (T-T): -40 – 60 °C
Operating relative humidity (H-H): 20 – 80%
Storage relative humidity (H-H): 10 – 90%
Operating altitude: 0 – 3048 m
Non-operating altitude: 0 – 12192 m
Weight & dimensions
Width: 211 mm
Depth: 490.4 mm
Height: 414 mm
Weight: 15 kg
Packaging data
Package width: 321 mm
Package depth: 596 mm
Package height: 549 mm
Package weight: 17 kg
Certificates
Certification: RoHS
